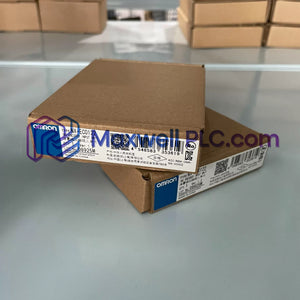

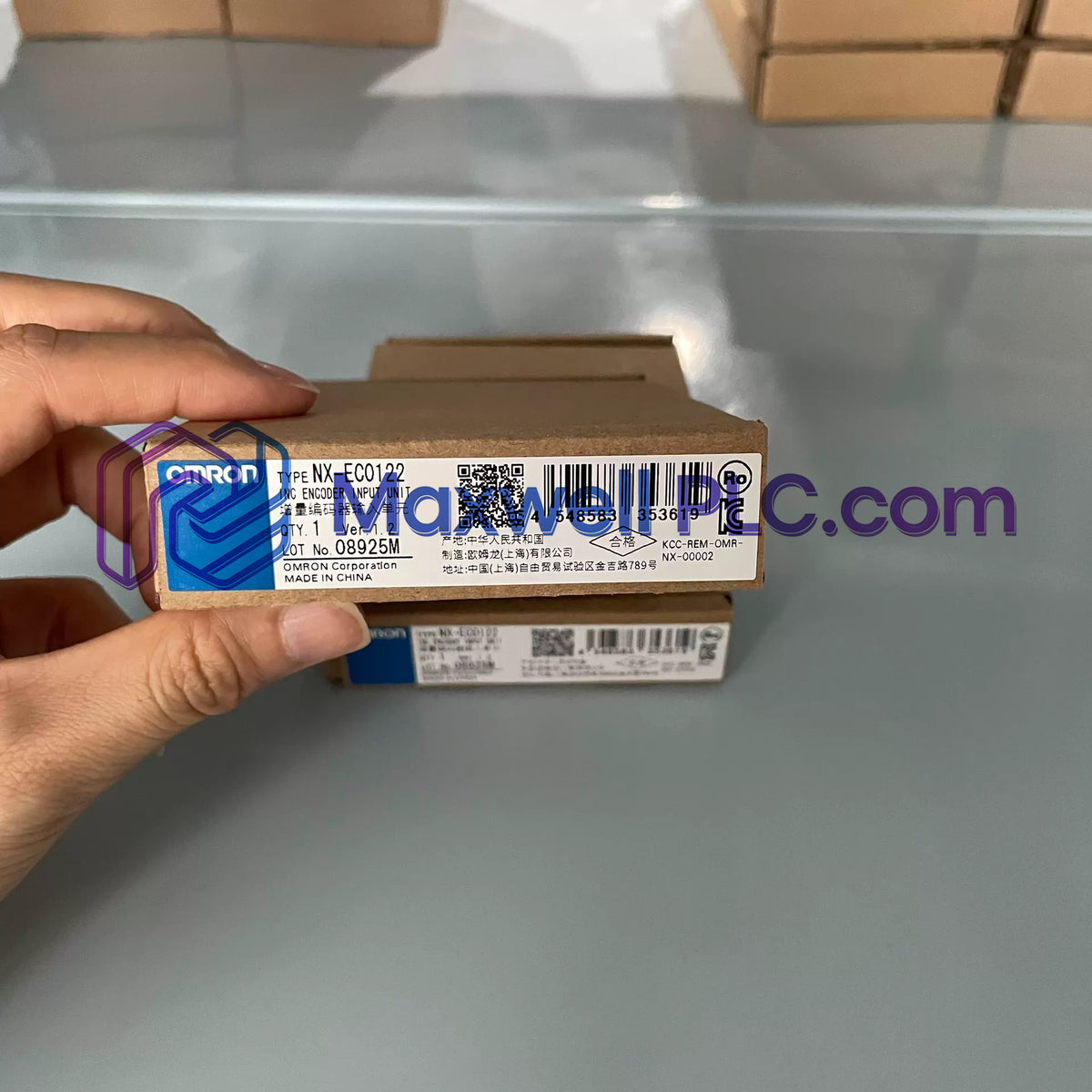

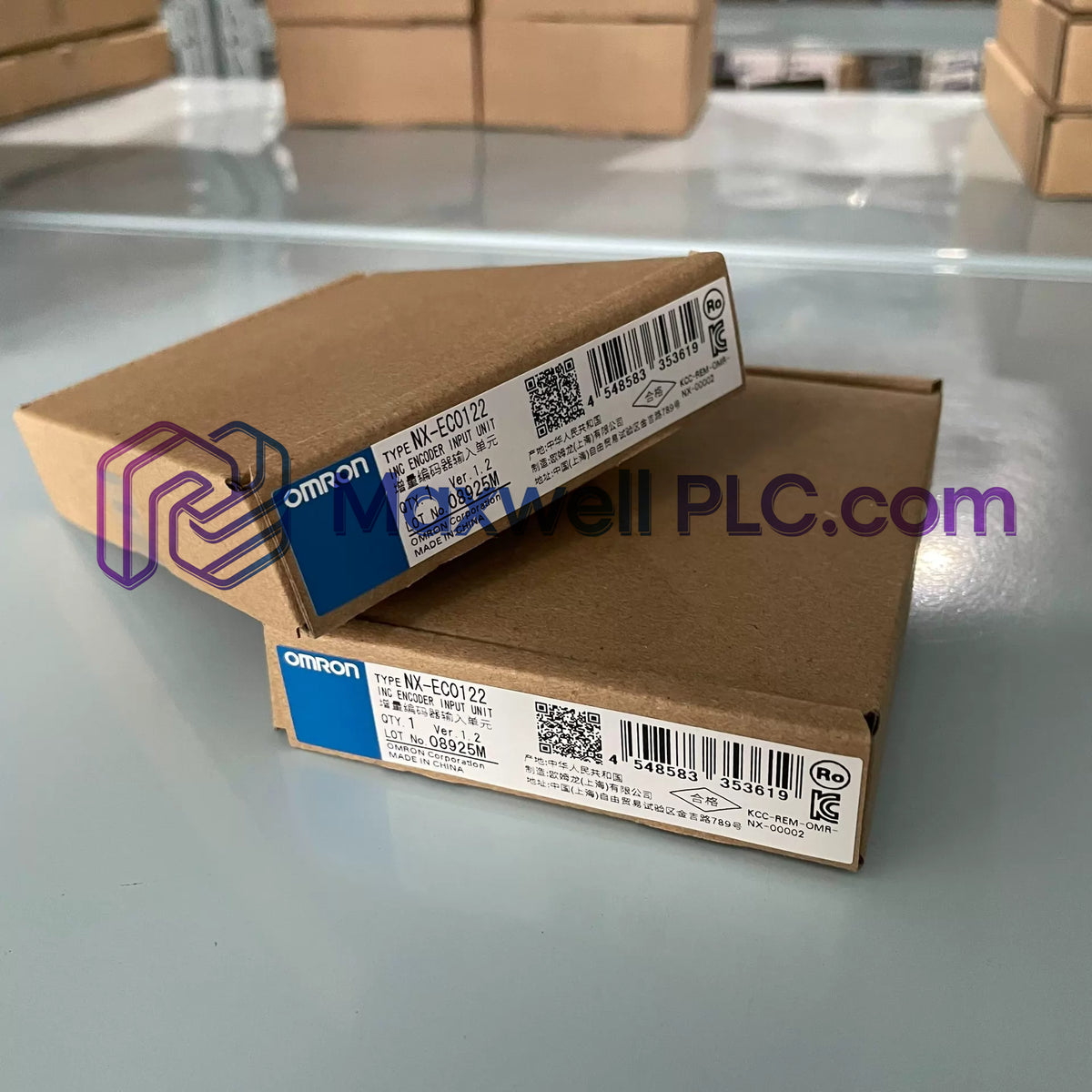

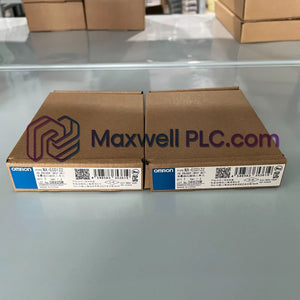

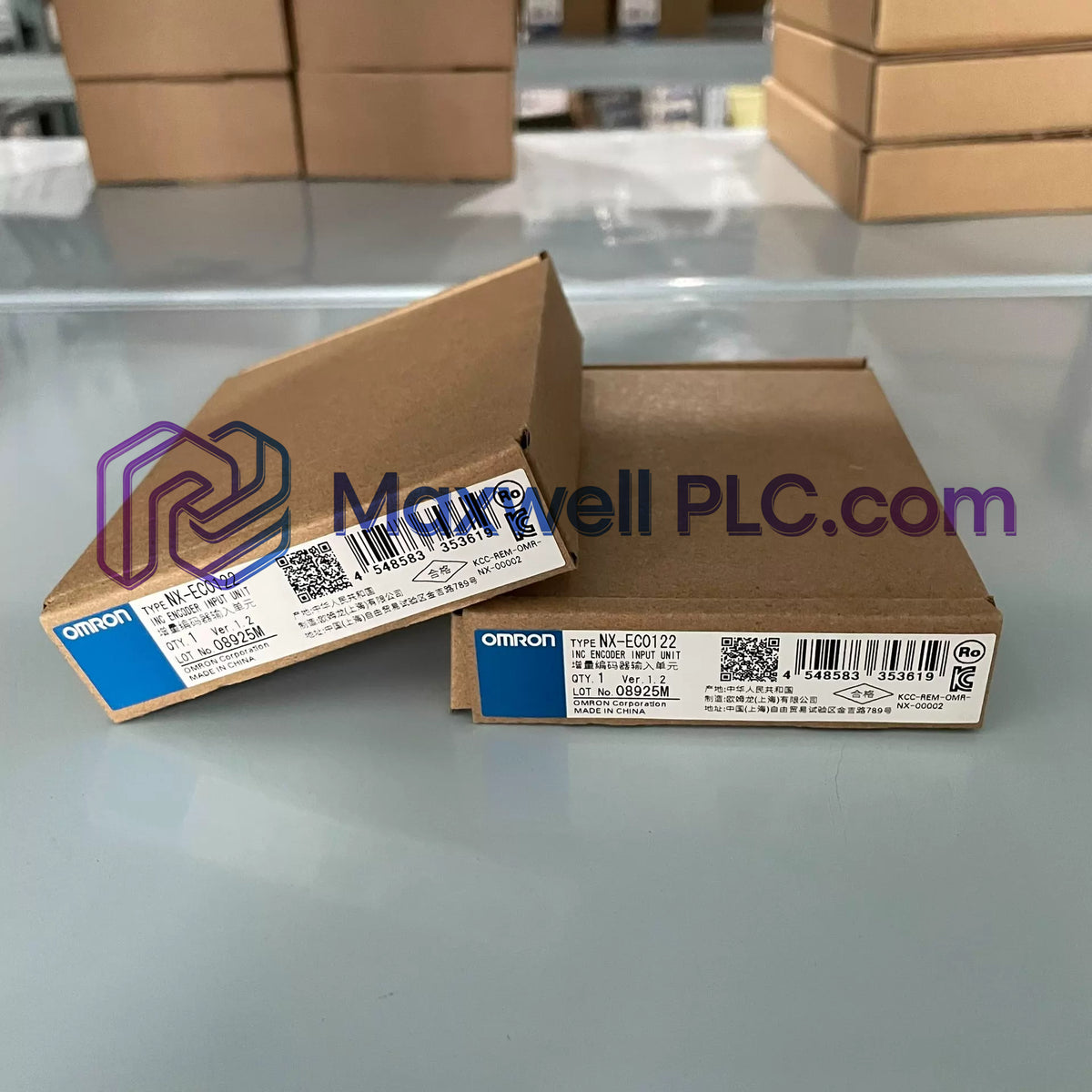

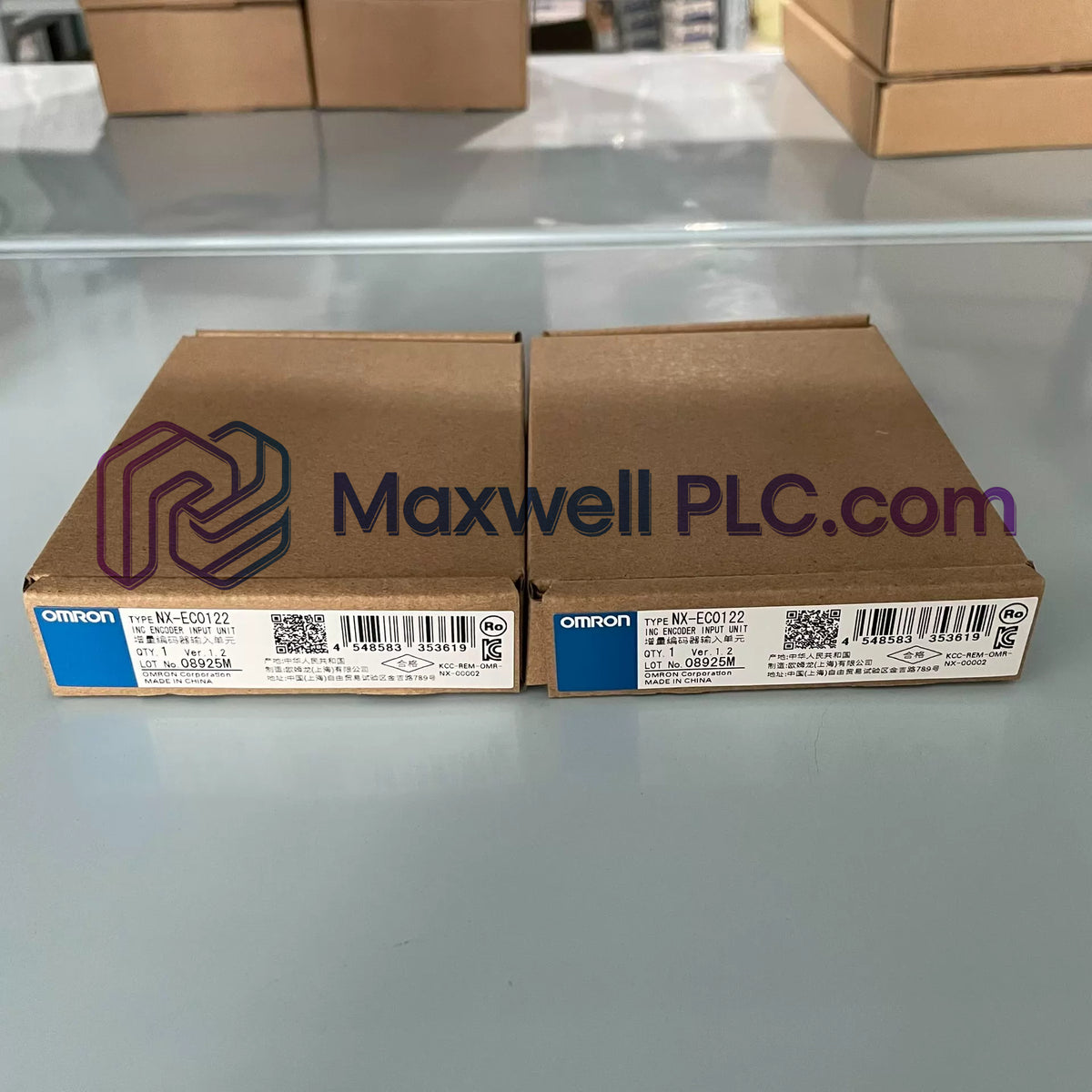

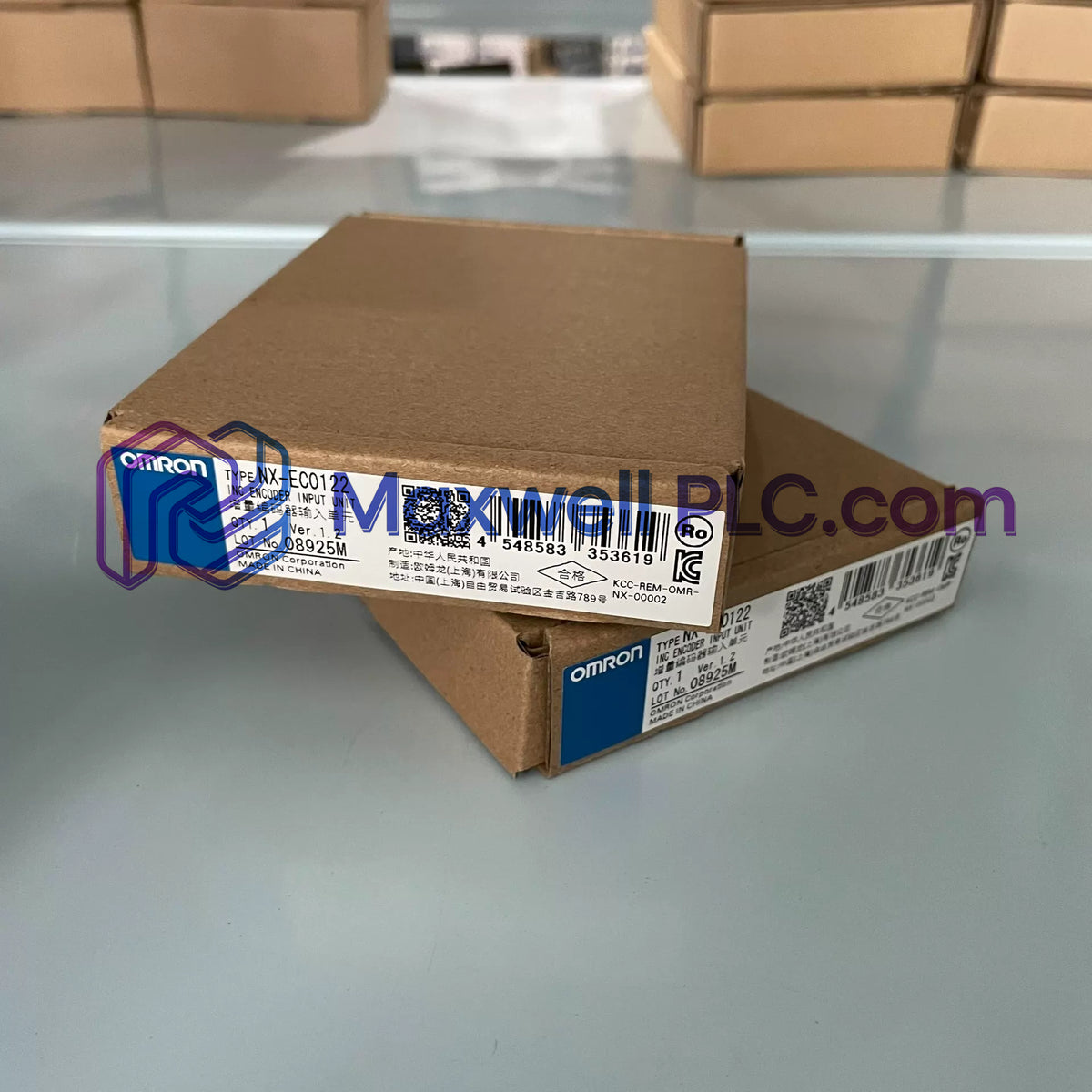

Configured for high-speed position tracking in NX I/O Bus automation setups, the Omron NX-EC0122 (NX-EC0122 Encoder Input Module) provides direct physical/electrical execution for single-channel incremental encoder signal processing.

Ordering Code & Nomenclature Structural Breakdown

• NX: Denotes the Omron NX series modular I/O platform designed for EtherCAT and EtherNet/IP bus couplers.
• EC: Designates high-speed position and encoder input signal processing modules.
• 0122: Specifies a single-channel incremental encoder interface utilizing 24 VDC PNP inputs with a maximum input frequency of 500 kHz.

Technical Physical & Electrical Specifications

High-Speed Backplane Bus Synchronization & Determinism

The NX-EC0122 interfaces directly with the NX bus backplane, transmitting high-frequency pulse counts to the primary motion controller within deterministic EtherCAT update cycles. Internal hardware latches pulse transitions up to 500 kHz without frame drop, maintaining exact time-stamped synchronization across multi-axis motion networks. Backplane firmware synchronization minimizes processing jitter during rapid acceleration and deceleration sequences.

Complete Scope of Delivery & Package Manifest

• 1 x Omron NX-EC0122 Encoder Input Module
• 1 x Detachable 16-pin Push-in Terminal Block
• 1 x Terminal Identification Label Strip
• 1 x Printed Industrial Installation Sheet

Mechanical Mounting & Wiring Specifications

• DIN Rail Interface: Mount vertically onto standard 35 mm DIN rail (TH35-7.5/TH35-15). Ensure top and bottom retaining clips snap securely into position.
• Terminal Wiring: Strip solid or ferruled wires to 10 mm. Insert conductors directly into the push-in terminals without tools. Use a flat-blade screwdriver (2.5 mm width) to release unferruled stranded wire.
• Shielding Protocol: Route encoder signal lines in shielded twisted-pair cables. Ground the cable shield at the dedicated functional ground terminal on the NX bus power supply module to prevent high-frequency noise interference.
• Separation Distance: Maintain a minimum physical clearance of 100 mm between encoder signal wiring and high-voltage power lines or variable frequency drive (VFD) output cables.

Hardware Operational Characteristics & Technical Directives

• How does the PNP encoder input channel process differential versus single-ended signals?

  The NX-EC0122 accepts 24 VDC PNP single-ended signals. Differential RS-422 signals are not natively supported and require external signal conditioning modules prior to terminal connection.

• What is the maximum permissible cable length between the incremental encoder and the module?

  The maximum recommended signal line length is 30 meters, provided low-capacitance shielded cables are used to limit signal attenuation at the maximum 500 kHz counting frequency.

• Can the detachable push-in terminal block be removed under power?

  No. Disconnect backplane power and field power before detaching the terminal block to prevent unexpected latch-up states or transient electrical damage to internal logic circuits.

• How are the IOV and IOG terminals utilized on the terminal block?

  The 4 IOV (V+) and 4 IOG (V-) terminals provide internal branch distribution for auxiliary field sensors and encoder power supply lines directly from the module interface.

• What signal processing mode should be configured for strict motion synchronization?

  Select Synchronous I/O refreshing mode in the controller configuration to tie encoder counter latching directly to the EtherCAT distributed clock (DC) cycle.

• What happens if the input frequency exceeds the 500 kHz limit?

  Exceeding 500 kHz results in pulse attenuation, missed counts, or position tracking errors without triggering an immediate hardware fault on the backplane bus.

• Does the NX-EC0122 support onboard digital outputs for high-speed cam switches?

  No. The NX-EC0122 contains zero pulse or digital output channels. Output processing must be routed via dedicated digital output modules over the backplane bus.

• Is functional safety or SIL rating applicable to the NX-EC0122 module?

  No. The NX-EC0122 is a standard position-feedback card and carries no SIL safety certification according to IEC 61508.
