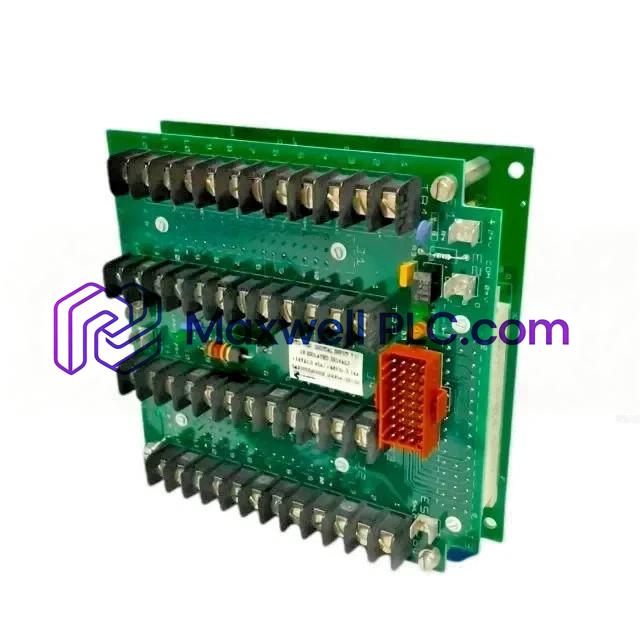

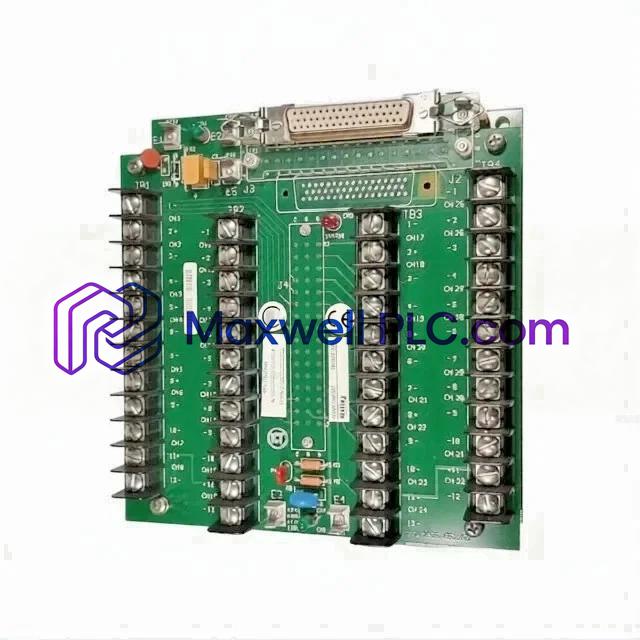

The ABB NTU-7Q1, also cataloged as the NTU-7Q1 Digital Output Module, operates as a dedicated hardware component for discrete load switching and relay contact execution within Bailey Infi 90 systems. Driven by a 24 V DC control-side input, the module controls up to 8 independent channels rated at 1 A resistive load per channel across output voltages up to 230 V AC or 30 V DC.

Hardware Variant & Channel Configuration

• NTU-7Q1: Standard base module configuration providing 8 discrete switching channels.
• Control Circuit (Input): Powered via 24 V DC system logic level.
• Load Circuit (Output): Switching capacity supporting up to 230 V AC / 30 V DC with 1 A resistive contact rating per channel.

Technical & Environmental Specifications

Deterministic IO Processing & Backplane Performance

The NTU-7Q1 module interfaces directly with Infi 90 master units to maintain high backplane bus communication velocity and continuous I/O density scaling. Contact actuation circuits process state updates with minimal switching latency, preventing cycle time degradation during heavy discrete logic operations. The board architecture guarantees complete firmware flash compatibility with main rack controllers, suppressing voltage spikes across internal logic interfaces.

Packaging Assembly & Contents

• 1 x ABB NTU-7Q1 Digital Output Module
• Factory anti-static protective box packaging

Field Installation & Safety Directives

• Power Isolation: De-energize control-side 24 V DC power and load-side voltages prior to removing or seating the module in the chassis slot.
• Inductive Load Suppression: Install external flyback diodes across DC inductive loads or RC snubbers across AC solenoids to protect output relay contacts.
• Cabinet Ventilation: Maintain clear vertical airflow clearance above and below the module rack slot to ensure proper heat convection up to +70 deg C.
• Terminal Wiring Separation: Route 230 V AC load circuits away from low-voltage 24 V DC logic control cables inside wiring ducts to avoid EMI coupling.

Engineering Support FAQ

• What is the maximum switching voltage supported by the NTU-7Q1 load side?

  The load side contacts support output switching voltages up to 230 V AC or 30 V DC across all 8 channels.

• Can the NTU-7Q1 module be hot-swapped while field loads are energized?

  Live insertion or removal is not recommended; de-energize load and backplane power to prevent arc damage.

• What current rating applies to each individual output channel?

  Each channel features a contact rating of 1 A resistive load at 230 V AC or 30 V DC.

• Does the module require an external control voltage supply?

  Yes, the control side of the switching circuit requires an internal system voltage of 24 V DC.

• What is the maximum operating altitude without thermal derating?

  The module operates at full performance specs at altitudes up to 2000 m above sea level without derating.

• What thermal parameters govern operation inside sealed cabinets?

  The module withstands continuous field operating temperatures ranging from -25 deg C to +70 deg C.

• How does inductive switching impact output contact lifetime?

  Unsuppressed inductive loads cause arc erosion on contacts; suppression circuits must be installed across external field coils.

• Are channel status indicators available on the module front panel?

  Yes, front panel LED indicators display active output states for visual diagnostics during commissioning.
