Product Overview

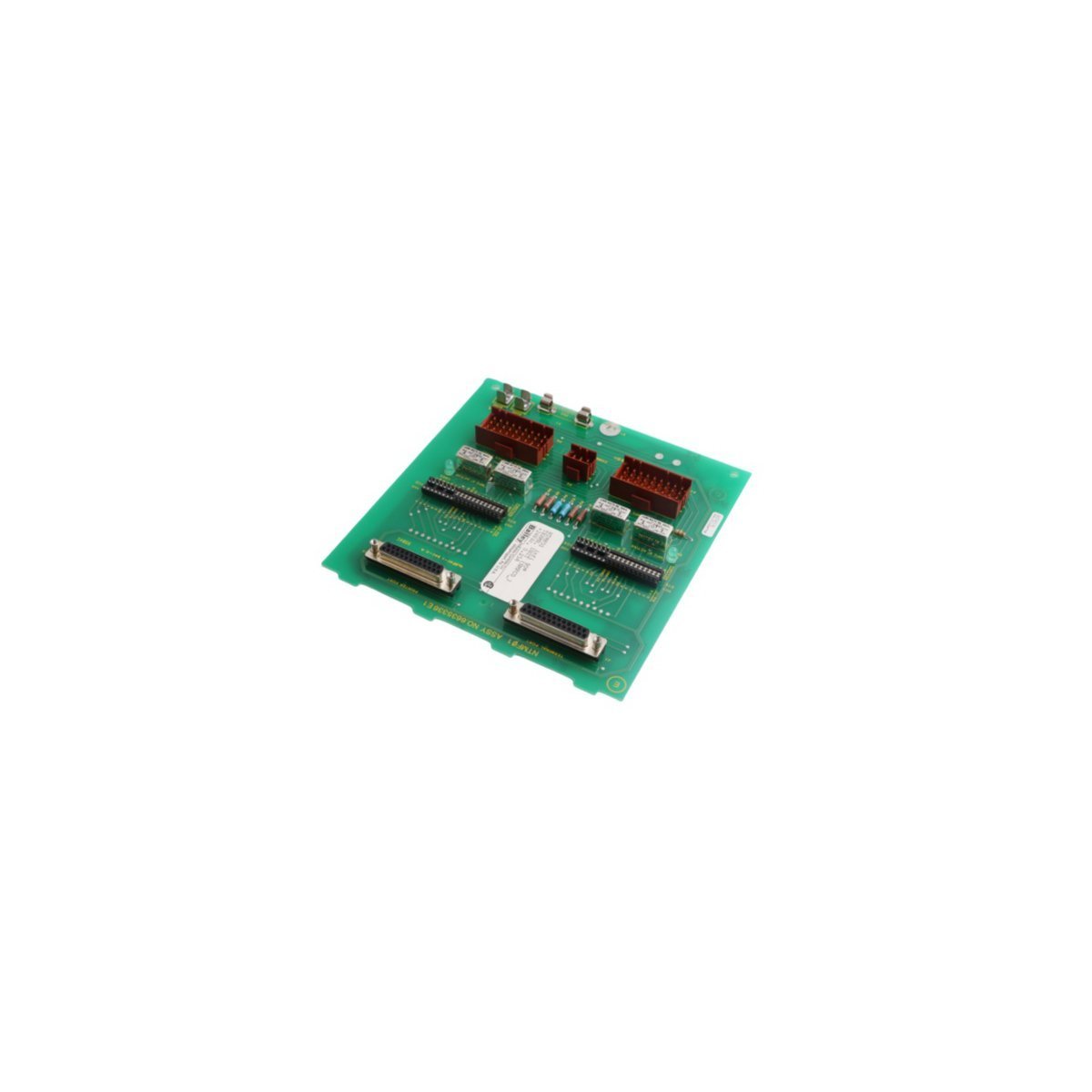

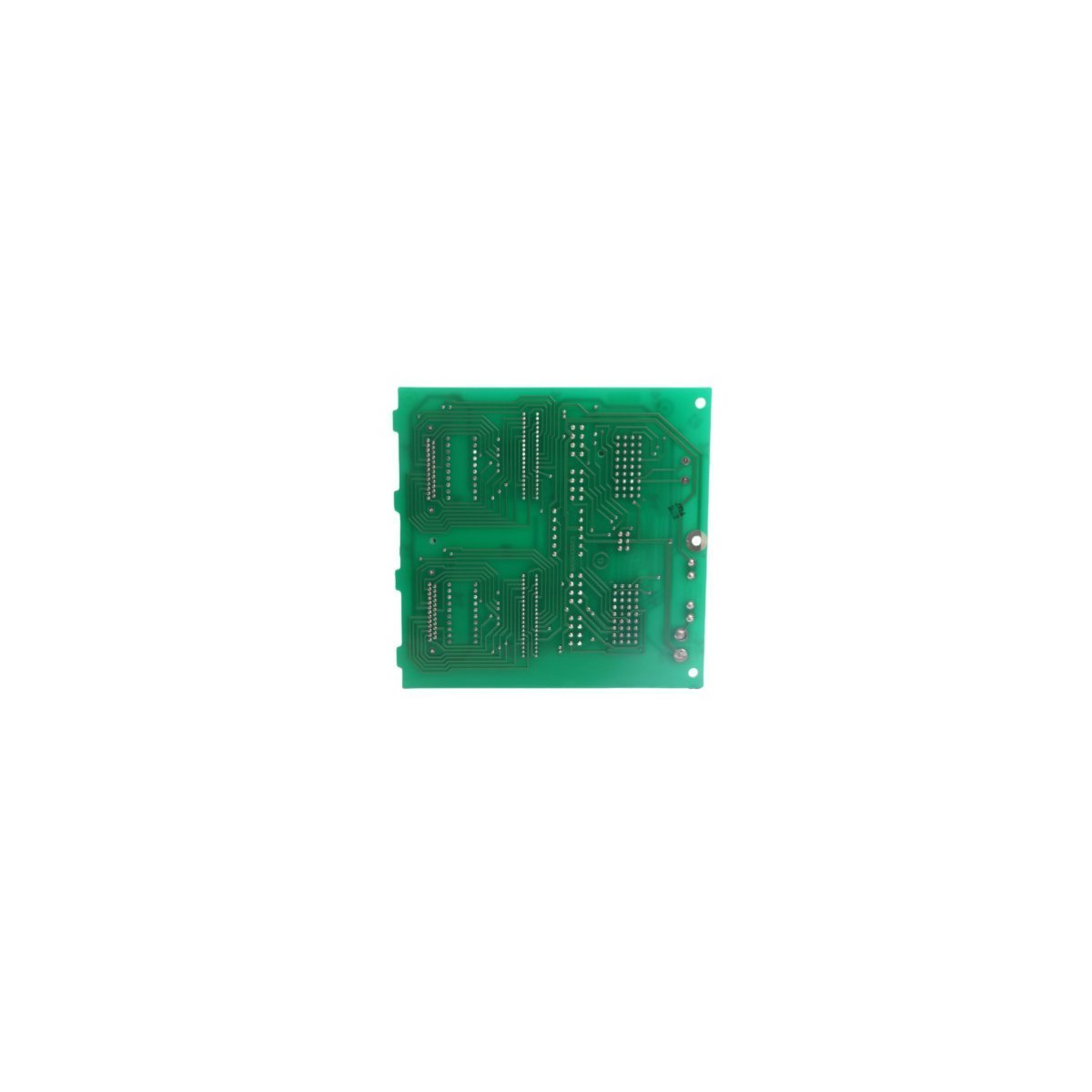

The ABB NTMF01 is a specialized Multi-Function Controller Termination Unit designed for the legacy yet robust Bailey Net 90 and Infi 90 Distributed Control Systems (DCS). This module serves as the primary physical interface for serial communication, bridging the gap between processing controllers and external operator interfaces or peripheral devices. Its slim-profile architecture is engineered to provide high-integrity signal routing while maintaining a minimal footprint within the control cabinet. By centralizing serial connections, the NTMF01 ensures organized cable management and reliable data throughput, which are essential for maintaining the operational continuity of vintage and modernized control architectures.

Essential Hardware Parameters

• Model Designation: NTMF01

• Module Function: Serial Communication Termination

• Compatible Platforms: Bailey Controls Infi 90 / Net 90

• Interface Configuration: Dual RS-232-C Serial Ports

• Station Linkage: Dedicated Control Station Serial Connection

• Mass: 0.26 kg

• Dimensions: 18.2cm x 17.7cm x 1.8cm

• Production Origin: Sweden

• Operational Lifecycle: Active / Supported

Industrial Implementation Scenarios

The NTMF01 is widely utilized in large-scale industrial plants that rely on the Bailey Infi 90 ecosystem for continuous process control.

• Power Plant Control Rooms: Connecting manual/automatic control stations to the primary multi-function controllers for manual override capabilities.

• Petrochemical Processing: Interfacing local monitoring devices and diagnostic tools with the DCS backplane.

• Legacy System Modernization: Serving as a reliable termination point when integrating modern Ethernet routers or protocol converters into existing Net 90 frames.

• Pulp and Paper Mills: Managing serial data exchange in high-vibration environments where termination stability is critical for sensor accuracy.

Engineering Design and Connectivity

The NTMF01 is built with high-grade traces and robust connectors to prevent signal degradation over long-distance serial runs. It simplifies the wiring complexity of the Multi-Function Controller by providing clearly defined ports for RS-232-C communication, which supports various baud rates required by legacy industrial peripherals. The board's design prioritizes ease of access for maintenance personnel, allowing for quick cable swaps or signal testing without disrupting the entire controller rack. Its compact nature allows for efficient heat dissipation, ensuring that the termination electronics remain stable even in high-density cabinet configurations.
