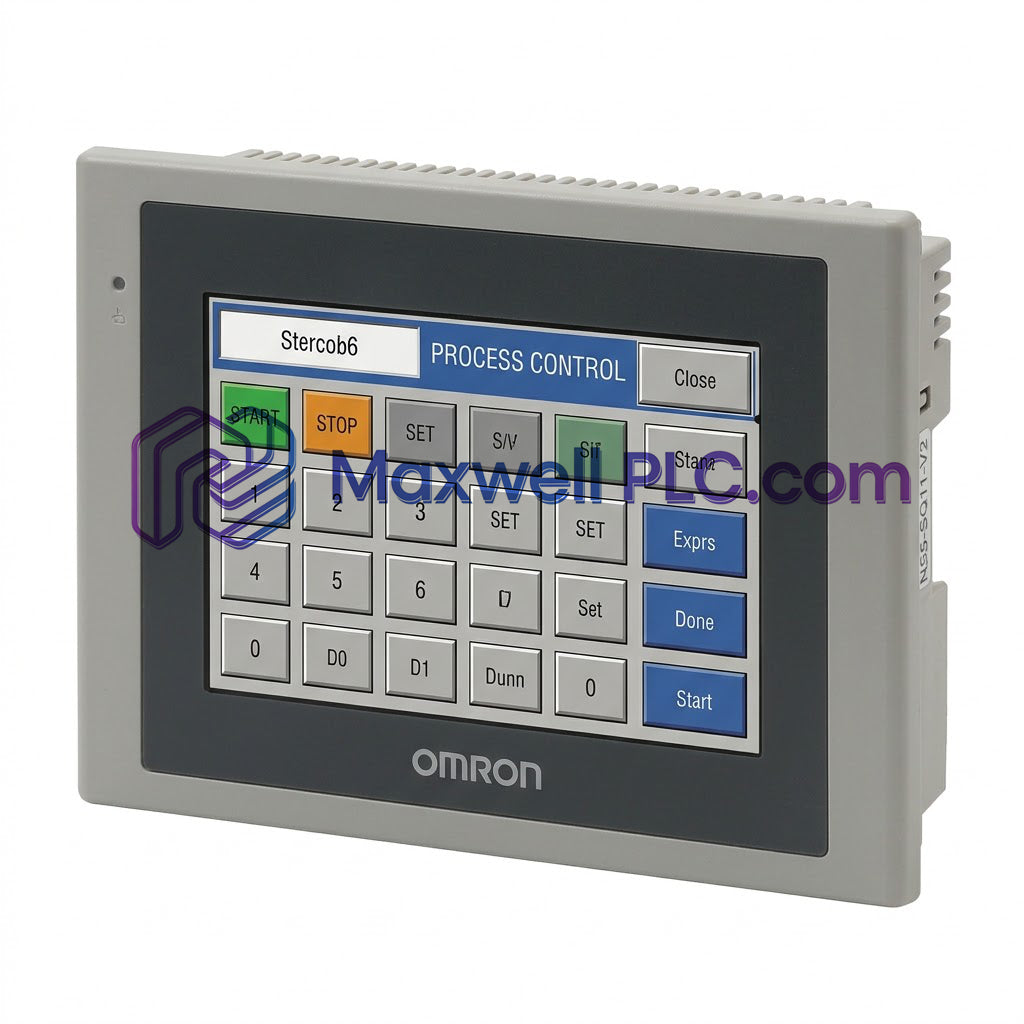

NS5-SQ10-V2 Omron Interactive Display Panel NS Series
NS5-SQ10-V2 Omron Interactive Display Panel NS Series
NS5-SQ10-V2 Omron Interactive Display Panel NS Series
Omron

NS5-SQ10-V2 Omron Interactive Display Panel NS Series

SKU: NS5-SQ10-V2
Categories : All Products
In Stock
  • Dimensions: 19.5 cm x 14.2 cm x 5.4 cm
  • Country of origin: Japan
  • Payment: T/T, Western Union
  • Shipping port: Xiamen
1 years warranty
Delivery time: 3-7 business days
Free 30 days return

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

The Omron NS5-SQ10-V2, also cataloged as the NS5-SQ10 Interactive Display Panel, operates as a dedicated hardware component for direct operator interface control and real-time register monitoring within SYSMAC PLC networks.

Part Number Code Structure

  • NS5: Defines the 5.7 inch display chassis envelope.
  • S: Specifies STN color LCD panel technology.
  • Q: Designates QVGA matrix grid resolution (320 x 240 pixels).
  • 10: Identifies dual RS-232C serial communication ports with standard expansion slot interface.
  • V2: Revision indicator supporting extended internal memory allocation and firmware flash compatibility.

Technical Parameters Matrix

Parameter Specification
Model NS5-SQ10-V2
Brand Omron
Origin Japan
Weight 1.0 kg
Shipping Dimensions 19.5 cm x 14.2 cm x 5.4 cm
Voltage Rating 24 VDC
Power Consumption 15 W max
Battery Life 5 years at 25 deg C
Operating Temp 0 to 50 deg C
Operating Environment Non-corrosive gas atmosphere

Bus Communication Latency and Firmware Integrity

The unit manages high-speed register updating across serial channels to ensure deterministic backplane bus communication velocity with linked programmable controllers. Non-volatile internal memory architecture preserves full firmware flash compatibility, preventing video buffer execution latency during intensive I/O density scaling routines.

Standard Shipping Package

  • 1 x NS5-SQ00 / NS5-SQ10 Series Display Unit
  • 4 x Panel Mounting Brackets
  • 1 x Removable 3-pin DC Power Plug
  • 1 x Oil-Resistant Synthetic Bezel Gasket

Physical Mount and Electrical Installation

  • Prepare enclosure cutout dimensions of exactly 184 mm horizontal by 131 mm vertical.
  • Align the synthetic rubber gasket into the front bezel channel to fulfill IP65 front panel enclosure requirements.
  • Secure panel into enclosure cutout using 4 mounting brackets, torquing screws to 0.5 N m to 0.6 N m.
  • Wire 24 VDC power conductors (AWG 14 to AWG 22) into the 3-pin power connector observing correct polarity.
  • Maintain a clear air gap of at least 100 mm behind rear panel ventilation slots for convective cooling.

Technical Performance FAQs

  • What is the nominal operational backup life of the internal clock battery?

    The internal lithium coin cell preserves memory registers and real-time clock data for 5 years under standard 25 deg C ambient conditions.

  • Which serial communication protocols are executed through the onboard DB9 ports?

    The unit executes Omron Host Link, 1:N NT Link, and high-speed 1:1 NT Link serial communications over RS-232C interfaces.

  • What operational atmospheric limits must be maintained at the installation site?

    The ambient atmosphere must remain strictly free from corrosive gases, conductive chemical dust, and organic solvent vapors.

  • How are user project memory files loaded into the unit without an Ethernet port?

    Screen transfer operations occur via RS-232C serial point-to-point connections or through a CompactFlash memory card in the rear slot.

  • What voltage input range is permitted for continuous 24 VDC operation?

    The integrated power supply operates across an allowable DC voltage window of 20.4 VDC to 27.6 VDC.

  • What grounding specification prevents signal interference on serial bus lines?

    Connect the functional ground terminal pin directly to a Class D dedicated earth ground (under 100 ohms resistance) using AWG 14 wire.

  • How is the hardware diagnostic menu accessed during unit power-up?

    Press two opposing diagonal corners of the touch screen matrix simultaneously during initialization to launch the setup menu.

  • What ingress protection level applies to the front user control surface?

    The installed front bezel and touch screen assembly comply with IP65 ingress protection limits when properly installed with its gasket.
