Product Overview

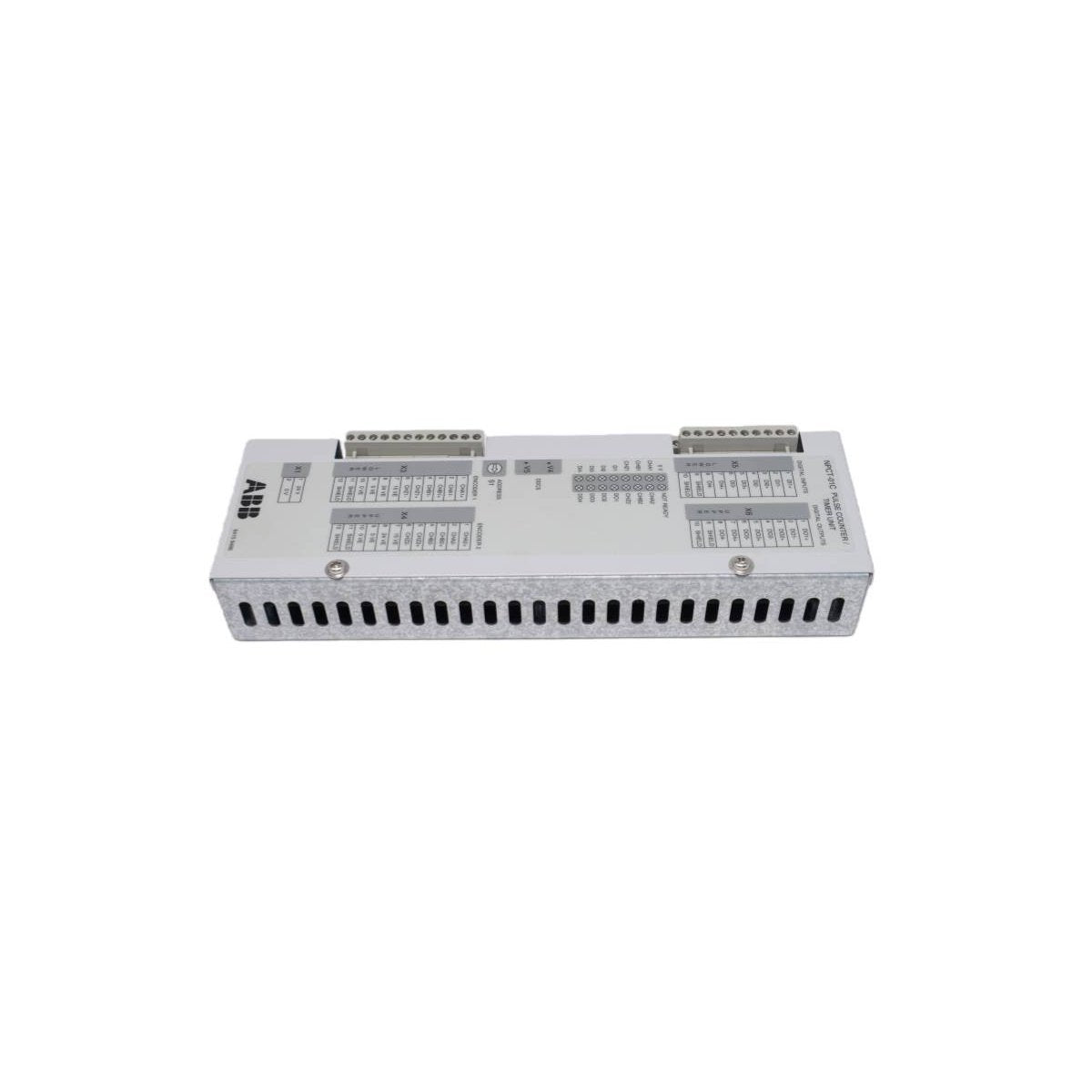

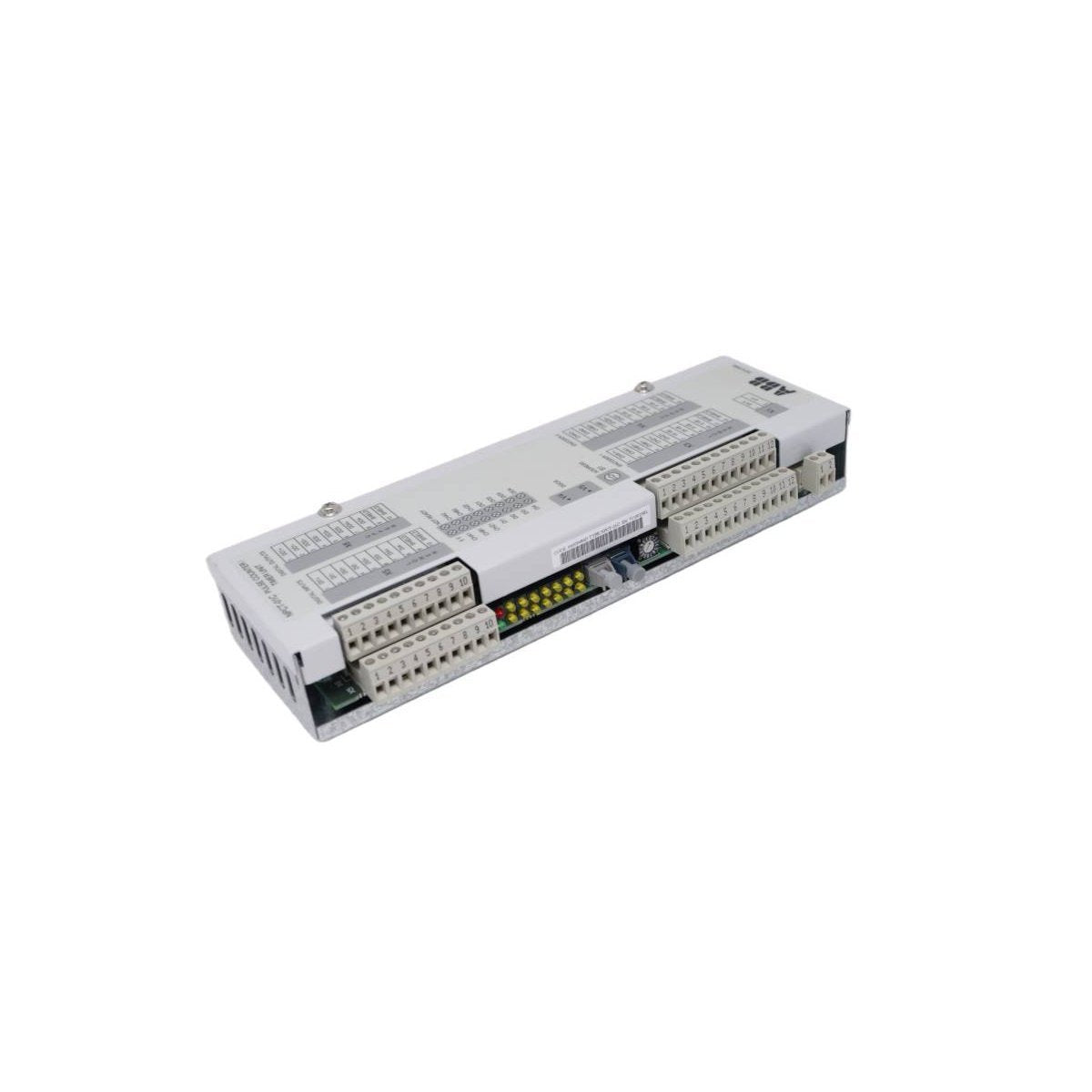

The ABB NPCT-01C (order number 64009486) is a pulse counter and timer module used in ABB automation platforms where accurate event counting and time-based control functions are required. In a control cabinet, the unit is typically applied to capture high-frequency pulse trains from field devices and to generate timing signals used by control logic, sequencing, and diagnostics.

This module is selected in systems that need consistent counting accuracy for production monitoring and motion-related feedback, while also supporting timer-based functions for process steps, delays, and interval measurements.

Technical correction note
The source text contains conflicting logistics data (mentions 0.8 kg and different dimensions). The product header values are used below. Country-of-origin statements listing multiple countries are not confirmed and have been removed. “Ethernet router” is not a function of this module.

Key Technical Characteristics

Typical signal use (application dependent)

• Counting digital pulses from sensors such as encoders, flow/quantity pulse outputs, or tachometer-type devices

• Timing functions for sequencing, dwell periods, delay-on / delay-off operations, and interval measurement

• Interface to controller logic for production counters, rate calculations, and event logging (implementation depends on the host system and configuration)

Integration considerations

• Confirm input signal type and electrical levels required by the installed system

• Verify module addressing, configuration parameters, and scan/update requirements in the engineering tool

• Validate noise mitigation practices (shielding, grounding, routing) for pulse signals to avoid miscounts in electrically noisy cabinets

Industrial Applications

Common industrial use cases include:

• Packaging and assembly lines for part counting, cycle tracking, and reject timing windows

• Process plants using pulse-output flowmeters or totalizers for batching and consumption measurement

• Material handling systems where encoder pulses are used for speed feedback and position-related timing

• Utilities and rotating equipment auxiliary systems requiring pulse-based RPM or event monitoring (when implemented in the control design)

Service guidance

• Match the full model string NPCT-01C 64009486 against the existing installed unit before replacement

• After replacement, confirm counting accuracy using a known pulse source and verify timer routines through the site FAT/SAT checklist
