Product Overview

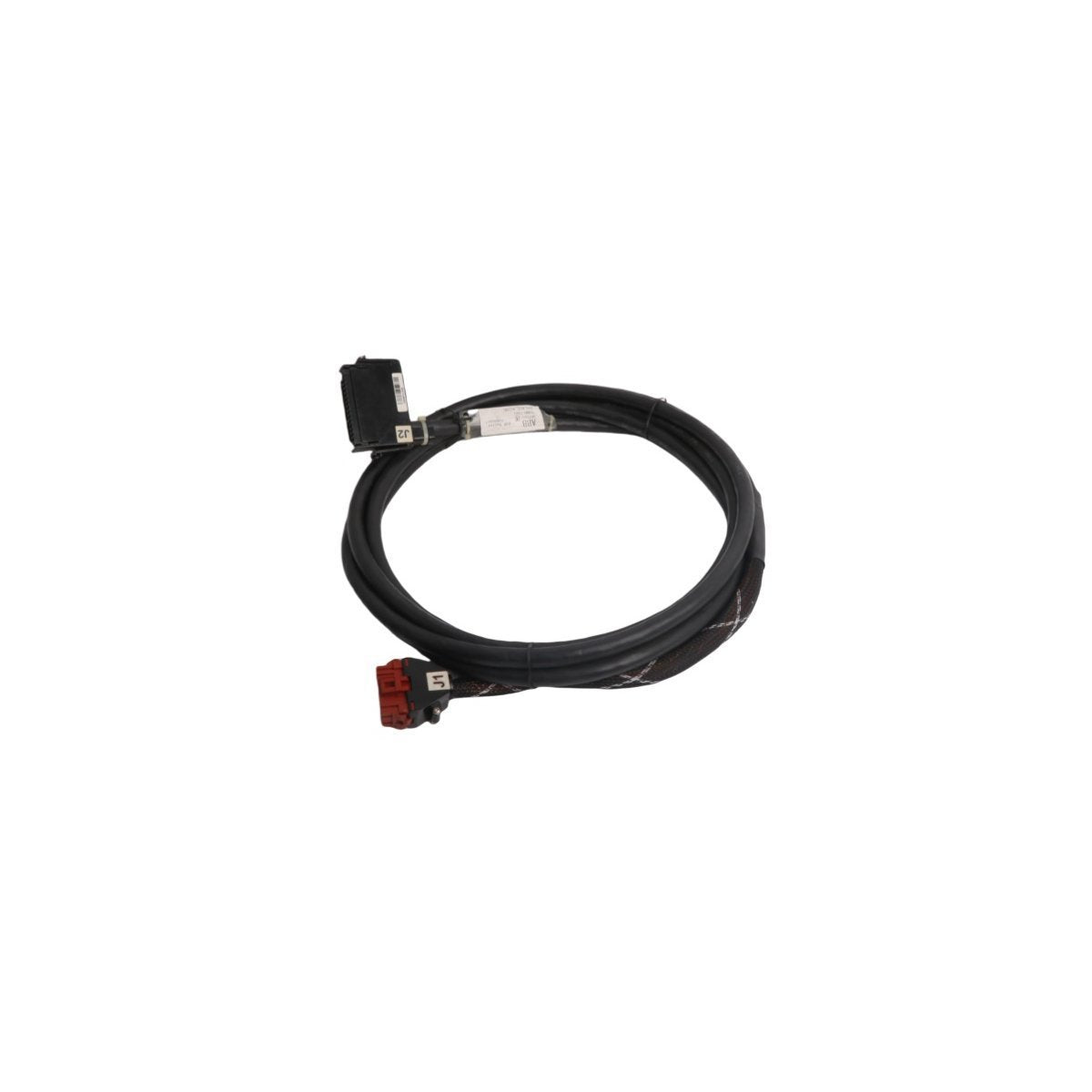

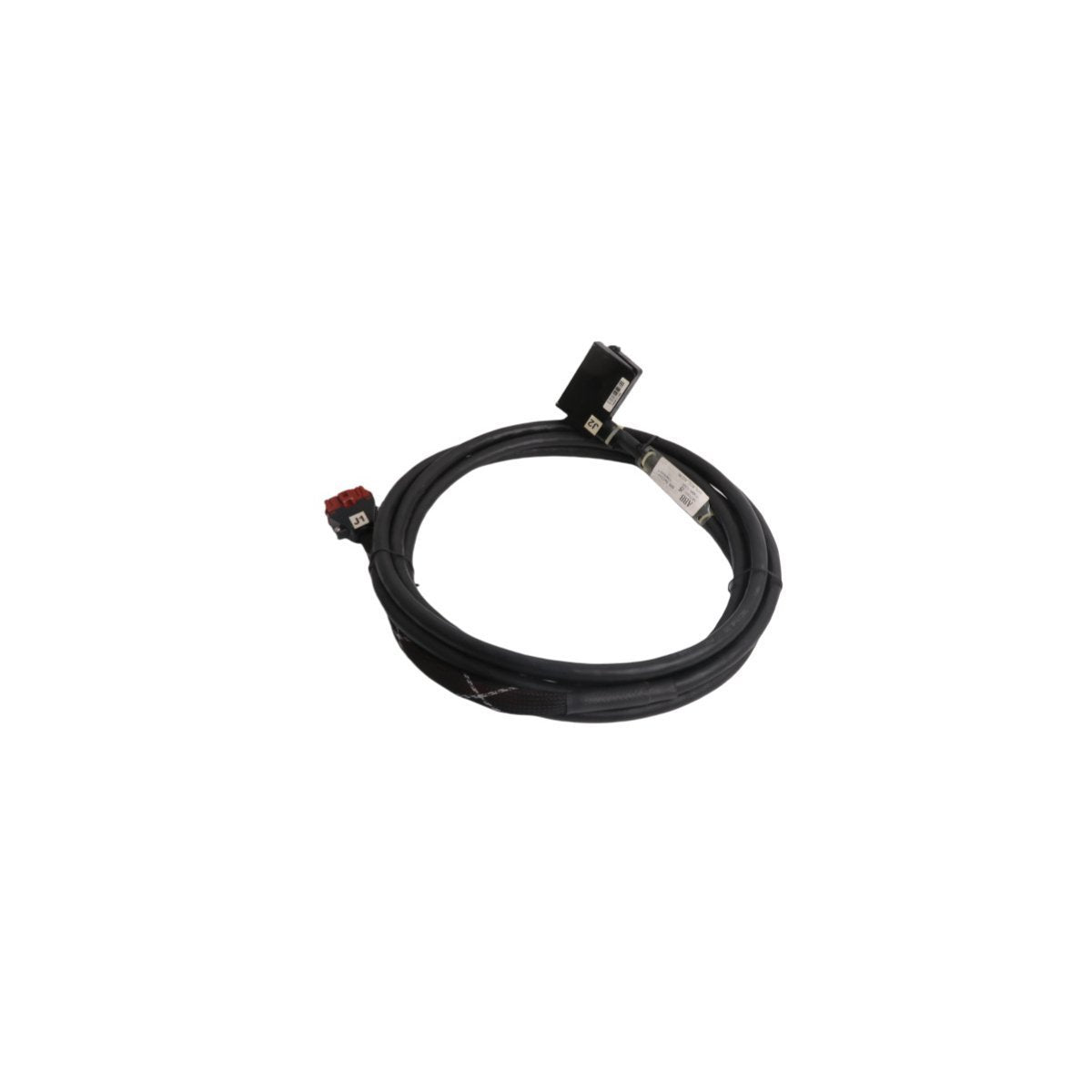

The NKTU01-15 is a specialized 15-foot interconnection cable engineered for the ABB Bailey Infi 90 and Net 90 Distributed Control Systems (DCS). This mission-critical component provides the vital electrical link between I/O modules and their respective Termination Units (TUs). Designed to facilitate high-integrity signal routing, the cable ensures that field data is transmitted with minimal attenuation or interference. Its heavy-duty construction is specifically tailored to the requirements of the Harmony Rack architecture, allowing for reliable connectivity in complex, multi-cabinet control environments.

Technical Construction and Hardware Performance

This cable assembly is manufactured to stringent industrial standards to ensure long-term signal stability and personnel safety.

• Conductor Material: High-purity copper alloy for optimized electrical conductivity.

• Insulation Class: Rated for Class 1 environments, providing high-tier dielectric strength.

• Cable Length: 15 feet (approximately 4.57 meters) for versatile cabinet-to-cabinet routing.

• Thermal Endurance: Rated for continuous operation between -40°C and +85°C.

• Shielding: Integrated protection to mitigate EMI/RFI interference in high-voltage industrial zones.

• Mechanical Interface: Precision-molded connectors designed for secure, vibration-resistant seating.

• Total Weight: 1.12 kg.

• Physical Profile: 36cm x 10cm x 35cm (shipping dimensions).

Industrial Deployment Scenarios

The NKTU01-15 cable is a standard requirement in large-scale Bailey Infi 90 installations found in power generation and heavy process industries. It is primarily used to bridge the gap between rack-mounted control electronics and the field wiring termination points, making it essential for both system expansions and the maintenance of legacy Net 90 architectures. In thermal power plants, the cable’s wide temperature rating allows it to perform reliably in environments near steam turbines or boilers where ambient heat fluctuates. Its flexibility and 15-foot reach provide automation engineers with the necessary slack for organized cable management and easier access during routine diagnostic inspections in high-density DCS cabinets.
