Product Overview

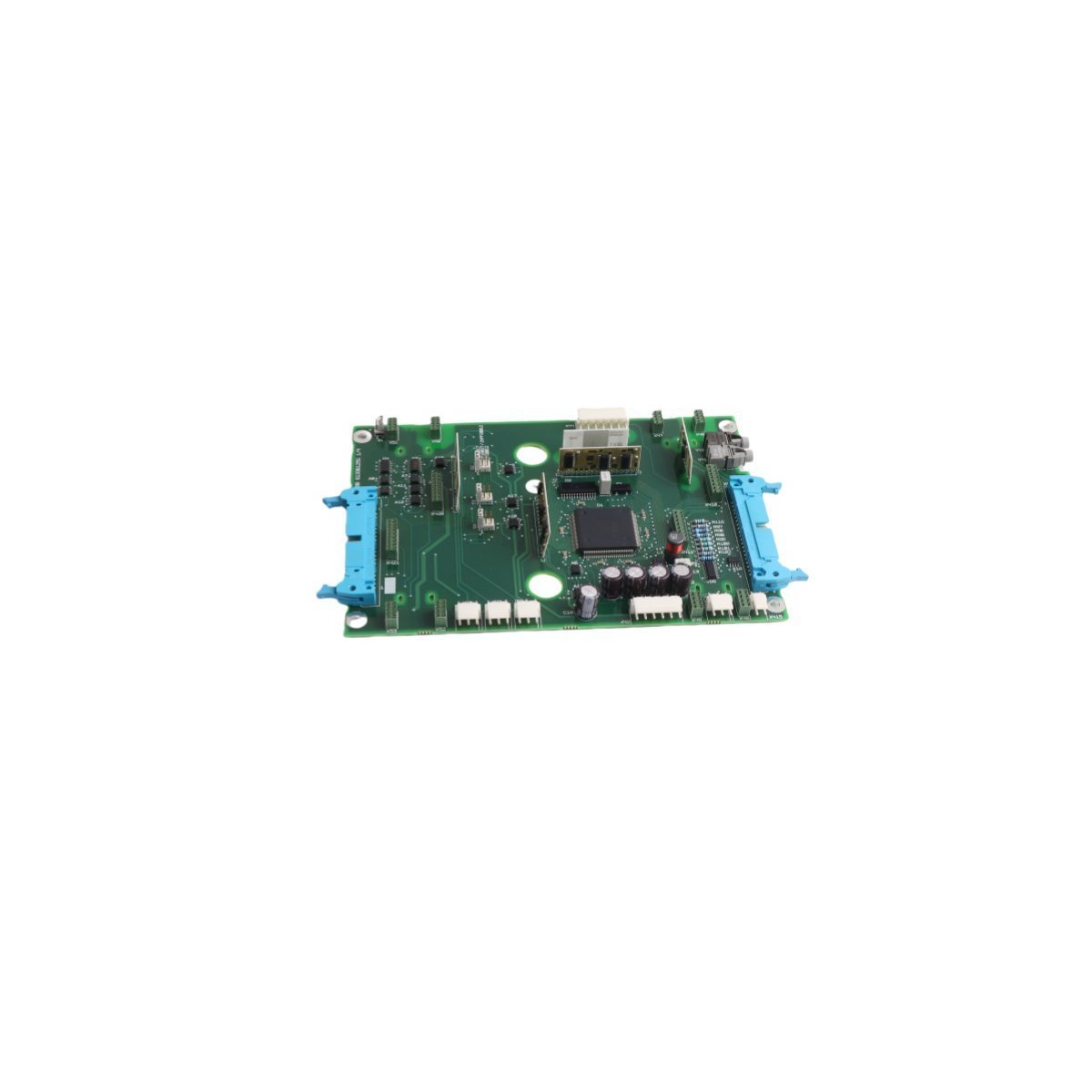

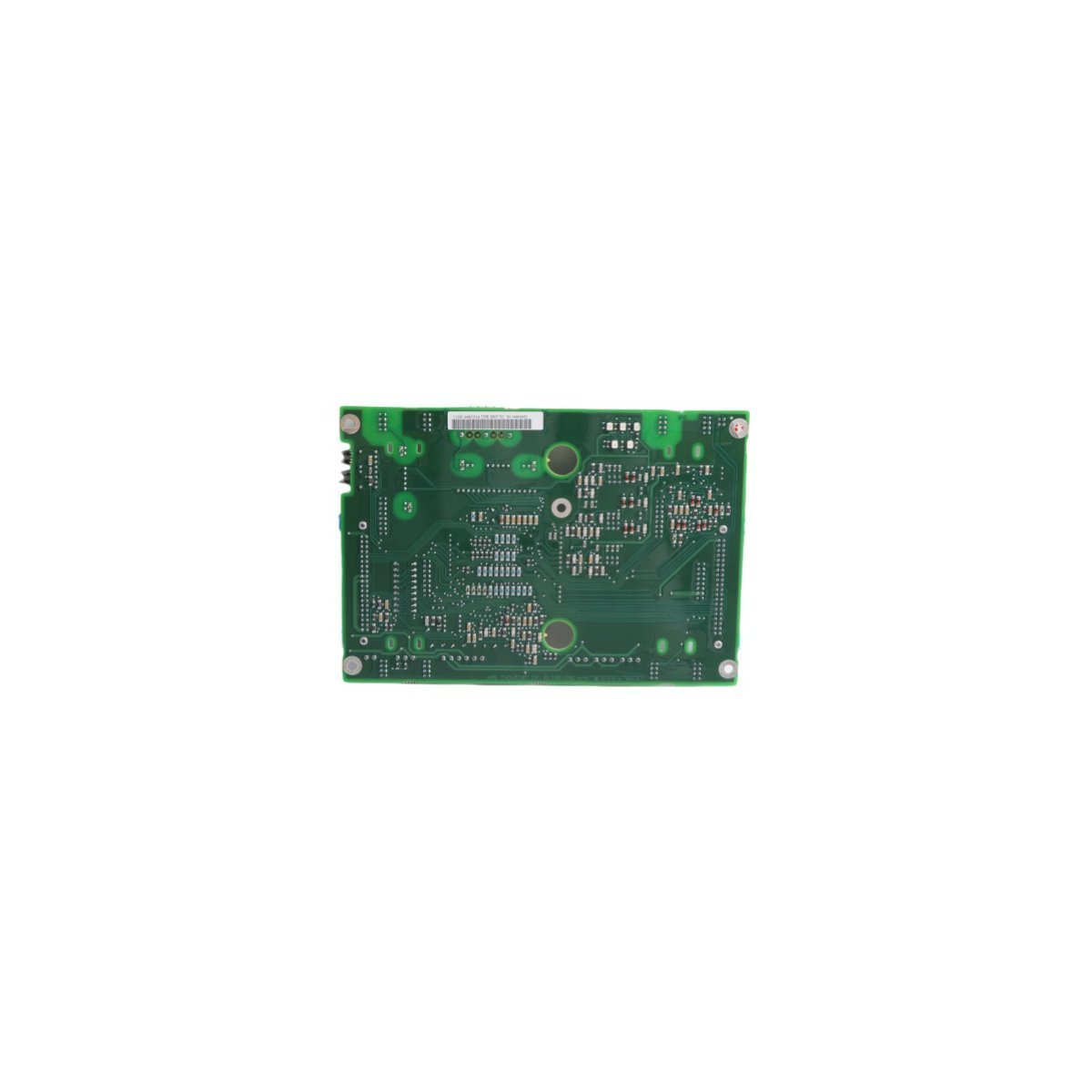

The ABB NINT-72C is a high-performance main circuit board interface specifically developed for the ACS600 frequency converter series. This critical control component serves as the primary communication and signal processing bridge between the drive's power electronics and the upper-level control system. By managing internal gate driver signals and processing feedback loops, the NINT-72C ensures that motor torque and speed regulation remain precise and stable. Its architecture is optimized for low-latency command execution, making it a vital element for high-demand industrial motor control where energy efficiency and system uptime are paramount.

Hardware Architecture & Physical Specifications

• Model Designation: NINT-72C

• Application Family: ACS600 Variable Frequency Drives (VFD)

• Primary Function: Main Circuit Interface and Signal Routing

• Physical Footprint: 22.6cm x 14.2cm x 2.0cm

• Net Unit Mass: 0.16kg

• Protection Standards: Industrial-grade PCB coating for moisture and dust resilience

• Communication Capabilities: Seamless integration with Ethernet router services and DCS architectures

• Manufacturing Origin: Sweden

• Interface Connectivity: High-density headers for secure internal drive wiring

• Logic Processing: Advanced on-board circuitry for real-time drive diagnostics

Industrial Deployment Context

The NINT-72C interface card is deployed globally in heavy-duty drive applications where consistent power delivery is required. Key operational environments include:

• Dynamic Motor Regulation: Providing high-precision control for motors in large-scale pumping stations and ventilation fans.

• Heavy Manufacturing: Managing the torque requirements for industrial extruders, mixers, and conveyor systems in the automotive and food sectors.

• DCS Integration: Facilitating the link between stand-alone ACS600 drives and centralized Distributed Control Systems via robust interface protocols.

• Energy Management: Supporting energy-saving initiatives in HVAC systems by ensuring the VFD operates at peak electronic efficiency.

• System Overhaul & Maintenance: Acting as a critical direct-replacement component to restore functionality in aging ACS600 drive lineups without requiring full system replacement.
