Product Overview

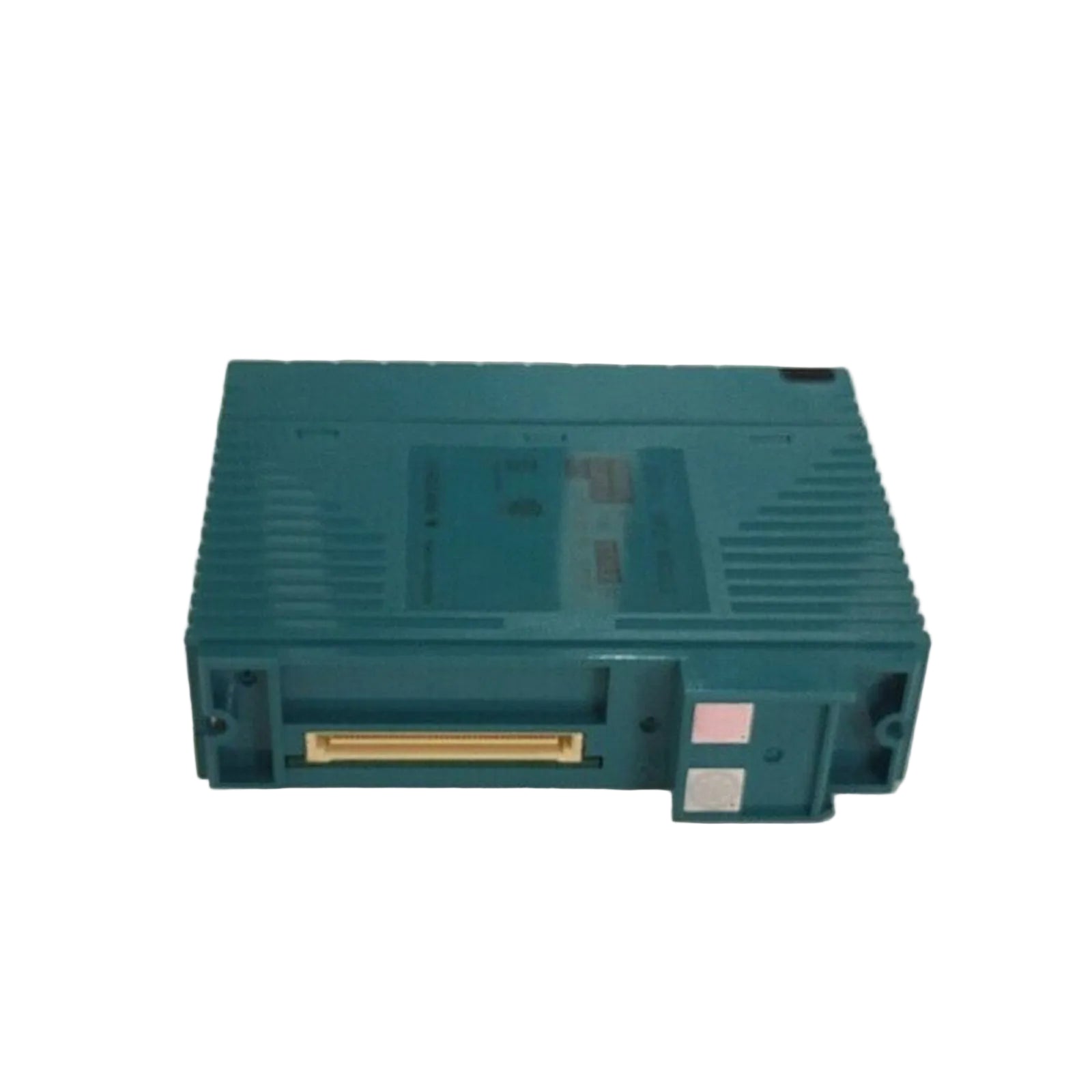

The Yokogawa NFDV161-P50 functions as a high-density data acquisition powerhouse for the STARDOM FCN autonomous controller series. This 64-channel digital input module captures discrete signals from a vast array of field devices, including limit switches, motor status contacts, and valve positioners, converting them into precise digital logic for the control system. In large-scale rotating machinery monitoring and complex process plants, the NFDV161-P50 provides the granular visibility required to track sequence-of-events with millisecond reliability. Its high-density architecture significantly reduces the physical footprint within the control cabinet, allowing engineers to manage extensive I/O counts without expanding hardware enclosures. By utilizing isolated 24 V DC signal processing, the module ensures that electrical noise from the field does not compromise the integrity of the core control processor.

Technical Configuration

The NFDV161-P50 utilizes a specific hardware designation that determines its connectivity interface and environmental suitability within the Yokogawa STARDOM ecosystem.

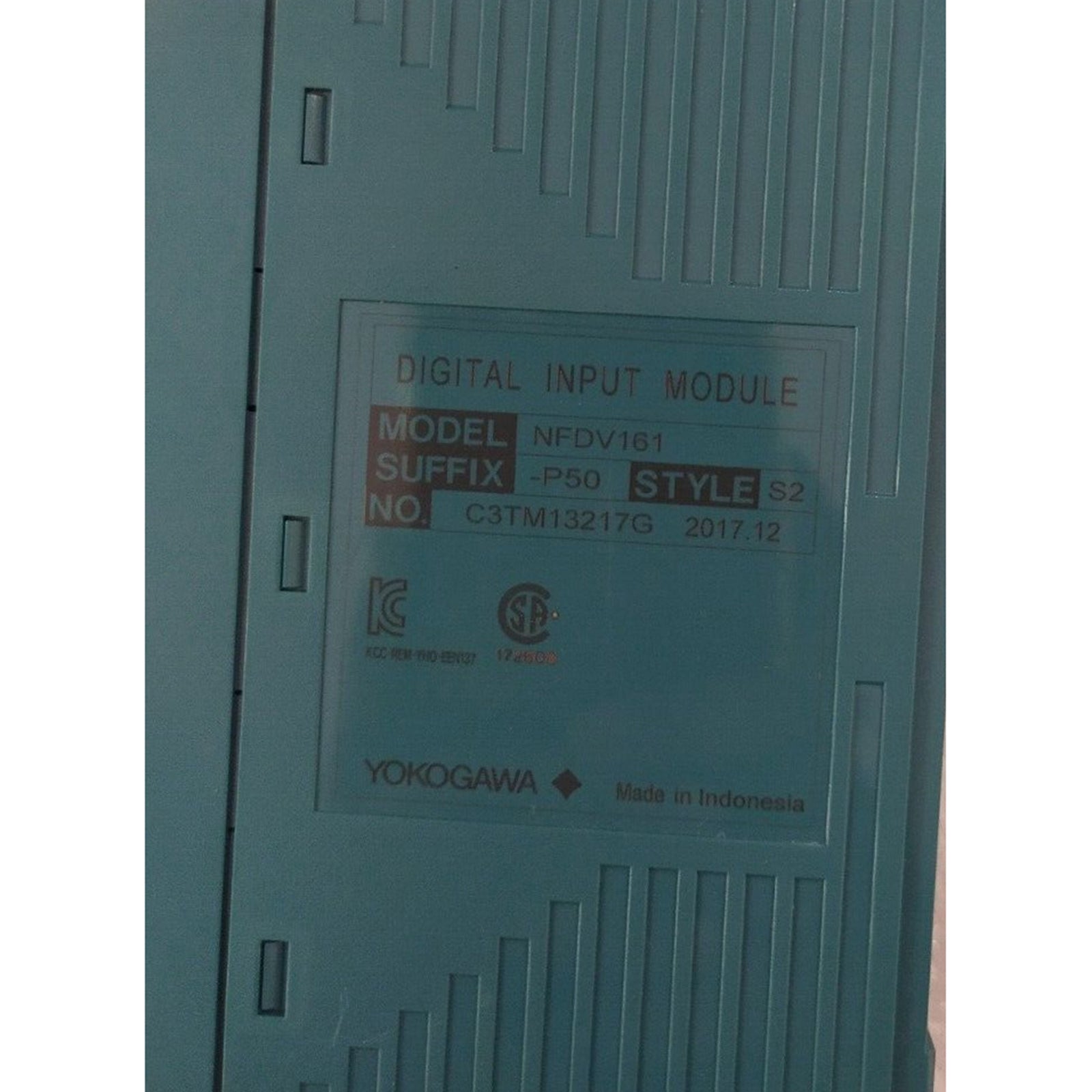

Model Suffix Analysis: NFDV161-P50

NFDV161: This identifies the core high-density Digital Input series designed for the FCN-100 and FCN-500 modular controller range.

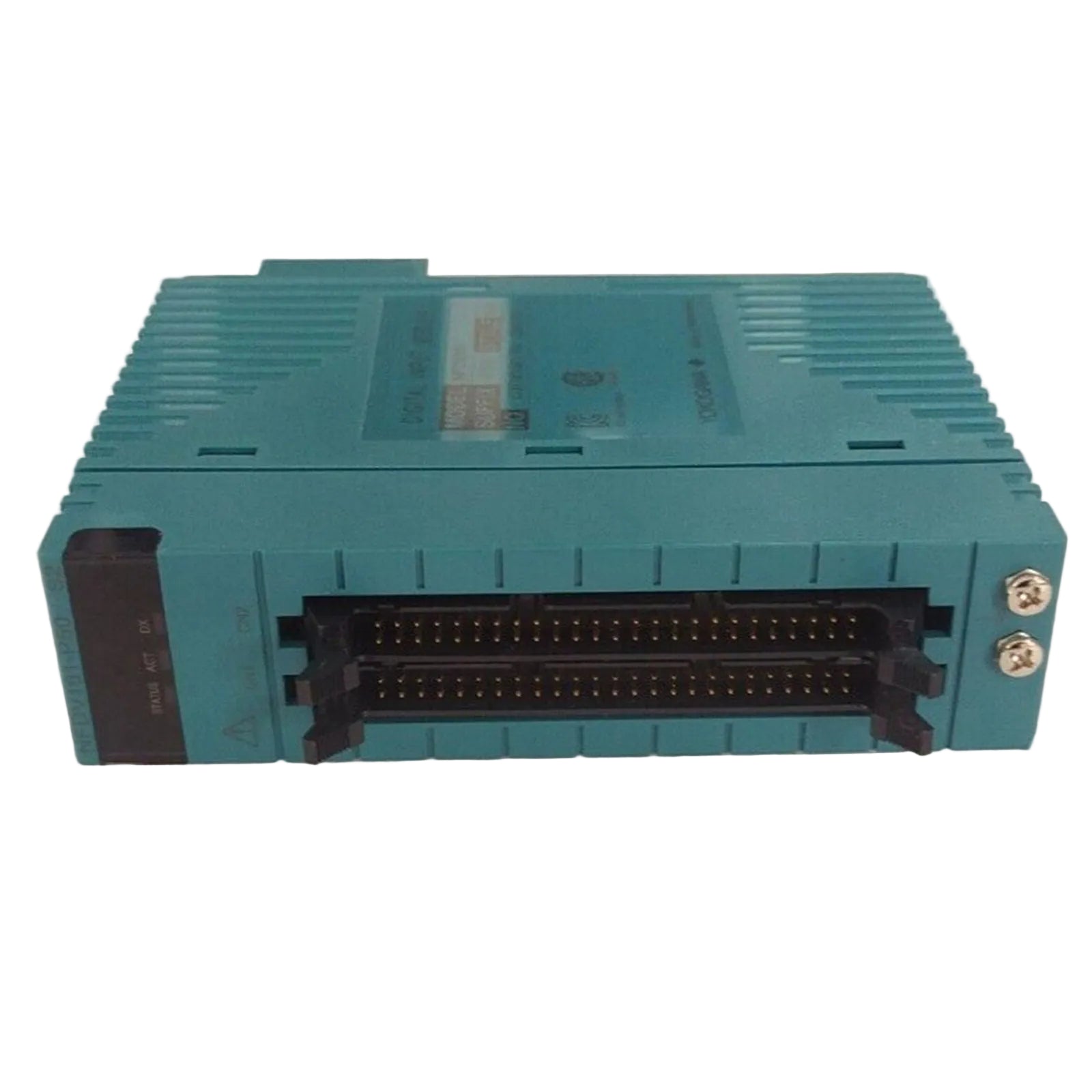

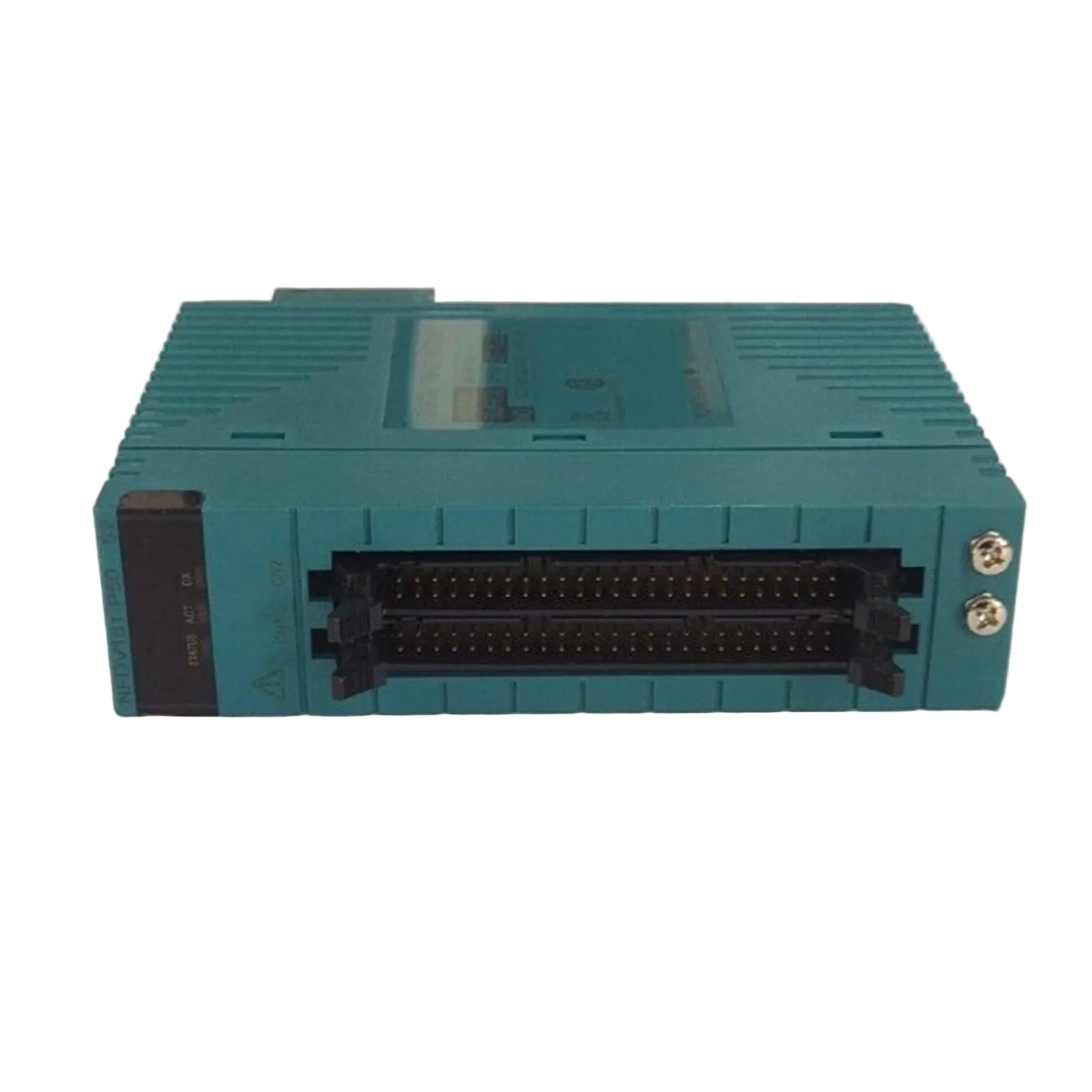

-P: This suffix indicates the MIL Connector Type interface. Unlike terminal-block variants, the "P" designation utilizes dual 50-pin MIL-C-83503 compliant headers, allowing for rapid pre-fabricated cable connections to external termination panels.

5: This digit represents the performance tier and internal hardware revision, optimized for standard 24 V DC sink/source input logic.

0: Denotes the basic functional style, engineered for standard mounting in global industrial control environments.

Technical Specifications

Engineering Advantages

The NFDV161-P50 excels in demanding B2B industrial environments by prioritizing wiring efficiency and signal density. The dual MIL-connector interface eliminates the need for labor-intensive point-to-point wiring at the module level, reducing the risk of human error during commission. Its high channel count (64 inputs) offers a 4:1 density advantage over traditional 16-channel modules, effectively lowering the cost-per-point for large-scale deployments.

Furthermore, the module features advanced incorrect-insertion prevention keys on its headers, ensuring that cables are never cross-connected during field maintenance. Its ruggedized internal circuitry handles the thermal stresses of continuous duty cycles in high-pressure environments, while the high withstanding voltage protects the STARDOM backplane from field-side voltage spikes. This combination of density and durability makes it the ideal choice for integration with TSI (Turbine Supervisory Instrumentation) and wide-area SCADA systems.

Installation Guide

Strategic installation of the NFDV161-P50 maximizes signal reliability and simplifies future maintenance.

Connector Alignment and Security

Utilize MIL-C-83503 compliant female 50-pin connectors. Ensure the incorrect-insertion prevention keys align perfectly before applying pressure. Once seated, lock the connector latches to prevent signal loss from vibration.

Cable Selection

For crimp-style connections, use AWG20 to AWG28 wires. For mass-termination IDC (Insulation Displacement Connector) setups, strictly utilize AWG28 (0.08 mm²) ribbon cables. Maintain a minimum bending radius of 60mm to protect the internal copper strands of the high-density ribbon.

Common Return Configuration

The module organizes inputs into two primary groups (CN1 and CN2). Properly bridge the COM terminals within each group to ensure a stable reference voltage for the 24 V DC sensors. Improper grounding of the COM pins may result in "ghost" signals or erratic input behavior.

Technical FAQs

Q1: Can the NFDV161-P50 be used for high-speed pulse counting?

A1: While the module captures digital states efficiently, it is primarily designed for status monitoring with an 8ms response time. For high-speed frequency or pulse counting, we recommend the Yokogawa NFAF series.

Q2: Does this module support hot-swapping under power?

A2: Yes, the STARDOM FCN architecture allows for hot-swapping. However, ensure the "Ready" LED is in the appropriate state and the control logic is set to handle the momentary I/O loss before removing the module.

Q3: What is the benefit of the MIL 50-pin connector over pressure clamps?

A3: The MIL connector allows for "Plug-and-Play" connectivity with pre-assembled cable harnesses. This reduces cabinet wiring time by up to 80% compared to traditional screw or pressure clamp terminals.

Q4: How do I identify a wiring fault on a specific channel?

A4: Use the STARDOM maintenance tool to monitor the internal status registers. The module reports group-level health diagnostics directly to the FCN controller, which can then trigger an alarm on the HIS (Human Interface Station).
