Product Overview

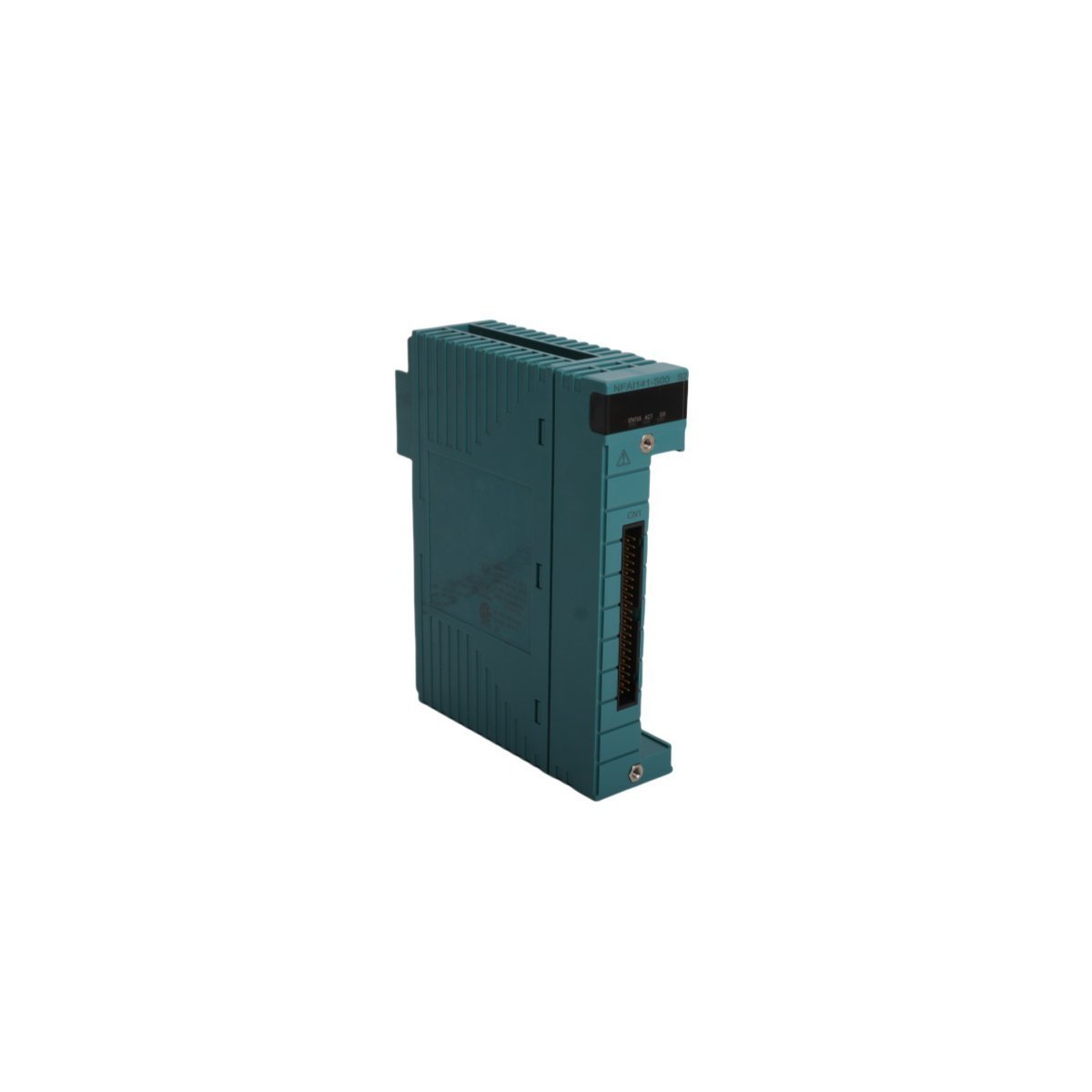

The NFAI841-S50 is a high-density analog interface module specifically developed for Yokogawa’s FOUNDATION Fieldbus (FF) integrated ecosystems. This component provides eight independent channels for 4 to 20 mA DC signal processing, facilitating precise data acquisition from field instrumentation. Engineered for high-performance process automation, the module supports all standard FOUNDATION Fieldbus function blocks, allowing for flexible logic configuration and seamless integration with complex control strategies. Its robust IP66-rated housing and wide thermal operating range make it an ideal choice for localized installation near field devices or within remote junction boxes, ensuring high-fidelity signal transmission in demanding industrial environments.

Critical Performance Metrics and Dimensional Data

Primary Industrial Deployment

This analog I/O unit is designed for versatile application across various process sectors where FOUNDATION Fieldbus technology is the primary communication backbone. Typical deployment scenarios include:

• Real-time monitoring of pressure and temperature transmitters in chemical processing.

• Integration of flow meter data into larger Distributed Control Systems (DCS).

• Remote field mounting in oil and gas upstream facilities requiring high ingress protection.

• Interfacing with multiple field devices in water and wastewater treatment automation.

FAQ

Q: Is the NFAI841-S50 an isolated or non-isolated module?

A: This model features a non-isolated design, meaning the input and output circuits share a common reference. It is best suited for applications where the field instruments and the control system share a consistent ground.

Q: What is the benefit of the IP66 rating for this module?

A: The IP66 rating ensures that the hardware is fully protected against dust ingress and can withstand high-pressure water jets from any direction, making it suitable for outdoor or wash-down industrial environments.

Q: Can this module be used with third-party FOUNDATION Fieldbus devices?

A: Yes, while optimized for Yokogawa field instruments, the NFAI841-S50 is fully compliant with standard FOUNDATION Fieldbus protocols and function blocks, ensuring interoperability with certified third-party devices.

Q: Does the module require a separate power supply for the field loops?

A: The module operates on a 24 V DC system power supply and is capable of driving 4-20 mA signals with an output current of up to 25 mA to facilitate instrument communication.

Q: What happens to the input impedance if the module loses power?

A: Under powered-on conditions, the impedance is a standard 250 Ω; however, if the power is cut, the impedance increases to 500 kΩ or more to protect the integrity of the signal loop.
