Product Overview

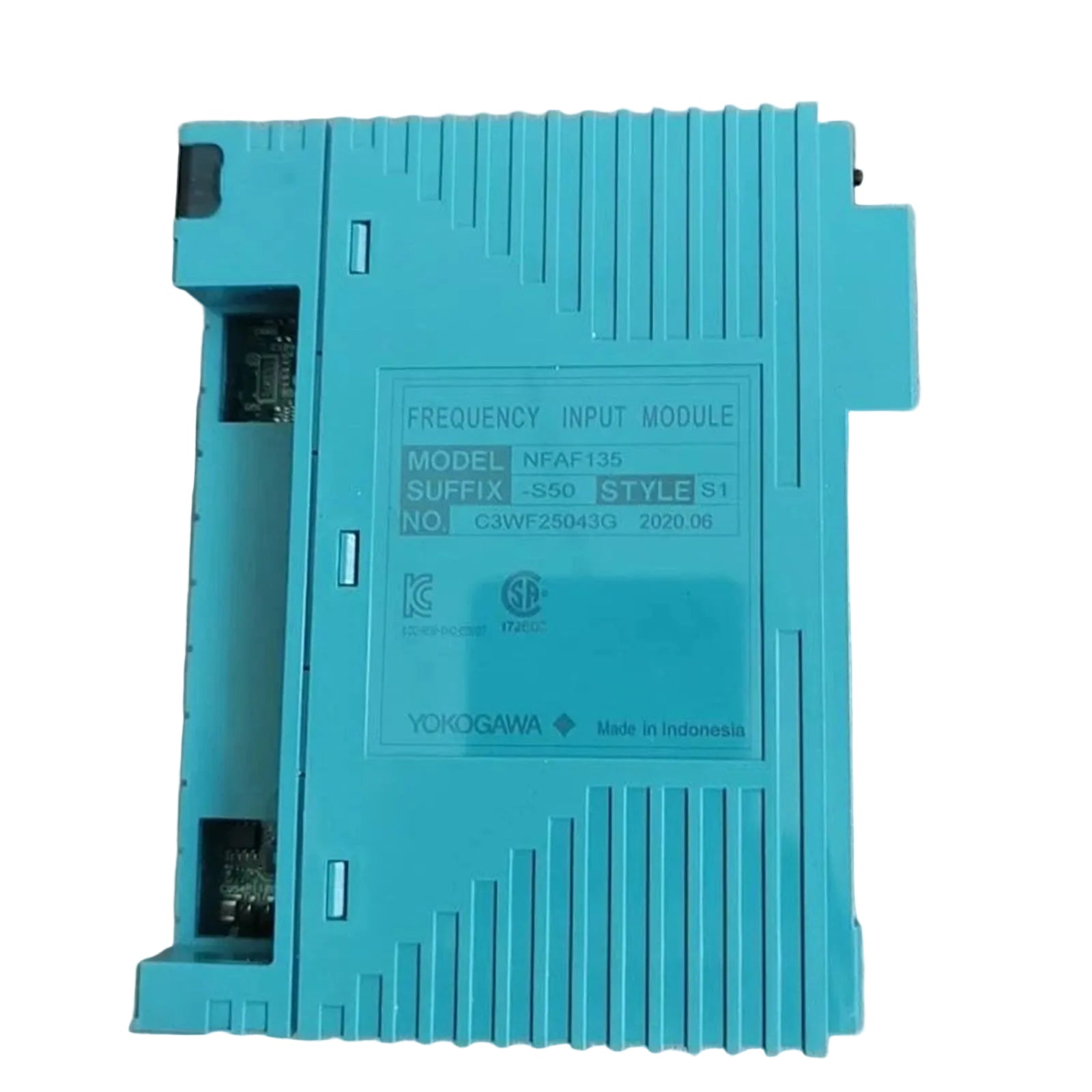

The Yokogawa NFAF135-S50 serves as a high-precision frequency measurement gateway within the STARDOM autonomous controller architecture. This module captures complex pulse signals from turbine flowmeters, speed sensors, and various industrial transducers with exceptional accuracy. By converting raw frequency data into actionable digital intelligence, it enables real-time monitoring of critical rotating equipment and fluid dynamics. Engineers rely on the NFAF135-S50 for its robust signal conditioning capabilities, ensuring that high-speed transients are captured without loss of data integrity. Its seamless integration into the modular FCN/FCJ controllers provides a scalable solution for demanding process environments where millisecond precision determines operational safety and efficiency.

Technical Configuration

The NFAF135-S50 follows a specific functional suffix logic within the Yokogawa STARDOM I/O ecosystem. Understanding these designations ensures correct hardware matching for your control cabinet.

Model Suffix Analysis: NFAF135-S50

• NFAF135: This designates the core Frequency Input Module series, specifically engineered for the FCN (Field Control Node) modular stations.

• -S: Indicates a Standard Type module, optimized for general industrial environmental conditions and standard mounting configurations.

• 5: Represents the specific hardware revision or internal performance tier, optimized for a frequency range up to 100 kHz.

• 0: Denotes the basic functional style without specialized conformal coating or extreme-environment hardening.

Technical Specifications

Engineering Advantages

The NFAF135-S50 excels in environments where standard PLC counters fail. Its onboard microprocessor handles signal filtering independently, offloading intensive calculation tasks from the main CPU. This architecture ensures that frequency-to-velocity conversions remain accurate even during rapid machine acceleration.

Furthermore, the module features advanced diagnostic capabilities. It detects open circuits and short circuits in the field wiring immediately, reporting faults through the STARDOM software environment. Its ruggedized internal circuitry resists the thermal stresses typical of power generation and petrochemical control rooms, providing a MTBF (Mean Time Between Failure) that exceeds industry standards.

Installation Guide

Successful deployment of the NFAF135-S50 requires strict adherence to signal integrity protocols to prevent EMI interference.

Signal Wiring and Grounding

Always utilize shielded twisted-pair (STP) cabling for frequency inputs. Connect the shield at the module end to the functional ground terminal to mitigate high-frequency noise. Maintain a minimum bending radius of 50mm for signal cables to prevent internal conductor fatigue.

Input Level Calibration

Ensure the input pulse voltage aligns with the module's threshold settings. If using magnetic pickup sensors, verify that the signal amplitude remains above 0.5V peak-to-peak during low-speed rotations to prevent signal dropout.

Hot-Swapping Protocols

The STARDOM FCN backplane supports hot-swapping; however, engineers should ensure the "Ready" LED is inactive before physical extraction to prevent bus communication errors.

Technical FAQs

Q1: Does the NFAF135-S50 support NAMUR sensor inputs directly?

A1: Yes. The module hardware supports direct connection to NAMUR-compliant proximity sensors, providing the necessary current sensing to detect both pulses and wiring faults.

Q2: What is the maximum cable length supported for high-frequency signals?

A2: For frequencies approaching 100 kHz, we recommend limiting cable runs to 100 meters using high-quality low-capacitance shielded cable to avoid signal attenuation.

Q3: Can this module be used for totalization and flow measurement?

A3: Absolutely. While it functions as a frequency input, the STARDOM logic handles high-speed pulse integration, making it ideal for turbine flowmeter applications.

Q4: How does the NFAF135-S50 handle signal noise in high-voltage environments?

A4: The module incorporates programmable digital filters and high-grade optoisolators, effectively stripping away 50/60 Hz interference and high-frequency spikes from the measurement path.
