Product Overview

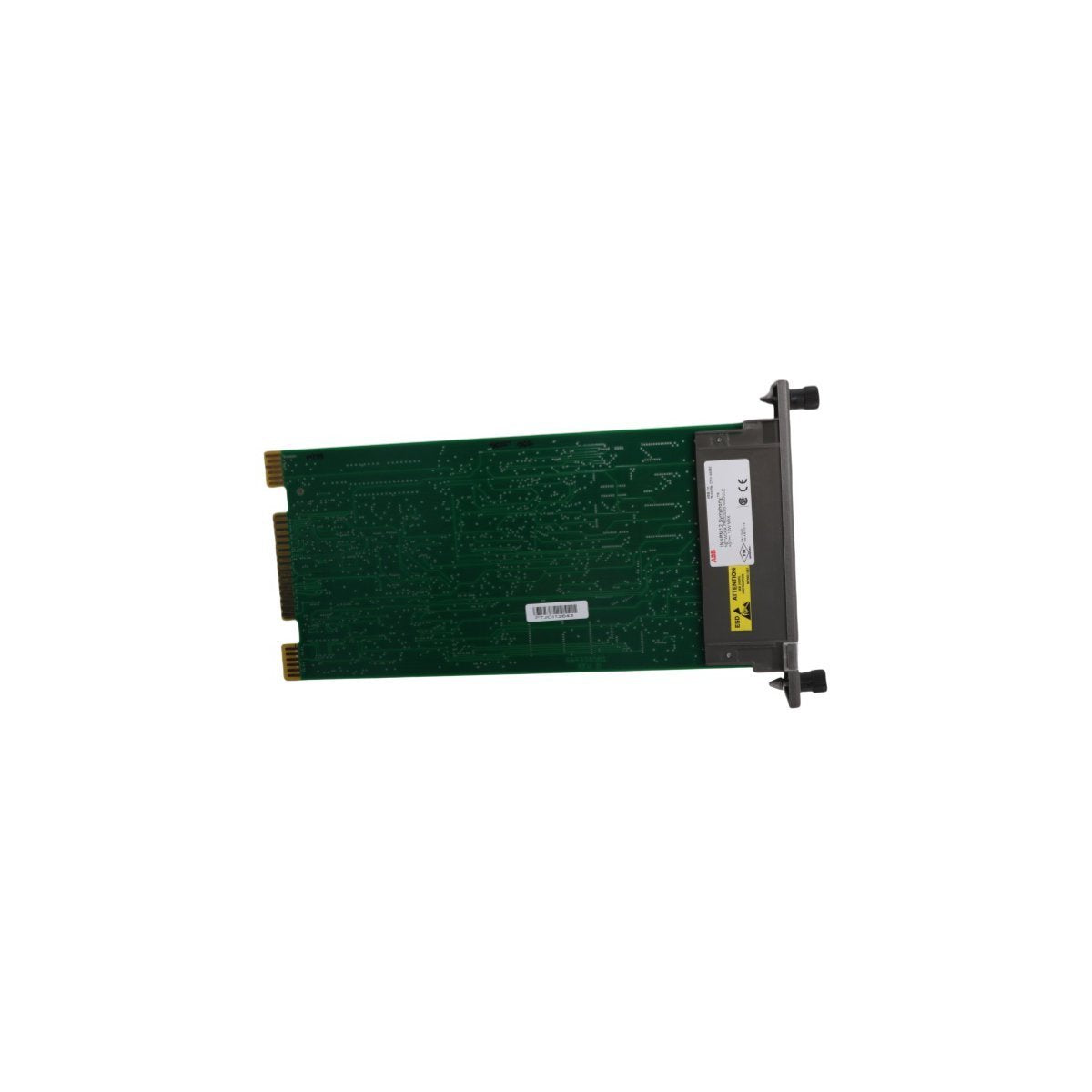

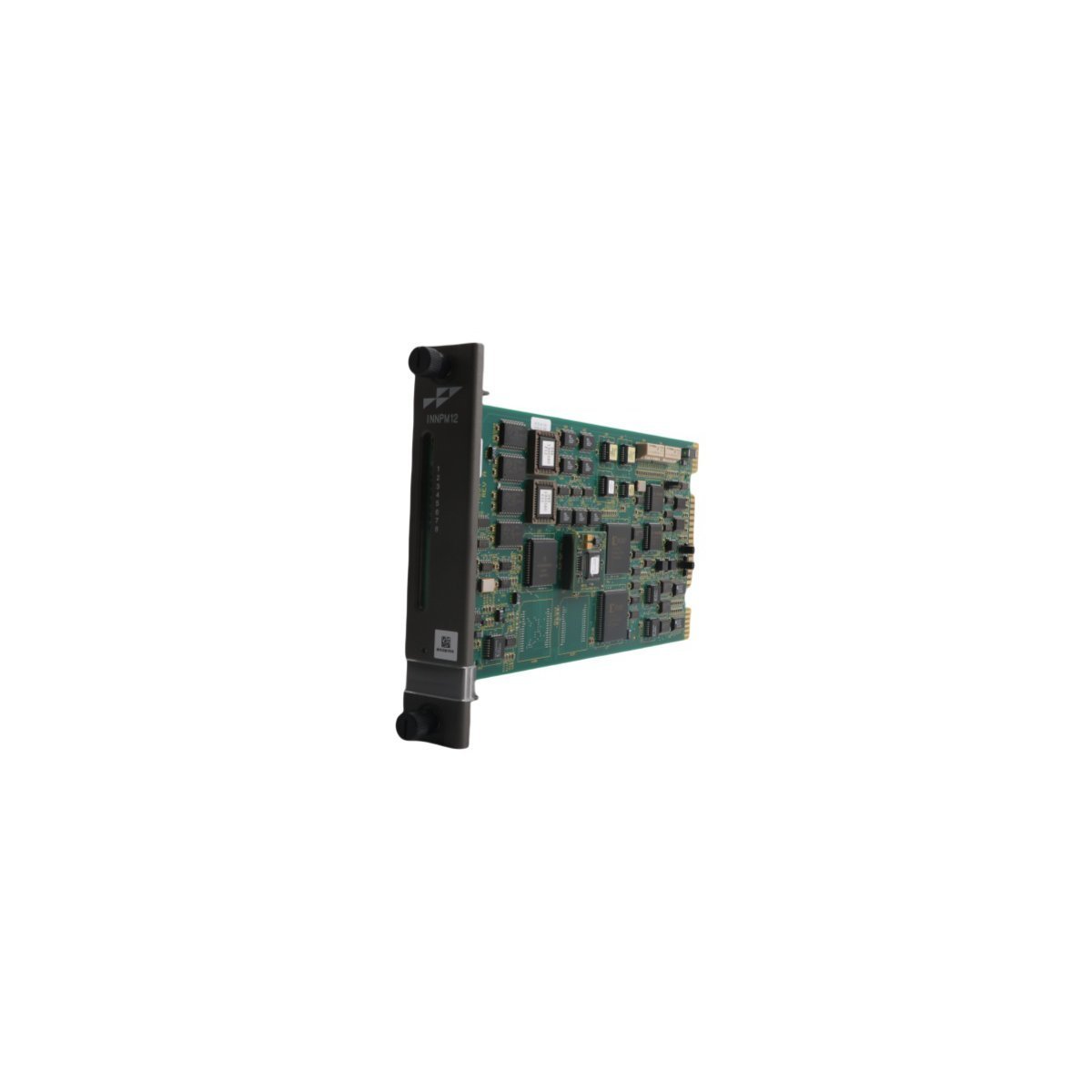

The ABB INNPM12 is a high-capacity Network Processor Module designed for the Harmony Rack (HR) Series within the Symphony Plus and Symphony Harmony Distributed Control System (DCS) architectures. This module acts as the primary communication engine, managing data traffic between the control system's plant loop and the various controller modules. By offloading communication tasks from the main processor, the INNPM12 ensures high-speed data throughput and maintains system stability even under heavy network loads. Its sophisticated firmware architecture supports complex routing and real-time data synchronization, making it a cornerstone for large-scale industrial automation networks.

Core Hardware Architecture

• Protocol Support: Optimized for Symphony Harmony communication protocols and Ethernet routing services.

• System Integration: Designed for direct insertion into standard Harmony Rack assemblies.

• Reliability: Features advanced error checking and diagnostic capabilities to prevent data packet loss.

• Power Management: Low power consumption design optimized for high-density rack configurations.

Industrial System Deployments

The INNPM12 is critical in environments where decentralized control and high-speed data exchange are mandatory. Typical applications include:

• Utility Power Plants: Managing the vast data exchange between boiler control, turbine regulation, and balance-of-plant systems.

• Water Treatment Facilities: Coordinating remote I/O data from distributed pumping stations back to a centralized control room.

• Chemical Processing: Ensuring millisecond-level synchronization between safety systems and process control loops.

• Oil and Gas Refineries: Facilitating robust communication across extensive plant-wide networks in hazardous and demanding conditions.

FAQ

Q: What is the main function of the INNPM12 within a Harmony Rack?

A: The INNPM12 serves as the communication gateway for the rack, processing network data so that the local controllers can focus exclusively on executing control logic without being bogged down by network overhead.

Q: Is the INNPM12 compatible with legacy Symphony Harmony systems?

A: Yes, it is specifically designed to be compatible with the HR Series (Harmony Rack) and can be used to maintain or upgrade existing Symphony Plus and Harmony DCS installations.

Q: Does this module require manual configuration of network addresses?

A: Configuration is typically handled through ABB’s engineering software tools (like Composer), where network parameters and node addresses are assigned to the hardware.

Q: How does the INNPM12 handle network failures or data collisions?

A: The module utilizes advanced collision detection and deterministic data handling to ensure that critical control signals are prioritized and delivered without corruption.

Q: Can this module be used in an Ethernet-based DCS architecture?

A: Yes, the INNPM12 supports Ethernet router services, allowing for modern networking standards to be integrated into the Harmony Rack communication structure.
