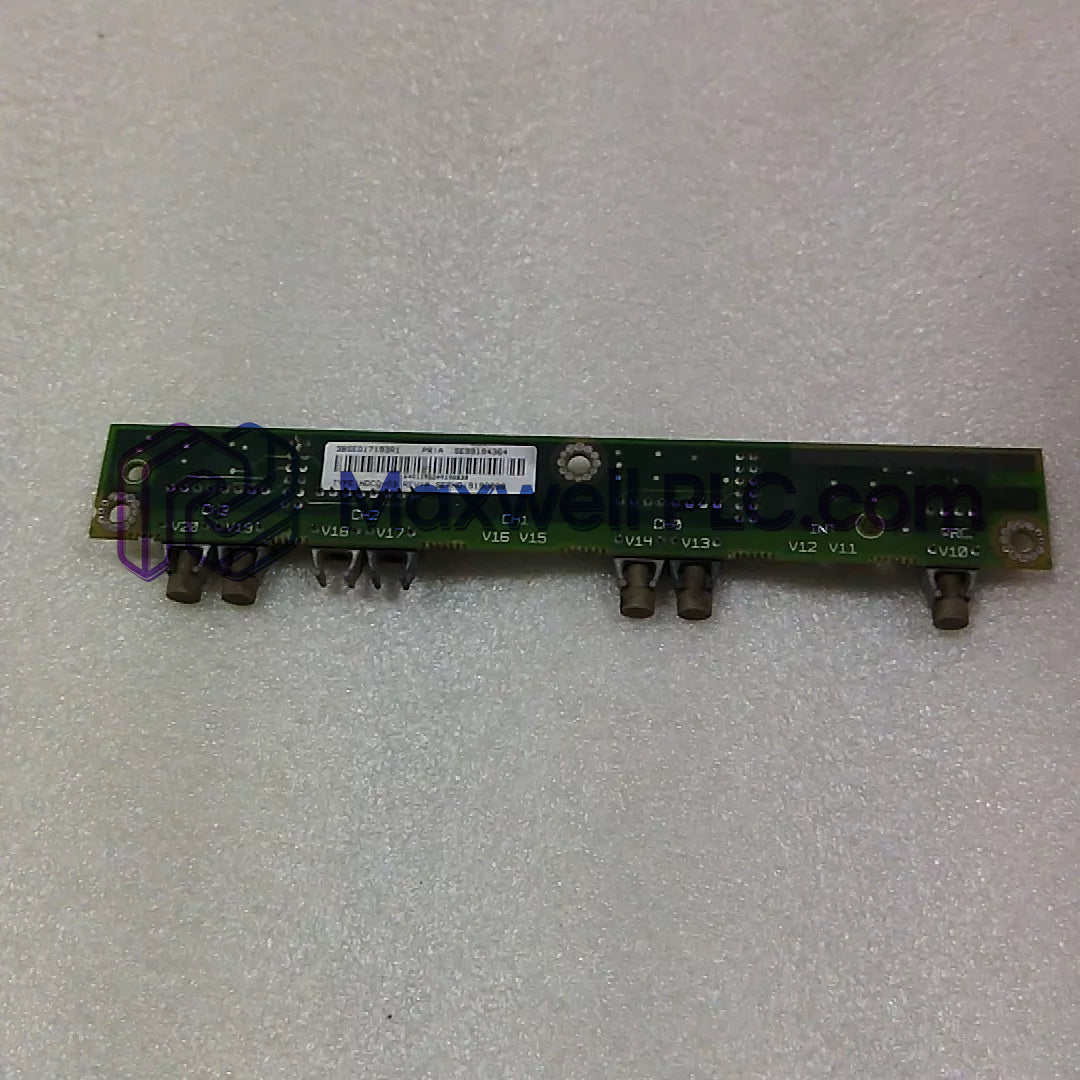

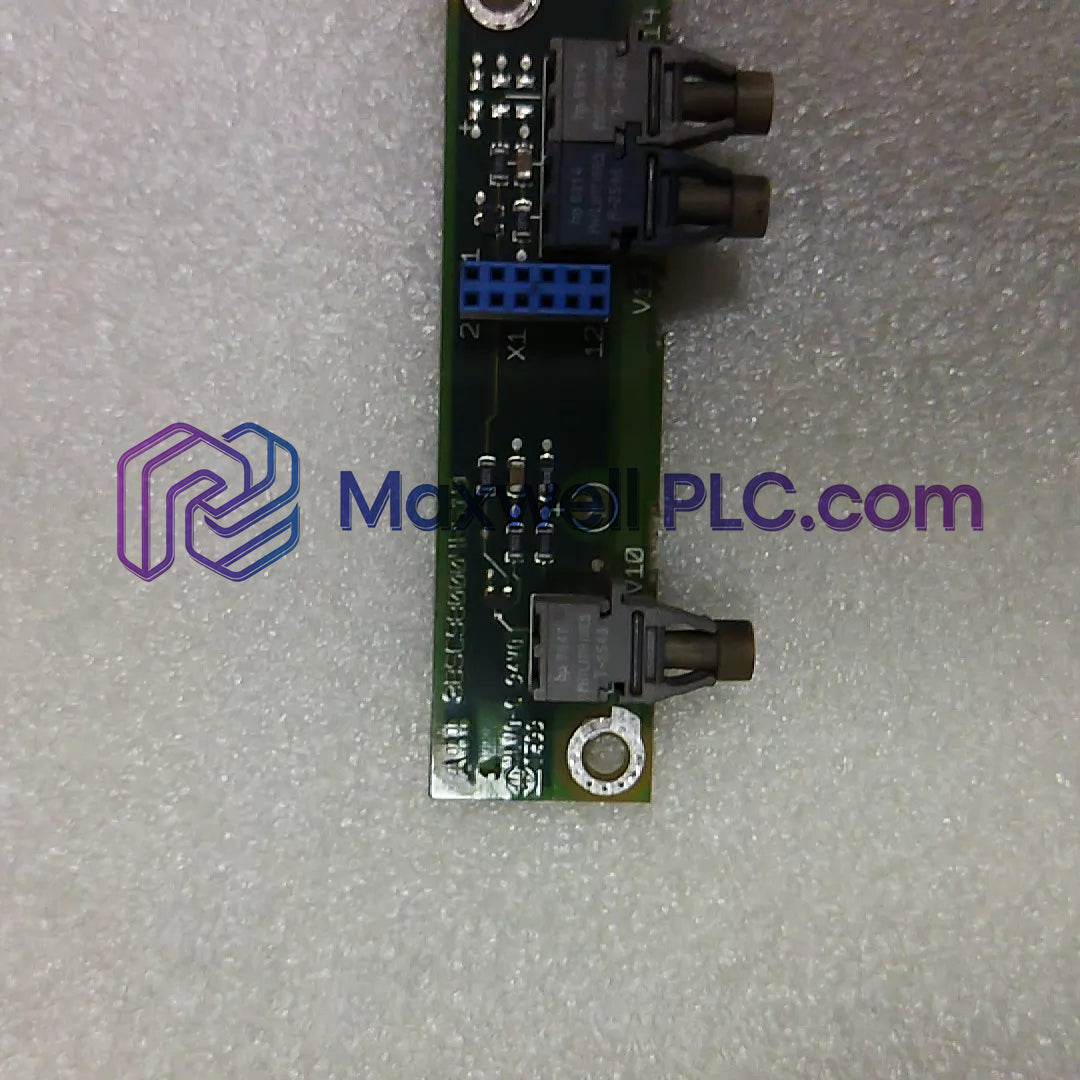

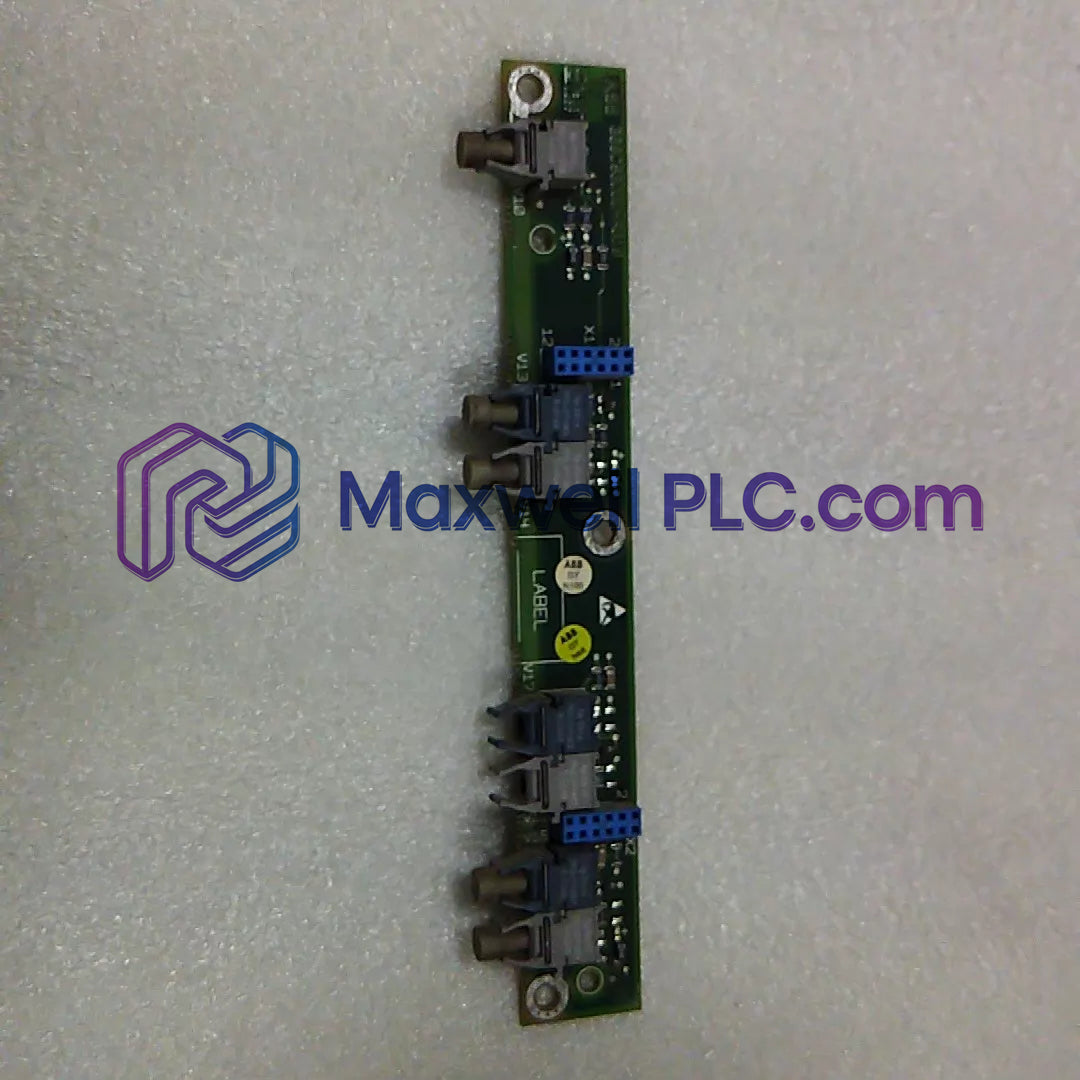

Configured for fieldbus communication processing and channel data routing in ABB ACS600 drive networks, the ABB NDCO-03 3BSE017193R1 (NDCO-03 Communication Option Card) provides direct physical/electrical execution.

Physical Architecture & Order Code Designation

The NDCO-03 option card operates as an internal communication expansion interface for ACS600 drive processing units. Part identification parameters are categorized below:

• Module Hardware Designation: NDCO-03
• Production Ordering Part Number: 3BSE017193R1
• Form Factor Variant: Option Slot Insertion Card

Technical Parameter Matrix

Industrial Network Integration & Firmware Execution

The NDCO-03 interface board processes high-speed protocol translation to ensure deterministic networks timing across Profinet and EtherNet/IP control backplanes. Internal bus logic maintains continuous firmware flash compatibility, allowing low-latency command handshaking between the drive main control unit and plant-wide industrial networks without signal degraded execution cycles.

Package Contents List

• 1 x ABB NDCO-03 3BSE017193R1 Option Card
• 1 x Antistatic Protective Packaging Sleeve
• 1 x Mounting Hardware Fastener Package

Cabinet Installation & Field Wiring Procedures

• Electrical Isolation Guidelines
  • Verify complete isolation of main power supplies and external auxiliary 24 VDC buses prior to inserting the card.
• Grounding & Shielding Rules
  • Connect optical cable or electrical communication shields directly to chassis ground points to reduce EMI.
• Physical Insertion Instructions
  • Align guide rails carefully within the ACS600 option slot to prevent structural stress on edge connectors.
• Cable Routing Constraints
  • Maintain a minimum clear distance of 200 mm between communication lines and high-current motor lead cables.

Hardware Technical Questions & Answers

• Q: What electrical power input is required to operate the NDCO-03 board?

  A: The card draws power directly from the 24 VDC internal drive power rail, consuming an operational current of 85 mA or less under full network load conditions.

• Q: What are the thermal bounds for operating and storing this option board?

  A: Operational ambient temperatures must remain between -25 deg C and +60 deg C, while storage limits range from -40 deg C to +70 deg C under non-condensing relative humidity.

• Q: Is hot-swapping permitted during drive operation?

  A: No, hot-plugging is strictly prohibited; the drive must be completely powered down before board installation or removal to prevent electrical damage to backplane logic.

• Q: How does firmware flash compatibility impact replacement procedures?

  A: Matching firmware levels ensures proper parameter mapping and prevents communication packet timing errors between the option card and the drive main processor unit.

• Q: What is the physical shipping weight and footprint of the unit?

  A: The physical board package weighs 0.02 kg with packaged transport dimensions measuring 17.4 cm by 3.0 cm by 1.0 cm.

• Q: How is electrical noise suppression handled on communication lines?

  A: Noise suppression requires proper grounding of cable shields to the drive grounding terminal and routing signal cables perpendicular to AC power lines.

• Q: What system platform utilizes the NDCO-03 option card?

  A: The card is engineered specifically for installation inside ABB ACS600 series drive controllers and associated automation communication slots.

• Q: What tariff code is assigned to this communication card for international shipping?

  A: Customs clearance and transport documentation for this specific module utilize international tariff code classification 8537101190.
