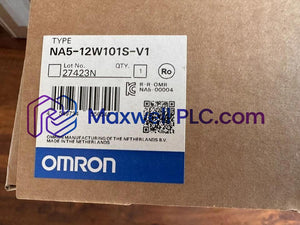

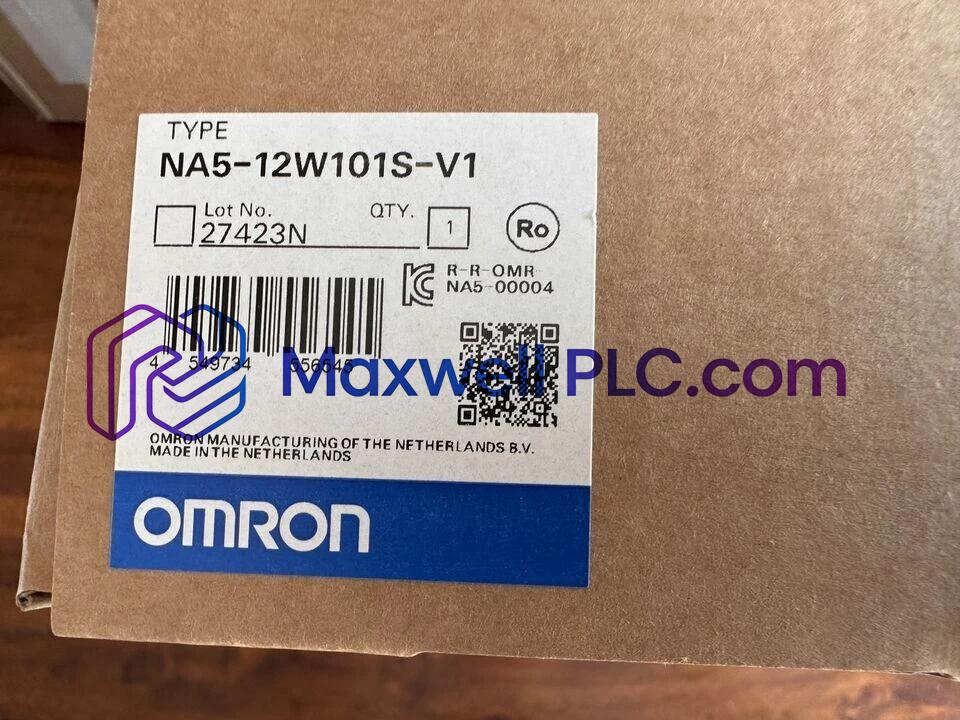

NA5-12W101S-V1 Omron Machine Interface NA5-V1 Series
Omron

NA5-12W101S-V1 Omron Machine Interface NA5-V1 Series

SKU: NA5-12W101S-V1
Categories : All Products
In Stock
  • Dimensions: 310 mm (W) x 220 mm (H) x 69 mm (D)
  • Country of origin: Japan
  • Payment: T/T, Western Union
  • Shipping port: Xiamen
1 years warranty
Delivery time: 3-7 business days
Free 30 days return

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

The Omron NA5-12W101S-V1, also cataloged as the NA5-12W101S Machine Interface, operates as a dedicated hardware component for high-resolution human-machine interaction and data processing within Sysmac EtherNet/IP deterministic networks.

Model Identification Matrix

The part number structure defines physical display and communication interface variants across the NA5 platform:

  • NA5: Sysmac Series Programmable Terminal base designation.
  • 12W: 12.1-inch widescreen TFT LCD display panel.
  • 101: 1280 x 800 WXGA pixel resolution with 16.77 million color depth.
  • S: Silver bezel enclosure frame.
  • V1: Enhanced hardware revision with expanded memory and updated system firmware support.

Operational Hardware Specifications

Parameter Specification
Model NA5-12W101S-V1
Brand Omron
Origin Japan
Weight 2.50 kg
Shipping Dimensions 310 mm (W) x 220 mm (H) x 69 mm (D)
Operating Temp 0 to 50 deg C
Power Consumption 25 W max (24 VDC +/- 15%)
Display Type 12.1-inch TFT LCD widescreen
Resolution 1280 x 800 pixels (WXGA)
Touch Panel Analog resistive touch screen
Serial Interfaces 1 x RS-232C port
Network Interfaces 2 x Ethernet ports (1000BASE-T / 100BASE-TX / 10BASE-T)
USB Interfaces 2 x USB 2.0 Host (Type A), 1 x USB 2.0 Slave (Type B)
Storage Expansion 1 x SD Card slot

Network Determinism & Firmware Compatibility

The NA5-12W101S-V1 routes high-density variable tags directly over EtherNet/IP deterministic networks, maintaining sub-millisecond polling cycles synchronized with NJ/NX series automation controllers. Built-in dual Ethernet ports enable physical separation between machine control loops and plant-wide IT networks without compromising processing speed. Onboard system memory maintains total firmware flash compatibility with Sysmac Studio project files, preventing runtime execution mismatches.

Deliverables & Ordering Information

  • 1 x Omron NA5-12W101S-V1 HMI Terminal
  • 1 x 3-pin DC Power Input Terminal Block Connector
  • 4 x Panel Mounting Brackets with Securing Screws
  • 1 x Instruction Sheet

Field Mounting & Panel Integration Directives

  • Cut a clean rectangular opening in the control cabinet door according to the template dimensions of 291 mm (W) x 201 mm (H).
  • Insert the unit through the front cutout, ensuring the integrated rubber panel gasket is positioned correctly to maintain IP65 surface seal.
  • Attach the four supplied mounting brackets into the side housing slots and torque the retaining screws evenly to 0.5 to 0.6 N m.
  • Connect the 24 VDC power lines using 1.25 to 2.0 mm2 (AWG 16 to 14) stranded copper wire, and verify functional panel ground bonding.
  • Maintain a minimum clearance of 100 mm around all rear heatsink vents to prevent thermal buildup inside the panel enclosure.

Field Engineering Technical FAQs

  • How does the V1 suffix impact firmware flash compatibility in existing Sysmac Studio projects?

    The V1 hardware revision natively accepts updated system firmware versions while maintaining full backward project file import compatibility.

  • Can the unit operate simultaneously across two independent physical Ethernet subnets?

    Yes, the two built-in Ethernet ports feature independent MAC addresses for simultaneous connection to machine control networks and factory LANs.

  • What input voltage limits apply to the terminal block power input?

    The unit requires a nominal supply of 24 VDC, operating safely across a permissible input voltage range of 20.4 VDC to 27.6 VDC.

  • What type of touch detection mechanism is embedded on the front glass screen?

    The front panel uses an analog resistive touch surface, supporting precise single-touch operation with bare fingers or gloved hands.

  • What functions do the dual USB Host Type-A interfaces perform during operation?

    USB Type-A ports accept standard USB flash drives for screen capture export, user access logging, recipe file transfers, and alarm history storage.

  • Does the NA5-12W101S-V1 support hot-swap battery replacement for internal real-time clock retention?

    The internal backup battery can be replaced while main DC supply power remains energized without interrupting operational parameters or clock data.

  • What IP ingress rating does the front surface maintain when panel-mounted?

    When installed with the supplied sealing gasket and properly torqued mounting brackets, the front surface satisfies IP65 oil-tight protection standards.

  • How are variable tags mapped between the NJ/NX PLC controller and the NA5 terminal?

    Tags are imported directly from Sysmac Studio projects using shared variable names, eliminating manual memory address assignment tables.
