Product Overview

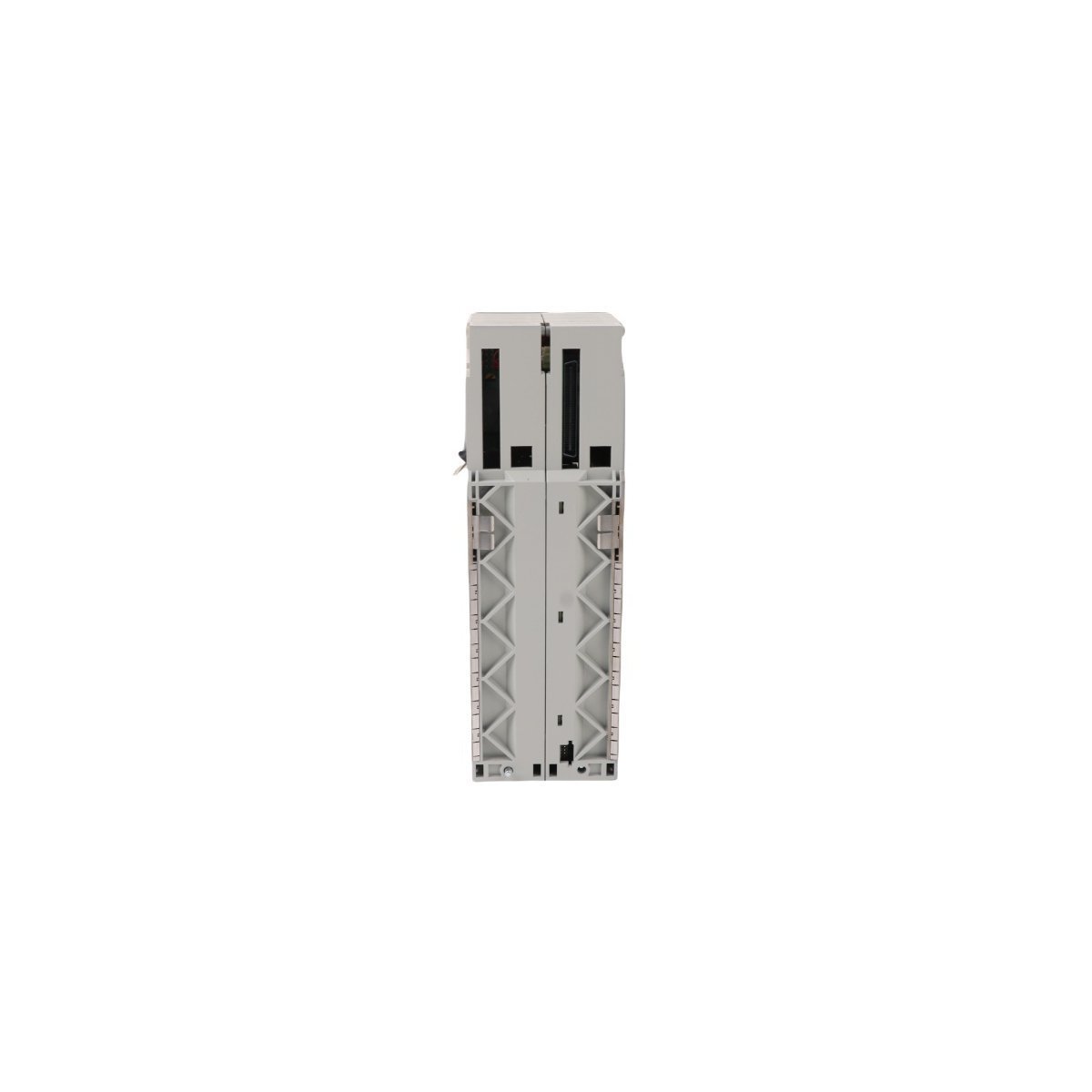

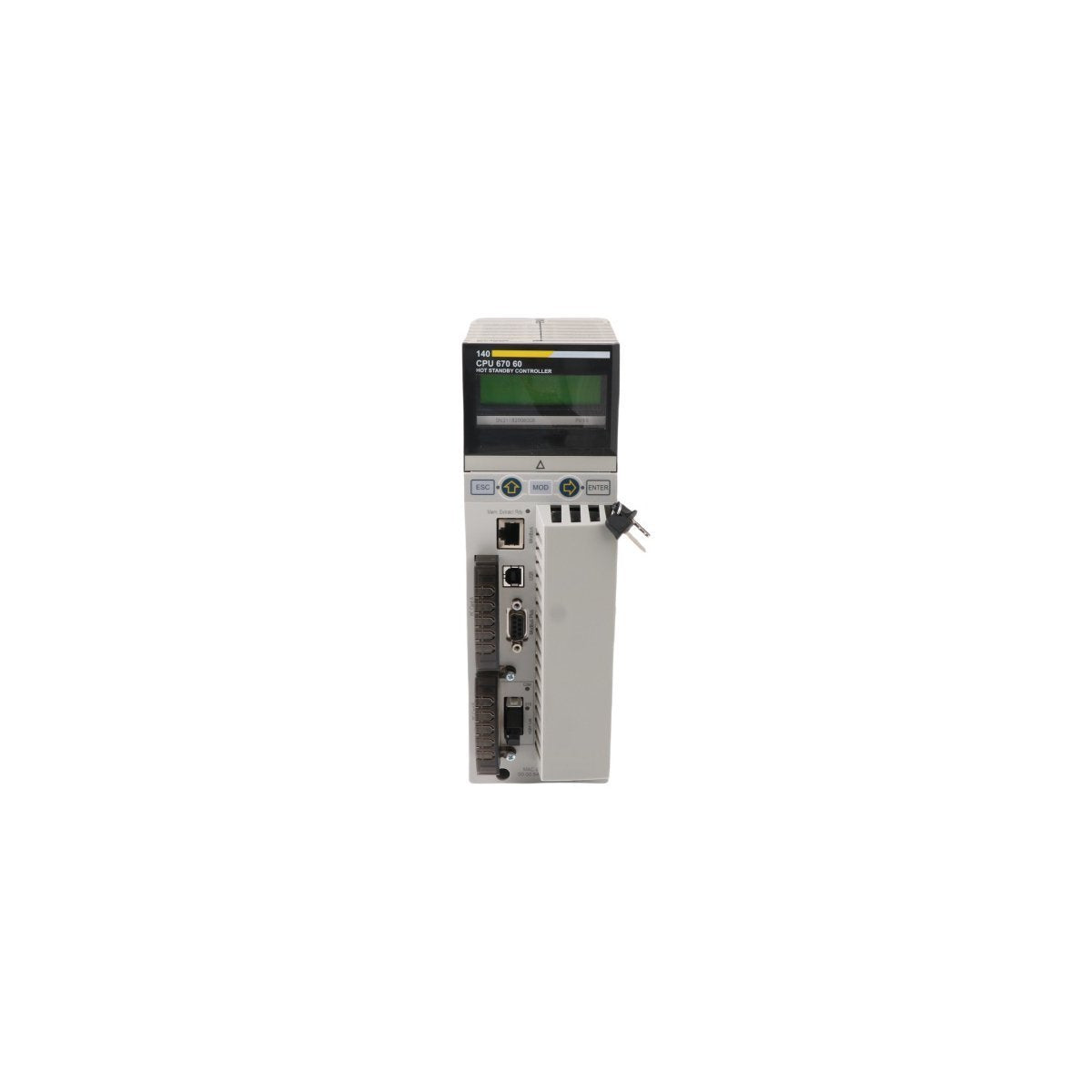

The Schneider Electric 140CPU67060 is a specialized Unity Hot Standby processor module belonging to the legendary Modicon Quantum automation platform. Engineered specifically for mission-critical systems where downtime is not an option, this single-slot CPU facilitates high-availability control architectures. It operates on a 266 MHz clock speed with high-speed internal data processing, ensuring rapid execution of master tasks. By synchronizing with a secondary redundant unit, the 140CPU67060 provides a seamless failover mechanism, maintaining system integrity and continuous process operation even if the primary controller encounters a hardware fault.

Hardware Infrastructure and Technical Profile

The 140CPU67060 is designed for robust performance within a Quantum rack, offering advanced memory management and multimode communication capabilities.

• Processor Clock Speed: 266 MHz

• Onboard RAM Memory: 512 kB

• Redundancy Support: Integrated Hot Standby (HSBY) functionality

• Task Management: Supports 1 cyclic/periodic master task (Note: interrupt and auxiliary tasks are restricted in Hot Standby mode)

• Communication Interface: Multimode Ethernet fiber optic support for high-speed synchronization

• Physical Footprint: 32 x 19 x 11 cm

• Net Unit Weight: 1.4 kg

• Status Indicators: Comprehensive LED front-panel diagnostics (Run, Ready, Error, Modbus Collision)

• Logic Execution: Optimized for Unity Pro / Control Expert programming environments

Strategic Deployment and System Integration

Given its high-availability design, the 140CPU67060 is a staple in infrastructure and process industries where operational continuity is the highest priority. Key applications include:

• Oil and Gas Processing: Managing emergency shutdown systems and continuous pipeline monitoring where controller failure could result in significant safety risks.

• Power Generation and Distribution: Controlling turbine logic and substation automation that requires 24/7 uptime and rapid synchronization between redundant pairs.

• Water Treatment Facilities: Oversight of critical chemical dosing and filtration processes in large-scale municipal plants.

• Tunnel and Transport Infrastructure: Handling ventilation and lighting control systems where safety protocols demand redundant hardware architectures.

• Large Scale Manufacturing: Reducing financial losses associated with production line stoppages by utilizing the Hot Standby automated switchover capability.
