Product Overview

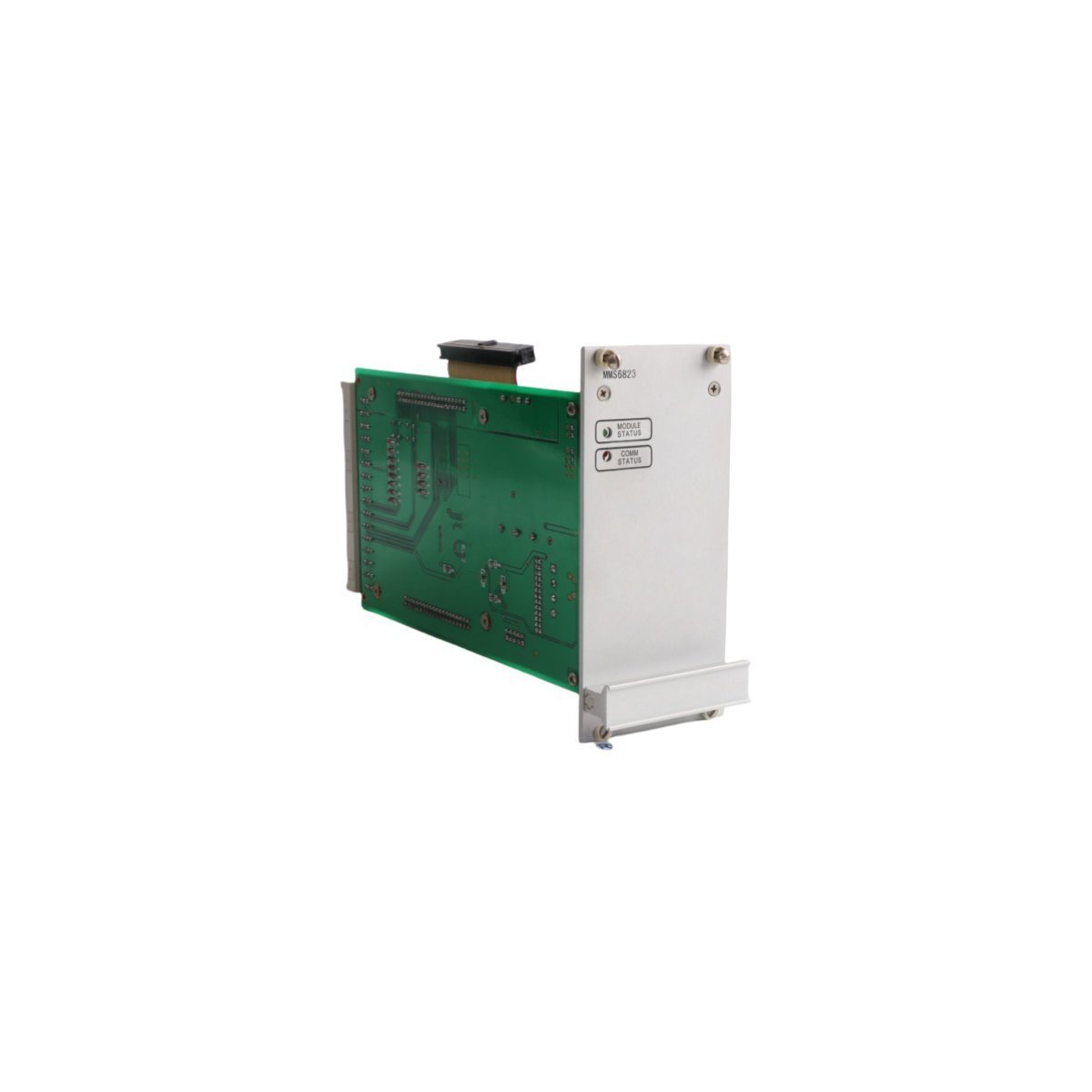

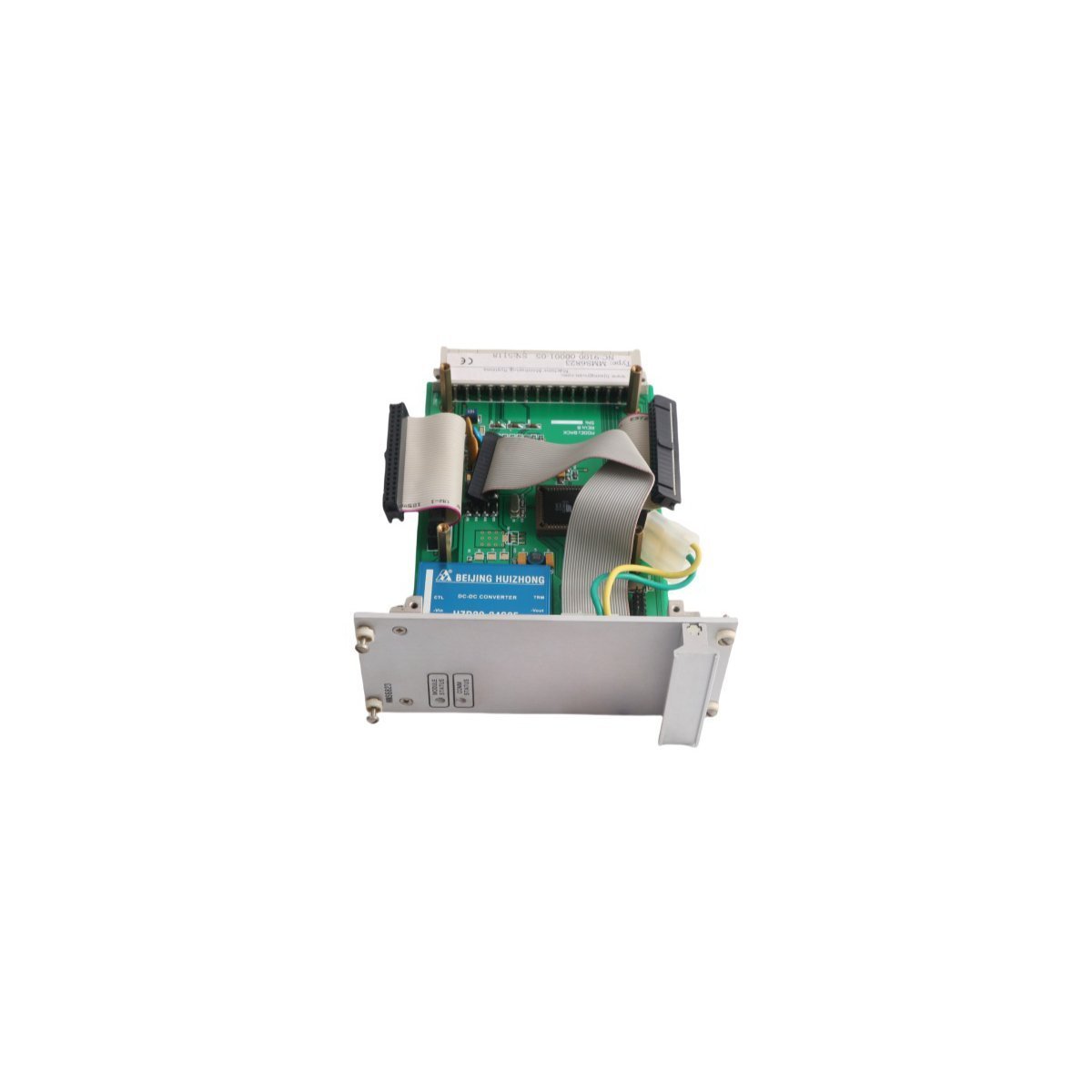

The Emerson MMS6823 is a specialized data acquisition and processing module designed for high-speed signal analysis within the IMR 6000/00 series. This module serves as a critical link in industrial monitoring chains, capturing raw sensor data and converting it into actionable mechanical health insights. Engineered for precision, the MMS6823 handles complex signal processing tasks—such as frequency analysis and peak detection—locally before transmitting data to the Distributed Control System (DCS). Its architecture is optimized for the Epro monitoring environment, providing the necessary bandwidth to track rapid changes in machinery behavior while ensuring data integrity across the automation network.

Hardware Performance and Physical Design

• Model Identification: MMS6823

• System Family: IMR 6000/00

• Input Voltage Compatibility: 220V AC Standard

• Processing Frequency: Up to 30 kHz sampling/output capability

• Module Weight: 0.28 kg

• Unit Dimensions: 6 x 18.8 x 12.8 cm

• Connectivity: Integration-ready for Ethernet router communication services

• HS Classification: 8537101190

• Lifecycle Status: Legacy support (Discontinued Dec 2018)

• Manufacturing Origin: USA

Industrial Application Scenarios

The MMS6823 is utilized in high-performance automation and protection frameworks where real-time data accuracy is paramount. Typical applications include:

• High-Speed Signal Processing: Capturing and analyzing rapid mechanical transients in rotating equipment like high-frequency turbines and motors.

• Process Variable Monitoring: Serving as a dedicated node for the acquisition of temperature, pressure, or displacement data in large-scale DCS architectures.

• Predictive Asset Management: Providing the granular data required for advanced diagnostic software to predict component wear and mechanical fatigue.

• Legacy System Maintenance: Facilitating the continued operation of IMR 6000 racks in power plants and chemical refineries where reliability cannot be compromised.
