Product Overview

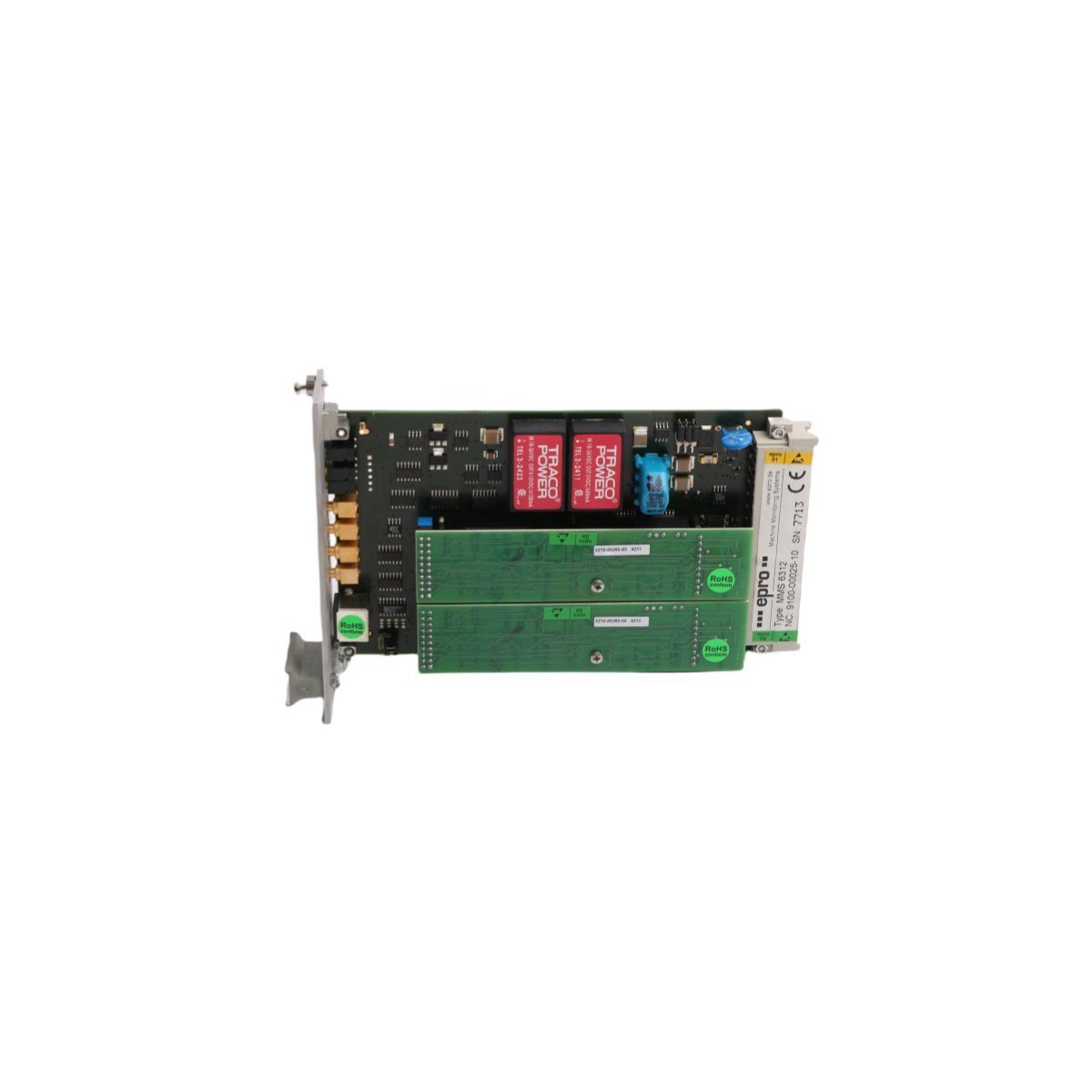

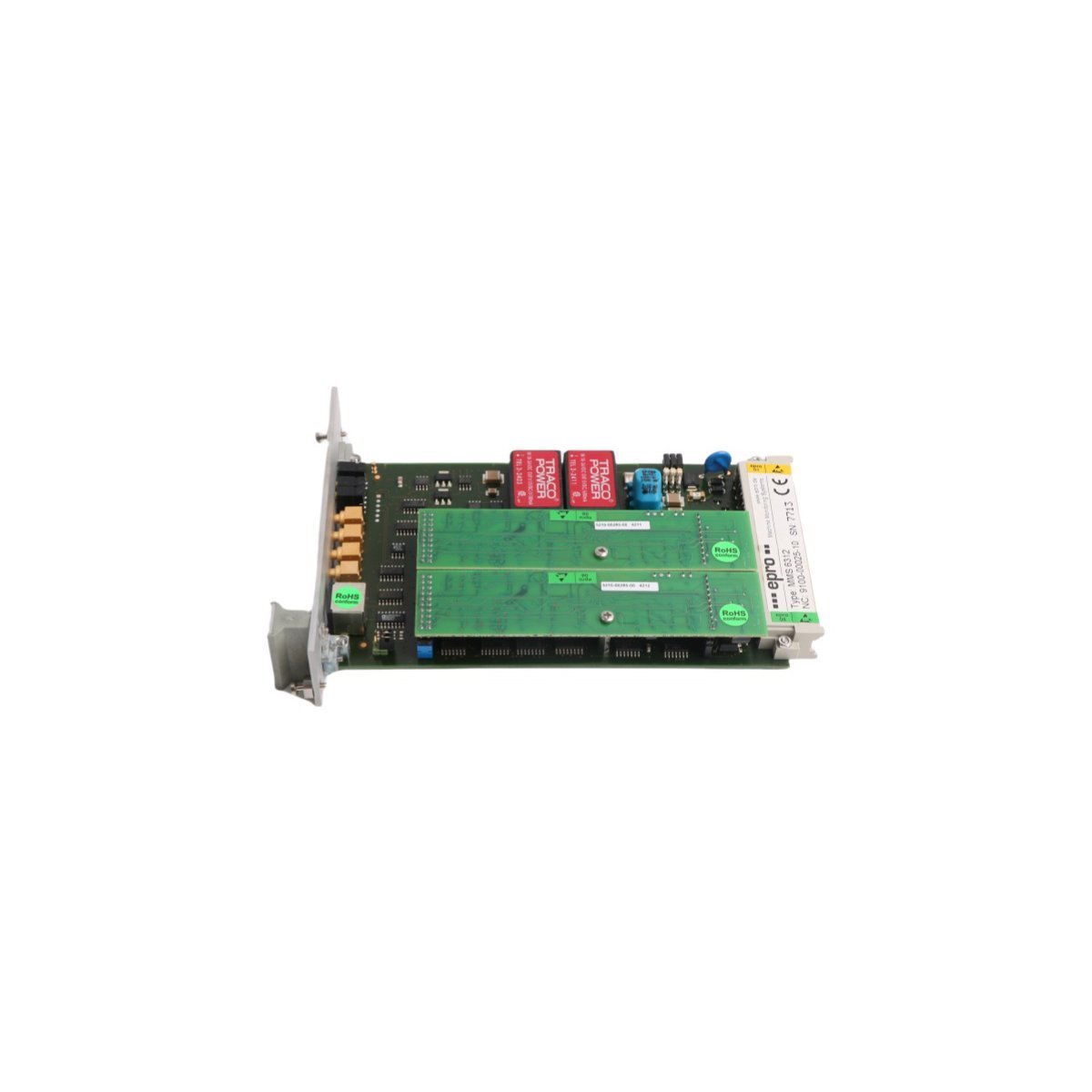

The Emerson MMS6312 is a high-integrity, dual-channel rotational speed monitor developed for the MMS 6000 Machine Monitoring System architecture. This module is engineered to provide continuous, high-precision surveillance of shaft velocity across two independent channels, making it a cornerstone for overspeed protection and rotational direction detection. By utilizing advanced pulse-processing logic, the MMS6312 converts sensor signals into actionable data, allowing operators to maintain strict control over turbine and motor performance. Its design prioritizes safety-critical responsiveness, ensuring that any deviation from set speed parameters triggers immediate protective actions to prevent mechanical catastrophic failure.

Performance Hardware and Functional Architecture

• Dual-Path Monitoring: Independent processing of two separate speed inputs, supporting redundant or multi-shaft configurations.

• Signal Compatibility: Designed to interface with diverse sensor types, including eddy current (proximity) probes and hall-effect speed sensors.

• Advanced Computation: Employs sophisticated algorithms for real-time calculation of rotational speed, acceleration, and zero-speed detection.

• Reliability Standards: Manufactured in accordance with ISO 9001:2015 quality protocols to ensure consistent performance in high-stress environments.

• Environmental Build: Ruggedized internal componentry housed in a compact form factor (3.1 x 19 x 12.9 cm), weighing just 0.24 kg.

• Diagnostic Suite: Features integrated self-checking routines to monitor the integrity of the sensor loop and internal module hardware.

• Interface Options: Provides analog outputs (0/4-20 mA) and digital limit contacts for seamless integration with DCS and emergency shutdown systems.

Primary Operational Deployments

The MMS6312 is a critical asset in industries where rotational velocity directly impacts safety and process efficiency. Key applications include:
