Product Overview

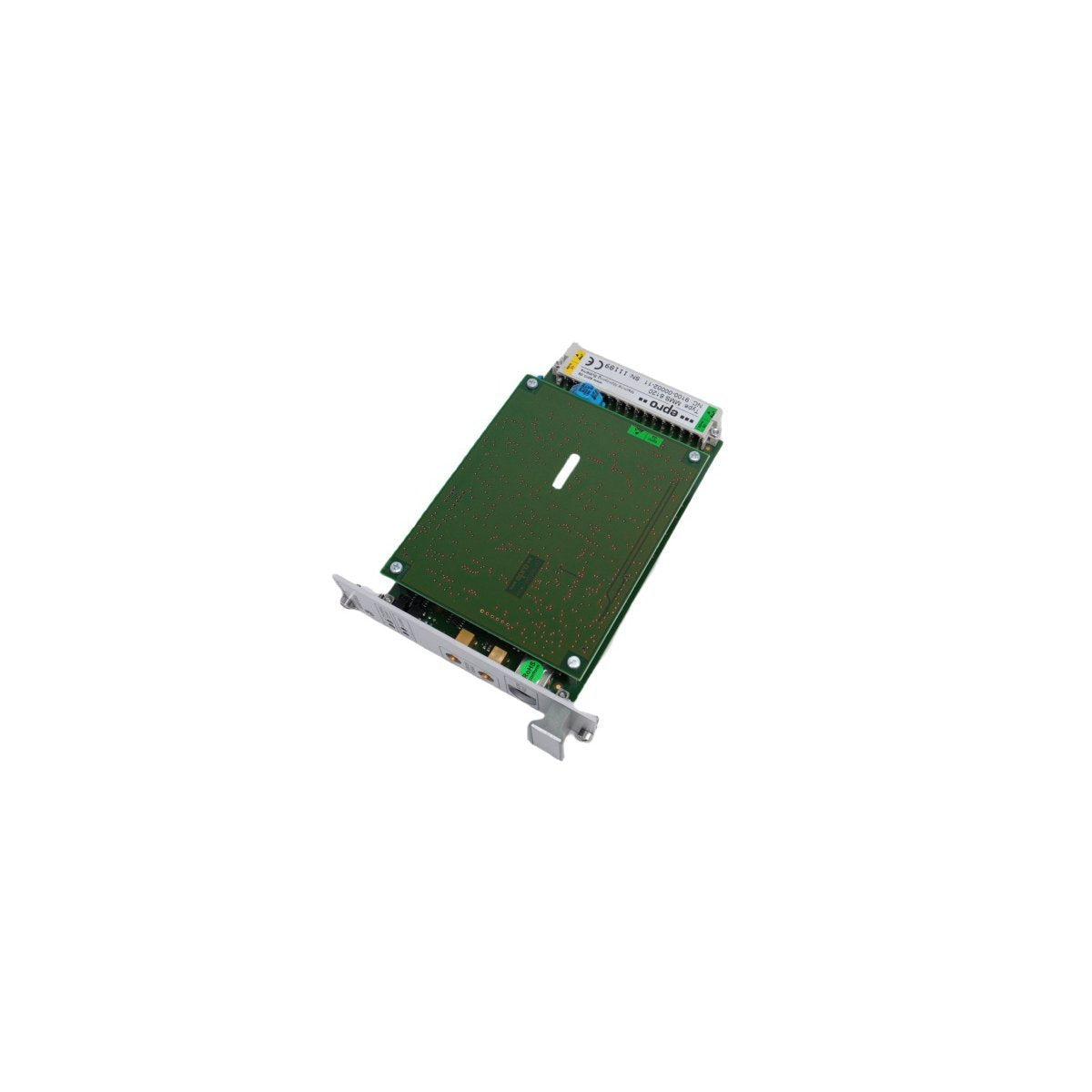

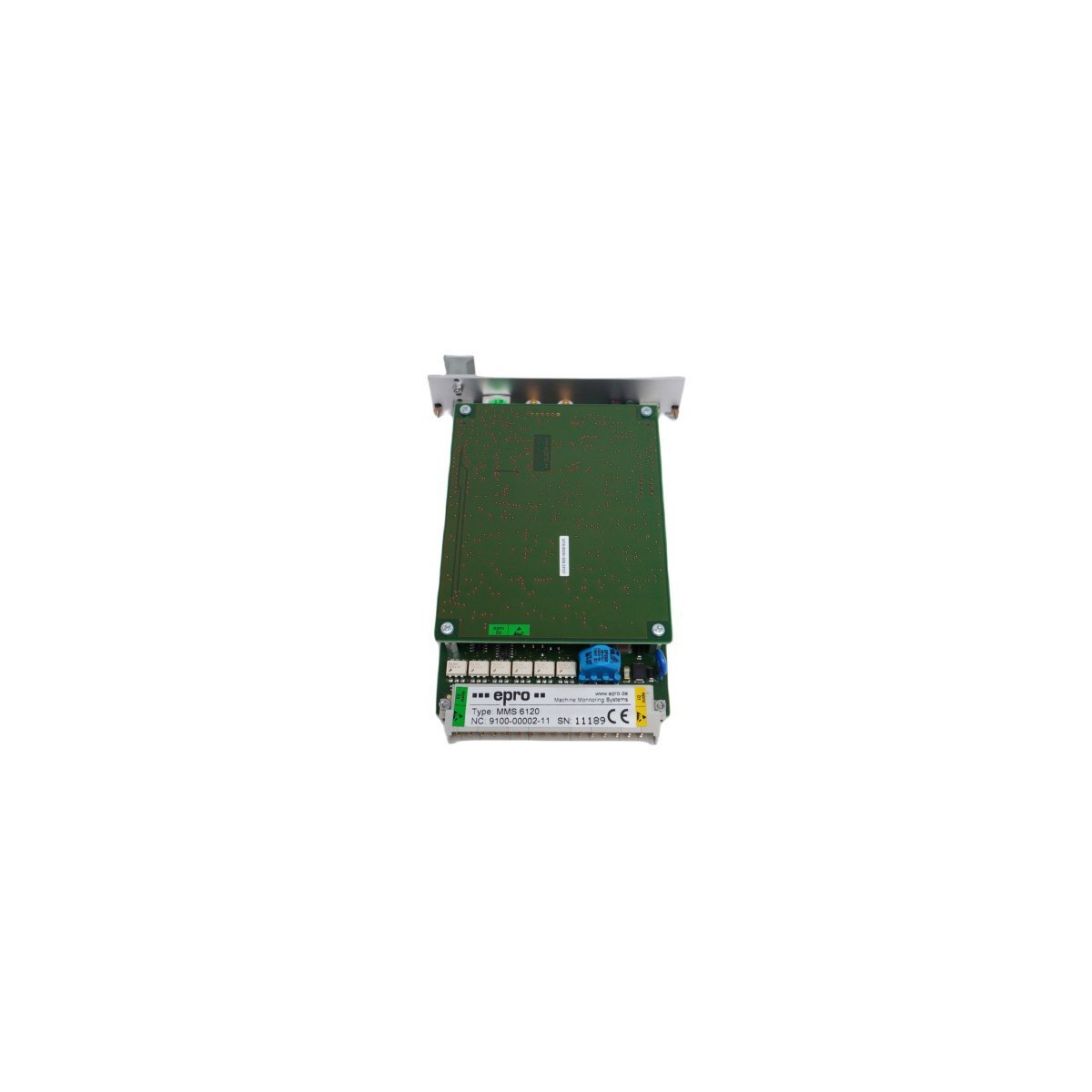

The Emerson EPRO MMS6120 is a high-performance machine protection module belonging to the MMS 6000 series, specifically engineered for the continuous measurement and monitoring of absolute bearing vibration. This dual-channel monitor is a critical component in safeguarding rotating machinery, such as turbines, compressors, and large pumps. It processes signals from seismic sensors (velocity or accelerometers) to provide real-time data on the mechanical integrity of bearing housings, ensuring that vibration levels remain within safe operational limits.

By utilizing high-speed signal processing, the MMS6120 identifies mechanical imbalances, misalignments, or structural looseness before they result in catastrophic equipment failure. It serves as an essential interface between field-mounted sensors and Distributed Control Systems (DCS), delivering accurate analog outputs and discrete alarm status triggers for comprehensive plant asset management.

Key Technical Characteristics and System Capabilities

The MMS6120 is designed for high-availability industrial applications where precision and durability are non-negotiable.

• Dual-Channel Absolute Vibration Monitoring: Processes two independent signal paths simultaneously, allowing for the supervision of multiple bearings or multi-axial monitoring of a single asset.

• Seismic Sensor Compatibility: Interfaces seamlessly with electrodynamic and piezoelectric transducers to measure absolute vibration velocity or displacement.

• Advanced Signal Conditioning: Features integrated programmable filters and integrators that convert raw sensor data into linearized signals with high immunity to electromagnetic interference (EMI).

• Configurable Alarm Logic: Includes independent limit monitoring for each channel, with adjustable delay times and hysteresis settings to prevent nuisance tripping during transient states.

• Deterministic Protection: Provides rapid-response relay outputs for "Alert" and "Danger" levels, facilitating immediate automated machine trips when safety thresholds are exceeded.

• Hot-Swap Support: Engineered for integration into the MMS 6000 rack system, allowing for module replacement under power to ensure zero interruption to machine protection logic.

Technical Specifications

• Manufacturer: Emerson (EPRO Series)

• Model Number: MMS6120

• Module Function: Dual-Channel Bearing Vibration Monitor

• Frequency Range: User-configurable based on application requirements

• Input Type: Electrodynamic or Piezoelectric sensors

• Output Interface: 0/4...20 mA analog outputs and discrete relay contacts

• System Rack Compatibility: MMS 6000 Protection System

• Dimensions: 3 x 19 x 12.7 cm

• Unit Weight: 0.3 kg

• Product Origin: USA

Industrial Applications

The Emerson EPRO MMS6120 is widely deployed across infrastructure-critical sectors:

• Power Generation: Protecting main steam and gas turbine bearing pedestals and generator frames.

• Petrochemical & Refining: Monitoring high-capacity centrifugal compressors and multi-stage process pumps.

• Manufacturing & Steel: Tracking the health of large-scale fans, blowers, and heavy-duty gearboxes.

• Water & Utilities: Providing machine protection for high-volume raw water and wastewater pumps.
