Product Overview

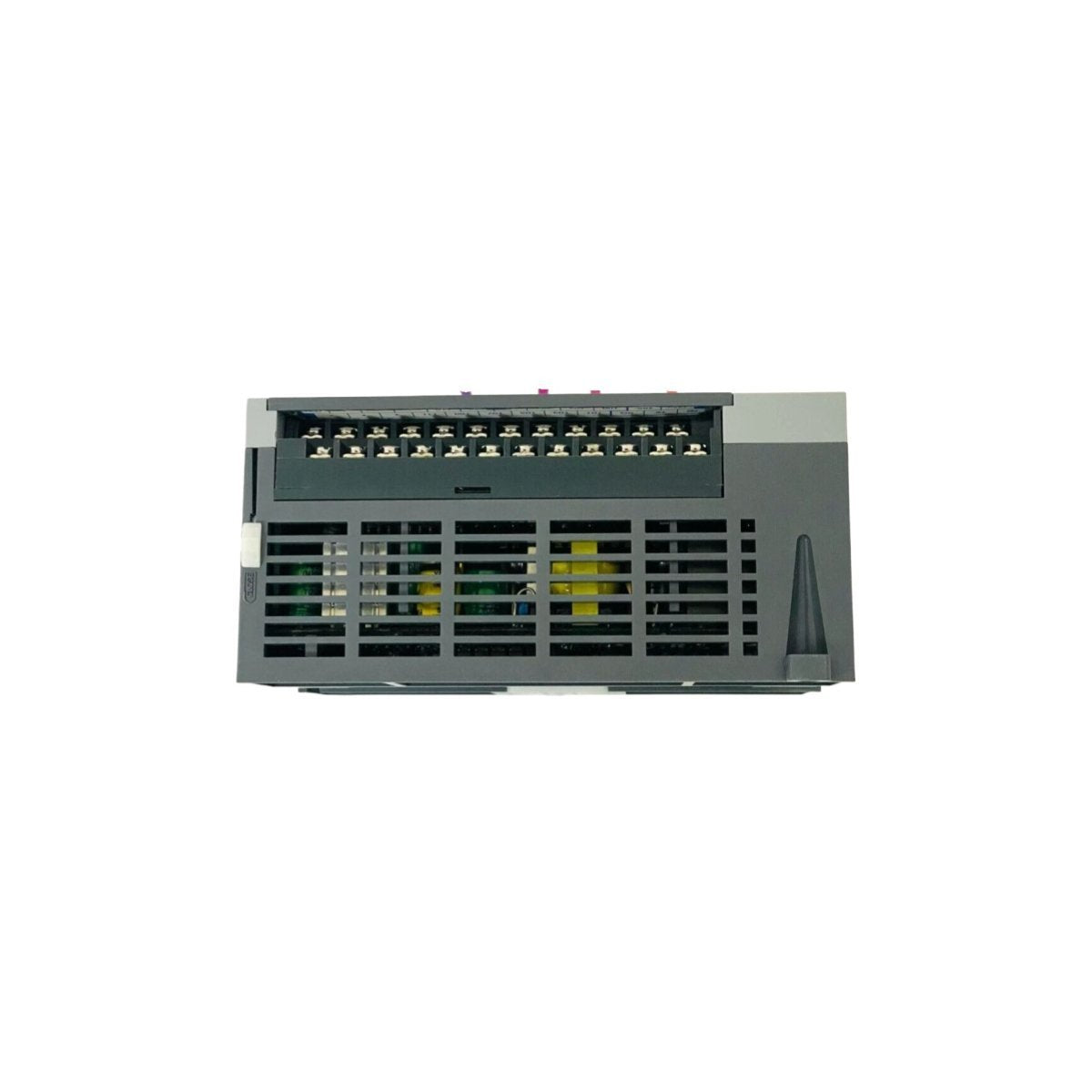

The Honeywell MLI-DN20SU is a specialized 20-channel digital input module engineered for the MasterLogic PLC and DCS family. This high-density component is designed to bridge the gap between field-level binary sensors and the central processing unit, facilitating real-time monitoring of industrial states. Built to adhere to strict IEC compliance standards, the MLI-DN20SU provides a robust interface for 24VDC discrete signals, ensuring that signal transitions are captured with high fidelity. Its streamlined form factor is specifically optimized for high-density control cabinets where minimizing the hardware footprint is essential without compromising electrical performance.

Key Technical Characteristics

This module is defined by its high-speed processing capabilities and superior noise rejection circuitry, making it reliable in electromagnetically noisy environments.

• Input Points: 20 Channels

• Rated Input Voltage: 24 VDC

• Input Current: Approximately 4 mA to 6 mA per point

• On-Voltage Threshold: 19 VDC or higher

• Off-Voltage Threshold: 6 VDC or lower

• Response Time: Adjustable filter times for high-speed signal capture

• Isolation Method: Photo-coupler isolation for enhanced circuit protection

• Status Monitoring: Front-facing LED indicators for per-channel I/O status

• Connection Type: Removable terminal block for simplified field wiring

• Environmental Rating: Designed for continuous operation in standard industrial temperature ranges

Operational Use Cases

The MLI-DN20SU is a fundamental component in discrete automation and process monitoring, commonly deployed in the following scenarios:

• Conveyor Systems: Monitoring proximity sensors, photo-eyes, and limit switches for material handling synchronization.

• Safety Interlocking: Capturing status feedback from emergency stop buttons and gate safety switches for logic processing.

• Packaging Machinery: Interfacing with high-speed sensors to track product presence and machine timing.

• Infrastructure Management: Monitoring auxiliary contacts of motor starters and circuit breakers in HVAC or water treatment plants.
