Product Overview

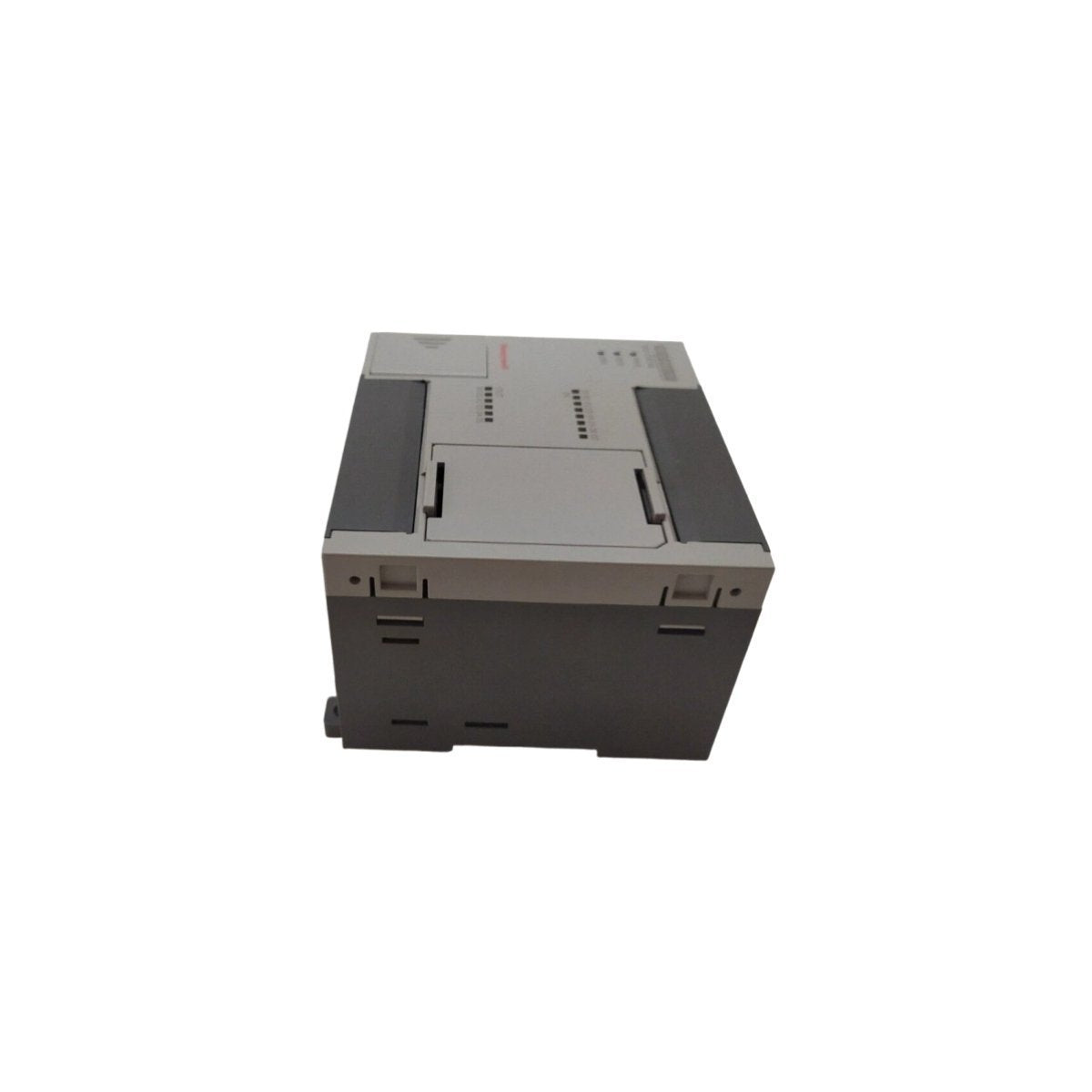

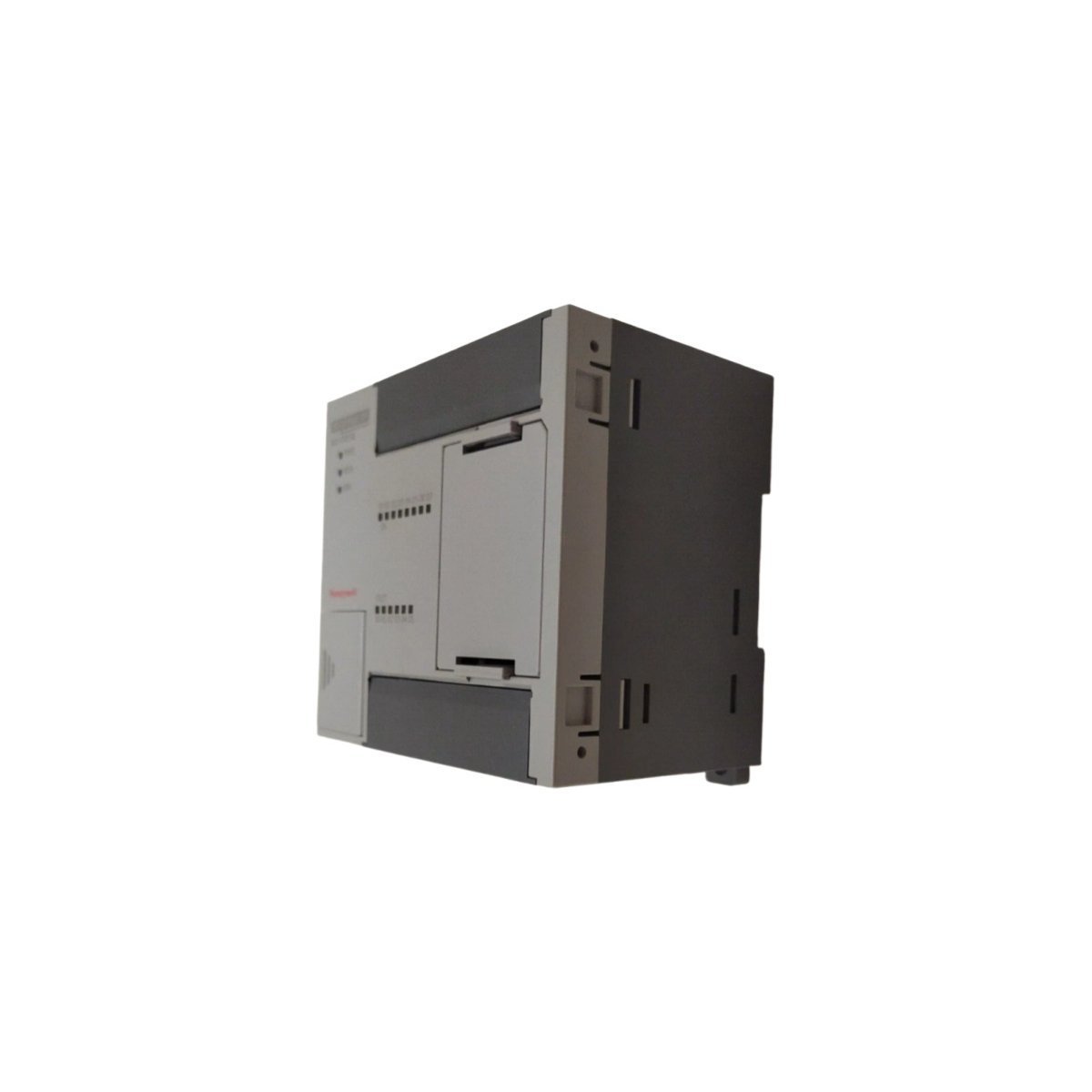

The Honeywell MLI-DN10E serves as a fundamental architectural component within distributed control environments, specifically designed to function as a robust mounting and connectivity base for modular electronics. This unit provides the physical and electrical infrastructure required for expansion modules to interface with the primary system backplane. By establishing a stable communication path and power distribution layer, the MLI-DN10E ensures that field signals are accurately processed and relayed to the supervisory level with minimal latency and high signal integrity.

Fundamental Hardware Parameters

• Model Designation: MLI-DN10E

• Module Type: Base Mounting / Interface Unit

• Construction Material: High-impact, flame-retardant industrial polymer

• Mounting Interface: Integrated DIN-rail locking mechanism

• Dimensions: 125mm x 45mm x 110mm

• Net Weight: 0.32 kg (0.71 lbs)

• Wiring Terminals: High-density screw-clamp or spring-loaded options for secure field wiring

• Backplane Connectivity: Multi-pin gold-plated bus connectors for corrosion resistance

• Protection Rating: IP20 rated for cabinet-based installation

Primary Field Deployments

The MLI-DN10E is an essential element in automated manufacturing plants and process-driven facilities where modularity is a priority. It is widely utilized in the power generation sector to house I/O modules that monitor turbine performance and boiler pressure. In large-scale HVAC building management systems, it provides the necessary base for air handling unit controllers. Furthermore, it is a staple in chemical processing plants where technicians require the ability to replace or upgrade active modules without disturbing the primary system wiring, thereby reducing maintenance downtime.

FAQ

Q: Can the MLI-DN10E base be installed on a standard 35mm DIN rail?

A: Yes, the unit is engineered with a universal mounting clip that is fully compatible with standard 35mm DIN rails used in most industrial control cabinets.

Q: Does this base module require a separate power supply for its own operation?

A: The MLI-DN10E is a passive base unit that distributes power from the system bus to the attached modules; it does not consume significant power itself but acts as a conduit.

Q: Is it possible to replace an electronic module while the MLI-DN10E remains wired?

A: One of the primary design advantages of this base module is the "permanent wiring" feature, which allows the top-mounted electronics to be swapped without disconnecting field cables.

Q: How many I/O modules can a single MLI-DN10E base support?

A: This specific base is designed to host one primary expansion or I/O module, though multiple bases can be interlocked to create a continuous local bus.

Q: What is the benefit of the gold-plated connectors on the backplane interface?

A: Gold plating prevents oxidation over long-term deployment, ensuring that the low-voltage communication signals between the base and the module remain consistent and noise-free.
