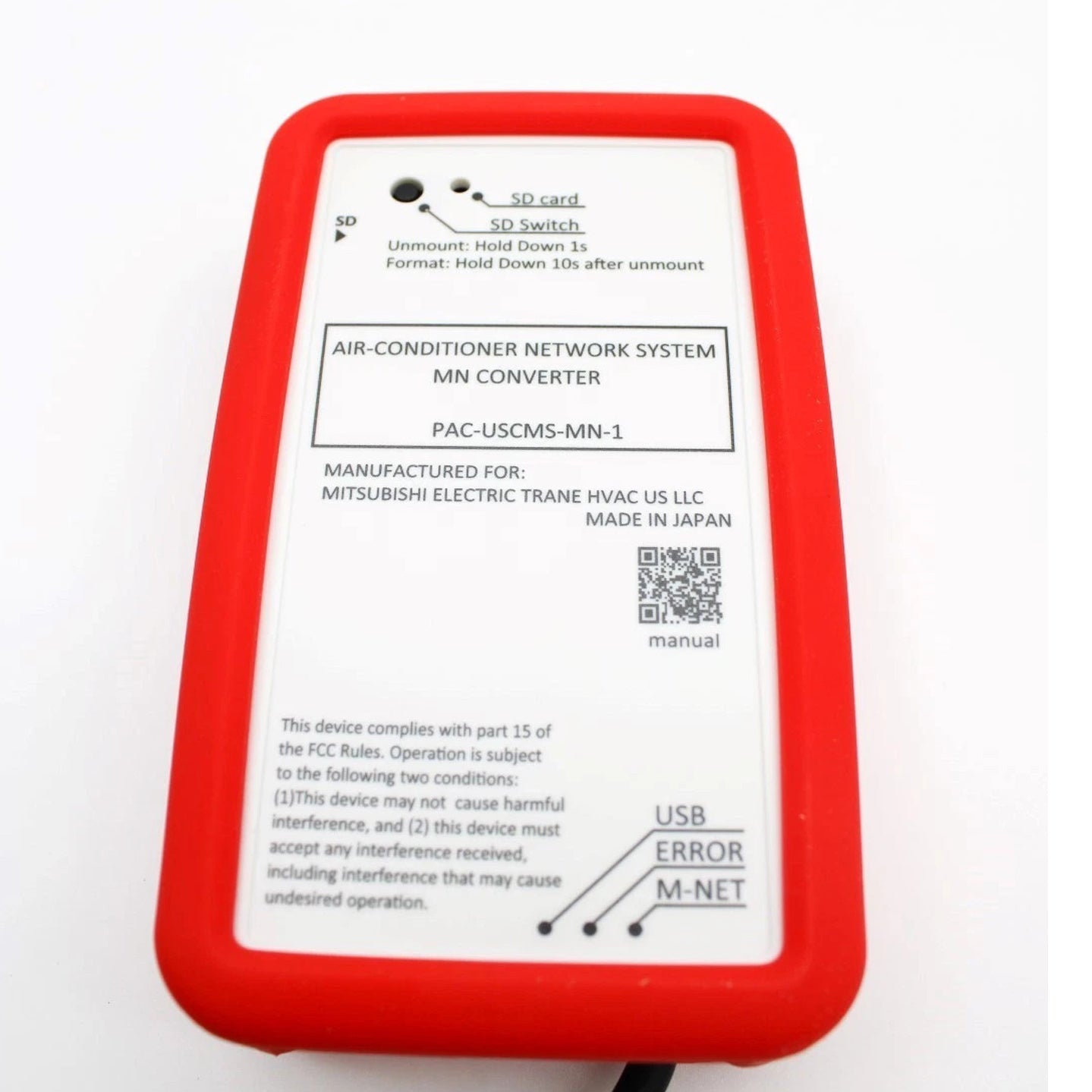

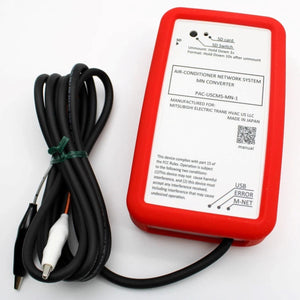

Product Overview

The PAC-USCMS-MN-1 MN-Converter serves as a critical diagnostic interface for Mitsubishi Electric City Multi, S-Series, and M-Series multi-zone systems. This professional-grade maintenance tool bridges the gap between complex VRF communication lines and PC-based diagnostic software. By converting M-NET transmission data into a USB-compatible format, the device enables engineers to perform real-time system monitoring, standalone data logging, and deep-level troubleshooting. It captures vital operational parameters from the TB3 or TB7 communication bus, allowing for the early detection of refrigerant flow issues, sensor malfunctions, and electronic expansion valve irregularities. The rugged hardware design ensures reliable performance in demanding mechanical room environments, providing the technical transparency required to maintain high-efficiency HVAC infrastructure.

Core Technical Advantages

Integrated M-NET Communication

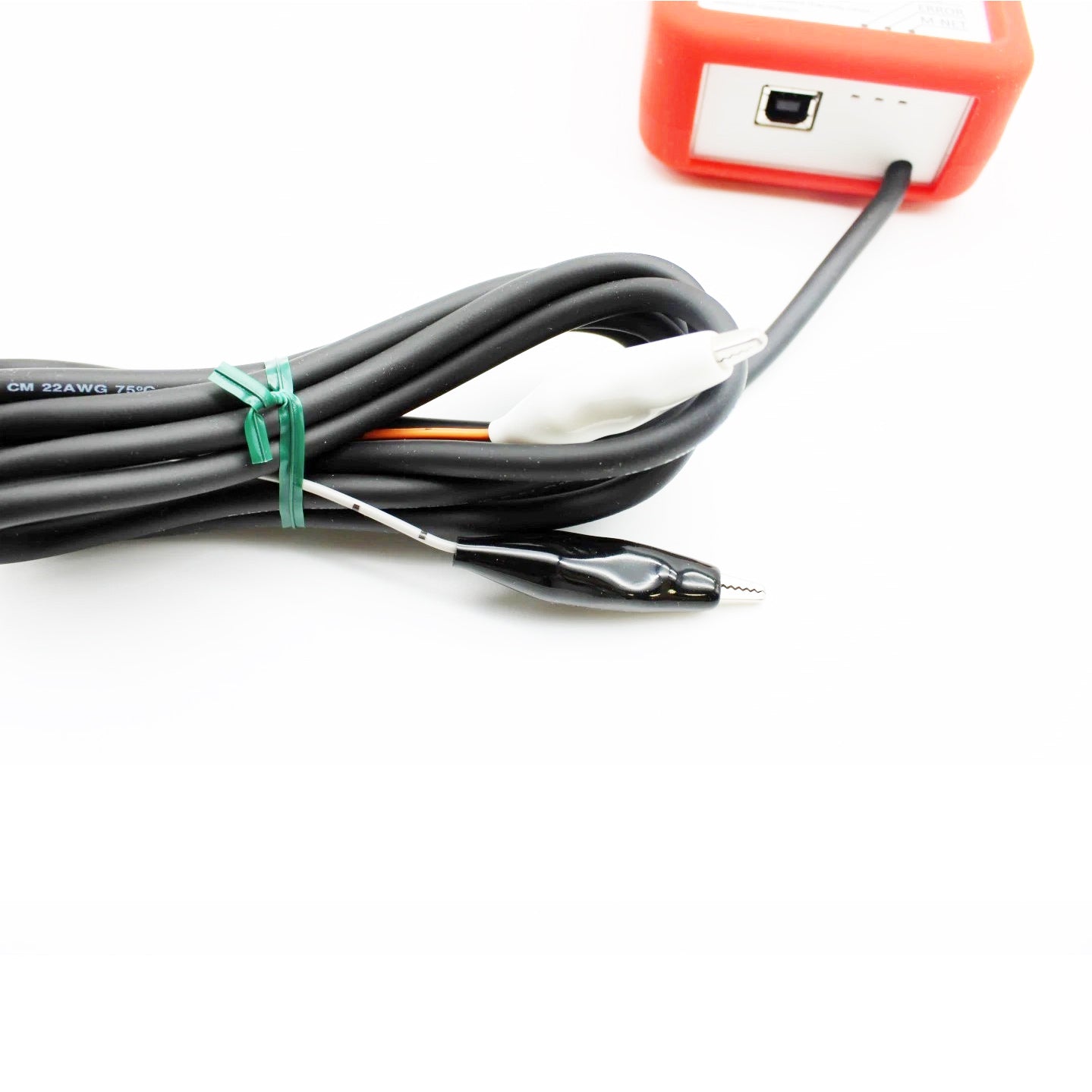

The hardware features dedicated alligator connectors specifically engineered for secure attachment to the M-NET transmission lines (TB3/TB7). This ensures a stable physical connection to the communication bus without risking signal interference or loose contacts during long-term data logging sessions.

Dual Operating Modes

The PAC-USCMS-MN-1 supports both active maintenance mode and standalone logging. In maintenance mode, it provides live interaction with the system via a laptop. In standalone mode, the integrated SD card slot allows the device to record system behavior over extended periods, making it indispensable for identifying intermittent "ghost" faults that only appear under specific load conditions.

Comprehensive System Compatibility

The converter interacts seamlessly with branch box type multi-zone units. It interprets complex data packets from City Multi VRF systems and residential M-Series units alike, consolidating diverse equipment data into a single, unified diagnostic stream through the USB Type-B interface.

Technical Specifications

Installation and Maintenance Guide

Successful deployment of the PAC-USCMS-MN-1 requires strict adherence to communication bus protocols. When connecting to the TB3 or TB7 terminals, ensure the alligator clips do not bridge the communication line to the ground or power shielding, as this may cause data corruption across the entire M-NET segment.

Engineers must use the M21EC0397 maintenance tool cable set (sold separately) to interface correctly with specific indoor unit control boards. For standalone logging, verify that the SD card is formatted to the tool's required file system before deployment. Always connect the USB cable to the laptop before launching the Maintenance Tool software to ensure the driver initializes the COM port correctly. When monitoring City Multi systems, connect at the most accessible outdoor unit terminal block to capture data from all downstream indoor units and branch boxes.

Engineering Advantages

High-Fidelity Data Capture

The PAC-USCMS-MN-1 eliminates guesswork by providing raw data from the M-NET transmission line. It allows technicians to view thermistor temperatures, compressor frequencies, and high/low-pressure transducer readings with precision that standard remote controllers cannot match.

Versatile Field Utility

The compact form factor and lightweight design allow technicians to carry the tool easily between job sites. Its ability to draw power and data directly from the system or USB port reduces the need for external power supplies in cramped ceiling spaces or rooftops.

Robust Troubleshooting Efficiency

By utilizing the standalone logging function, engineers can leave the device on-site to capture data during extreme temperature fluctuations. This capability is vital for verifying system performance against design specifications and ensuring long-term reliability in critical climate-controlled environments.

Delivery and Logistics

Delivery Time: 3-5 days after payment completion.

Shipping Partners: DHL, FEDEX, UPS.

Condition: Brand New, Factory Sealed.

Technical FAQs

Q1: Does the PAC-USCMS-MN-1 include the necessary cables for all indoor units?

A1: No, the PAC-USCMS-MN-1 includes the core converter and M-NET leads. Specialized connections, such as those for M-Series indoor units, require the M21EC0397 maintenance tool cable set which is sold separately.

Q2: Can I use this tool to change system addresses?

A2: While primarily a diagnostic and monitoring tool, it allows for deep system oversight. Address changes are typically managed through the Maintenance Tool software interface when the PAC-USCMS-MN-1 is actively connected to the M-NET bus.

Q3: What is the maximum SD card capacity supported for standalone logging?

A3: The device is optimized for standard SD cards. For maximum stability during multi-day logging sessions, it is recommended to use high-quality industrial SD cards formatted to FAT32.

Q4: Is the software included with the hardware purchase?

A4: This listing is for the PAC-USCMS-MN-1 hardware interface. The Mitsubishi Electric Maintenance Tool software is typically provided through authorized service channels or professional technician portals.
