Product Overview

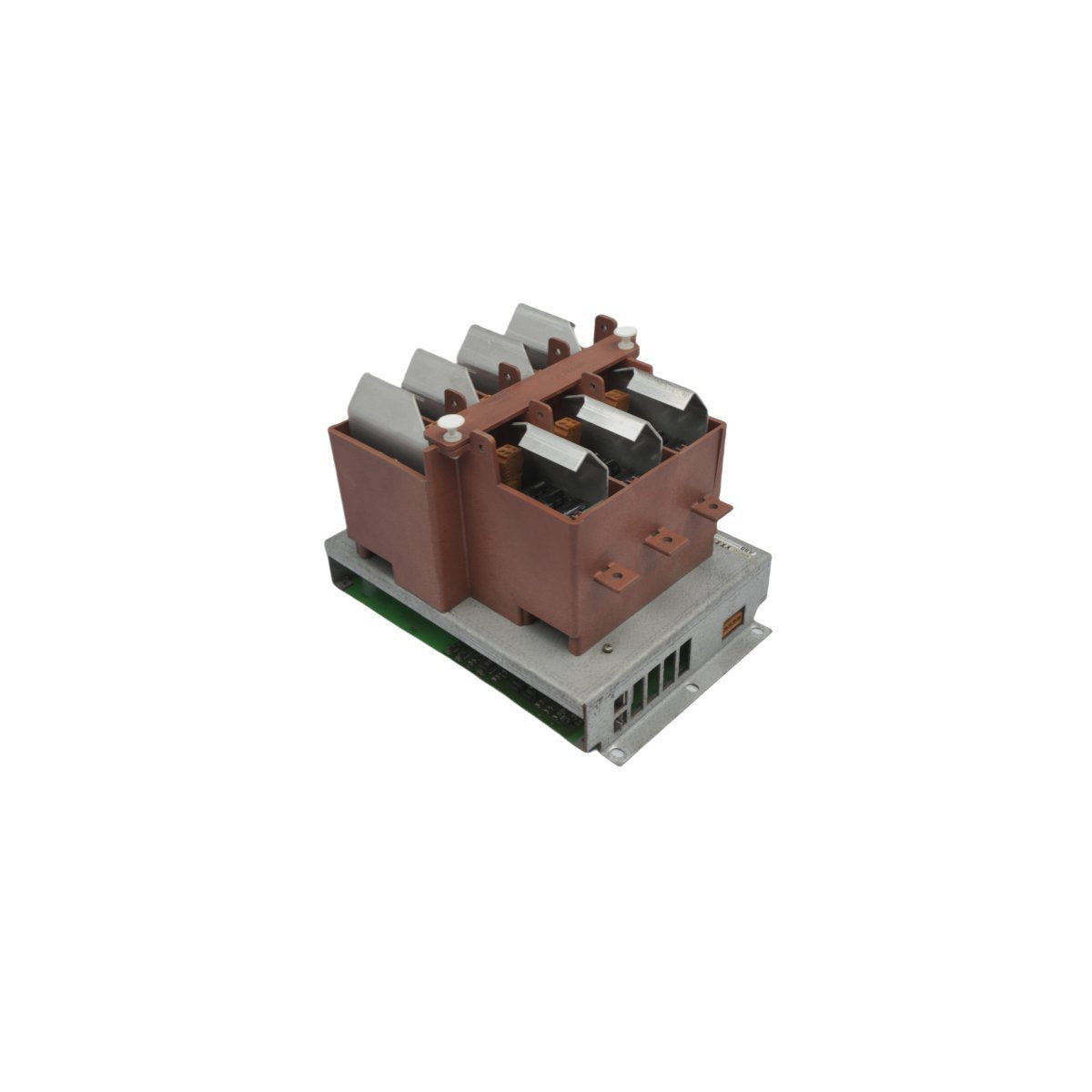

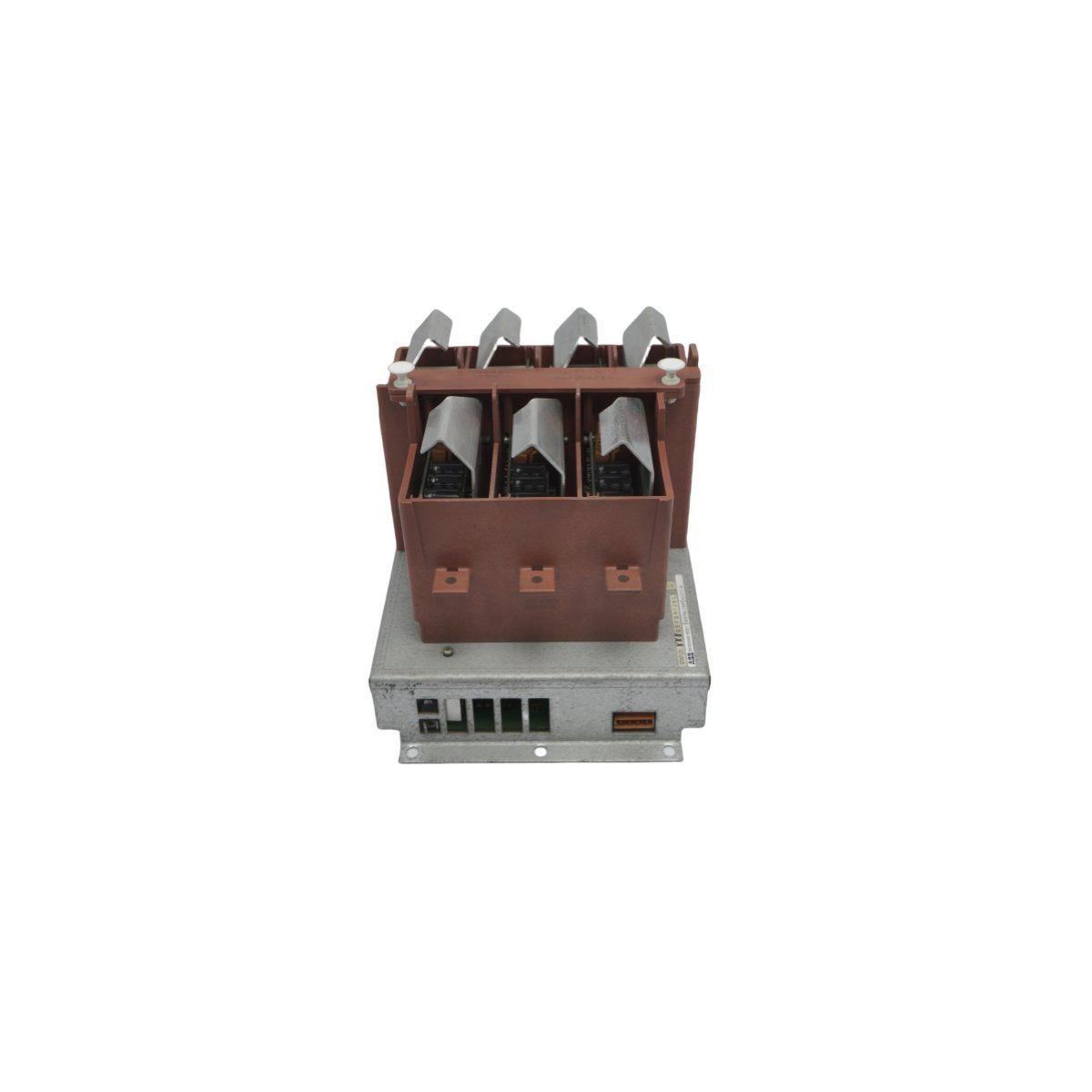

The ABB KUC711AE, identified by the order code 3BHB004661R0001, is a high-capacity power supply control unit engineered for the AC800M automation platform. This module serves as a critical management hub for rack-mounted power distribution, ensuring that voltage levels remain regulated and consistent across the system backplane. Designed for heavy-duty industrial environments, the KUC711AE supervises power integrity, manages redundancy switchovers, and facilitates real-time communication between the power hardware and the central processor. Its robust 7.49kg construction reflects its industrial-grade internal components, making it a cornerstone for stable Distributed Control System (DCS) operations.

Hardware Parameters and Technical Specifications

The 3BHB004661R0001 is built for high-performance data acquisition and power supervision, providing the necessary infrastructure for large-scale controller clusters.

• Model Number KUC711AE

• Order Number 3BHB004661R0001

• Module Class Rack Power Supply Control Unit

• System Series AC800M / Advant 800xA

• Data Processing High-speed real-time monitoring and logic execution

• Redundancy Support Integrated management for redundant power configurations

• Diagnostics Comprehensive status reporting via system bus

• Physical Mass 7.49 kg

• Unit Dimensions 27.6 x 19.5 x 19 cm

• Manufacturing Origin Sweden

• Compatibility Optimized for high-performance DCS racks and Ethernet routing services

Industrial Applications and Operational Use Cases

The KUC711AE Power Supply Control Unit is deployed in large-scale infrastructure where power failure or signal instability would result in significant operational risks.

• Complex Process Automation Acts as the primary power regulator for AC800M controller racks in chemical and pharmaceutical plants, ensuring that logic execution is never interrupted by power transients.

• Power Generation Facilities Monitors and manages the DC power distribution for turbine control systems and substation automation where high reliability and fast data processing are mandatory.

• Metals and Mining Operations Built to withstand the vibration and electrical noise of heavy machinery environments, providing stable power to decentralized I/O and processor modules.

• Critical Infrastructure Upgrades Used as a scalable solution for expanding automation systems, allowing for the addition of more I/O modules without compromising the voltage stability of the existing rack.

• Marine and Offshore Platforms Deployed in maritime control systems where compact but heavy-duty power management is required to maintain shipboard automation and propulsion monitoring.
