Product Overview

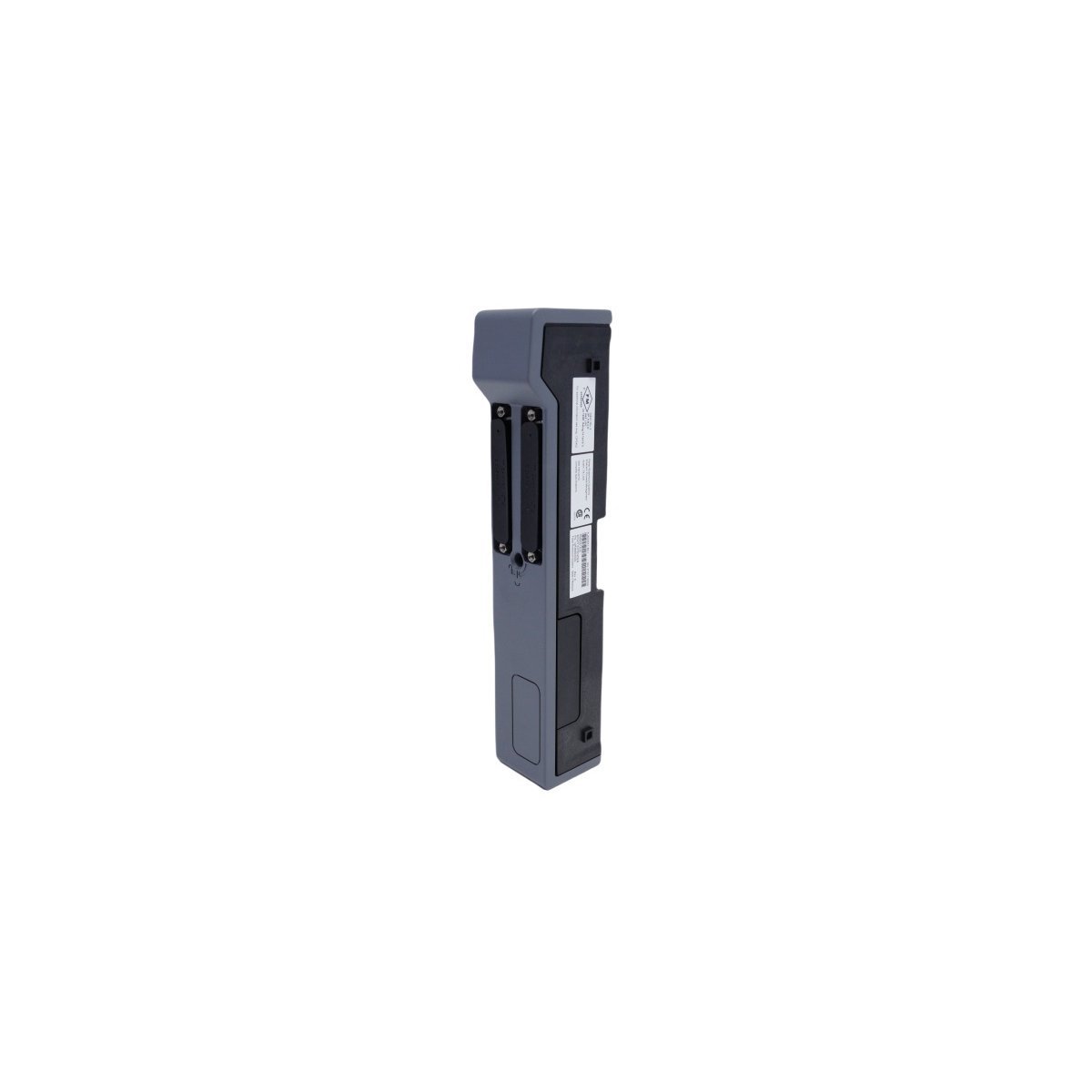

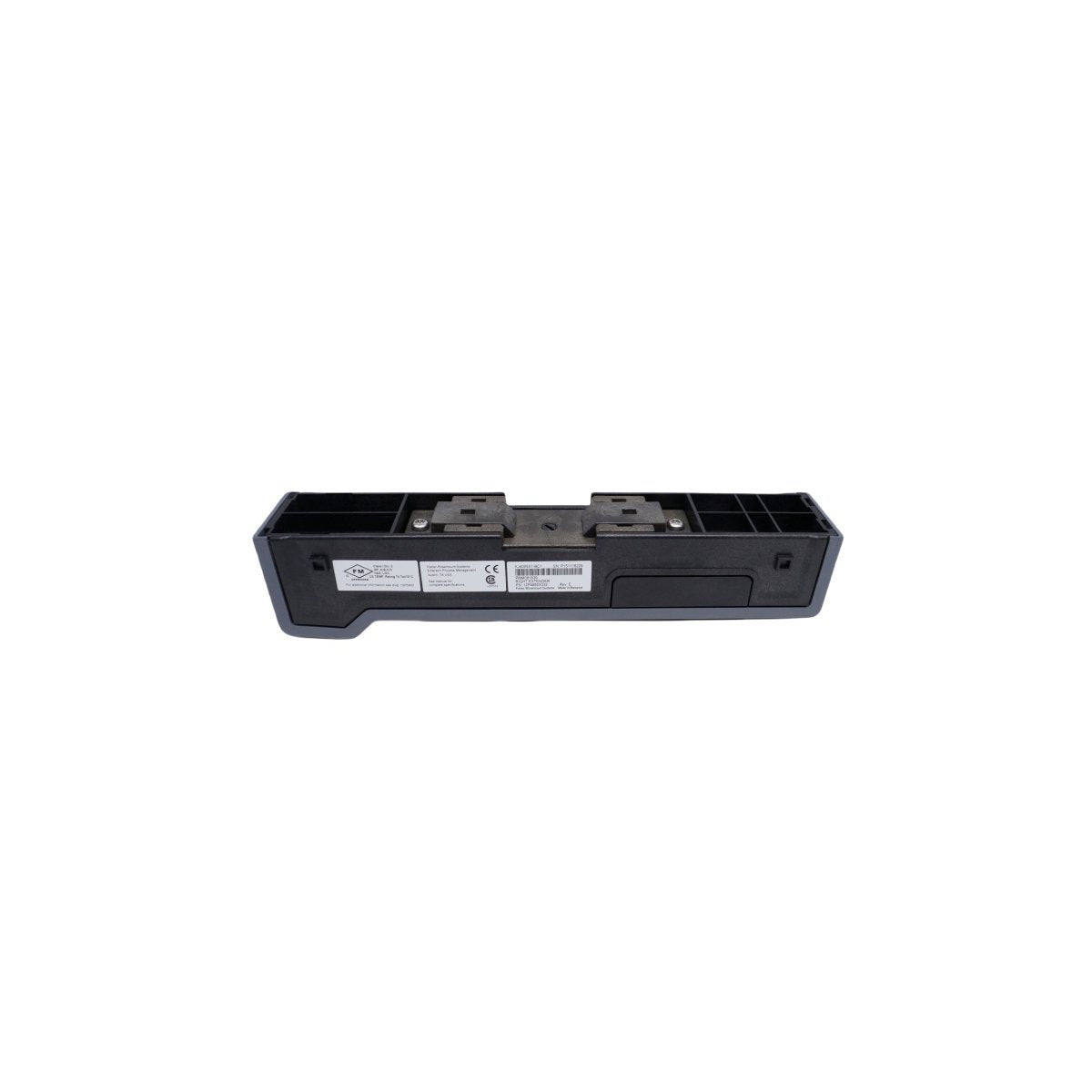

The Emerson KJ4005X1-BC1 is a specialized Right Extender module designed for the DeltaV™ M-series I/O Subsystem. This hardware component serves as a critical physical and electrical bridge within the local I/O bus architecture. It is primarily utilized to extend the I/O backplane across multiple rows or to connect disparate carrier sets within a single control cabinet. By maintaining the integrity of the Localbus signal and power distribution, the Right Extender allows for the expansion of the I/O subsystem beyond a single horizontal carrier.

Unlike active communication controllers, the KJ4005X1-BC1 functions as a high-integrity bus interface. It facilitates the seamless flow of data between the DeltaV controller and remote I/O modules, ensuring that timing and signal strength remain within system specifications even as the physical footprint of the DCS hardware grows. Its rugged design and passive-active hybrid architecture make it an essential component for high-density automation projects.

Technical Characteristics and Bus Expansion

The Right Extender is engineered to support the scalability and reliability required by the DeltaV Distributed Control System.

• Localbus Extension: Provides the necessary termination and connection point for the Localbus cable, allowing data to transition from one carrier row to the next (typically used in conjunction with a Left Extender).

• Signal Integrity Maintenance: Optimized to minimize signal attenuation and electrical noise across the backplane, ensuring stable communication for both high-speed discrete and sensitive analog signals.

• Passive-Ready Connection: Designed for easy installation on the right-hand side of a carrier, featuring a plug-and-play interface that requires no complex software addressing.

• Industrial Durability: Built to operate in harsh industrial environments, withstanding the high temperatures and vibrations common in petrochemical and power generation control rooms.

• System Versatility: Compatible with all M-series I/O carriers, allowing for flexible cabinet layouts and the efficient use of rail space.

• G3 Environmental Rating: Meets ISA-S71.04 Class G3 standards for protection against airborne contaminants and corrosive gases, ensuring a long service life in chemical processing plants.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Number: KJ4005X1-BC1

• Module Type: Right Extender

• System Compatibility: DeltaV™ M-series I/O Subsystem

• Orientation: Right-hand side carrier termination

• Communication Interface: DeltaV Localbus

• Operating Temperature: Standard industrial range (-40°C to +70°C)

• Dimensions: 22.9 x 4.2 x 5 cm

• Unit Weight: 0.26 kg

• Origin: USA

Industrial Applications

The Emerson KJ4005X1-BC1 Right Extender is a fundamental part of the I/O architecture in several key sectors:

• Oil and Gas Production: Expanding I/O capacity in offshore platform control cabinets where space is limited and tiered carriers are required.

• Chemical Refining: Maintaining bus integrity across multi-row Marshalling cabinets in G3-rated environments.

• Power Utilities: Supporting large-scale I/O distribution for turbine and boiler management systems.

• Pharmaceutical Batching: Enabling flexible hardware configurations for validated process control systems.
