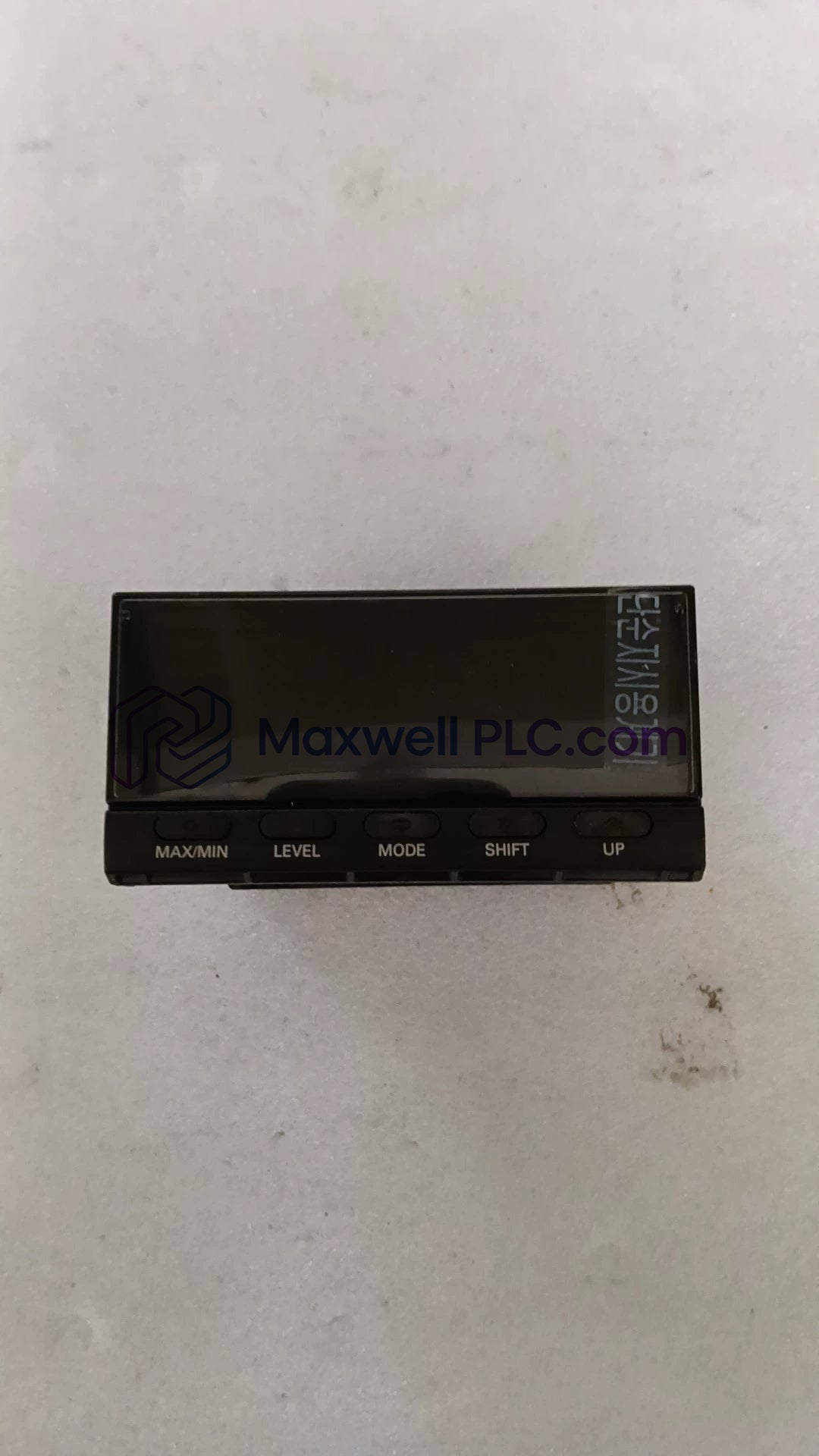

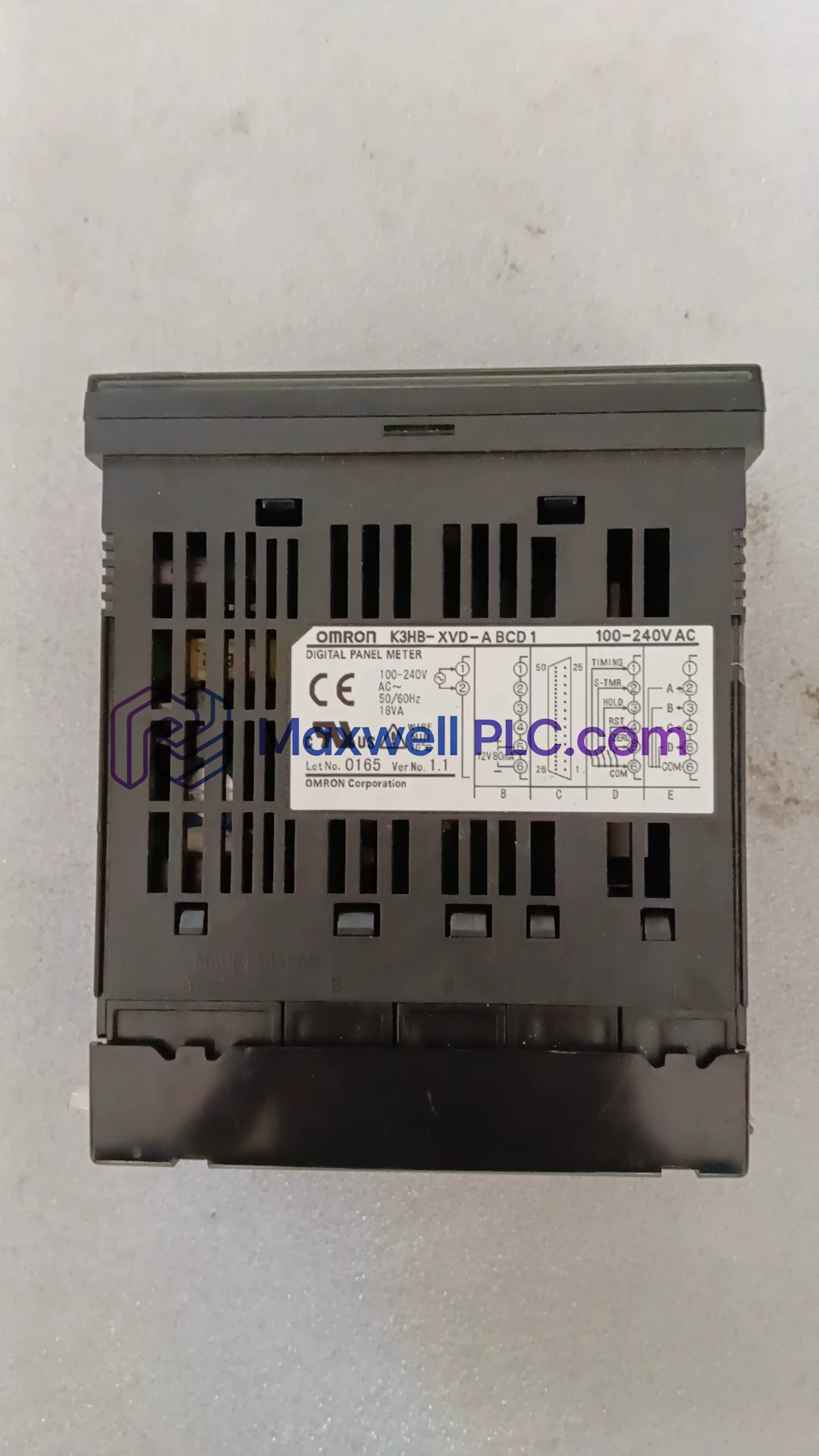

K3HB-XVD-ABCD1 Omron Process Indicator K3HB Series
K3HB-XVD-ABCD1 Omron Process Indicator K3HB Series
Omron

K3HB-XVD-ABCD1 Omron Process Indicator K3HB Series

SKU: K3HB-XVD-ABCD1
Categories : All Products
In Stock
  • Dimensions: 150 mm x 120 mm x 100 mm
  • Country of origin: Japan
  • Payment: T/T, Western Union
  • Shipping port: Xiamen
1 years warranty
Delivery time: 3-7 business days
Free 30 days return

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

The Omron K3HB-XVD-ABCD1 100-240VAC, also cataloged as the K3HB-XVD Process Indicator, operates as a dedicated hardware component for high-speed voltage signal sampling and real-time process value visual discrimination within control panel automation systems.

Model Suffix Structure & Functional Configuration

  • K3HB-X: Process indicator platform for DC voltage/current analog input signals
  • VD: Voltage input model (DC voltage input range selection)
  • A: Sensor power supply output (12 VDC +/-10%, 80 mA)
  • B: Communications / output options (DeviceNet communications unit)
  • C1: Event input options (5 points: NPN open collector)
  • 100-240VAC: Nominal supply voltage power rating

Core Hardware Specifications

Parameter Specification
Model K3HB-XVD-ABCD1 100-240VAC
Brand Omron
Origin Japan
Weight 0.30 kg
Base Unit Dimensions 96 mm x 48 mm x 97 mm (DIN 1/8 size, depth behind panel)
Shipping Dimensions 150 mm x 120 mm x 100 mm (Shipping weight: 1.30 kg)
Operating Temp -10 deg C to 55 deg C
Power Consumption Max. 18 VA (at 100 to 240 VAC)
Input Signal Type DC Voltage / DC Current process signals
Sampling Rate High-speed sampling at 50 times per second (20 ms conversion cycle)
Enclosure Rating NEMA 4X front panel (IP66 equivalent water/dust protection)
Display Technology 7-segment green/red dual-color switchable LED display with position meter

Fieldbus Integration & Backplane Determinism

The panel meter processes field voltage inputs at 20 ms sampling intervals, maintaining real-time alignment with centralized PLC I/O density scaling racks. Communication through DeviceNet preserves backplane bus communication velocity Licences and deterministic networking timing across main controller loops. Internal firmware flash compatibility ensures zero-drift scaling calculations and stable event input evaluation.

Ordering Information & Package Delivery List

  • 1 x K3HB-XVD-ABCD1 Process Indicator Main Unit
  • 2 x Mounting Brackets with Screws
  • 1 x Rubber Panel Watertight Packing Gasket
  • 1 x Terminal Cover Plate
  • 1 x Instruction Manual Leaflet

Mechanical Panel Cutout & Wiring Execution

Panel Mounting Sequence

  • Prepare a standard 1/8 DIN panel cutout measuring 92 mm x 45 mm.
  • Insert the rubber packing gasket onto the housing bezel and push the indicator frame into the cutout from the front panel.
  • Slide the left and right mounting brackets into the side grooves from the rear until locked, tightening screws evenly to ensure IP66 seal compression.

Field Terminal Wiring Protocol

  • Connect AC power lines (100 to 240 VAC) to terminals A1 and A2 using crimped ring terminals.
  • Route shielded signal conductors to DC input terminals, bonding outer cable shields to a dedicated ground bus.

Frequently Asked Questions

  • What is the internal analog sampling rate of this process indicator?

    The unit executes high-speed signal processing at 50 conversion cycles per second (20 ms sampling period).

  • Can the front display change color based on alarm threshold conditions?

    Yes, the LED process display can automatically switch between red and green based on evaluation results.

  • What ingress protection rating is provided on the front panel face?

    The front panel enclosure conforms to NEMA 4X standards, equivalent to an IP66 water-resistant seal.

  • What is the total depth clearance required behind the panel face?

    The DeviceNet-equipped model frame requires a physical depth clearance of 97 mm behind the mounting panel.

  • How is two-point scaling configured for process variable translation?

    Two-point scaling allows setting two arbitrary input values to represent low and high display values.

  • Does the unit supply power for connected external sensors?

    Yes, the suffix A configuration provides an internal sensor power supply output rated for 12 VDC at 80 mA.

  • What communication protocol is integrated into this model variant?

    The suffix B code specifies integrated DeviceNet fieldbus communications for direct network access.

  • How many discrete external event inputs are available on the unit?

    The suffix C1 specification provides 5 dedicated NPN open-collector logic event input terminals.
