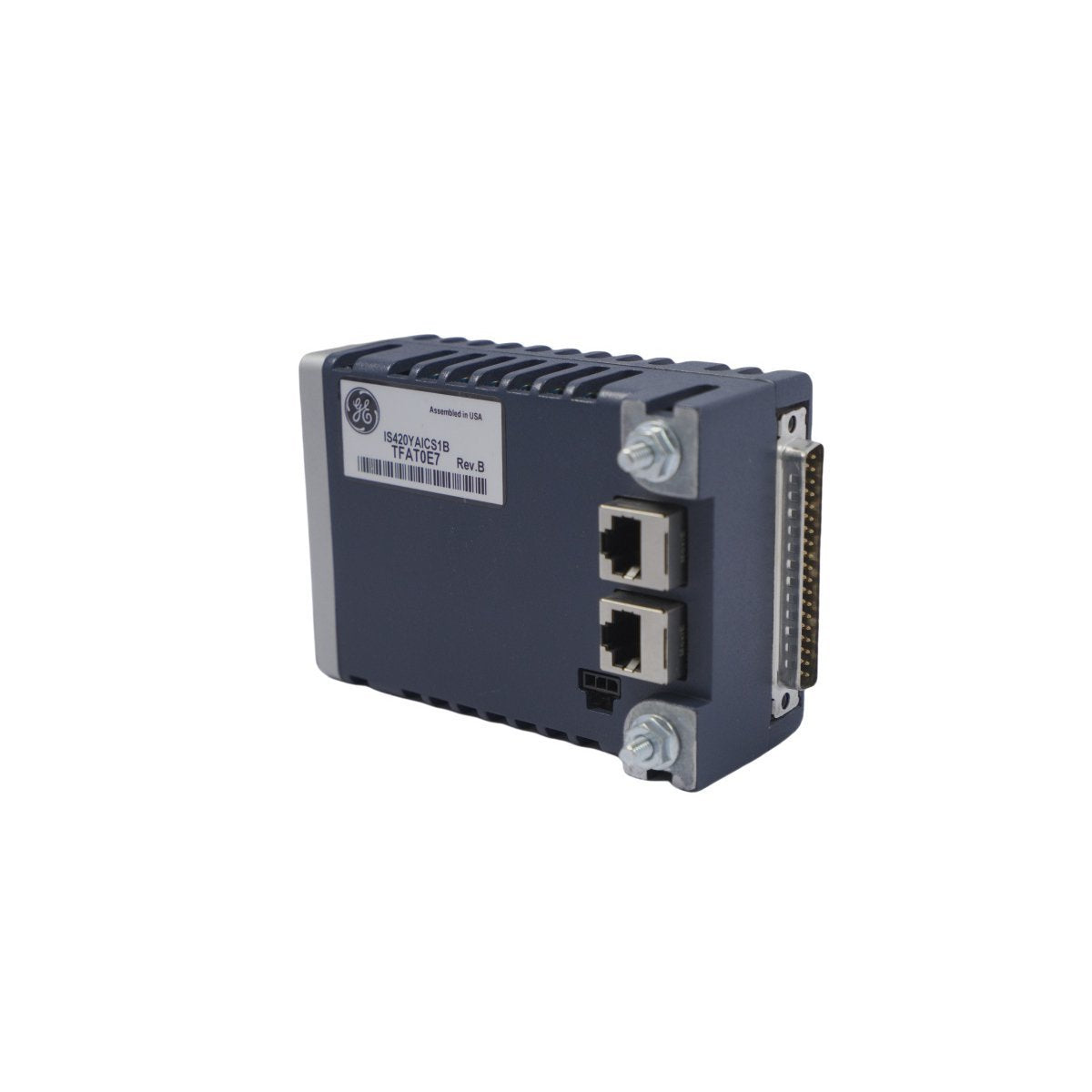

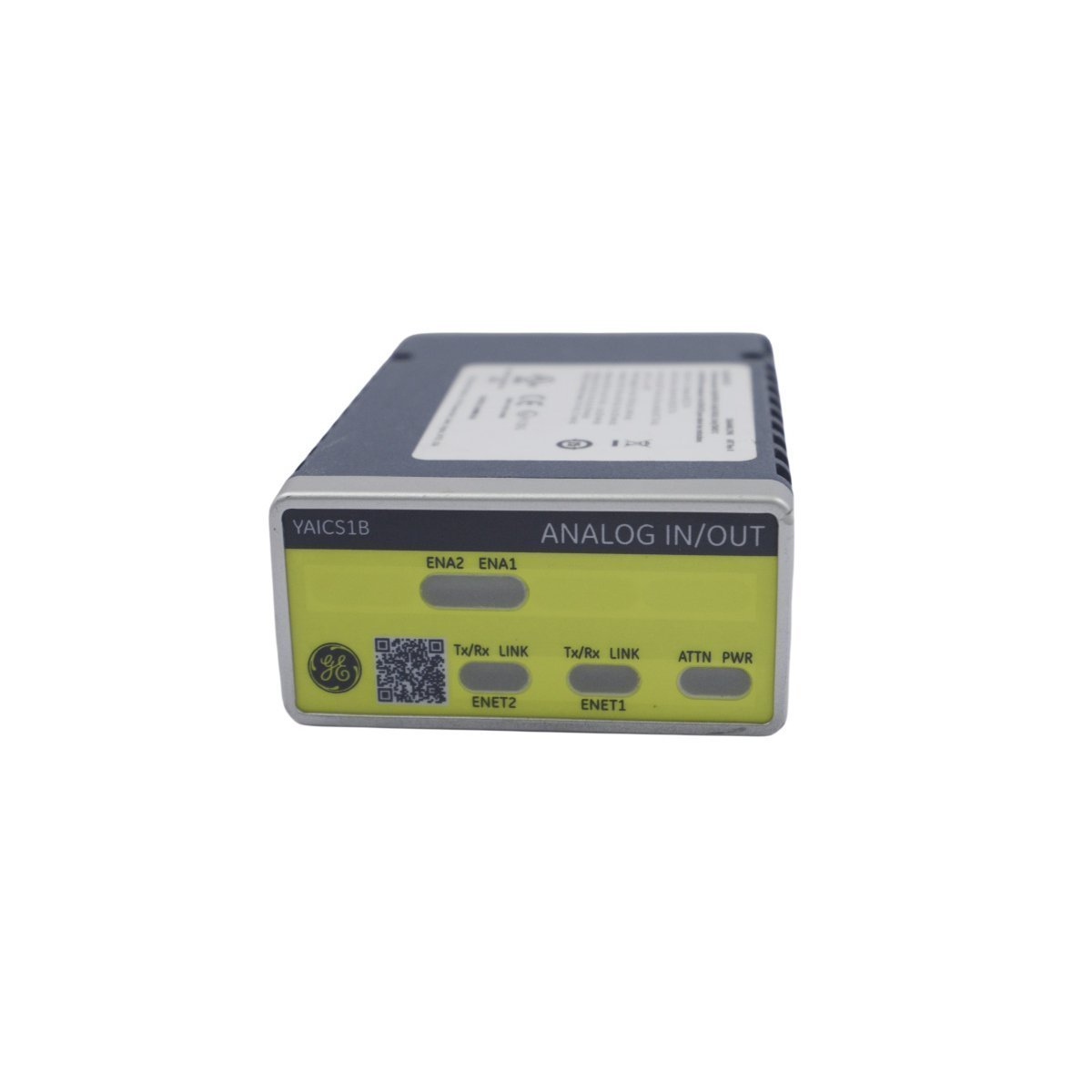

IS420YAICS1B General Electric Mark VIe Analog I/O Pack Module
-
Dimensions: 2.1 x 18.6 x 26.3 cm
-
Country of origin: USA
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The IS420YAICS1B is a high-performance Analog I/O Pack developed by General Electric as part of the evolved Speedtronic Mark VIe control architecture. This module serves as a localized digitization hub, converting field-level analog signals into networked data for turbine control processors. Engineered for mission-critical reliability, the IS420YAICS1B facilitates seamless communication between physical terminal boards and dual-redundant Ethernet networks. This "S1B" revision represents an enhanced hardware iteration, offering superior diagnostic depth and signal fidelity compared to its predecessors. It is designed to mount directly onto terminal assemblies, creating a distributed I/O architecture that reduces wiring complexity and improves signal-to-noise ratios in demanding industrial environments.
Technical Architecture and Hardware Specifications
The design of the IS420YAICS1B focuses on deterministic processing and comprehensive system health monitoring:
-
Dual-Board Design: Consists of a high-speed common processor board and a dedicated data acquisition board that handles real-time signal conditioning.
-
Analog Input Capacity: Supports up to ten channels total, including 2 channels for ±1 mA or 4-20 mA inputs and 8 channels configurable for ±5 V, ±10 V, or 4-20 mA current loops.
-
Network Redundancy: Equipped with dual RJ45 Ethernet connectors to support redundant IONet architectures, ensuring continuous data flow even if one network path fails.
-
Autonomous Diagnostics: Features a robust self-test suite that verifies RAM, Flash memory, and internal power supply rails during boot-up and operation.
-
Modular Compatibility: Engineered for direct integration with TBAISIC and STAIS2A terminal boards within the Mark VIe ecosystem.
-
Physical Profile: Lightweight 0.22 kg construction with dimensions of 2.1 x 18.6 x 26.3 cm, optimized for high-density cabinet mounting.
-
System Topology: Fully compatible with Simplex (single unit) or Triple Modular Redundant (TMR - three units) control configurations.
Strategic Industrial Implementations
The IS420YAICS1B is a foundational component for automated turbine governing and process management:
| Application Sphere | Operational Implementation |
| Turbine Speed Governing | Processing high-fidelity analog feedback for fuel valve and steam admission regulation. |
| Condition Monitoring | Interfacing with temperature, pressure, and flow transmitters to provide real-time turbine health data. |
| TMR Protection | Providing synchronized, voted I/O data in Triple Modular Redundant safety systems for zero-failure tolerance. |
| Excitation Control | Supporting the EX2100 series by managing auxiliary analog signals within the excitation framework. |
| Field Digitization | Converting localized analog sensor data into Ethernet-based packets for long-distance transmission to the DCS. |
