Product Overview

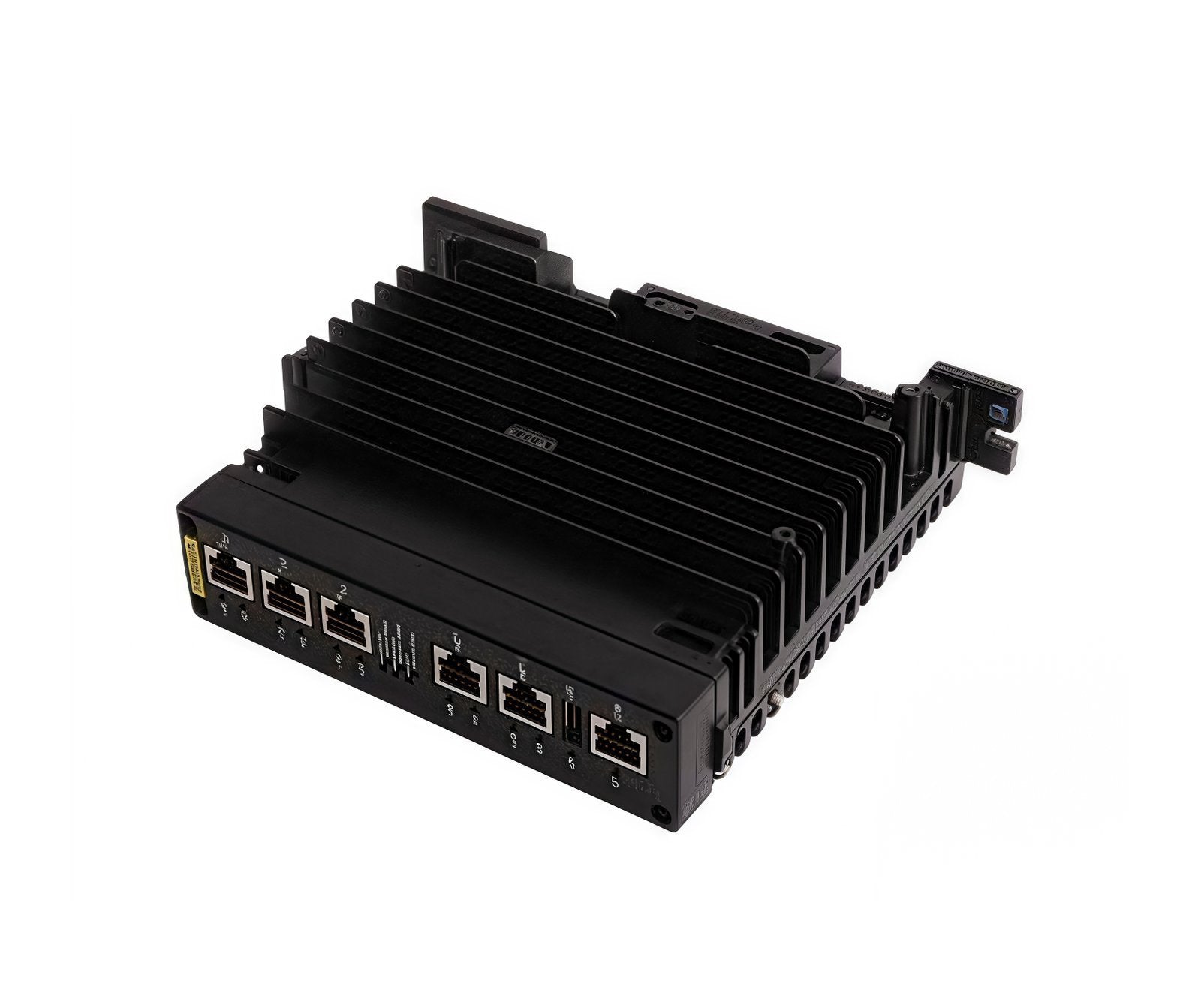

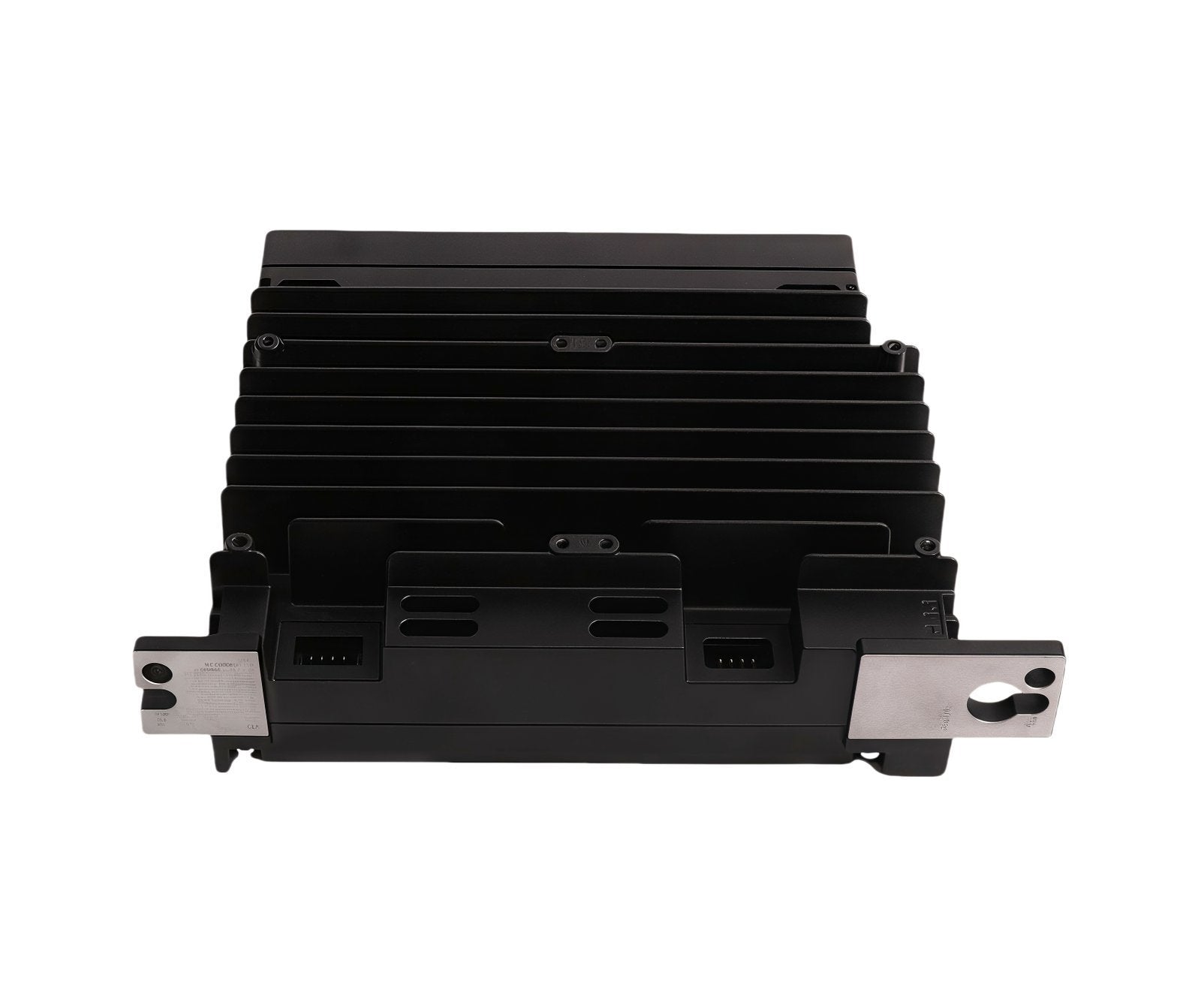

The General Electric IS420UCSDH1 is a UCSB controller module engineered for the Mark VIe control platform. It provides a dedicated processing core for executing control strategies while relying on distributed I/O networks for signal acquisition. This architecture separates computation from field I/O, improving system availability and simplifying maintenance in critical automation systems.

Designed as a self-contained controller, the IS420UCSDH1 integrates processing, power management, and network communication within a compact enclosure. Its modular design supports continuous operation and allows configuration changes and logic updates without requiring system shutdown, making it suitable for high-availability control environments.

Key Technical Characteristics

• Control Platform Compatibility: GE Mark VIe control system

• Controller Type: UCSB embedded industrial controller

• Network Interface: Dedicated IONet industrial Ethernet

• Time Synchronization: IEEE 1588 precision time protocol support

• Configuration Options: Simplex, dual, and triple modular redundancy

• Data Handling: Real-time execution with shared state synchronization

• Memory Type: Flash-based storage for firmware and application logic

• Integrated Design: No batteries, jumpers, or cooling fans required

• Model Number: IS420UCSDH1

• Dimensions: 20 × 11.5 × 5.7 cm

• Net Weight: Approx. 0.9 kg

• Country of Origin: USA

Industrial Applications

The IS420UCSDH1 controller is widely used in turbine control, balance-of-plant automation, and safety-related control architectures. It is commonly deployed in gas and steam turbine systems, excitation control solutions, and large-scale power generation facilities.

Its compatibility with Mark VIe, EX2100e, LS2100e, and related GE control platforms makes it ideal for system upgrades, expansions, and long-term lifecycle support. The controller’s robust design and redundancy support ensure reliable operation in environments where downtime is unacceptable.
