Product Overview

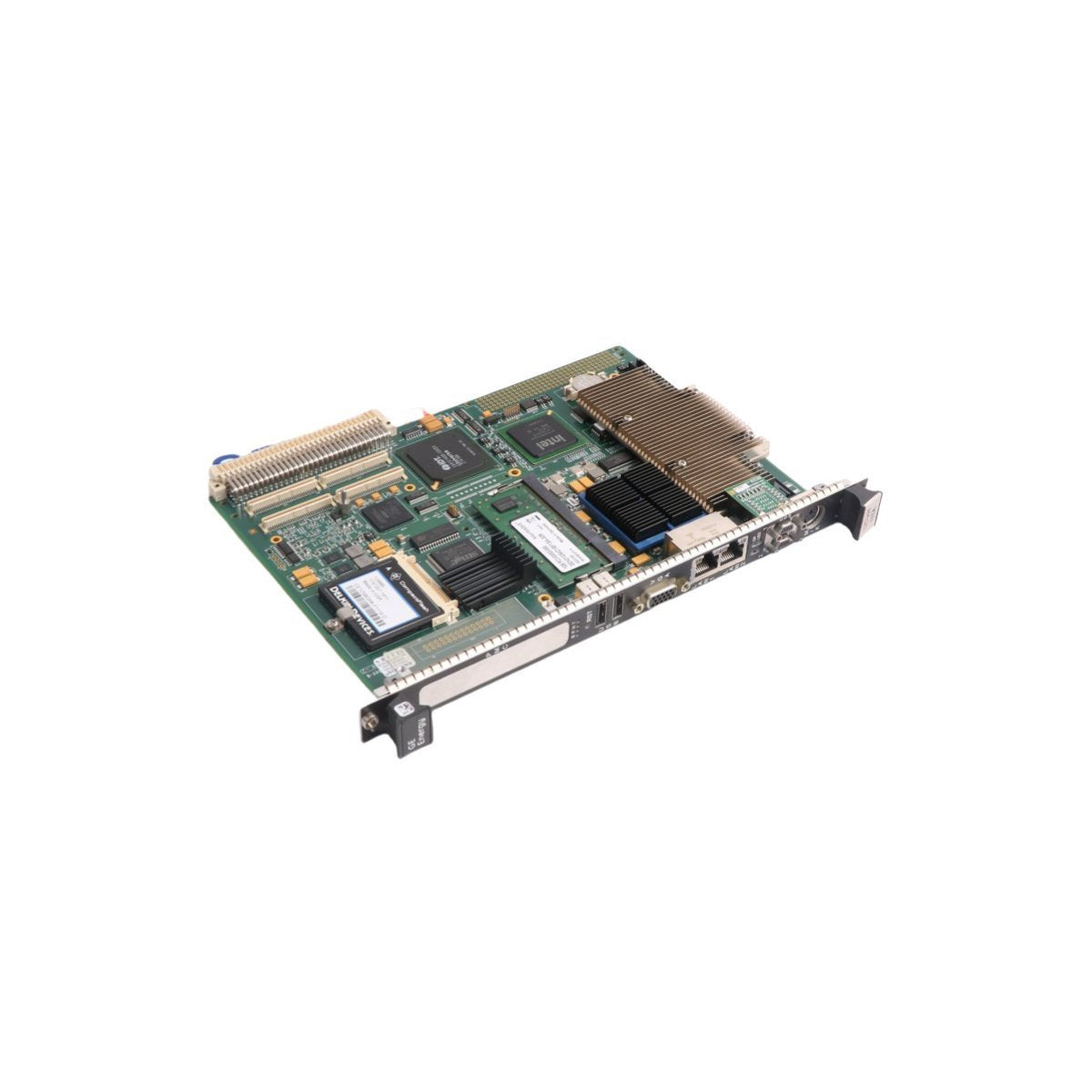

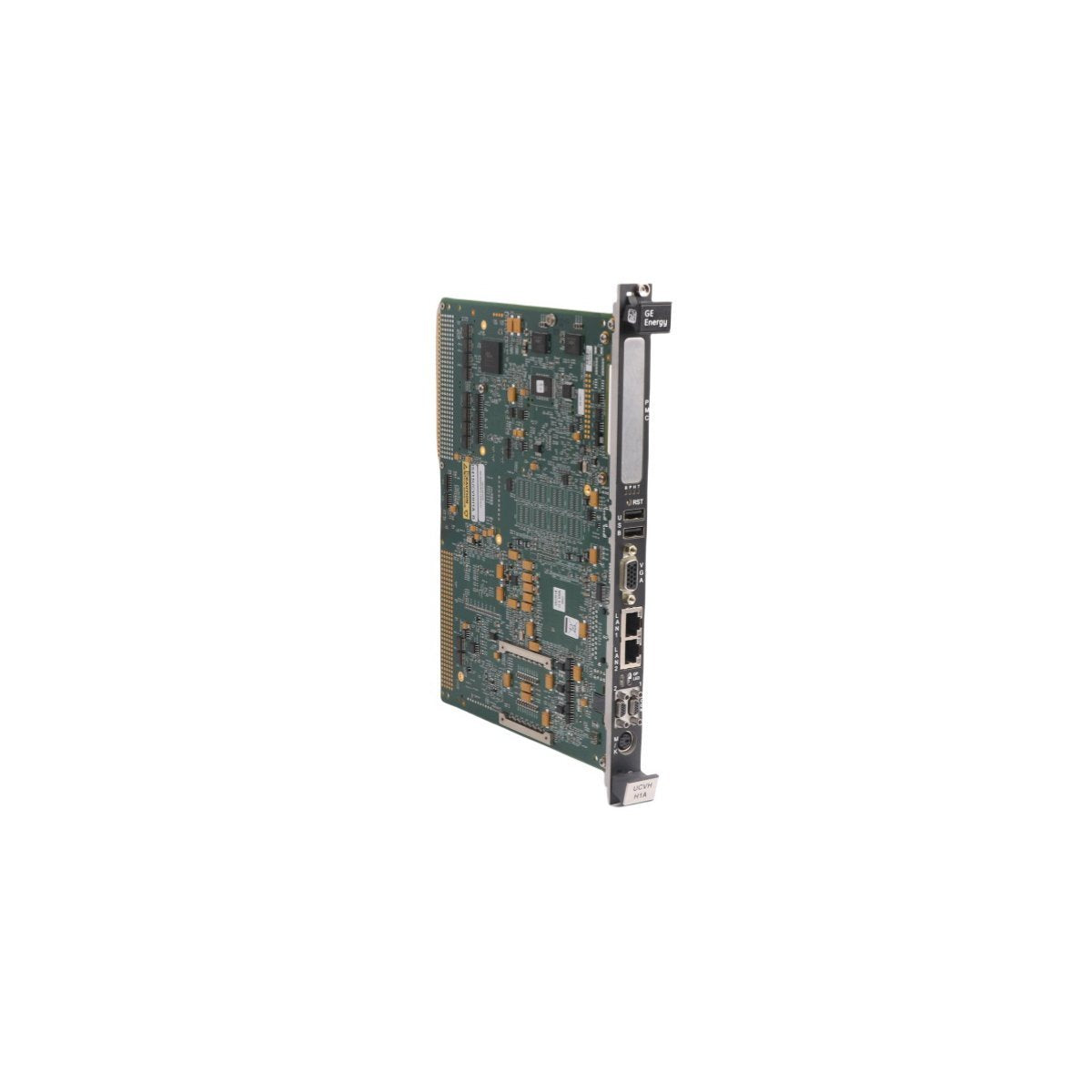

The IS415UCVHH1AB is a VME-based controller module developed by General Electric for the Mark VIe control platform. It functions as a core processing unit within turbine control and industrial automation systems, executing real-time control logic, data handling, and network communication. Designed for continuous-duty environments, this controller supports high system availability and deterministic performance in safety-critical applications.

The module integrates seamlessly into Mark VIe architectures and is commonly deployed in power generation and process control systems where reliable, high-speed control is required.

Key Technical Characteristics

• Module Type: Industrial Controller

• Control Platform: Mark VIe series

• Processor: Intel EP80579, 600 MHz

• Input Supply Voltage: 18–30 VDC

• Nominal Operating Voltage: 24–28 VDC

• Maximum Current Consumption: 1.5 A DC

• Communication Interfaces:

• Dual 10/100Base-TX Ethernet ports

• Backplane Interface: VME architecture

• Integration Support: Compatible with UCSB controllers and UCSX communication modules

• Weight: 0.56 kg

• Dimensions: 21.1 × 18.8 × 26.2 cm

• Country of Origin: USA

Industrial Applications

The IS415UCVHH1AB is widely used in gas and steam turbine control, combined-cycle power plants, excitation systems, and industrial safety systems. It is frequently applied in turning gear controllers and high-availability automation systems that demand fast response times and stable long-term operation.

Its compatibility with multiple GE control platforms makes it suitable for system upgrades, spare part replacement, and lifecycle extension of existing Mark VIe installations.
