Product Overview

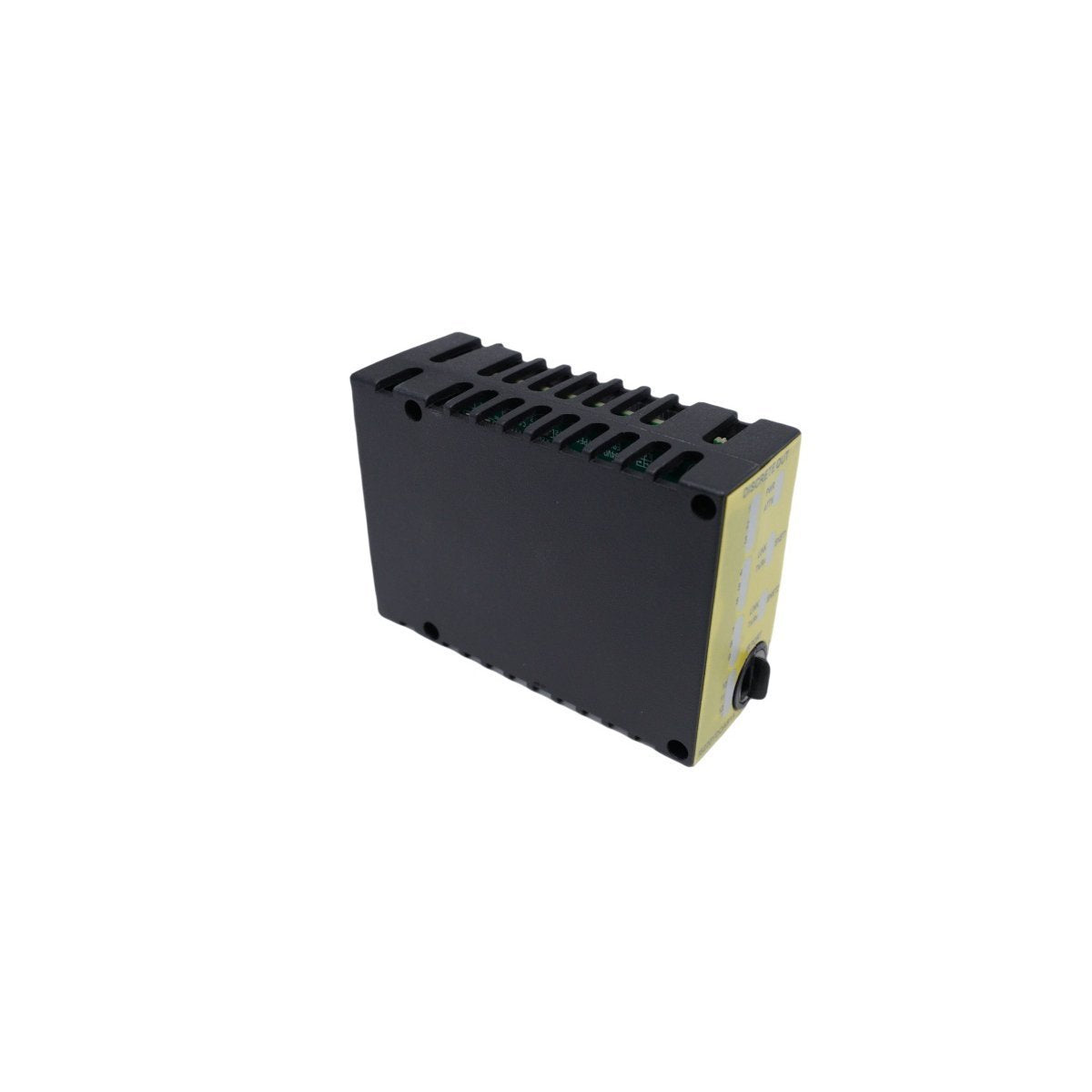

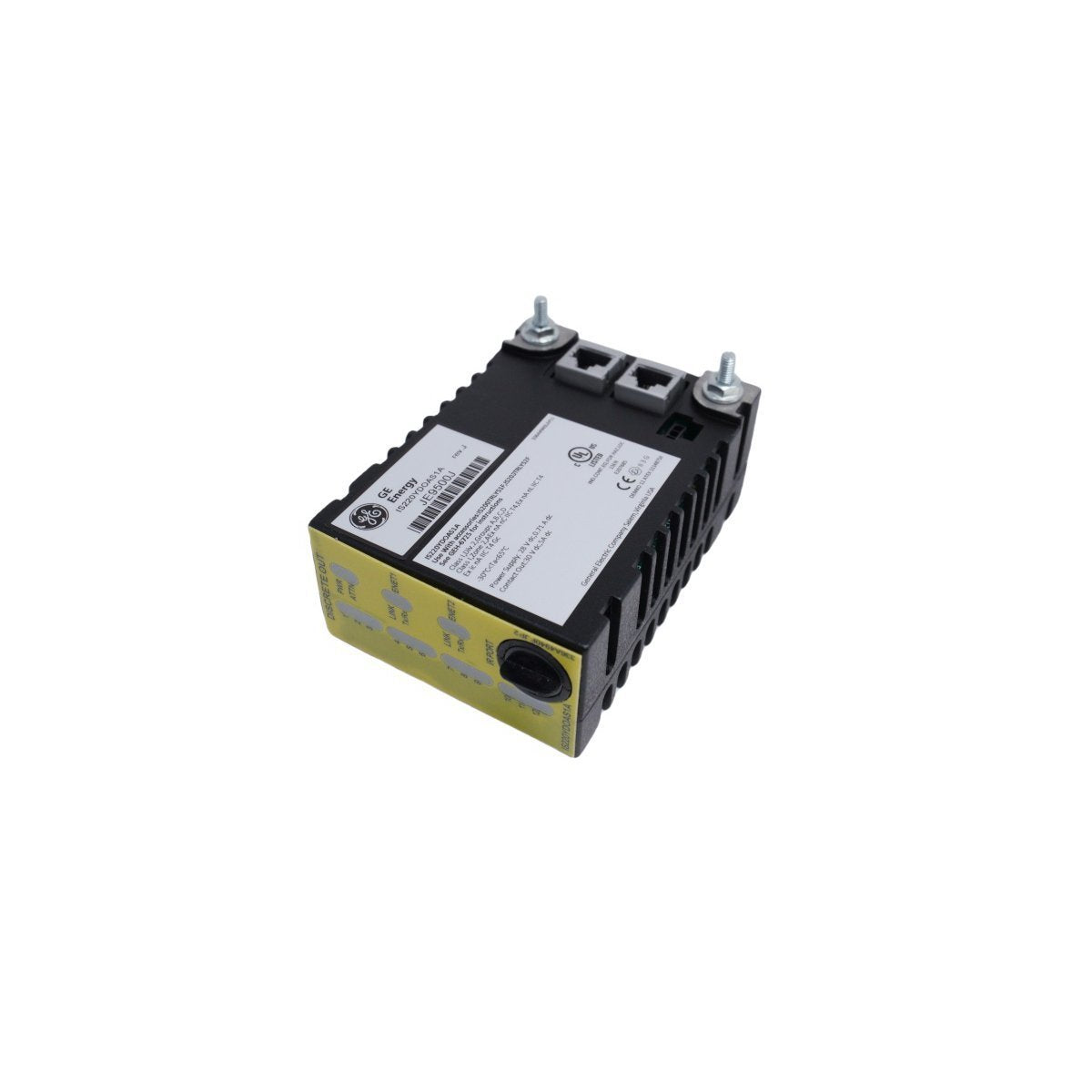

The GE IS220YDOAS1A is a discrete output I/O pack used to command and supervise relay-based outputs in GE control architectures. It interfaces directly to a compatible discrete output terminal board through a high-density connector and communicates with the control system over one or two Ethernet-based I/O networks. The pack processes output commands from the controller, drives the associated relay circuits, and reads back terminal-board feedback to support verification and diagnostics.

The module is designed for cabinet installations where reliable discrete actuation and clear maintenance visibility are required. It supports both simplex installations and high-availability configurations when used in redundant system designs.

Hardware Parameters

• Service notes

• Verify terminal-board compatibility and fuse/field power health when diagnosing loss of excitation or output drive faults

• Confirm network assignment and redundancy topology before commissioning

• Use ESD precautions and ensure the DC-37 connector is fully seated to prevent intermittent output behavior

Industrial Applications

• Relay-based discrete actuation in EX2100 excitation control cabinets

• Permissives, alarms, and interlock outputs in generator and turbine auxiliary control systems

• Redundant discrete output architectures where channel status feedback supports maintenance and troubleshooting

• Spare replacement in installed-base GE control systems to restore output control and diagnostics
