Product Overview

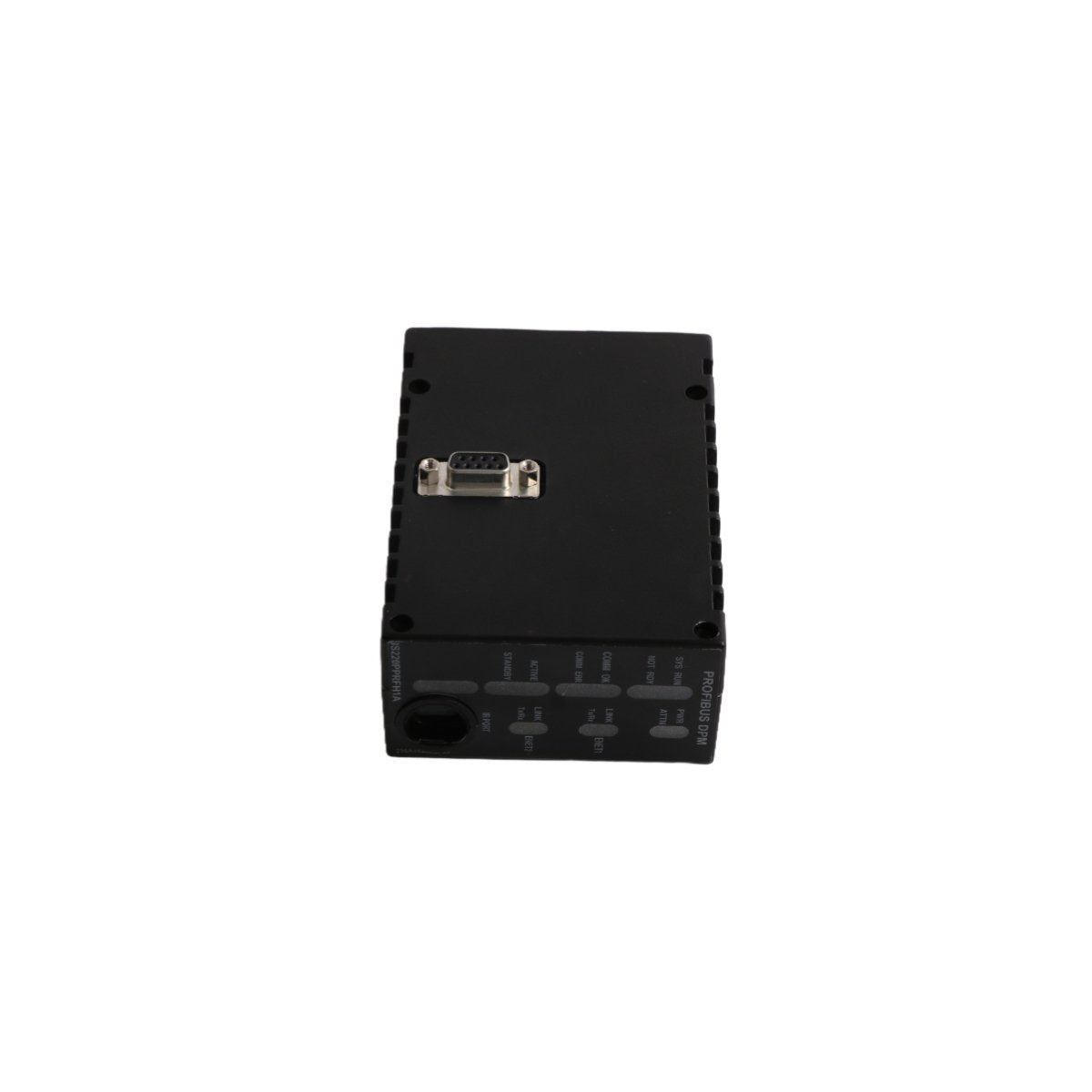

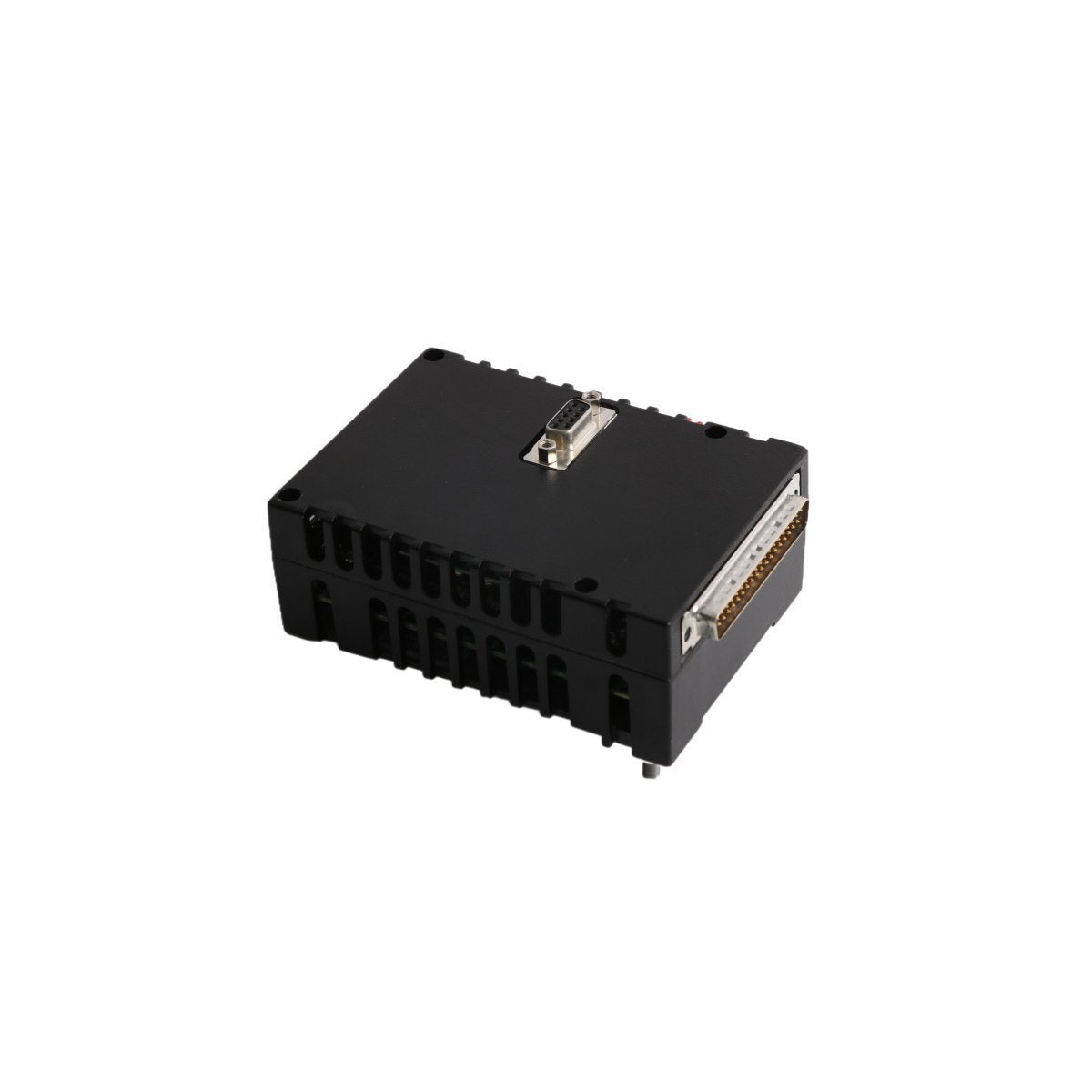

The General Electric IS220PPRFH1A is a PROFIBUS master gateway I/O pack used in Mark VIe distributed control architectures. It operates as a PROFIBUS DP master and exchanges data between PROFIBUS slave devices and the Mark VIe controller over the system’s I/O Ethernet network. This gateway pack is typically applied when field instrumentation or subsystem I/O is delivered on PROFIBUS DP and must be integrated into a Mark VIe turbine control or plant control system.

The unit combines a standard Mark VIe I/O pack processor platform with a dedicated PROFIBUS communications module, providing deterministic cyclic data transfer and built-in diagnostics suitable for continuous-duty industrial environments.

Key Technical Characteristics

Model / Order Number: IS220PPRFH1A
Brand: General Electric
Product Series: Mark VIe
Function: PROFIBUS master gateway I/O pack for Mark VIe I/O Ethernet
PROFIBUS role: DPV0, Class 1 Master
PROFIBUS physical interface: RS-485 via DE-9 (D-sub) connector
Supported baud rates: 9.6 kbaud to 12 Mbaud (auto/configured to network requirements)
Network capacity:

Up to 125 PROFIBUS DP slaves (network-dependent)
Up to 244 bytes input and 244 bytes output per slave (device/profile-dependent)

Redundancy and availability options:

Single-pack operation
Dual Ethernet connectivity on one pack (network resilience)
Hot-backup with two packs (active/standby master arrangement)

Installation interface: mounts to a compatible PROFIBUS Master Gateway terminal board (e.g., SPIDG1A family), using the DC-37 style connector interface for power/ID and I/O pack mating
Inrush control: soft-start behavior to limit power-up surge current
Indication and diagnostics: front-panel status LEDs for link/health and communications state
Condition: Brand New
Lead time: In Stock
Status: Active
Weight: 0.36 kg
Dimensions: 3.5 × 13 × 13.5 cm
Country of origin: USA
MOQ: 1
HS Code: 8537101190
System: DCS / Turbine Control

Industrial Applications

Mark VIe turbine control systems requiring PROFIBUS DP field integration
Connecting PROFIBUS remote I/O, valve manifolds, drives, and instrumentation to I/O Ethernet
Retrofit projects migrating legacy PROFIBUS networks into Mark VIe architectures
Skid packages using PROFIBUS DP that must exchange cyclic process data with Mark VIe
High-availability control cabinets using redundant Ethernet paths or hot-backup gateway packs
