Product Overview

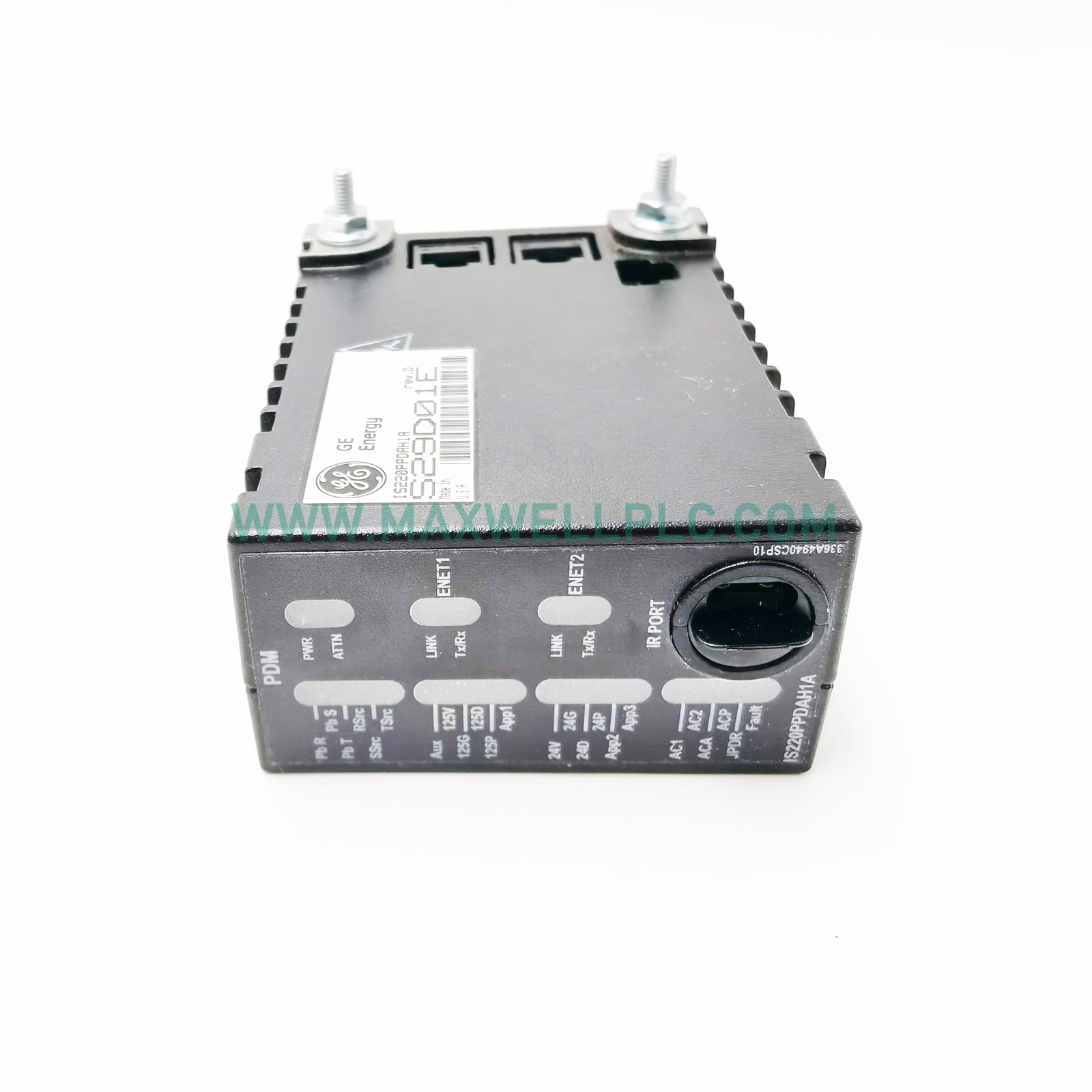

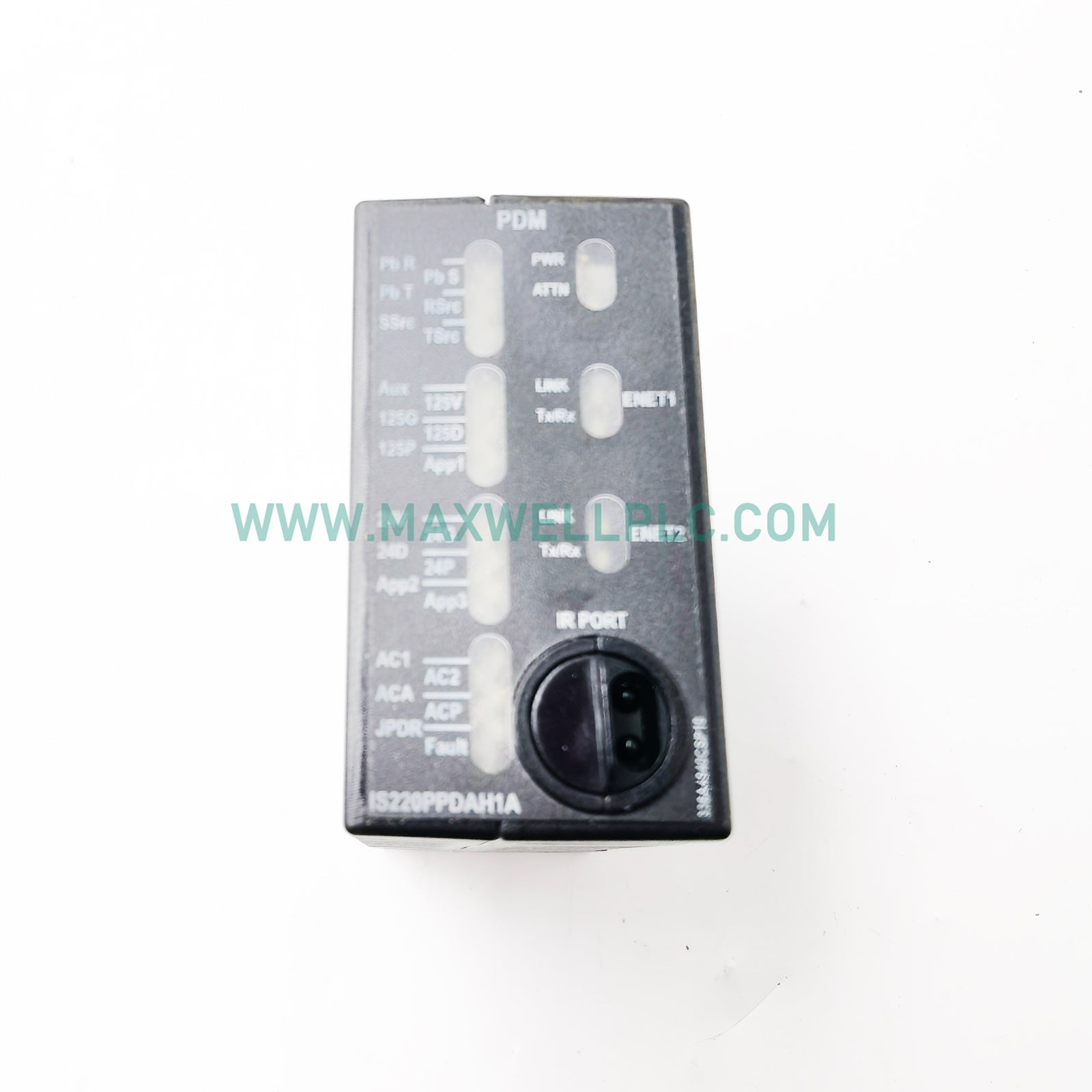

The IS220PPDAH1A is a sophisticated Power Distribution System (PDS) Feedback I/O pack designed specifically for the General Electric Mark VIe control architecture. This module functions as a specialized diagnostic bridge, providing the central controller with high-resolution visibility into the status of the turbine’s electrical distribution network. By interfacing with up to six Power Distribution Modules (PDMs), the IS220PPDAH1A digitizes vital telemetry—including bus voltages, branch circuit health, and ground fault detection—and transmits it across a redundant IONet Ethernet fabric. This real-time monitoring capability is essential for identifying electrical anomalies before they lead to system trips, facilitating precise fault isolation and supporting proactive asset management in critical power generation environments.

Key Technical Characteristics and Hardware Parameters

Built for high-availability industrial applications, the IS220PPDAH1A incorporates advanced signal conditioning and redundant communication protocols.

• Manufacturer General Electric (GE)

• Model Number IS220PPDAH1A

• Platform Compatibility Mark VIe Speedtronic

• Processor Support Designed for use with BPPB or BPPC processor boards

• Network Redundancy Dual 100BASE-TX Ethernet ports for fault-tolerant IONet connectivity

• Feedback Capacity Simultaneous monitoring of 6 PDM components

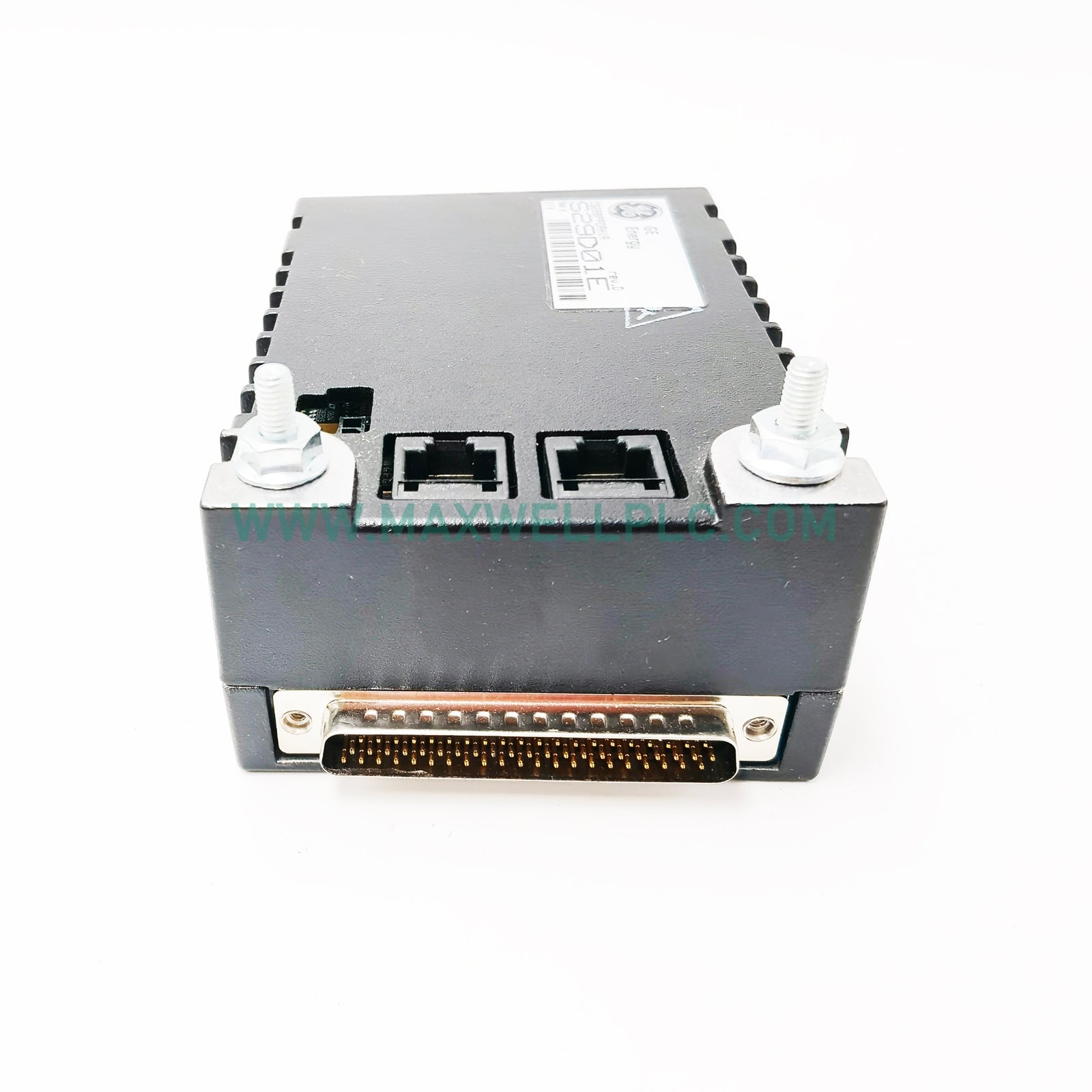

• Connection Interface DC-62 pin connector with threaded screw security and 50-pin ribbon compatibility for JPDx boards

• Input Voltage 28V DC (Nominal)

• Safety Features Integrated soft-start inrush current management and high-voltage circuit isolation

• Protection Hardware Onboard Metal Oxide Varistors (MOVs) for surge and overvoltage suppression

• Auto-Recognition Embedded electronic ID for plug-and-play configuration in ControlST (V04.07+)

• Dimensions 6 cm x 13 cm x 8.3 cm

• Weight 0.38 kg

Industrial Applications and Operational Use Cases

The IS220PPDAH1A is a cornerstone component for electrical health monitoring within large-scale utility and industrial control networks.

• Turbine Power Distribution Monitoring Providing continuous oversight of AC and DC buses within Mark VIe gas and steam turbine control cabinets to ensure power quality.

• Ground Fault Detection Utilizing high-sensitivity sensors to identify leakage currents in the distribution system, preventing equipment damage and improving personnel safety.

• Predictive Maintenance in Power Plants Tracking branch circuit integrity to identify degrading components or loose connections before they cause an unscheduled outage.

• Redundant DCS Infrastructure Serving as a reliable data node in distributed control systems where the loss of one communication path must not interrupt the flow of diagnostic data.

• Excitation and Generator Protection Integrating into the broader protection loops to ensure the excitation system's power source remains within strict operational tolerances.
