Product Overview

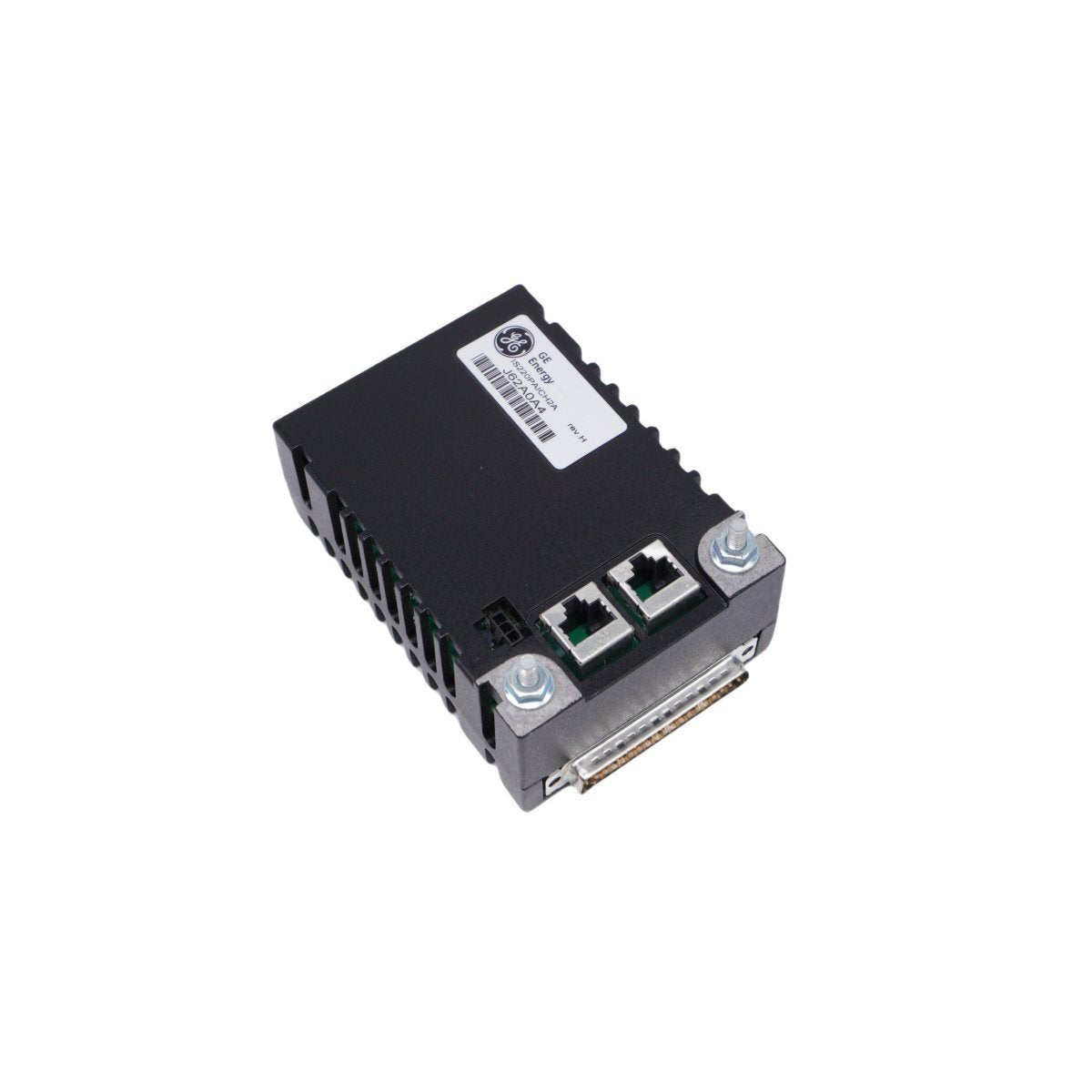

The IS220PAICH2A is a high-precision Analog I/O pack developed by General Electric for the Speedtronic Mark VIe and VIeS (Safety) control platforms. This intelligent module serves as the primary digitized interface between the IONet Ethernet network and various analog field instruments. Engineered for high-availability environments, the IS220PAICH2A supports various system architectures including Simplex, Dual, and Triple Modular Redundancy (TMR). The module mounts directly onto a compatible terminal board through a high-density DC-37 pin connector, eliminating the need for complex internal wiring and ensuring a low-impedance electrical path for sensitive analog signals.

Functional Architecture and Hardware Metrics

The IS220PAICH2A incorporates advanced signal conditioning and processing hardware to ensure deterministic control:

• Processing Core: Equipped with a high-speed BPPx processor and a dedicated analog acquisition board for real-time data sampling.

• Input Configuration: Features 10 analog inputs, with 8 channels supporting ±5V, ±10V, or 4-20 mA signals, and 2 channels optimized for 1 mA or 4-20 mA transmitters.

• Output Capability: Provides 2 current loop outputs (0-20 mA), where the first channel is specifically designed to support high-current requirements up to 200 mA.

• Network Redundancy: Dual RJ-45 10/100 Ethernet ports allow for redundant IONet connections, ensuring zero data loss during a network path failure.

• Power Management: Integrated soft-start circuitry prevents excessive inrush current during hot-swap or power-up sequences.

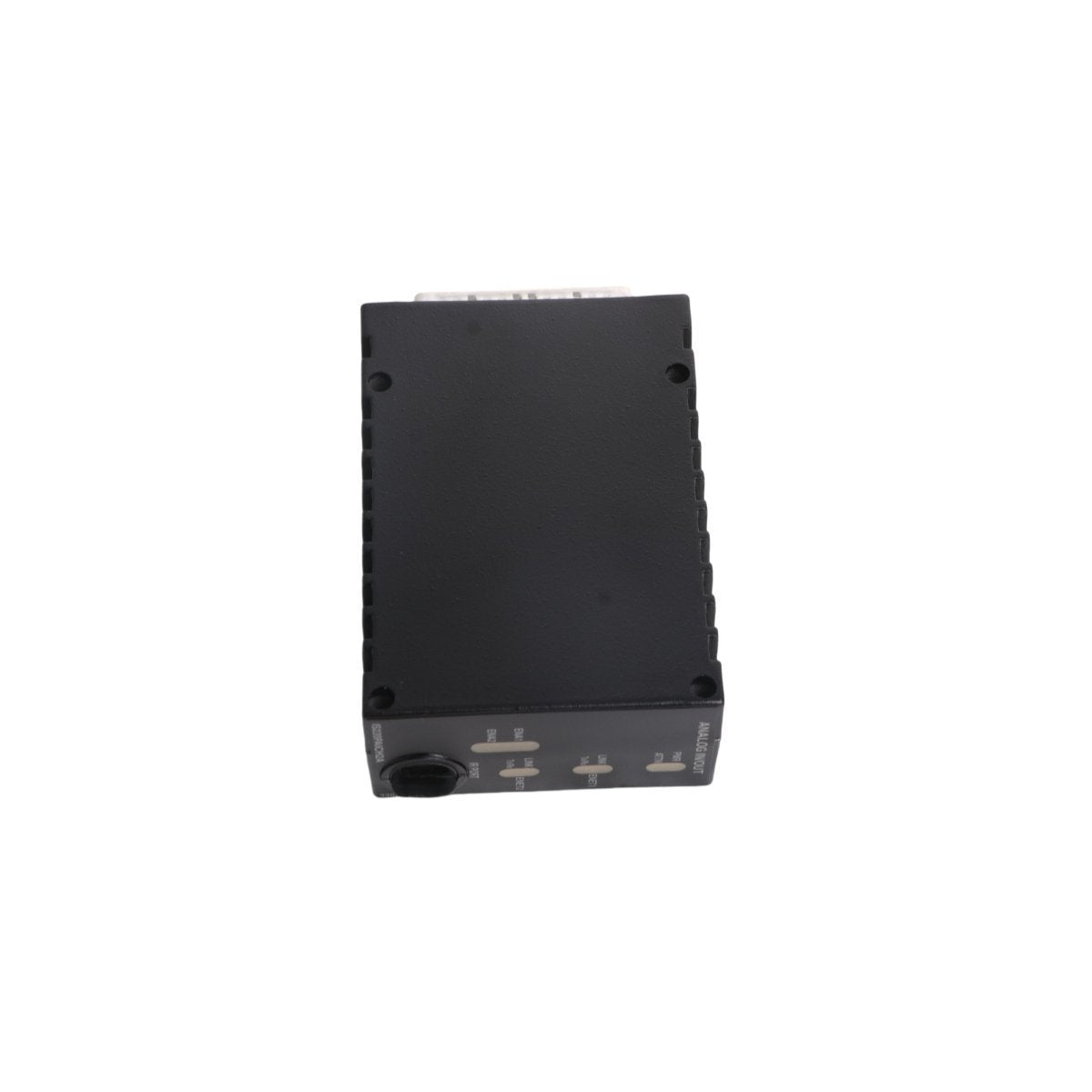

• Mechanical Design: Compact 20.4 x 22.2 x 3.7 cm footprint weighing 0.4 kg, featuring a rugged housing with visual diagnostic LEDs for power and communication status.

• Software Integration: Full compatibility with the ToolboxST configuration suite for simplified scaling and calibration.

Strategic Industrial Implementations

This Analog I/O pack is a fundamental component in the automated governance of heavy-duty power and process equipment:
