Product Overview

The IS200VTURH2BAC serves as a high-performance Turbine Interface and Protection Module within the General Electric Speedtronic Mark VI ecosystem. Engineered to bridge the gap between field-mounted sensors and the VME control rack, this board is fundamental to maintaining operational safety and equipment longevity. It specializes in the acquisition and processing of critical rotating machinery data, including high-speed shaft pulse monitoring and flame detection for combustion chambers. By providing hardware-level overspeed detection and Geiger-Mueller sensor interfacing, the IS200VTURH2BAC ensures that protective trip commands are executed with deterministic speed, even in systems lacking mechanical backup bolts.

Component Architecture and Technical Attributes

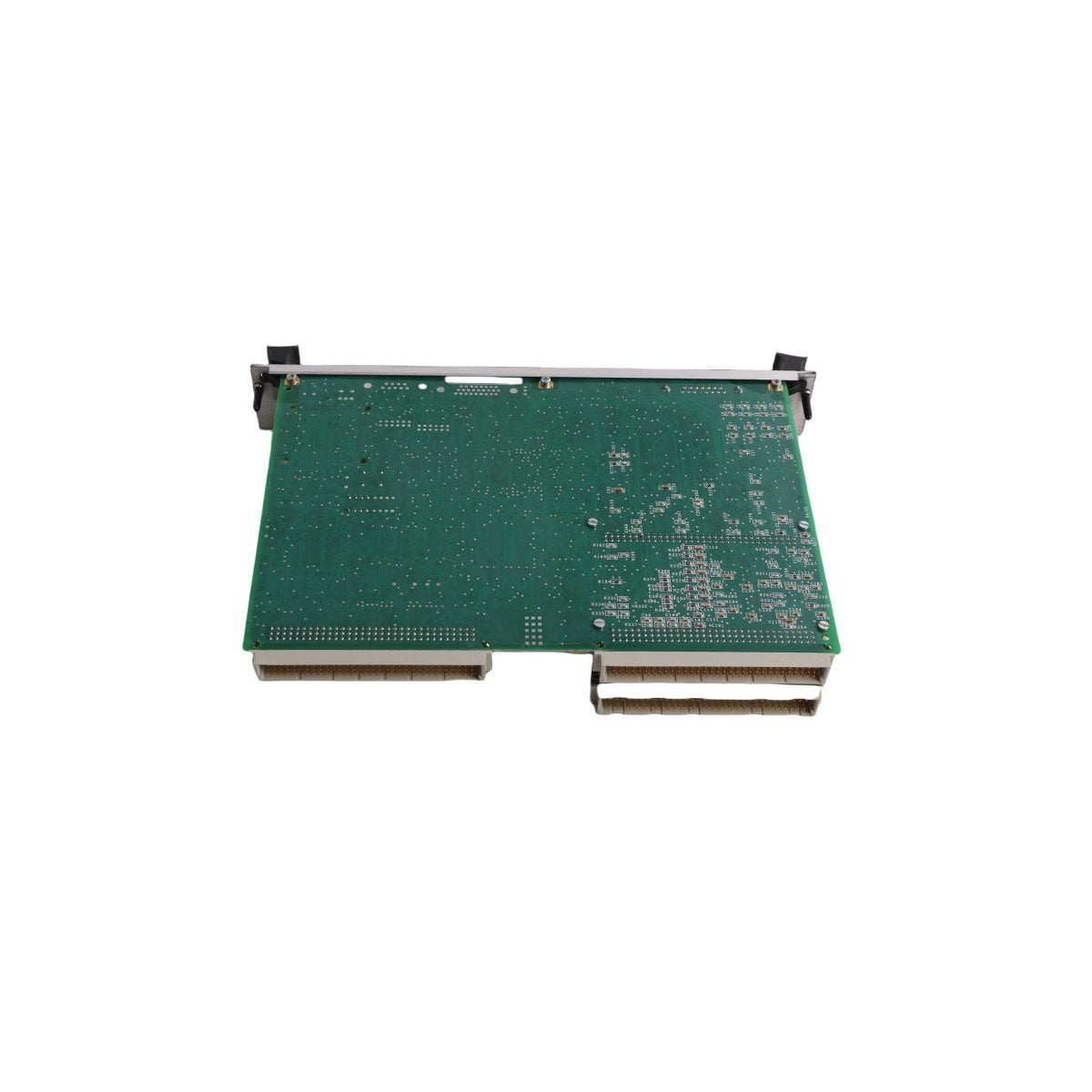

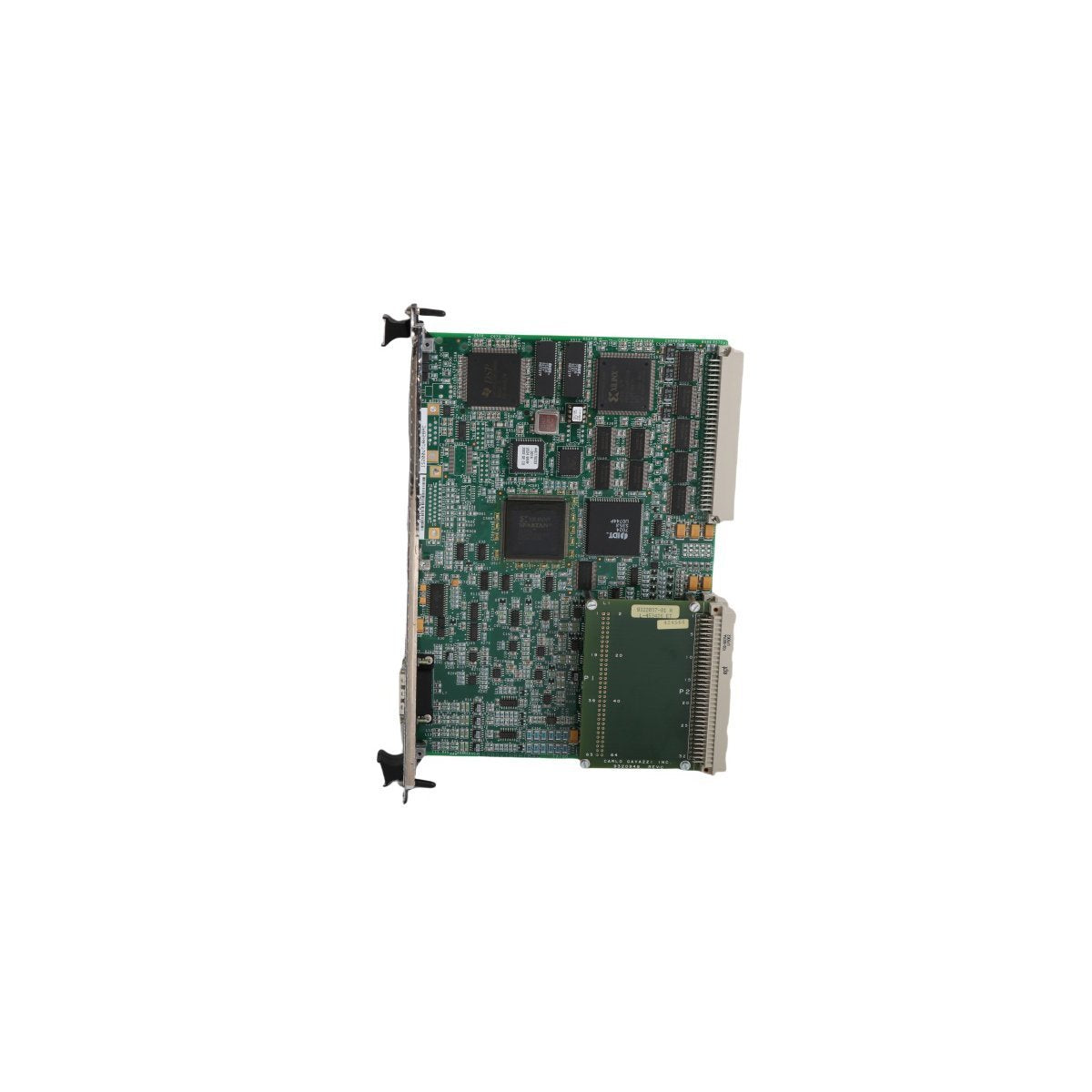

The IS200VTURH2BAC is a double-width VME board characterized by its dense computational layout and ruggedized signal conditioning:

• Multi-Input Processing: Equipped to monitor four independent speed signals derived from passive magnetic pickups, ensuring redundant velocity tracking.

• Flame Detection Interface: Specifically designed to manage Geiger-Mueller flame detectors in gas turbines, capable of identifying ultraviolet signatures while filtering out interference from carbon buildup.

• Onboard Logic Hub: Integrated with Field Programmable Gate Arrays (FPGAs), SRAM, and high-precision oscillators to handle real-time signal digitizing without CPU lag.

• Physical Interface: Features a double-wide faceplate secured by three mounting screws, containing a triple LED status array for immediate visual health checks (Power, Run, Fault).

• Connectivity Matrix: Houses two primary VME backplane connectors and an additional auxiliary backplane via a stacked mezzanine board for expanded data throughput.

• Signal Stabilization: Populated with 13 high-reliability transistors and a specialized array of inductor coils, resistors, and capacitors to suppress electromagnetic interference.

• Environmental Dimensions: A compact yet robust profile of 19.7 x 10 x 4.5 cm with a net weight of 0.29 kg.

Industrial Applications and Operational Roles

This interface module is a cornerstone of the Mark VI protective shell, deployed across various heavy-duty power generation scenarios:
