Product Overview

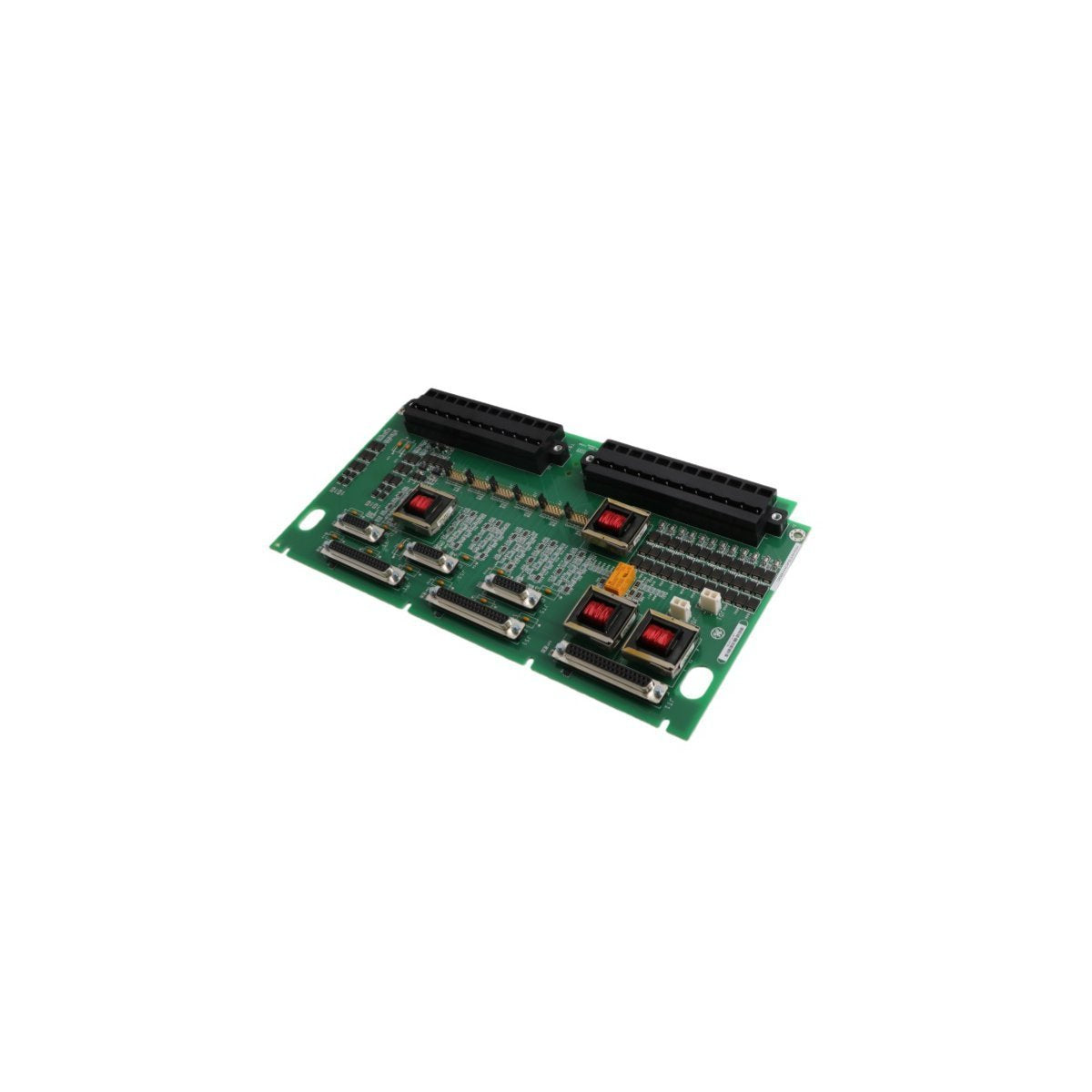

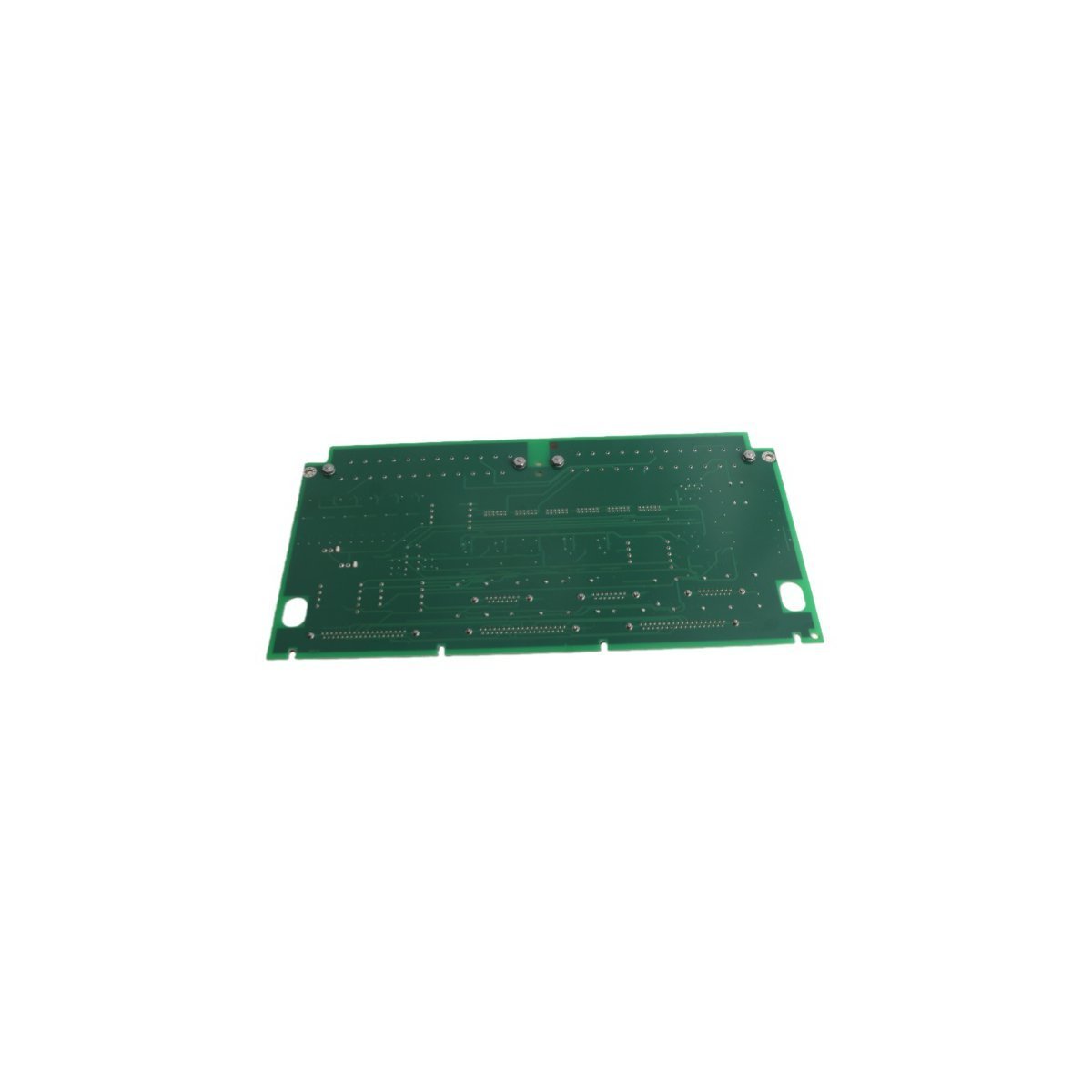

The General Electric IS200TSV0H1B is a high-precision Servo Terminal Board engineered for the Mark VI and Mark VIe Speedtronic™ turbine control systems. This specialized module serves as the primary wiring interface for servo-valve actuation and feedback monitoring in heavy-duty gas and steam turbines. By facilitating the connection between the digital control processors and the hydraulic servo mechanisms, the IS200TSV0H1B ensures the accurate positioning of fuel valves and steam nozzles. Its architecture is designed to handle sensitive feedback signals and current outputs required for the synchronized operation of critical turbine components, making it a cornerstone of modern power plant automation.

Technical Characteristics

The IS200TSV0H1B is distinguished by its sophisticated signal processing and robust terminal configuration:

Servo Current Distribution The board accepts inputs from two independent servo current sources through dedicated I/O channels. These signals are conditioned and routed to the hydraulic servo-valves to regulate the mechanical flow of energy or fuel within the turbine system.

Multi-Channel Feedback Integration Equipped to manage high-density feedback, the module supports up to six sensor connections. It can interface with three LVDT (Linear Variable Differential Transformer) or LVDR sensors per terminal block. This allows the system to implement redundant voting logic, including high, median, or low selection modes for enhanced operational safety.

High-Frequency Pulse Processing The electronics are designed to process pulse rate inputs within a 2-14 kHz frequency range. This high-frequency sampling ensures that the position of the servo-valves is tracked with extreme resolution, allowing the DCS to make millisecond adjustments to process variables.

Barrier-Type Terminal Architecture The hardware features rugged barrier-type terminal blocks mounted along the board’s edge. This design provides secure, vibration-resistant landing points for field wiring, which is essential in the high-frequency vibration environments typical of turbine compartments.

Static-Sensitive Protection As a precision electronic component, the IS200TSV0H1B is manufactured with high-quality circuit paths that require careful handling. The board is designed to be installed using standard grounding protocols to protect the integrated circuits from electrostatic discharge (ESD) during commissioning and maintenance.

Technical Specifications

• Manufacturer: General Electric (GE)

• Model Number: IS200TSV0H1B

• Series Compatibility: Mark VI / Mark VIe

• Module Type: Servo-Valve Termination Board

• Feedback Support: Up to 6 LVDT/LVDR sensors

• Pulse Rate Range: 2 kHz to 14 kHz

• Terminal Type: Barrier-type terminal blocks

• Weight: 0.9 kg (Approx. 2.0 lbs)

• Dimensions: 20 x 11.5 x 5.7 cm

• Origin: USA

Application Areas

The IS200TSV0H1B is a vital component for machinery control in:

• Gas Turbine Management: Controlling fuel stroke and inlet guide vane (IGV) positioning.

• Steam Turbine Control: Regulating governor valves and intercept valves for grid synchronization.

• Hydraulic Actuation: Interfacing digital control logic with high-pressure fluid power systems.

• Power Generation Facilities: Maintaining millisecond-level precision in load frequency control.
