IS200IGPAG2A General Electric IS200IGPAG2AED Gate Drive Power Supply Board Mark VIe
-
Dimensions: 2.1 x 18.6 x 26.3 cm
-
Country of origin: USA
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The IS200IGPAG2AED is a specialized power management module engineered by General Electric for the Speedtronic Mark VIe and EX2100 Excitation Control series. Functioning as a Gate Drive Power Supply (IGPA), this board is responsible for providing the precise voltage and current necessary to drive high-power semiconductor gates within a turbine's excitation system. Its architecture is optimized for high-reliability energy conversion, featuring a streamlined design that prioritizes durability and thermal stability. By isolating and regulating the power delivered to bridge drivers, the IS200IGPAG2AED ensures that power conversion sequences remain deterministic and protected from electrical noise, making it a cornerstone component for stable turbine governor and generator operation.
Component Architecture and Hardware Design

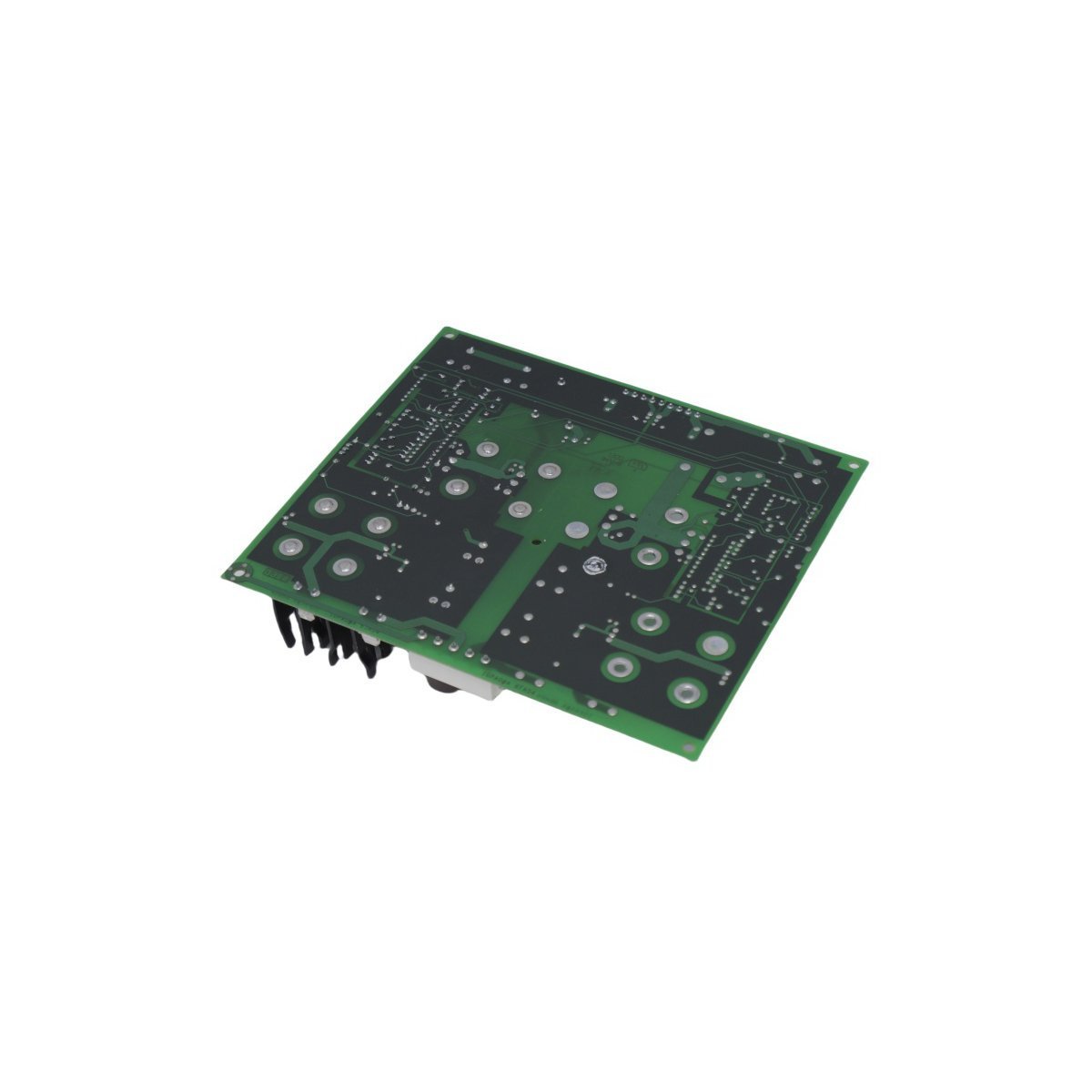

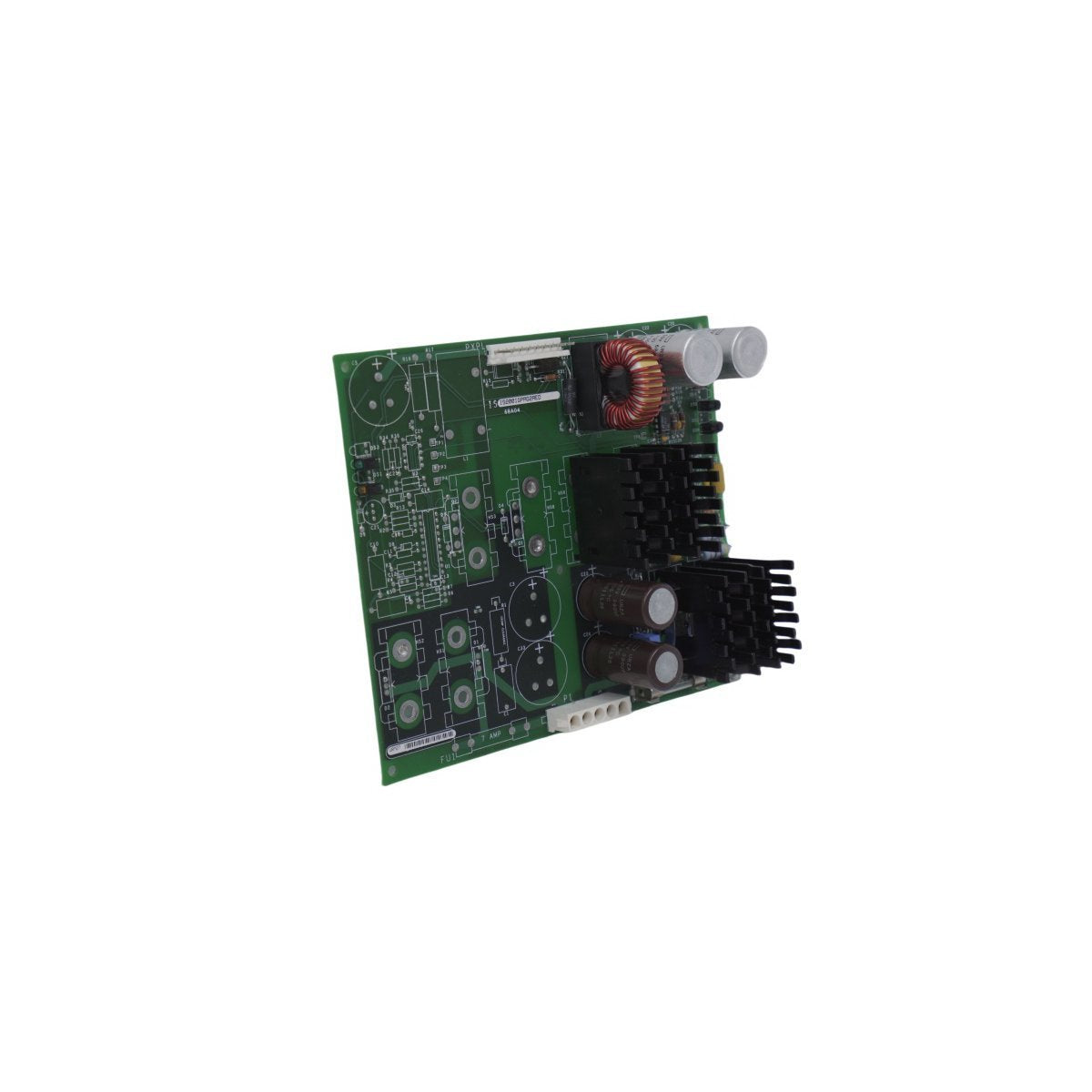

The IS200IGPAG2AED features a distinctive dual-sided PCB layout designed for efficient field integration and heat dissipation:
-
Thermal Management Suite: Equipped with six high-efficiency heat sinks arranged in a dual-row configuration to maintain optimal operating temperatures under continuous load.
-
Energy Storage and Filtration: The board integrates a robust capacitor network, including four electrolytic units, multiple ceramic capacitors, and specialized polyester vinyl variants for superior ripple suppression.
-
Inductive Regulation: Features a high-quality inductor coil to stabilize current flow and mitigate high-frequency interference.
-
Dual-Sided Signaling: Includes a redundant LED status interface (Green for healthy operation, Amber for status/fault) visible from both sides of the PCB for rapid visual diagnostics.
-
Connection Interface: Utilizes a 9-pin vertical male header connector and several precision-drilled terminal ports to ensure secure, low-impedance electrical contact.
-
Precision Resistors: Primarily constructed with metal film resistors to provide long-term stability and resistance to thermal drift.
-
Physical Specifications: A standard footprint of 2.1 x 18.6 x 26.3 cm with a lightweight 0.22 kg mass, designed for high-density control cabinet mounting.
Operational Deployment and Industrial Utility
As a critical power node within the EX2100 and Mark VIe ecosystems, the IS200IGPAG2AED is deployed in several high-stakes scenarios:
| Deployment Context | Operational Role |
| Excitation Control | Supplying the isolated gate drive power required for SCR or IGBT bridges in large generator excitation. |
| Bridge Driver Support | Acting as the primary power source for IGDT or EGPA modules to ensure synchronized firing pulses. |
| Signal Isolation | Protecting the low-voltage control backbone from high-power field transients through galvanic isolation. |
| System Maintenance | Facilitating rapid hardware restoration through its standardized "G2A" revision architecture and modular connections. |
| Environmental Protection | Utilizing industrial-grade conformal coating to ensure performance in corrosive or humid power plant atmospheres. |
