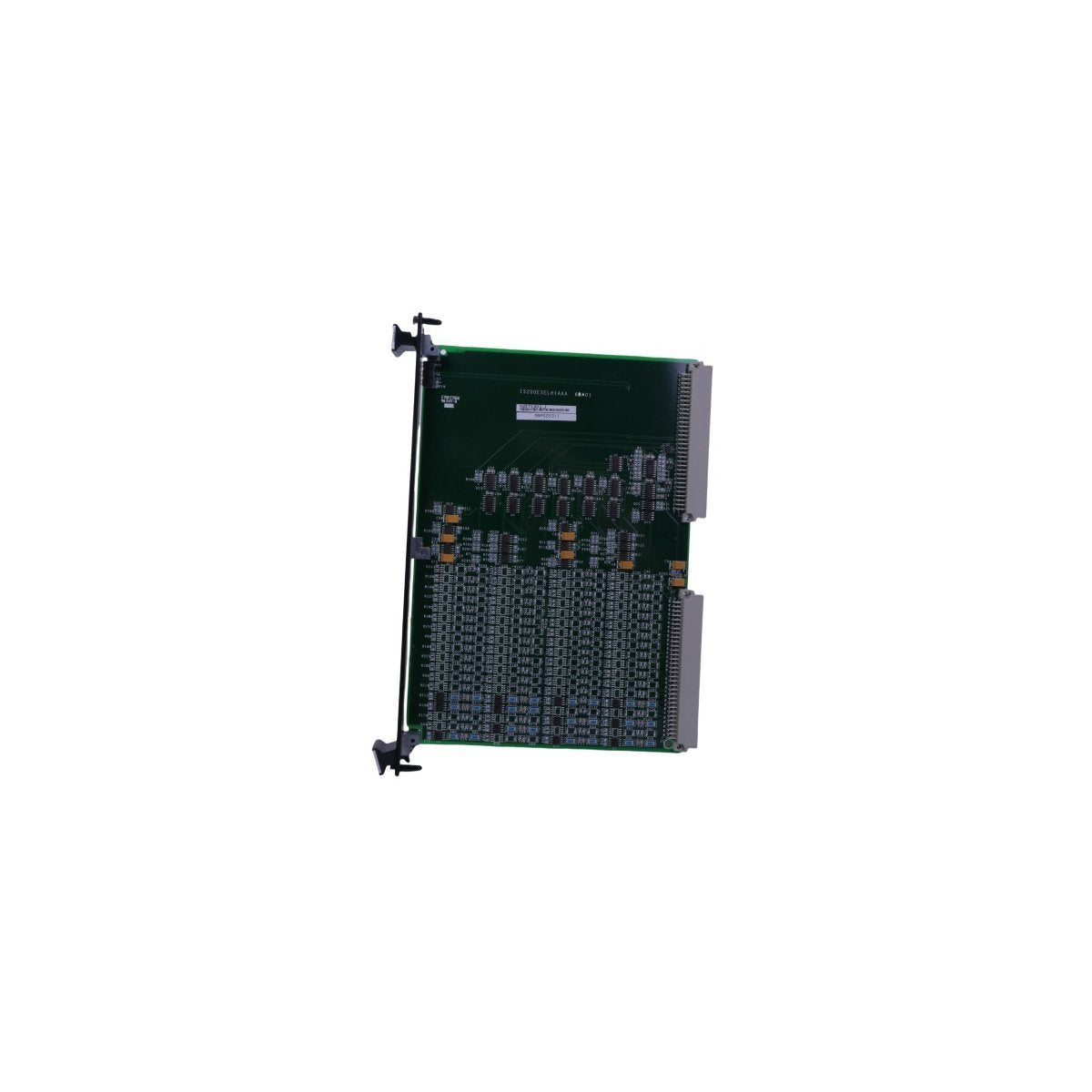

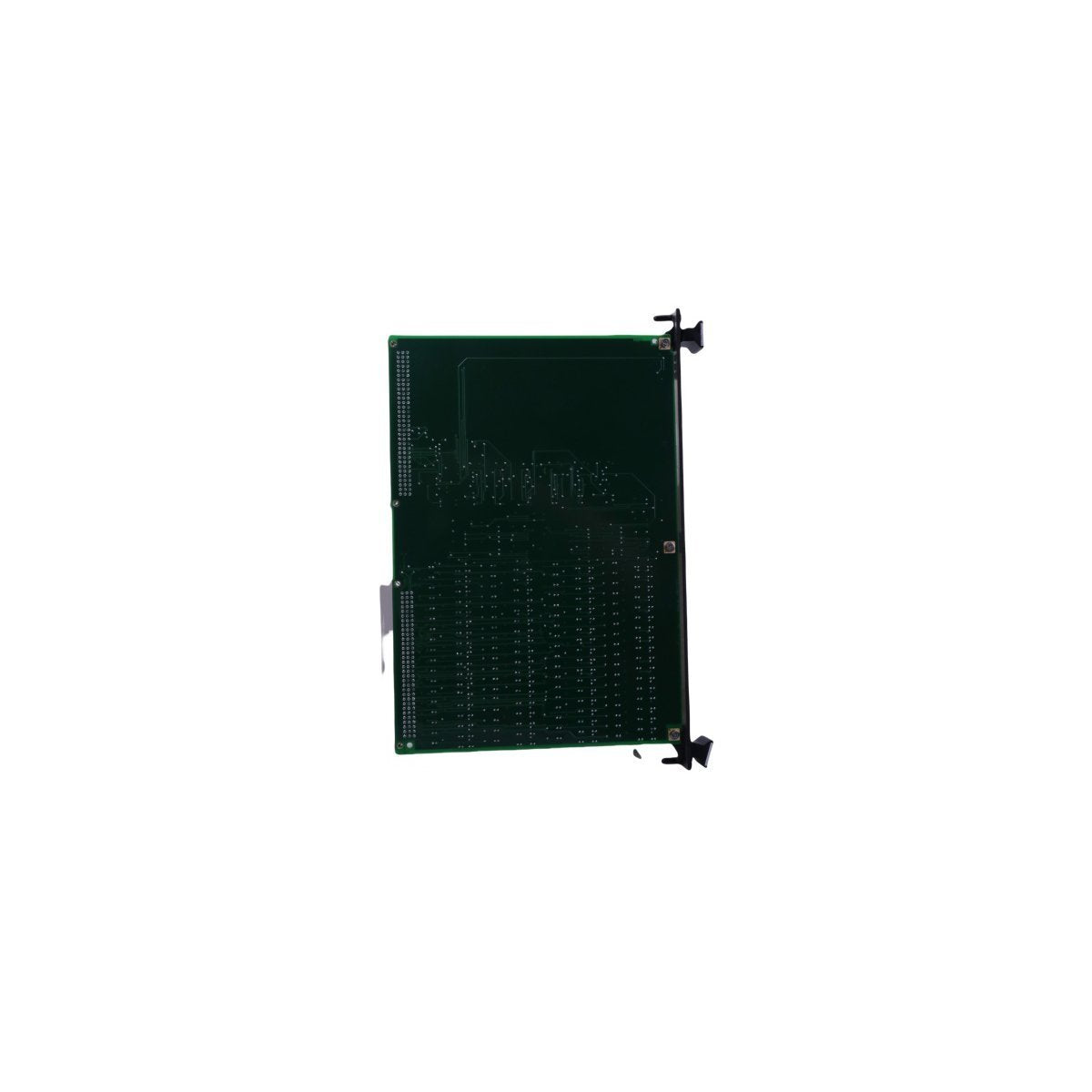

IS200ESELH1A General Electric IS200ESELH1AAA Exciter Collector Board
-
Dimensions: 2.1 x 18.6 x 26.3 cm
-
Country of origin: USA
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The IS200ESELH1AAA is an exciter collector board used in GE excitation and turbine control architectures associated with the EX2100 platform. Its primary function is to collect multiple logic-level gate pulse commands from an upstream I/O/control board and route these commands to a dedicated gate pulse amplifier stage located in a separate exciter cabinet. This separation supports cabinet-to-cabinet signal distribution while maintaining controlled pulse integrity for excitation firing circuits.
In typical applications, the board receives up to six independent gate pulse channels and forwards them to an EGPA gate pulse amplifier board for power-stage drive. The module is applied in simplex systems as a single board, and in redundant implementations (such as TMR arrangements) as multiple boards associated with separate control paths.
Hardware Parameters
-
Function: Logic-level gate pulse collection and distribution to exciter gate pulse amplification
-
Input source: Gate pulse commands from an upstream control/I/O board (commonly referenced as EMIO in some configurations)
-
Output destination: EGPA exciter gate pulse amplifier board in a separate cabinet
-
Channel capacity: Up to 6 gate pulse signals (application dependent)
-
Status indication: Front-panel LEDs for power/active/gating states (typical)
-
Rack interface: Backplane-connected PCB assembly for control cabinet installation
-
Protection design: Incorporates suppression/limiting components to improve robustness against electrical transients
| Item | Value |
|---|---|
| Product range | EX2100 |
| Module type | Exciter Collector Board |
| Model number | IS200ESELH1AAA |
| Approx. weight | ~0.22 kg |
| Dimensions (approx.) | 2.1 x 18.6 x 26.3 cm |
| Country of origin | USA |
Industrial Applications
-
EX2100 excitation systems requiring distributed gate pulse routing between control and exciter cabinets
-
Generator excitation firing architectures using gate pulse amplifier stages (EGPA interface)
-
Simplex excitation control configurations using a single collector board
-
Redundant control implementations where separate control paths require separate pulse-collection boards
-
Power generation maintenance programs supporting field replacement of PCB assemblies to reduce outage duration
