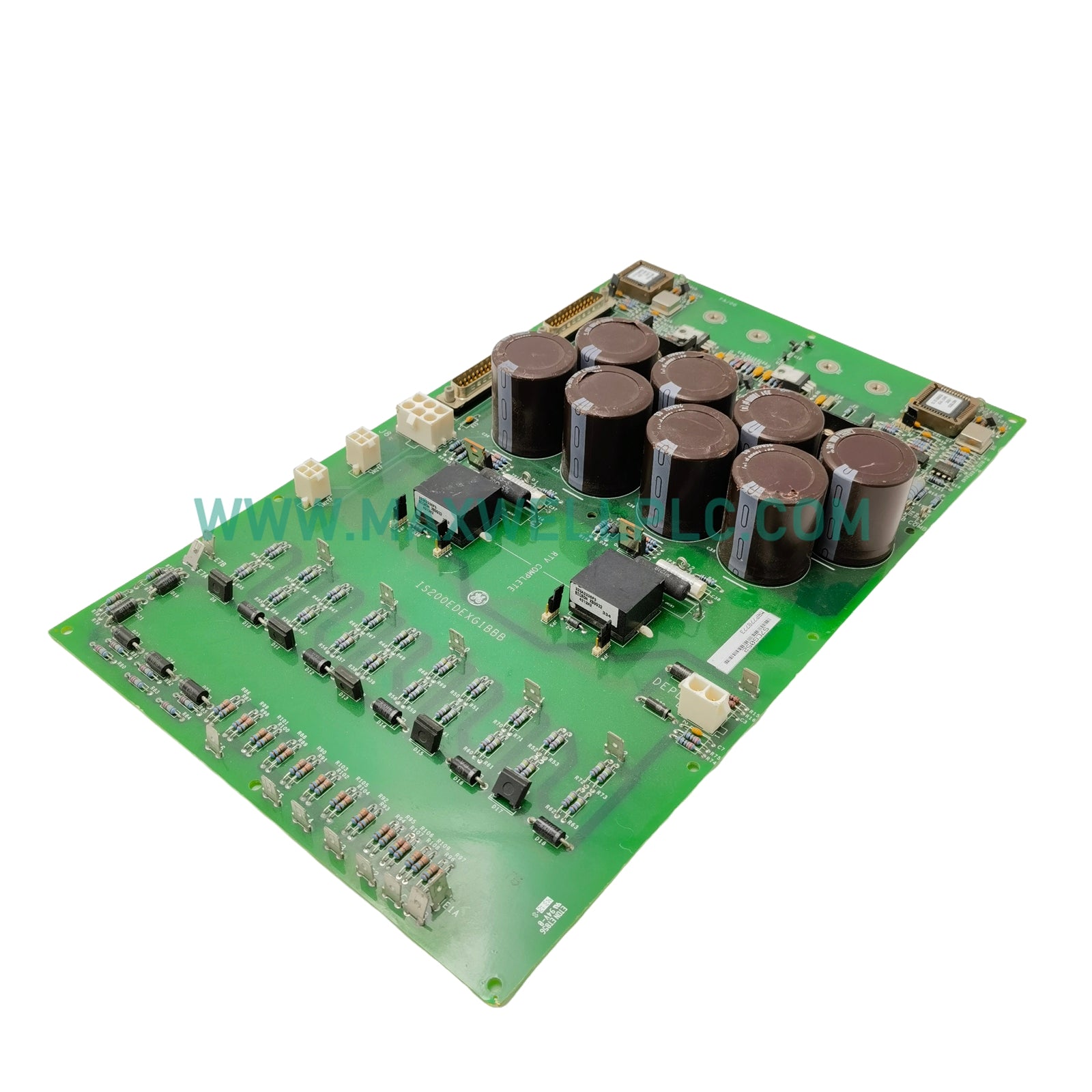

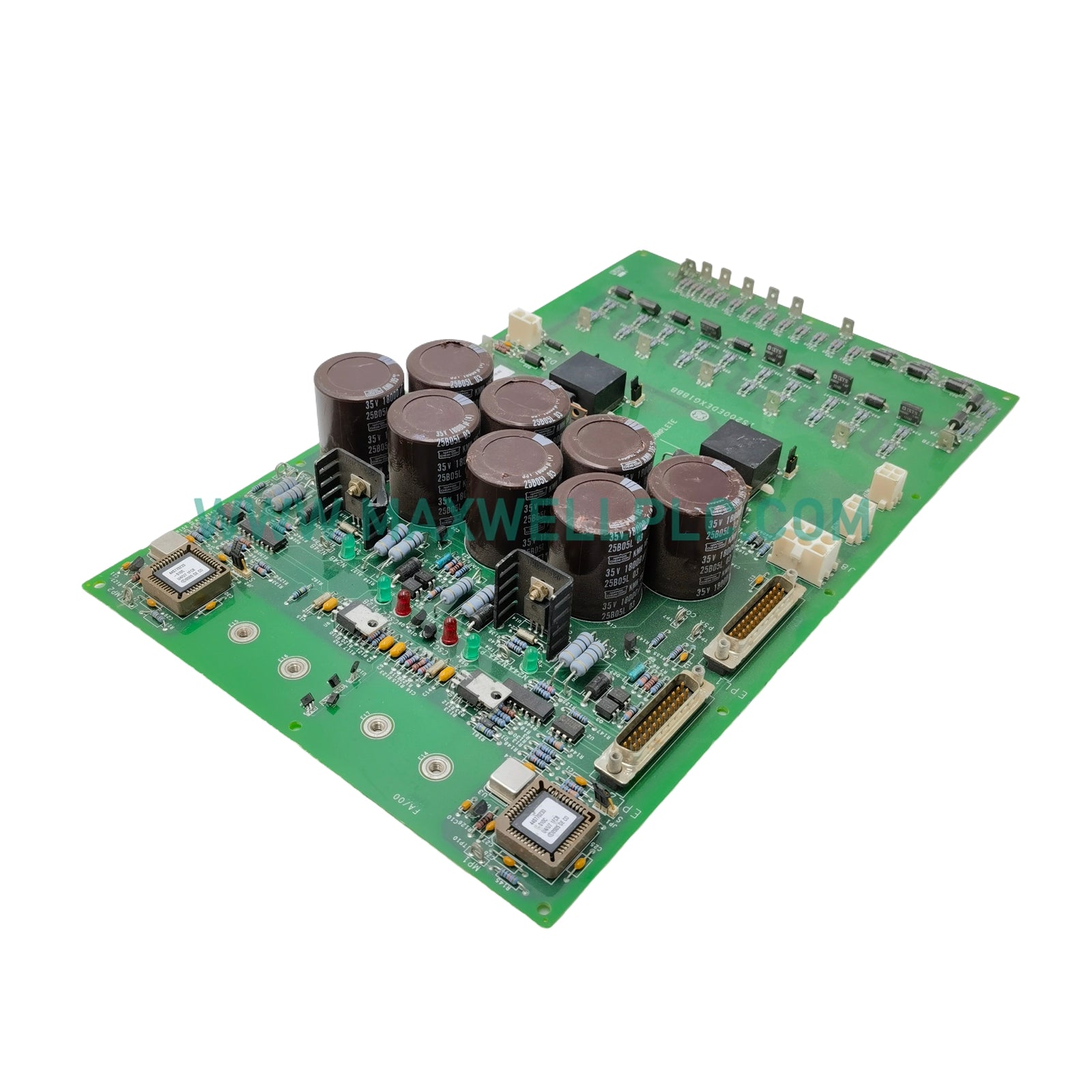

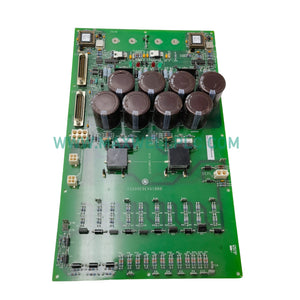

Configured for field energy management in EX2100 control platforms, the GE IS200EDEXG1B (IS200EDEXG1B) De-Excitation Control Board provides direct physical/electrical execution of generator field suppression sequences.

Module Configuration Matrix

• Model: IS200EDEXG1B / IS200EDEXG1BBB

• Series: EX2100 Excitation Control

• Function: SCR De-Excitation Logic

• Signal Path: Sourced via EXTB Terminal Board

• Interface: SCR Firing Circuits (Gate Control)

Hardware Specifications

Industrial Control & Processing Characteristics

The module governs field current discharge during system trips or controlled shutdown sequences. It operates via high-speed backplane bus communication velocity, ensuring timing alignment with turbine valve status and breaker state changes. By interfacing with SCR firing circuits, it facilitates the phase-shift required to move bridges into inverter mode, accelerating field decay. The hardware supports I/O density scaling within the EX2100 rack and is fully firmware flash compatible, allowing for logic updates to the de-excitation sequence without physical module replacement.

Ordering Info

• One (1) IS200EDEXG1B De-Excitation Control Board

• Standard industrial conformal coating

• GEI-100466 technical instruction manual (digital)

Field Installation Guidelines

• Mounting: Ensure the EX2100 rack slot is clean. Align the board with internal card guides and engage the backplane connector firmly.

• Fastening: Secure the module using standard rack retention screws to maintain structural stability under vibration conditions.

• Grounding: Confirm the control rack is bonded to the plant ground bus to prevent signal noise on the SCR gate control lines.

• Wiring: Connect the EXTB terminal board interface cables. Verify pin-to-pin continuity against the system wiring schematic before energizing.

• Testing: Execute a functional de-excitation test sequence through the control management interface to verify proper gate pulse logic.

Frequently Asked Questions

• Q: Does this board support hot-swapping?

  A: No, the IS200EDEXG1B does not support hot-swapping; power must be disconnected from the excitation rack prior to module replacement to prevent damage to the SCR firing circuits.

• Q: How do I verify the de-excitation sequence is active?

  A: Monitor the de-excitation gate pulse status through the Mark VI control interface during a simulated trip or controlled shutdown sequence.

• Q: What is the purpose of the conformal coating?

  A: The standard industrial conformal coating protects sensitive circuit paths from environmental contaminants and humidity common in power generation facilities.

• Q: Can this board be used for reverse-power protection?

  A: The board manages the de-excitation logic; reverse-power protection is a function of the primary control software, which triggers the discharge command via this board.

• Q: Is firmware updated on the board?

  A: Firmware logic for de-excitation sequences is updated via the main controller and disseminated to this board over the backplane bus.

• Q: What happens if the firing pulse is lost?

  A: Loss of firing pulses will prevent controlled energy dissipation, potentially resulting in sustained field voltage levels; diagnostics will flag a "Gate Pulse Fail" alarm.

• Q: Are there user-replaceable fuses on this board?

  A: No, the IS200EDEXG1B is a sealed assembly and does not contain user-serviceable components or field-replaceable fuses.

• Q: Does the board require specific impedance matching?

  A: The firing circuit interface is designed to standard GE EX2100 bridge impedance specifications; no additional field-side impedance matching is required.
