Product Overview

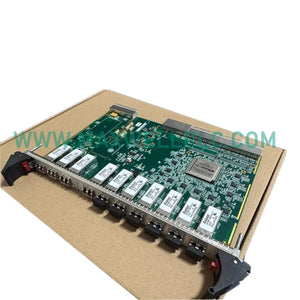

The General Electric IS200CSLAH4A is a specialized High-Speed Serial Link (HSSL) Expander Card designed for the Mark VI Speedtronic control architecture. Identified by the functional acronym CSLA, this module serves as a critical communication bridge within the control rack, allowing for the expansion of serial data throughput between primary controllers and peripheral I/O modules. By facilitating high-bandwidth digital communication, the IS200CSLAH4A ensures that real-time turbine data is transmitted with the low latency required for precision governor control and machinery protection. This board is engineered to integrate seamlessly into the VME-style backplane, providing a robust interface for distributed control networks.

Hardware Parameters and Key Technical Characteristics

The IS200CSLAH4A is built to meet industrial-grade standards, featuring a protective coating to ensure durability in high-vibration and non-condensing environments.

• Manufacturer GE Industrial Systems

• Model Identification IS200CSLAH4A / IS200CSLAH4AAA

• Series Compatibility Mk VI IS200 / Speedtronic

• Board Acronym CSLA

• Interface Type High-Speed Serial Link (HSSL) Expansion

• Group Configuration H4

• Coating Specification Conformal coating for moisture and contaminant resistance

• Hardware Revision Revision A

• Physical Mass 0.5 kg

• Card Dimensions 16 cm x 10 cm x 15 cm

• Manufacturing Origin United States of America (USA)

Industrial Applications and Operational Use Cases

This HSSL expander card is essential for high-availability systems where rapid data exchange between control nodes is mandatory for safety and performance.

• Turbine Control Expansion Extending the communication capabilities of a Mark VI controller to support additional I/O racks in complex combined-cycle power plants.

• Real-Time Data Acquisition Serving as the high-speed link for localized sensor data to be processed by the main controller core without network bottlenecks.

• DCS Communication Backbone Acting as a localized serial hub within a Distributed Control System (DCS) to synchronize state data across multiple processing units.

• Generator Protection Logic Facilitating the rapid transfer of digitized electrical parameters to the protection algorithms, ensuring sub-millisecond trip response times.

• Retrofit and Lifecycle Management Used as a direct replacement in existing Mark VI panels to maintain system uptime and communication integrity during maintenance intervals.

By implementing the IS200CSLAH4A expander, maintenance engineers can ensure their control system possesses the communication overhead necessary to manage modern turbine-generator feedback loops efficiently.
