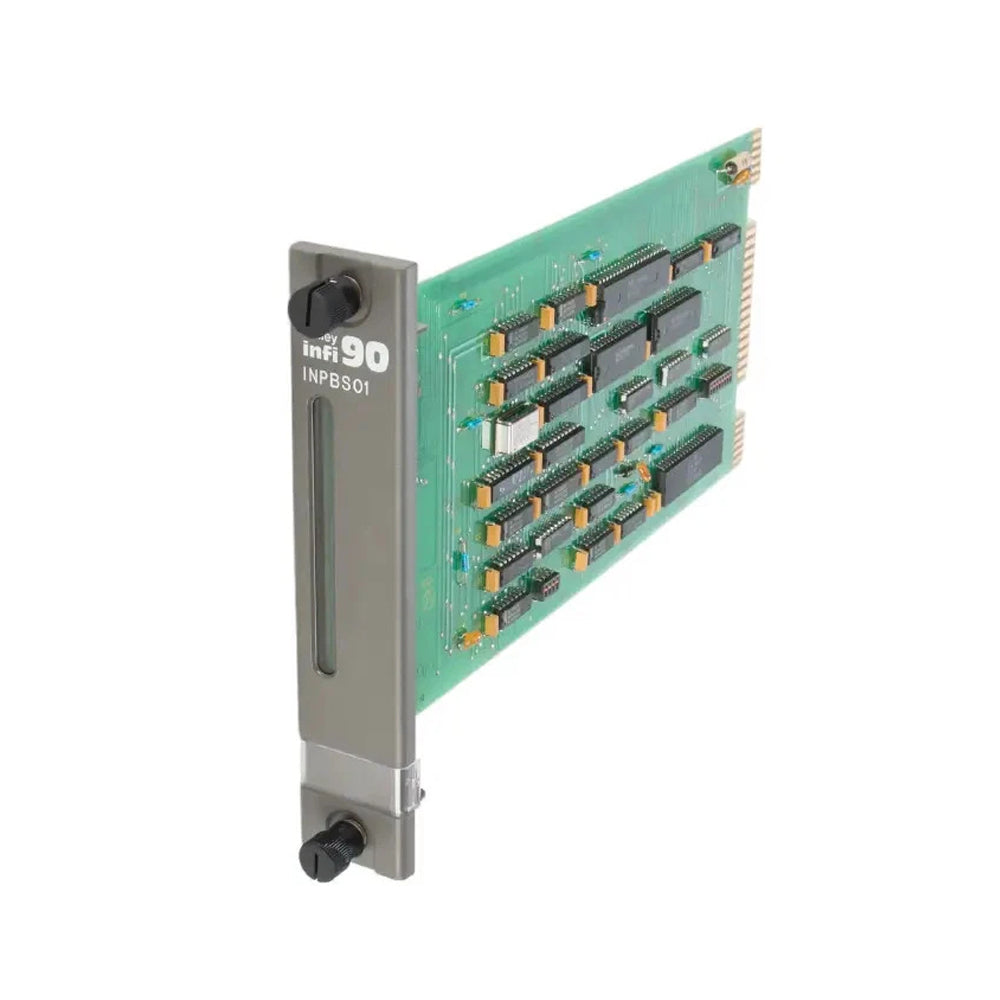

The ABB INPBS01 serves as the primary INPBS01 Parallel Bus Slave Module utilized to execute parallel bus communication exchange and distributed I/O interface handling across NET 90 platforms. The module manages slave-side bus synchronization, backplane communication transfer, and isolated signal interaction between connected rack assemblies.

Module Identification

The INPBS01 is supplied as a single hardware-defined communication interface module within the ABB Bailey Infi 90 NET 90 architecture. No documented suffix-dependent hardware revisions or optional ordering matrices were specified in the available technical information.

Hardware Parameters

Backplane Bus Communication Characteristics

The INPBS01 module operates as a slave-side communication interface within the NET 90 parallel bus environment. Internal communication timing is coordinated through the system backplane to support synchronized exchange between connected I/O modules and supervisory control interfaces.

The module supports scaling of distributed I/O density through controlled parallel bus addressing. Rack-level communication continuity depends on stable grounding references, connector seating pressure, and proper shielding separation from high-energy conductors.

The 500 VDC isolation structure electrically separates communication circuitry from external field disturbances and assists in limiting propagation of transient voltage conditions through the bus network.

Technical FAQ

Q: How many connected slave modules can the INPBS01 manage?
A: The module supports communication handling for up to 32 connected I/O modules within the defined NET 90 parallel bus structure.

Q: Does the INPBS01 require forced-air cooling?
A: No dedicated cooling hardware was specified. Standard industrial cabinet airflow and thermal spacing practices should be maintained within the rated operating temperature range.

Q: Can the module be inserted while rack power remains energized?
A: Live insertion capability depends on rack design, controller dependency, and active communication state. Power-down servicing procedures are generally recommended during module replacement.

Q: What is the purpose of the 500 VDC isolation rating?
A: The isolation barrier reduces electrical coupling between the communication interface and external voltage disturbances connected through field-side wiring or adjacent equipment.

Q: What installation factor most commonly affects bus communication stability?
A: Improper grounding, loose connector engagement, and routing communication cables adjacent to high-current AC wiring may introduce intermittent communication faults.

Rack Installation Practices

• Verify rack grounding continuity before installing the module into the communication backplane.

• Insert the module evenly to prevent edge connector misalignment during seating.

• Separate communication cabling from variable frequency drive output wiring and AC feeder circuits.

• Maintain cabinet environmental conditions within specified humidity and temperature limits.

• Use anti-static handling procedures when transporting or servicing the module.

• Inspect connector contacts for contamination or oxidation prior to installation.

• Avoid excessive cable tension on connected communication harnesses.

Supply Scope

• INPBS01 Parallel Bus Slave Module

• Protective anti-static packaging

• Standard industrial transport carton

Optional associated hardware may include:

• NET 90 rack assemblies

• Communication interface modules

• Backplane extender accessories

Transport and Packaging

Delivery time: 2-7 days when payment finish. Shipment available through DHL, FedEx, and UPS international industrial logistics services.

The module is packaged using anti-static industrial protection materials with reinforced internal cushioning to reduce PCB connector stress and vibration exposure during transport handling.
