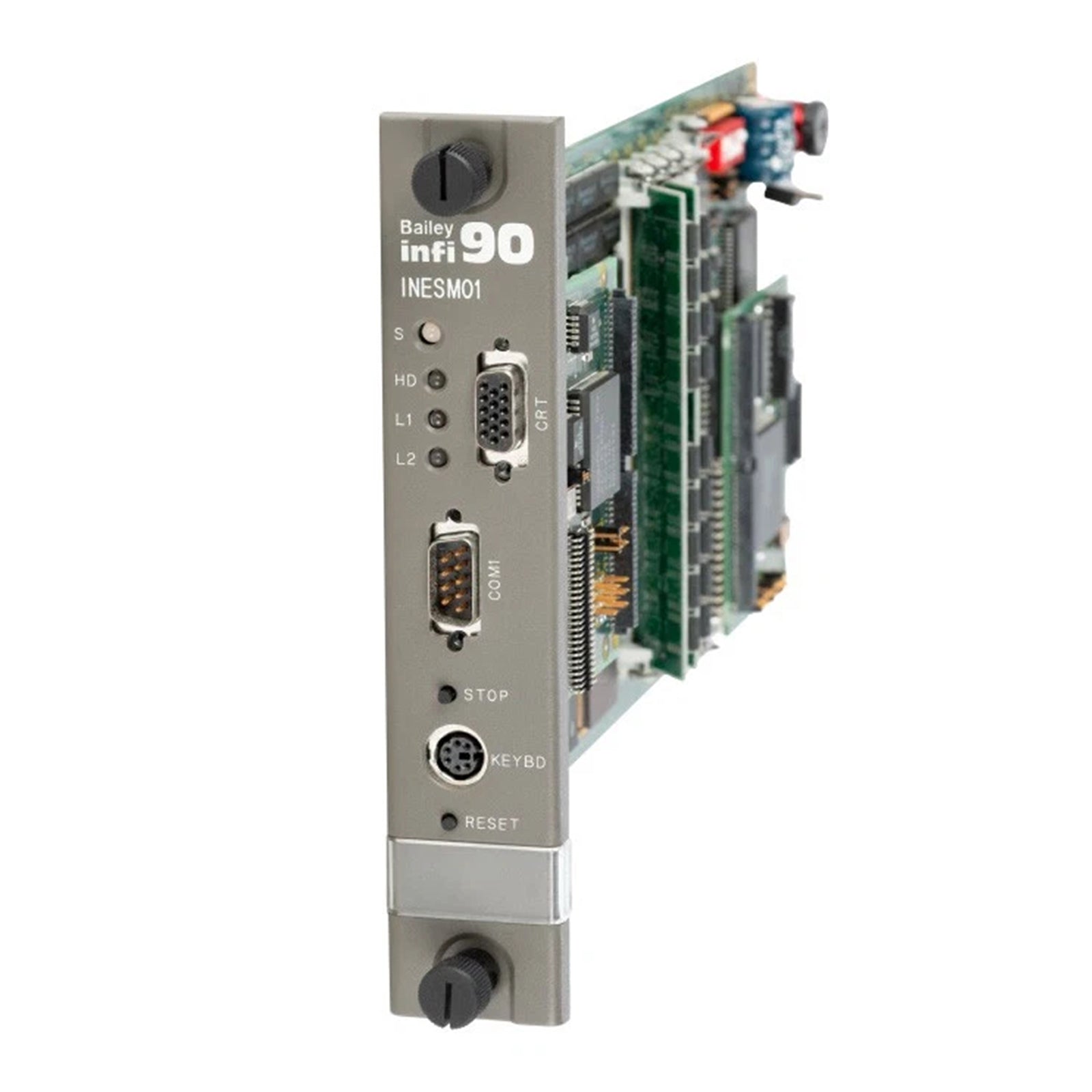

The ABB INESM01, also cataloged as the INESM01 Ethernet Server Module, operates as a dedicated hardware component for high-throughput Ethernet data buffering and routing within INFI-NET communication system environments. The unit interfaces directly with network nodes to process database point transfers across the system backplane architecture.

Hardware Reference Parameters

Profinet / EtherNet/IP Deterministic Networks and Subsystem Integration

The INESM01 incorporates custom communication logic enabling the translation of INFI-NET control loop data structures into standardized network topologies, paving the way for Profinet / EtherNet/IP deterministic networks integration scenarios where required by external gateways. Onboard clock execution running at 100 MHz drives the embedded 8 Mbyte RAM block to regulate synchronous database mapping. This architecture prevents standard packet collisions and ensures the point processing capacity does not saturate the memory registers during peak plant network events.

Technical Queries and Structural Analysis

Q: What is the risk associated with drawing the maximum current load of 4 A from the backplane?

A: The chassis power supply configuration must account for this 4 A maximum load at 5 VDC to prevent voltage droops on the shared power bus, which can destabilize adjacent I/O processors.

Q: How does the memory subsystem manage database point limits during communication bursts?

A: The 8 Mbyte onboard RAM acts as a static buffer to queue up to approximately 30,000 database points, ensuring that the 10 Mbaud transfer rate does not cause overflow errors during high-intensity loop updates.

Q: Is this module hot-swappable while the communication bus is active?

A: No. Unpowering the mounting slot or entire rack assembly is required before removal or insertion to prevent signal distortion on the active INFI-NET segment.

Field Assembly Regulations

• Ensure that all electrical power lines feeding the module rack are fully isolated before executing installation procedures.

• Ensure the physical alignment of the edge card connectors corresponds exactly with the passive backplane channel guide slots.

• Maintain strict isolation between the network transmission cables and adjacent high-voltage power lines inside the cable trunking.

• Attach all external communication cable shielding assemblies to the structural master grounding termination rail of the cabinet.

Supply Breakdown

• 1 x INESM01 Ethernet Server Module

• 1 x Protective Static-Dissipative Wrap

• 1 x Documented Material Traceability Sheet

Transportation and Dispatch Logistics

Consignments are securely packed inside structural anti-static industrial packaging to neutralize electrical static variables. Consignments are distributed globally with typical transit times falling within 2-7 days when payment finish using premium DHL/FEDEX/UPS carriers.
