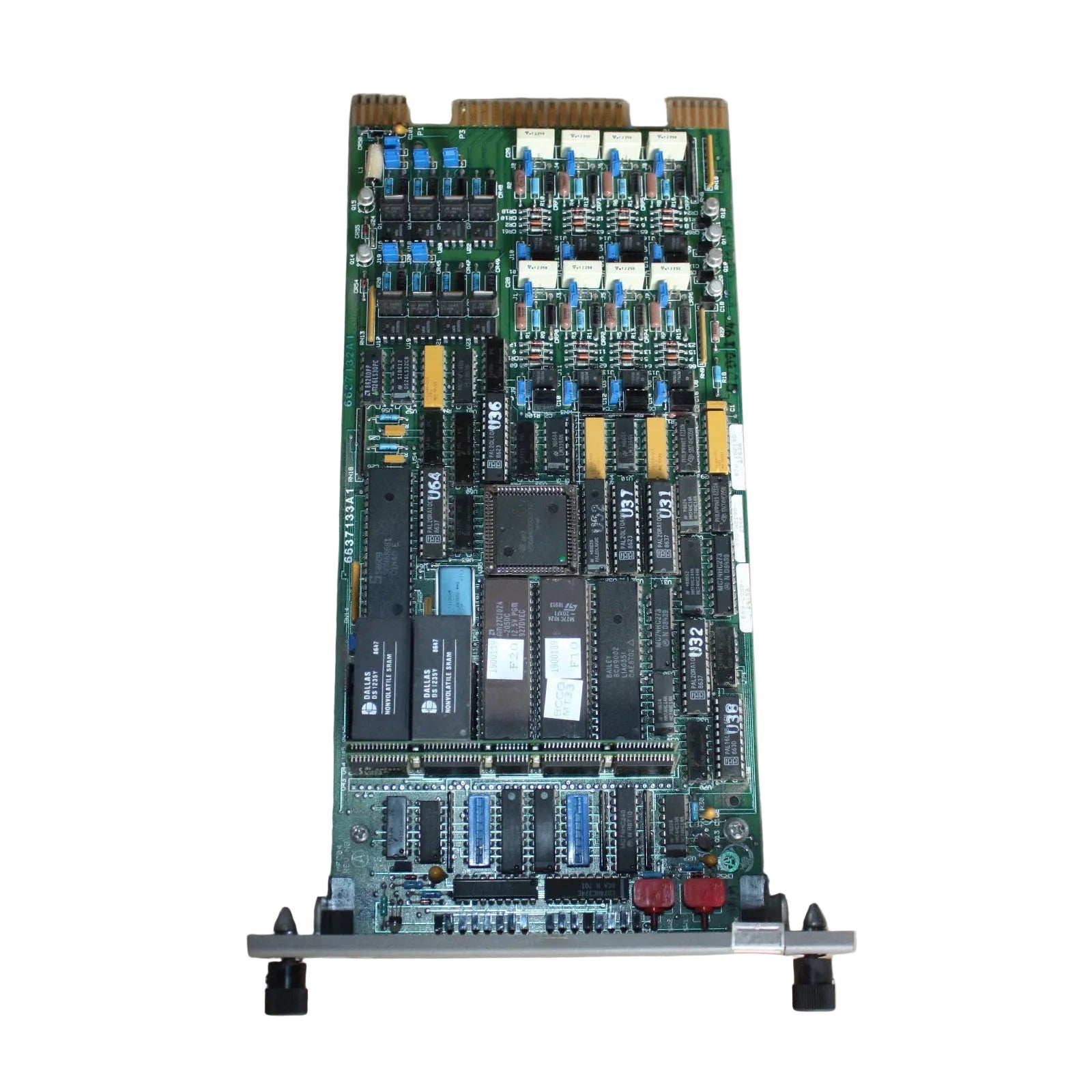

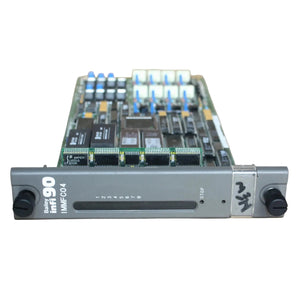

The ABB IMMFC04 serves as the primary IMMFC04 Multifunction Controller utilized to execute complex process control algorithms across Infi 90 platforms. Configured for high-speed algorithmic execution, sequence logic management, and data point scanning, this hardware component provides direct physical and electrical execution of control loops through its dedicated onboard microprocessing architecture.

Technical Parameters

Backplane Bus Communication and Memory Synchronization

The internal architecture of the IMMFC04 controller interfaces directly with the master chassis backplane to manage backplane bus communication velocity metrics during intense cyclic processing. The 12 MHz Motorola 68000 processor coordinates with the 128 KB Static RAM and 64 KB Nonvolatile RAM (NVRAM) arrays to preserve step-sequence variables against real-time power interruptions. This layout allows deterministic control execution over varied loop structures while managing localized sub-rack I/O density scaling profiles, verifying absolute firmware flash compatibility between peer modules connected on the RS-422 redundancy link.

Technical Circuit Queries

Q: What are the payload limitations of the internal 64 KB NVRAM during a sudden backplane voltage drop?

A: The 64 KB Nonvolatile RAM contains dedicated hardware circuitry that senses power dips below the +5 VDC ±5 % tolerance threshold. It immediately shifts into a read-only state, preserving the current step-sequence parameters, tuning constants, and runtime variables until the electrical rail recovers.

Q: Can this controller be hot-swapped while the primary backplane bus is communicating with active I/O cards?

A: No, uninsulated insertion or removal of the IMMFC04 module under live power generates electrical transients on the shared address lines. This action can corrupt running memory buffers on adjacent processing units or completely freeze backplane bus communication velocity cycles.

Q: How does the RS-422 redundancy link manage communication tracking during a master module failure?

A: The dedicated RS-422 redundancy link communicates continuously at 25 kbaud, transmitting deterministic heartbeat frames and database synchronization variables. If the primary module processing cycle drops below specified timing windows, the backup board senses the missing frame and assumes bus authority within the programmed timeout index.

Field Configuration and Wiring Guidelines

Seat the controller card squarely within the designated sub-rack guide rails, pushing the assembly firmly into the rear backplane connectors to establish an solid gas-tight junction. Ensure external RS-422 redundancy and station link wiring uses balanced twisted-pair cables with continuous shield coverage to suppress high-frequency industrial noise. Maintain clear, unblocked vertical airflow pathways inside the enclosure cabinet to keep the local operating atmosphere below the +70 deg C maximum thermal ceiling.

Packing Matrix Components

• 1 x ABB IMMFC04 Multifunction Controller Module Card

• 2 x Heavy-Duty Card Guide Extraction Handles

• 1 x Factory Firmware and Memory Verification Sheet
