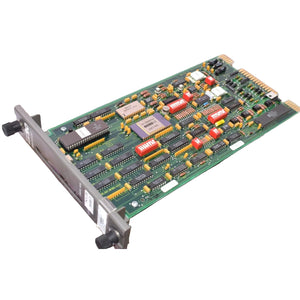

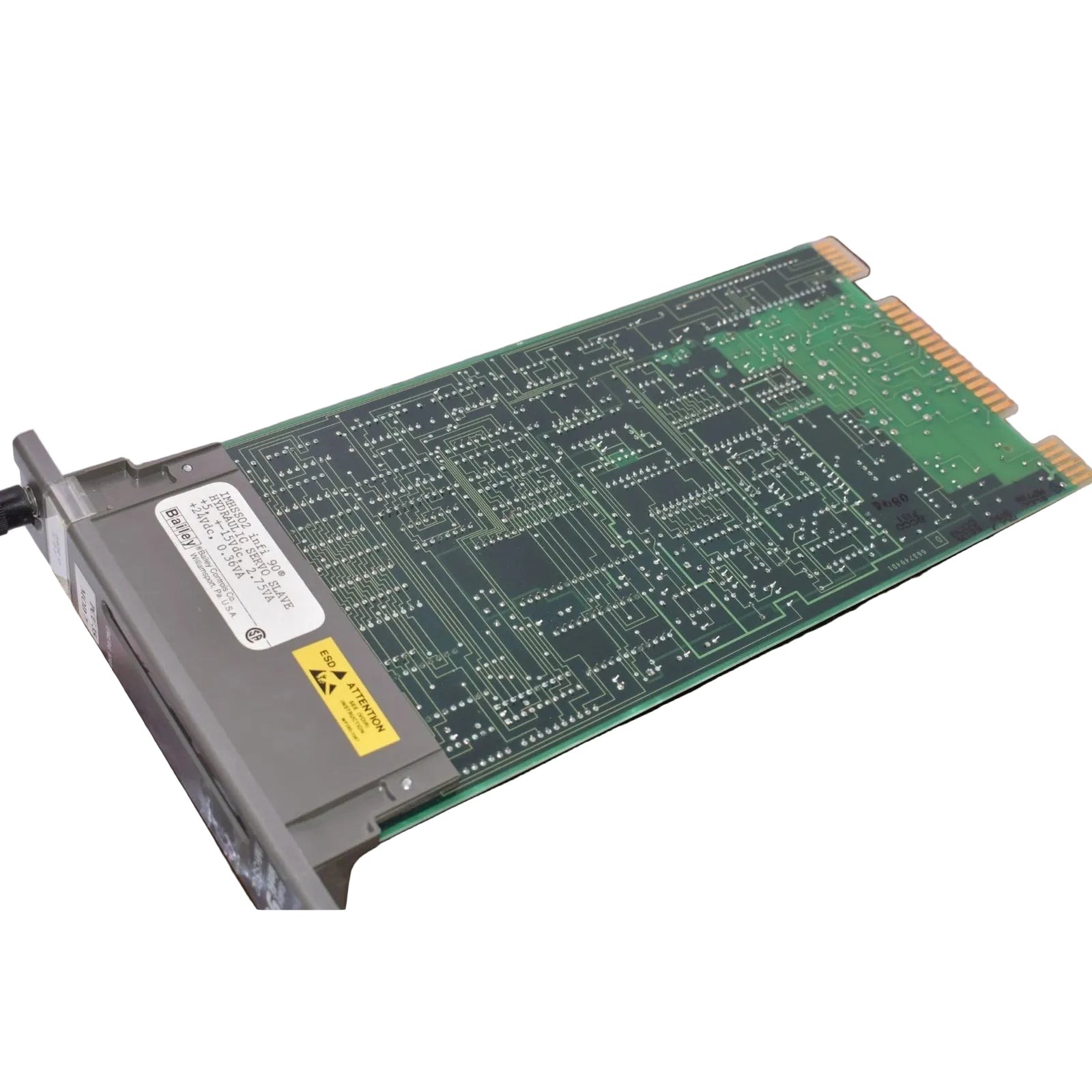

Configured for hydraulic valve positioning and electro-hydraulic actuator control in Bailey Infi 90 Series systems, the ABB IMHSS02 (IMHSS02 Hydraulic Servo Slave Module) provides direct physical/electrical execution. Driven by an onboard 8-bit microprocessor running at 4 MHz, the board decodes discrete raise, lower, and trip bias commands while acquiring positional feedback through twin dual-channel LVDT secondary windings. It computes localized loop balances and drives proportional servo coils via an 8-bit parallel slave expander bus, ensuring real-time mechanical positioning loops match target setpoints without processor latency.

Technical Data Framework

Backplane Bus Communication Velocity and Servo Integration

The slave architecture uses the 8-bit parallel expander bus interface to sustain predictable communication cycles, keeping data packets synchronized with master control modules at full backplane bus communication velocity. This layout enables high I/O density scaling options within turbine governance or high-pressure steam distribution racks. The selectable 1 kHz, 2.5 kHz, or 10 kHz primary LVDT excitation tracks isolate feedback loops from high-frequency electromagnetic interference, which verifies absolute firmware flash compatibility over the local sub-bus structure during runtime loop tuning.

Hardware Diagnostic Queries

Q: What are the live hot-swap restriction parameters assigned to this servo driver board?

A: Unscheduled live hot-swap extraction of this module is prohibited during active hydraulic control execution. Pulling the module disrupts the 8-bit parallel expander bus circuit, breaking loop stability on the matching master controller and causing the trip bias inputs to freeze or latch error states across the rack segment.

Q: How does a hardware mismatch affect the firmware flash compatibility check across the expander bus?

A: The 8-bit processor requires matching revision indices configured on the master module. A firmware flash compatibility mismatch will trigger a bus boot isolation routine, locking out the slave tracking registers and preventing LVDT primary drive generation until the configuration profiles match.

Q: What behavior occurs if both LVDT secondary feedback inputs suffer a simultaneous signal wire break?

A: If both inputs experience a signal open-circuit, the onboard 8-bit processor drops loop feedback calculations instantly. The control logic trips the dedicated trip bias state-machine within milliseconds, neutralizing the servo output current loop to allow external hydraulic mechanical springs to shift the valve into its safe shutdown seat.

Field Commissioning and Calibration Guidelines

• Chassis Guide Rail Engagement: Mount the 0.3 kg card carrier straight within the module mounting rack. Slide the circuit card rearward until the gold-plated pins seat fully into the expander backplane connectors, then finger-tighten the upper and lower faceplate fasteners.

• LVDT Shield Grounding Separation: Route all low-voltage analog inputs through separate braided pairs. Ground the LVDT cable shields only at the dedicated enclosure panel bulkhead ground plate to prevent ground loop noise from corrupting the 4 MHz internal timing matrix.

• Excitation Frequency Jumper Allocation: Prior to insertion, verify that the onboard jumpers match the design frequency specifications (1 kHz, 2.5 kHz, or 10 kHz) of the connected physical position sensors to ensure full primary winding compatibility.

Module Procurement List

• 1 x ABB Bailey Infi 90 IMHSS02 Hydraulic Servo Slave Module Assembly

• 1 x Pre-configured Jumper Block Selection Array

• 1 x Multi-Pin Sub-Rack Wiring Reference Card

Freight Allocation Specifications

Delivery time: 2-7 days when payment finish parameters are successfully verified by our regional hub. Consignments move directly from our main logistics station in Xiamen, China, via priority international air lines including DHL, FEDEX, or UPS. The 0.3 kg servo interface card is sealed within a nitrogen-purged, thick anti-static industrial packaging sleeve with structural edge guards and nested in a rigid outer shell complete with custom closed-cell foam inserts to shield the sensitive LVDT frequency registers from physical vibration during global dispatch.
