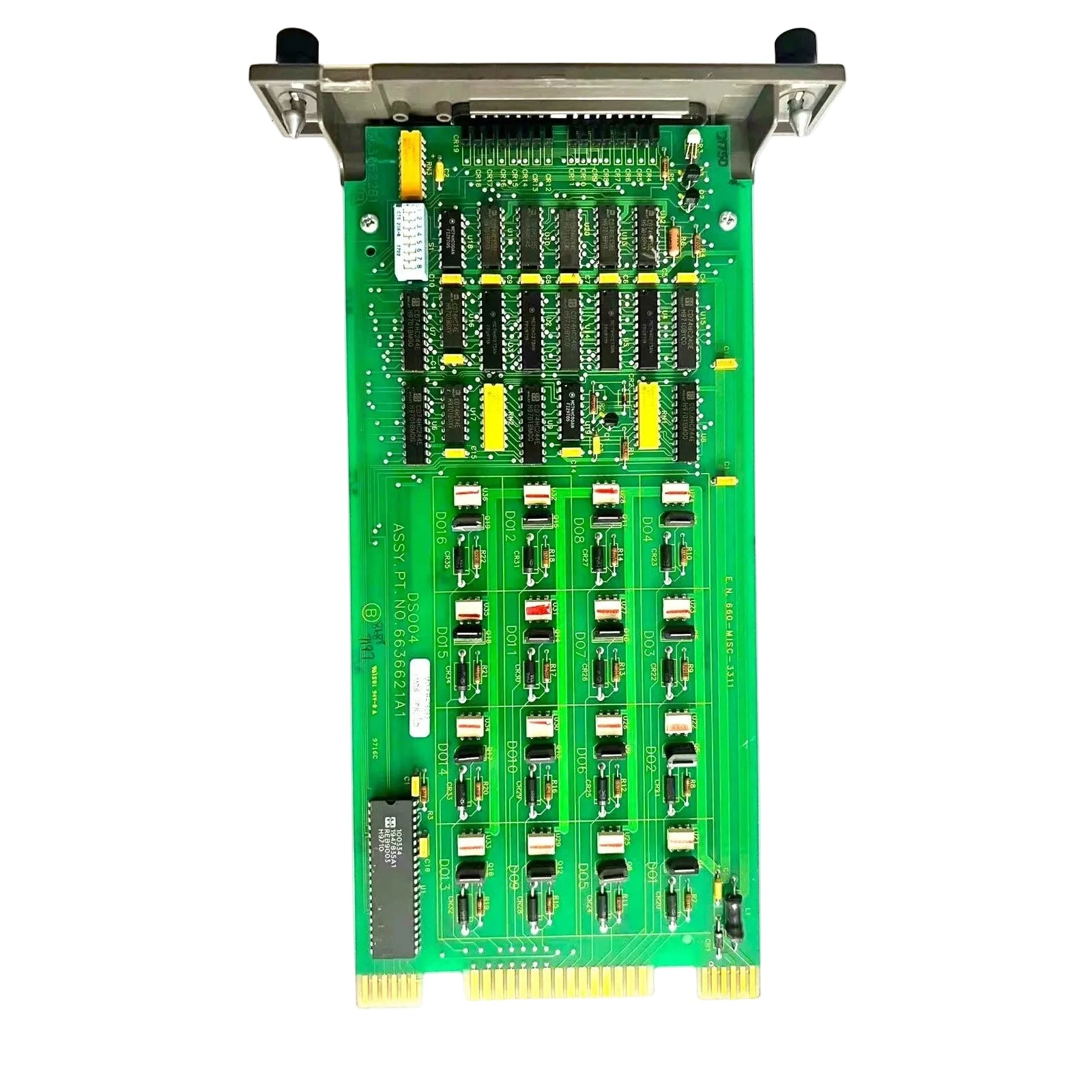

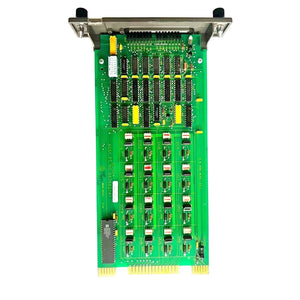

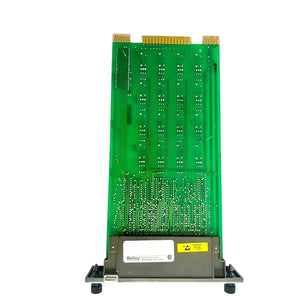

Configured for discrete 24 VDC signal switching in ABB distributed control architectures, the ABB IMDSO04 (IMDSO04 Digital Output Slave) provides direct electrical execution. The module interfaces with the ABB Infi 90 backplane to drive 16 digital output points using transistor-based output stages. Internal logic operates from a +5 VDC supply while output channels switch external 24 VDC field loads within defined current and leakage limits.

Module Identification

Backplane Communication and I/O Density

The IMDSO04 module exchanges output state information through the Infi 90 backplane communication structure using fixed digital output mapping. Output transition execution is controlled internally by the module logic section powered from the +5 VDC backplane rail. The 16-point channel density allows consolidated field output termination within a single module footprint while maintaining independent transistor switching paths for each output point.

Backplane current loading must be evaluated during multi-module cabinet expansion. Aggregate +5 VDC consumption increases proportionally with installed module count and switching activity. Cabinet layouts should maintain unobstructed airflow around adjacent I/O carriers to minimize thermal accumulation near high-density output assemblies.

Technical Questions

Q: Does the IMDSO04 support hot insertion during active controller operation?
A: Hot insertion capability depends on the installed Infi 90 chassis configuration and maintenance procedure. Power isolation and rack handling procedures should follow the installed system maintenance manual before module replacement.

Q: What field voltage is switched by the output channels?
A: The module is designed for 24 VDC load switching through 16 discrete digital output points.

Q: Is external field power supplied directly from the module backplane?
A: No. The +5 VDC backplane supply powers internal module electronics while output loads are switched at the external 24 VDC field level.

Q: What installation consideration applies to output wiring?
A: Output wiring should be routed separately from analog instrumentation cables to reduce inductive coupling and transient propagation during output state changes.

Q: How should shield grounding be handled in the cabinet?
A: Cable shields should terminate at a single designated grounding reference point to avoid circulating ground currents between field devices and cabinet structures.

Cabinet Installation Practices

Install the IMDSO04 in a compatible Infi 90 rack slot with backplane connectors fully seated before field wiring energization. Verify that the external 24 VDC field supply polarity matches terminal assignment documentation prior to output commissioning.

Field conductors should be secured to prevent vibration-induced terminal stress. High-current inductive loads such as relays or solenoids should use external suppression devices to reduce switching transients returning into the output circuitry.

Maintain separation between digital output cabling and low-level analog signal wiring. Cabinet grounding continuity should be verified before startup to minimize common-mode electrical noise across distributed I/O assemblies.

Ordering Information

• IMDSO04 Digital Output Slave module

• Anti-static protective packaging

• Industrial shock-resistant carton

• Optional compatible termination assemblies supplied separately

• Rack mounting hardware dependent on installed cabinet configuration

Logistics and Dispatch Information

Delivery time: 2-7 days when payment finish. Shipment available through DHL, FedEx, or UPS international industrial logistics channels. Modules are packed using anti-static industrial packaging with reinforced internal cushioning for PCB transport protection.
