Product Overview

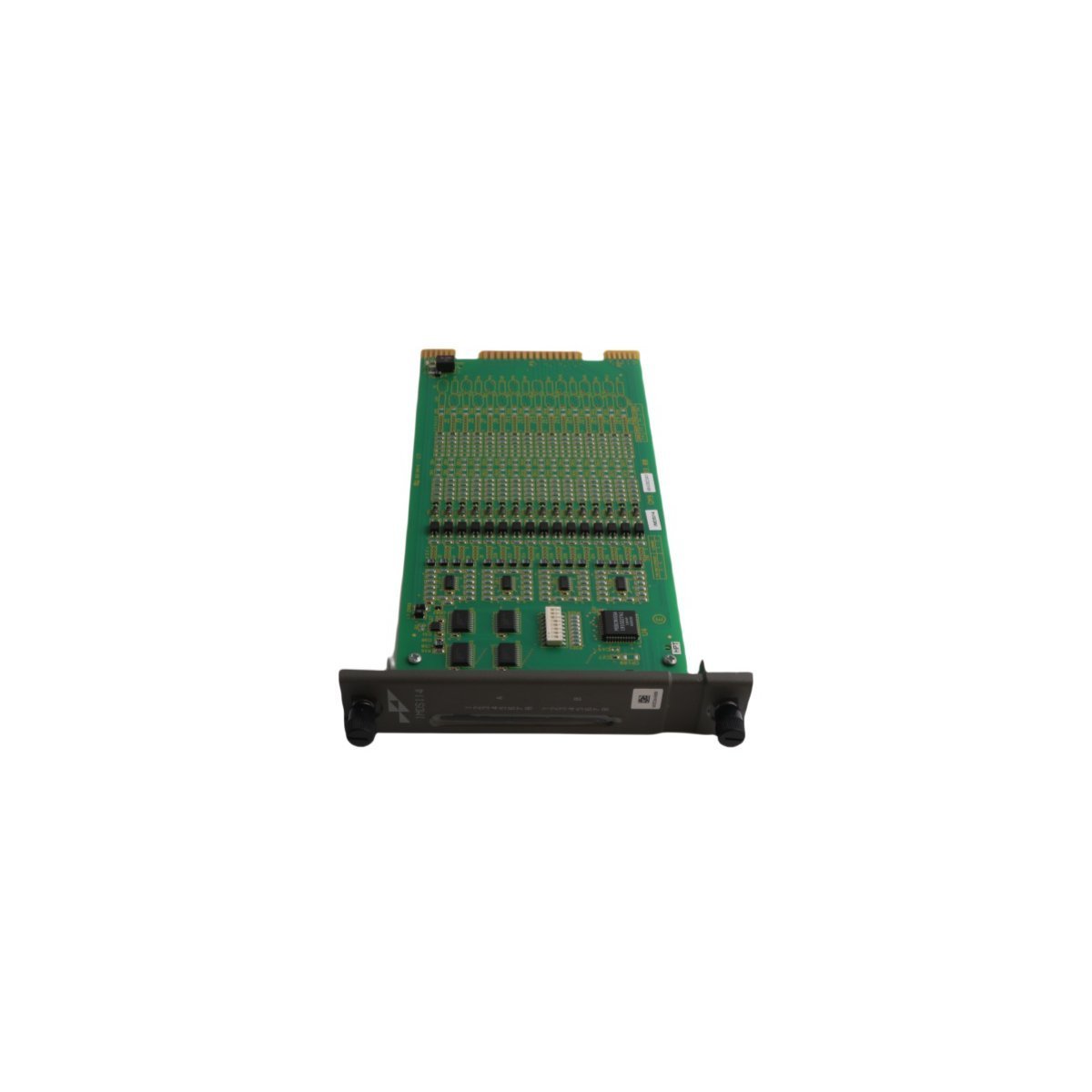

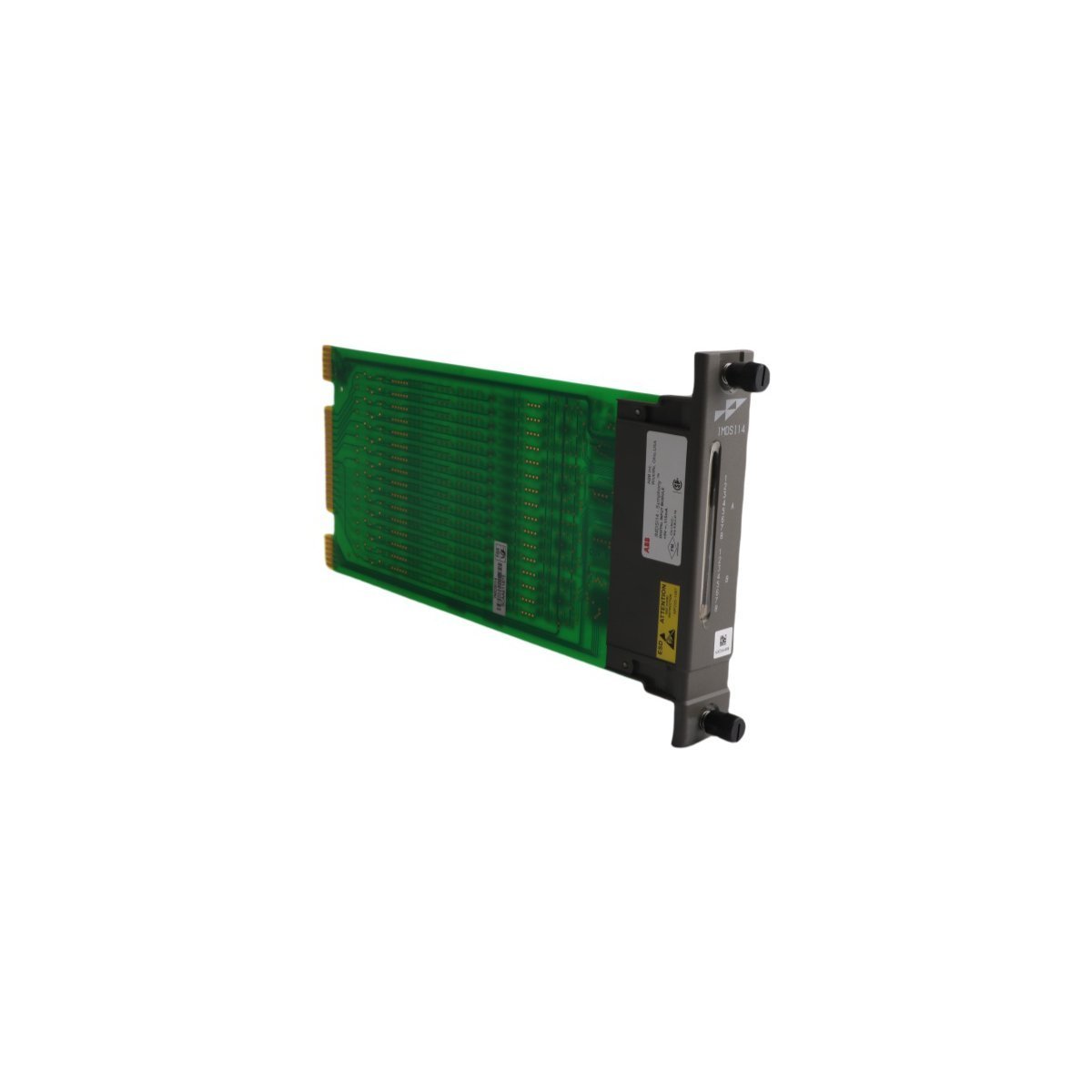

The ABB IMDSI14 is a high-density digital slave input module designed for the Harmony Rack (HR) Series and Symphony Plus Distributed Control Systems. This module facilitates the acquisition of discrete signals from field-side equipment, specifically calibrated for 48 VDC logic environments. Functioning as a high-speed interface, the IMDSI14 converts binary states from sensors, limit switches, and relay contacts into digital data for the system processor. Its slim, rack-mounted architecture is engineered to provide high-density I/O connectivity while maintaining strict electrical isolation between the field environment and the control backplane, ensuring system-wide stability and data integrity.

Engineering Specifications and System Data

• Model Designation: IMDSI14

• Input Density: 16 Digital Input Channels

• Voltage Logic: 48 VDC (Nominal)

• Series Compatibility: Harmony Rack (HR Series) I/O / Symphony Plus

• Physical Footprint: 3.5cm x 31.0cm x 17.6cm

• Net Weight: 0.2kg

• Interface Type: Digital Slave Input Module

• Environmental Resilience: Industrial-grade PCB coating for thermal and humidity stability

• Logic Isolation: Galvanic isolation between field signals and internal system bus

• Network Integration: Supports advanced data routing via standard DCS Ethernet router services

• Production Origin: Sweden

Practical Industrial Environments

The IMDSI14 is a critical component for utilities and heavy industries that utilize the Bailey Infi 90 and Harmony Rack architectures. Major applications include:

• Power Station Monitoring: Tracking the status of auxiliary contacts in high-voltage switchgear and 48V battery systems.

• Process Safety Interlocking: Capturing emergency stop and limit switch triggers in oil and gas refineries where reliable discrete logic is mandatory.

• Distributed Control Expansion: Serving as a modular input node to scale up digital monitoring in chemical processing facilities.

• Facility Automation: Managing binary feedback from ventilation systems, fire dampeners, and safety gates in large-scale manufacturing plants.

• System Maintenance and Repair: Acting as a direct-replacement spare to restore functionality in legacy Harmony Rack cabinets without the need for extensive rewiring.
