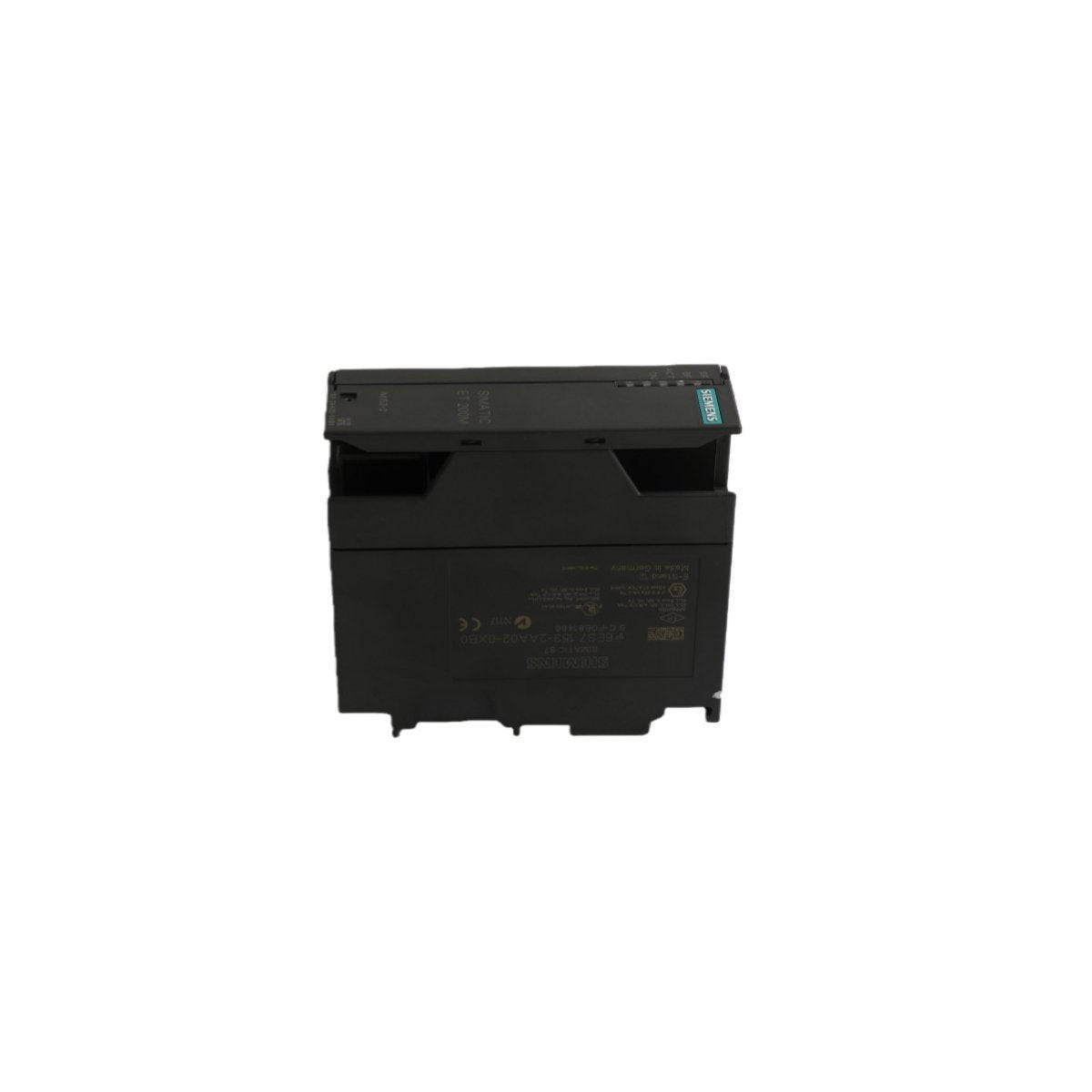

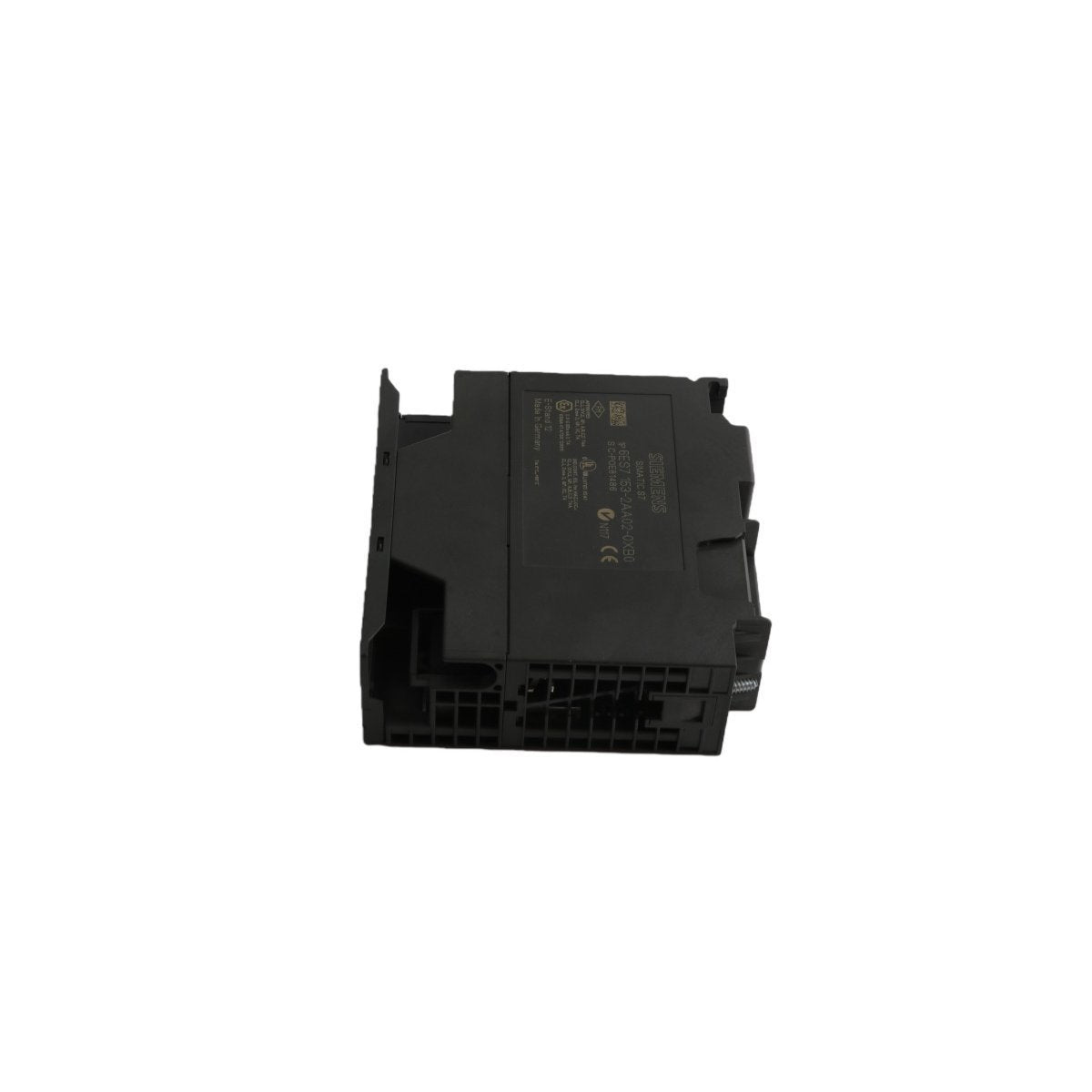

IM 153-2 High Feature Interface Module - Siemens 6ES7153-2AA02-0XB0 SIMATIC ET 200M
-
Dimensions: 4.0 cm x 12.5 cm x 12.0 cm
-
Country of origin: Germany
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The Siemens 6ES7153-2AA02-0XB0 is a High Feature (HF) interface module designed to link the ET 200M distributed I/O station to a PROFIBUS DP network. This module acts as the communication head, managing data exchange between the central controller and up to eight S7-300 signal, function, or communication modules. Engineered for mission-critical reliability, the 6ES7153-2AA02-0XB0 supports redundant configurations (H-systems) and advanced time-stamping functions, ensuring precise event logging and maximum system uptime in complex automation architectures.
Functional Engineering and Physical Specs
The following technical profile details the capabilities and physical footprint of this High Feature interface:
-
Redundancy Support: Fully compatible with redundant PROFIBUS DP cycles for high-availability applications.
-
Time-Stamping Accuracy: Supports high-precision time-of-day synchronization and event capturing.
-
Module Capacity: Direct connection for up to 8 peripheral modules per station.
-
Communication Rate: Automatic baud rate detection up to 12 Mbit/s on PROFIBUS.
-
Product Weight: 0.95 kg (Shipping Weight) / 0.36 kg (Unit Weight).
-
Dimensions: 4.0 cm x 12.5 cm x 12.0 cm (Unit specific) / 2.5 cm x 5.1 cm x 83.8 cm (Installation Profile).
-
Supply Voltage: 24V DC.
| Parameter | Specification |
| Model Number | 6ES7153-2AA02-0XB0 |
| Interface Protocol | PROFIBUS DP V1 |
| Isolation | 500V DC between bus and electronics |
| Country of Origin | Germany |
| HS Code | 8537101190 |
Industrial Sector Applications
The 6ES7153-2AA02-0XB0 is strategically deployed in environments where data integrity and system availability are non-negotiable. Its primary usage includes:
-
Process Automation: Serving as the decentralized interface in chemical and oil & gas plants where redundant communication paths prevent costly system shutdowns.
-
Power Generation: Utilizing precision time-stamping to sequence-of-event (SOE) recording in electrical substations and turbine control.
-
Water Management: Coordinating distributed I/O modules across large-scale treatment facilities via a robust PROFIBUS backbone.
-
Manufacturing Retrofits: Providing a reliable bridge for legacy S7-300 modules to integrate into modern, high-speed DP networks.
