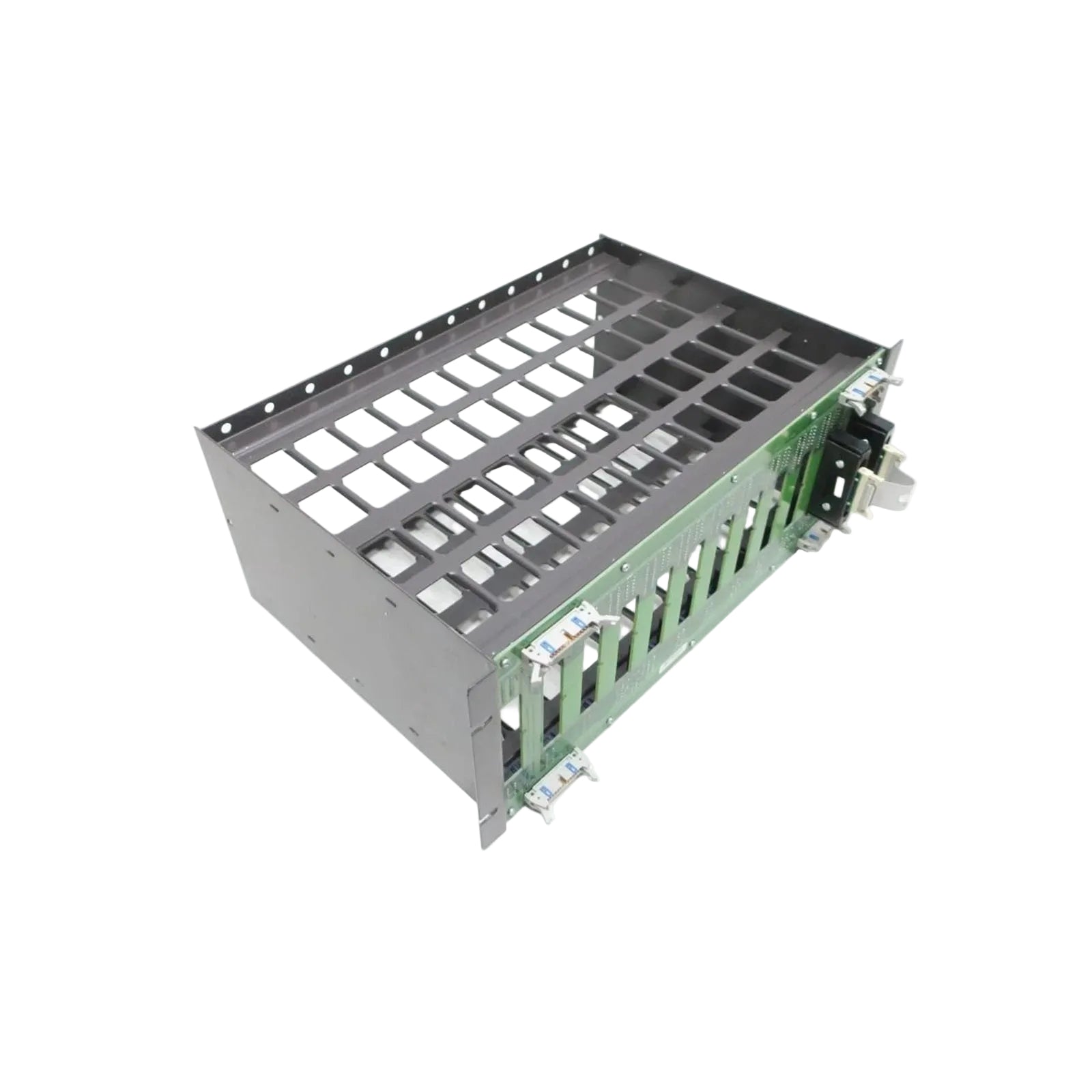

The ABB IEMMU04, also cataloged as the IEMMU04 Module Mounting Unit, operates as a dedicated hardware component for physical module retention, backplane power distribution, and internal communication routing within Bailey Infi 90 Series platforms. This 5-slot chassis provides structural mounting planes and parallel data line tracking for processing units and I/O cards. It directly maps power distribution paths across integrated connectors, establishing a synchronous hardware infrastructure that supports continuous multi-module rack configurations without localized power sag or termination drops.

Physical and Electrical Parameters

Deterministic Network Backplane and I/O Density Scaling

This module mounting unit is engineered to sustain maximum backplane bus communication velocity across all 5 parallel branch links. The integrated power distribution traces carry +5 V DC and +/-15 V DC rails directly to each slot, supporting dense I/O density scaling options without causing localized voltage dropouts during active transmission loops. By providing continuous grounding planes and short impedance paths, the chassis minimizes signal attenuation across the multi-drop communication tracks. This structural layout preserves data integrity and timing precision during simultaneous card operations, preventing data collisions and ensuring that module-level firmware flash compatibility validation routines execute efficiently across the deterministic network segment.

Technical Engineering Diagnostics

Q: How does a sudden voltage drop on the +/-15 V DC power distribution rail affect inserted modules?

A: A voltage drop below nominal tolerances on the +/-15 V DC rail disrupts the analog circuitry of matching interface cards. The passive backplane pathways of the IEMMU04 pass the supply potentials straight through; any supply drop will cause operational faults in inserted modules, though it does not damage the copper tracks of the mounting unit itself.

Q: What are the hot-swap configuration limitations when utilizing all 5 slots?

A: While specific Infi 90 slave modules support hot-swap replacement, extraction must proceed one board at a time to prevent transient current surges on the +5 V DC backplane rail. Removing multiple modules at the same time can cause a momentary power sag, which disrupts backplane bus communication velocity on adjacent active slots.

Q: Can this unit handle different generations of firmware flash compatibility across its slots?

A: The IEMMU04 functions as a passive electrical distribution and mechanical routing frame. Firmware flash compatibility and validation protocols are managed entirely by the processors on the inserted master and slave modules, independent of the physical backplane traces.

Field Installation Guidelines

• Enclosure Mechanical Mounting: Position the unit into the designated 19-inch rack frame. Secure the chassis flange directly to the structural cabinet rails using standard industrial fasteners to isolate the backplane from physical vibration.

• Power Supply Rail Termination: Connect the primary power cables to the heavy-duty terminal blocks on the rear panel. Tighten all screw contacts to the specified torque values to keep contact resistance low and maintain stable +5 V DC and +/-15 V DC distribution.

• Grounding Configuration: Establish a direct, low-impedance copper strap connection from the chassis ground terminal to the main cabinet technical earth. Proper grounding is necessary to protect parallel data tracks from high-frequency electromagnetic interference.

Standard Shipment Manifest

• 1 x ABB Bailey Infi 90 IEMMU04 5-Slot Module Mounting Unit

• 1 x Rear Terminal Power Connector Insulation Shroud

• 1 x Set of Chassis Industrial Mounting Screws

Logistic Shipping Protocols

Delivery time: 2-7 days when payment finish parameters are confirmed by our logistics team. Dispatches are processed from our center in Xiamen, China, and shipped via international express networks including DHL, FEDEX, or UPS. The 3.88 kg assembly is sealed within an anti-static industrial packaging bag and packed inside a reinforced heavy-duty box with custom foam inserts to protect the backplane pins and multi-pin card connectors from physical stress during air transit.
