Product Overview

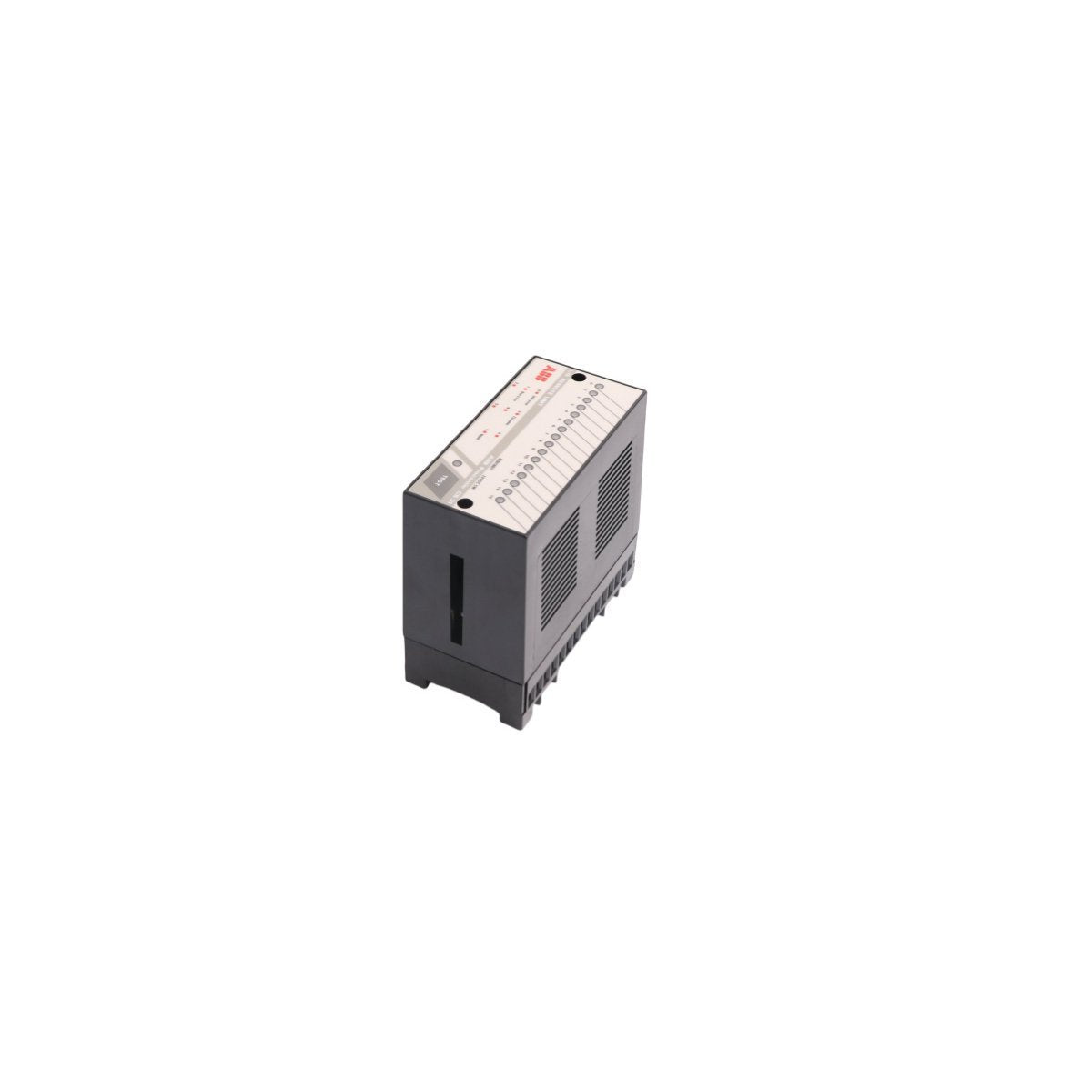

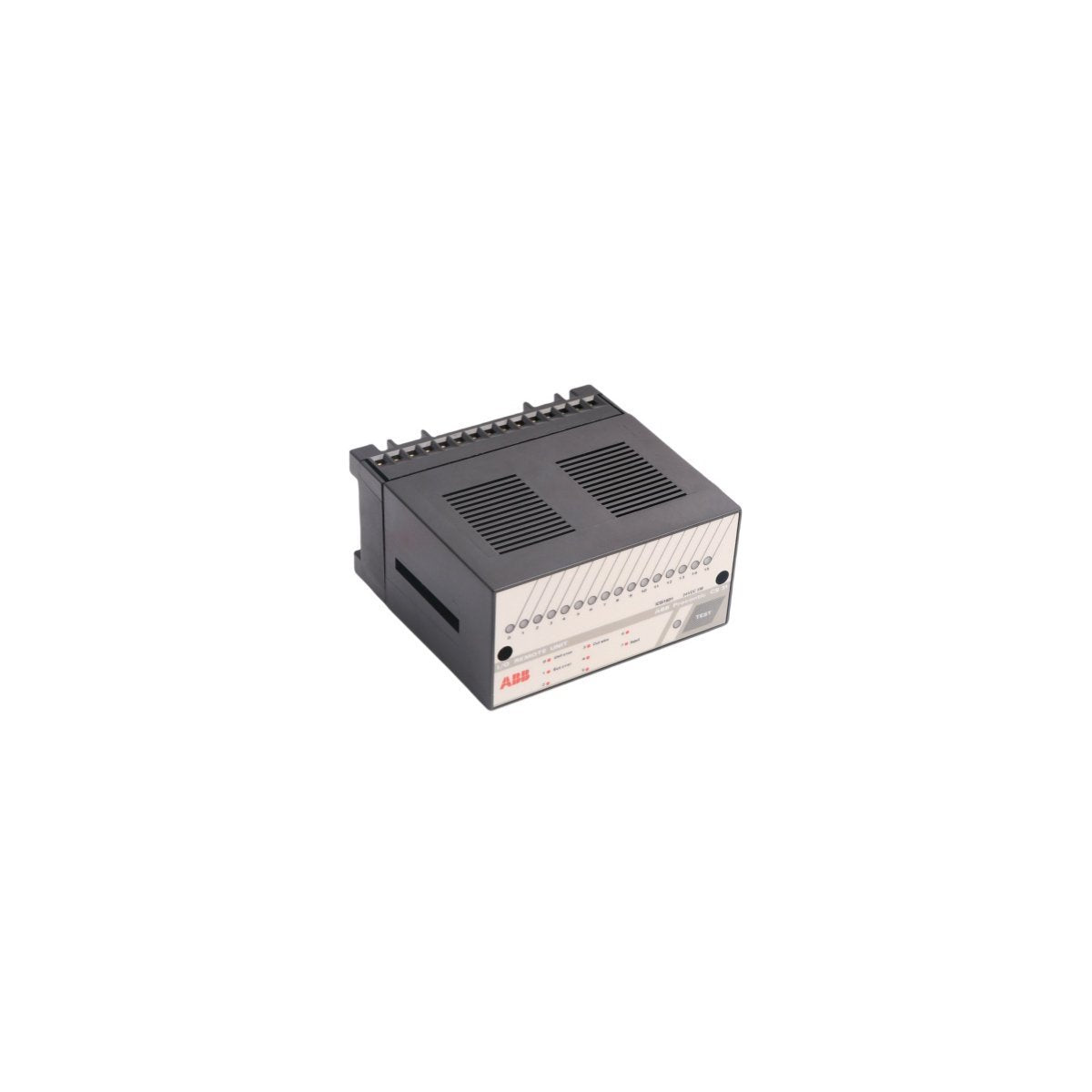

The ABB ICSI16D1 is a specialized 16-channel binary input unit designed for the Procontic CS31 automation framework. This remote I/O unit serves as a high-density interface for capturing discrete field signals, such as limit switches, proximity sensors, and pushbuttons. Engineered to bridge the gap between physical field devices and Distributed Control Systems (DCS), the ICSI16D1 ensures that status changes are digitized and transmitted with exceptional speed and accuracy. Its architecture is optimized for real-time monitoring, providing the low-latency response necessary for safety-critical interlocks and high-speed process synchronization in modern industrial networks.

Hardware Architecture and Performance Specs

• Component Category Binary (Digital) Input Module

• Product Model ICSI16D1

• Input Channels 16 Independent Channels

• System Bus Compatibility Procontic CS31

• Operational Voltage 24V DC Nominal

• Communication Support Profinet Integration / Ethernet Router Compatible

• Module Mass 0.44 kg

• Physical Dimensions 12.4cm x 7.5cm x 11.5cm

• Build Material Corrosion-resistant high-grade industrial polymers

• Country of Origin Sweden

• Lifecycle Status Active

Strategic Deployment and Sector Use Cases

This binary input unit is widely utilized in sectors requiring distributed intelligence and high-density signal monitoring, such as automated material handling, automotive assembly lines, and water treatment facilities. Because it is built to Swedish quality standards, it excels in environments with high humidity and fluctuating thermal loads. The ICSI16D1 is frequently deployed in decentralized control cabinets to reduce wiring costs by digitizing signals close to the source. Its seamless integration with Profinet protocols allows it to function within high-speed data exchanges, making it an essential component for engineers looking to optimize the throughput and diagnostic visibility of their automation system.

FAQ

Q: Can the ICSI16D1 handle inputs from sensors with varying voltage levels?

A: The ICSI16D1 is designed for standard 24V DC binary signals. To ensure signal integrity and hardware longevity, it is recommended to verify that all field devices align with the 24V DC logic threshold of the unit.

Q: What are the benefits of using this module in a Profinet network?

A: Integrating the ICSI16D1 into a Profinet architecture allows for faster data refresh rates and more comprehensive remote diagnostics compared to legacy serial bus systems, enhancing overall system uptime.

Q: Is the unit resistant to electromagnetic interference in motor control cabinets?

A: Yes, the internal circuitry is shielded and constructed with high-grade materials to provide superior resistance to the electrical noise typically found near high-power drives and contactors.

Q: Does the ICSI16D1 require a specific rack or baseplate for installation?

A: This module is designed for the Procontic CS31 series and typically mounts onto a standard DIN rail or specialized sub-rack, allowing for quick hardware replacement and minimal maintenance downtime.

Q: How does the unit signify the status of individual input channels?

A: The unit features an intuitive interface, usually including localized LED indicators, which allow technicians to visually verify the status of each input channel during commissioning and troubleshooting.
