Product Overview

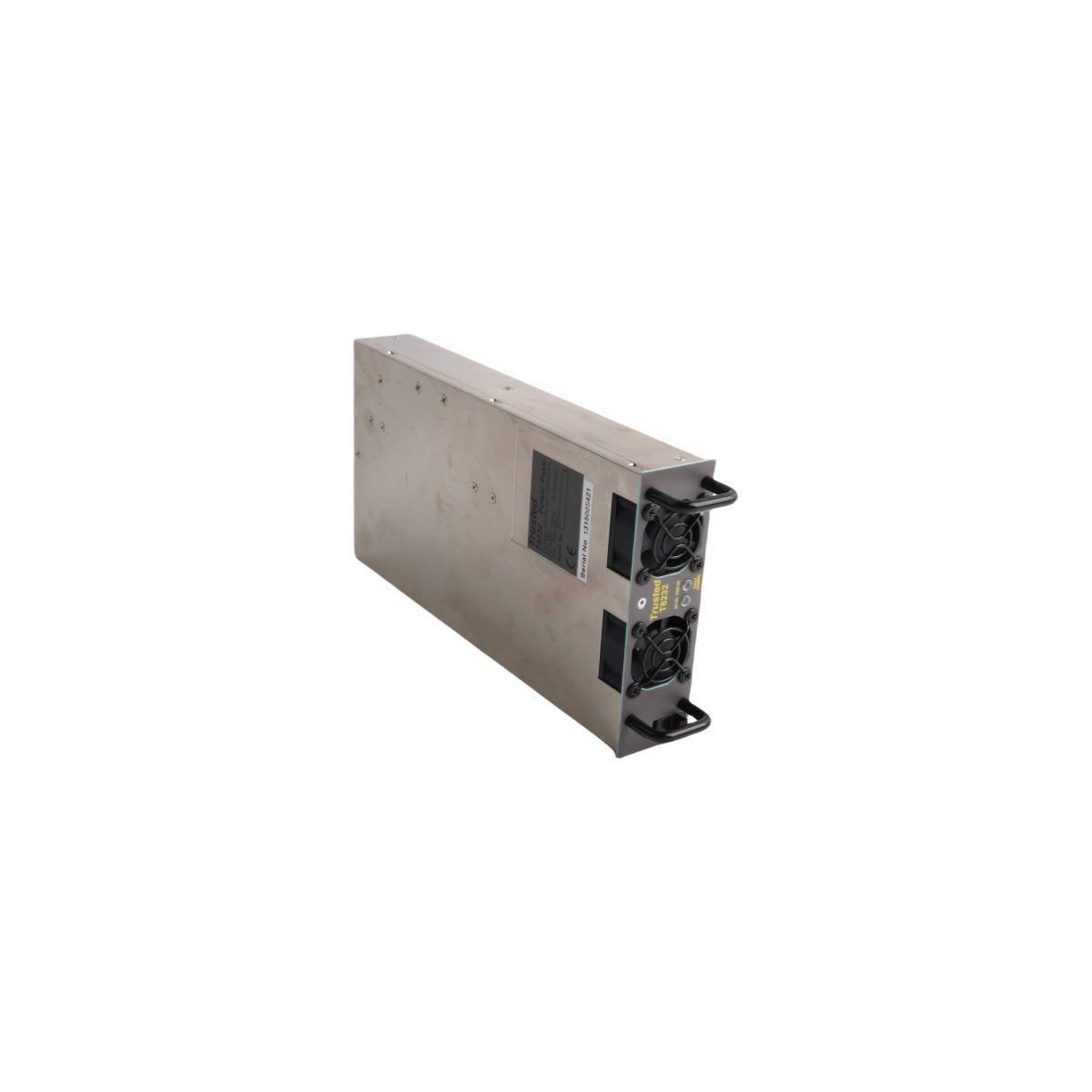

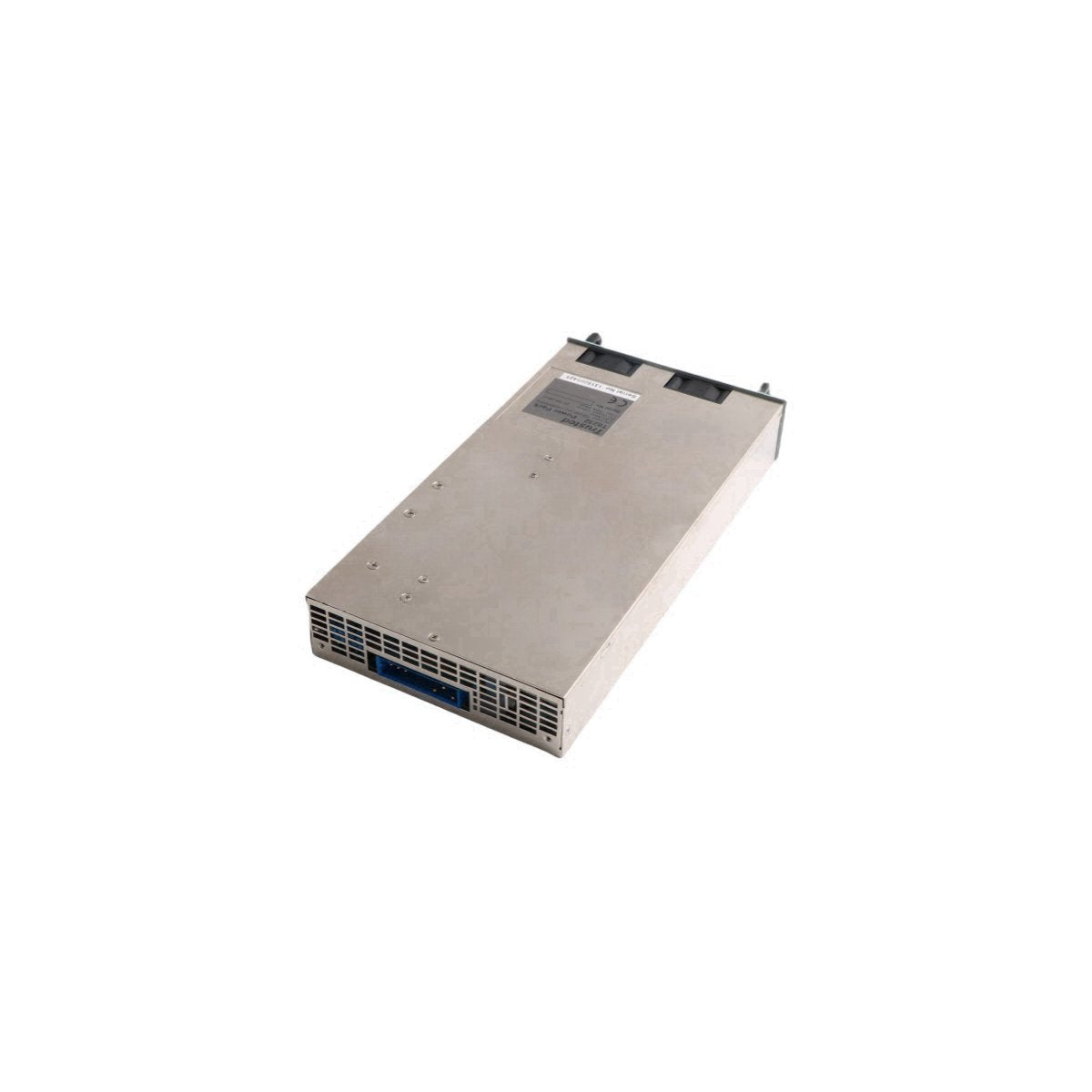

The ICS Triplex T8232 is a high-efficiency Power Pack Module engineered specifically for the Trusted™ Triple Modular Redundant (TMR) Expander System. This module acts as the localized power regulation hub for expansion chassis, ensuring that distributed I/O modules receive a stabilized and filtered DC supply. Designed to maintain the safety integrity of SIL 3-rated systems, the T8232 converts primary bulk power into the regulated logic-level voltages required for high-speed communication across the expander bus.

Built for mission-critical infrastructure, the T8232 utilizes advanced semiconductor architecture to maximize energy efficiency while minimizing heat dissipation. This thermal optimization is crucial for maintaining the longevity of electronic components in the high-density, enclosed environments typical of offshore oil platforms, chemical refineries, and power generation facilities.

Core Technical Characteristics

The T8232 is distinguished by its seamless integration with the Trusted TMR backplane and its robust protective features.

• Integrated Expander Logic: Specifically designed to provide power and interface support for Trusted Expander chassis, enabling seamless scaling of I/O points across large industrial sites.

• High-Efficiency Regulation: Advanced internal power conversion technology reduces operational energy loss, contributing to a lower total cost of ownership and reduced cabinet cooling requirements.

• Environmental Shielding: The module’s internal circuitry is protected against the ingress of industrial contaminants, moisture, and fine dust, ensuring consistent performance in non-conditioned environments.

• Fault-Tolerant Power Delivery: Engineered to operate within a triplicated system architecture, providing the reliable voltage rails necessary for 2-out-of-3 (2oo3) hardware voting logic.

• Space-Optimized Form Factor: The compact, lightweight design allows for high-density installation in standard 19-inch racks, maximizing I/O capacity without increasing the physical footprint.

• Diagnostic Feedback: Provides real-time status monitoring to the main Trusted controller, allowing operators to track power health and identify potential maintenance needs before they impact the process.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)

• Model Number: T8232

• Product Series: Trusted TMR System

• Module Type: Expander Interface Power Pack

• Input Voltage Compatibility: Standard Trusted System DC rails

• Weight: 1.28 kg (2.82 lbs)

• Dimensions: 3.0 x 30.2 x 26.5 cm

• Certifications: CE, UL, and CSA compliant for hazardous industrial locations

• Safety Rating: Suitable for use in SIL 3 safety-instrumented systems

• Operational Status: Active / Fully Supported

Industrial Applications and Integration

The T8232 Power Pack is a fundamental component for distributed control architectures where I/O must be located close to field instruments but remains under the umbrella of a centralized TMR logic solver. Its primary applications include:

• Distributed Safety Systems: Powering remote expansion racks in Emergency Shutdown (ESD) applications.

• Fire and Gas Detection: Maintaining power for critical monitoring loops across vast manufacturing complexes.

• Turbine Control: Providing localized, noise-free power for expansion modules monitoring high-speed rotational machinery.

By implementing the T8232, engineers ensure that the remote sections of their control system are as robust and reliable as the central processing unit. The module’s plug-and-play compatibility with the Trusted Expander Interface ensures low commissioning times and high operational availability.
