Product Overview

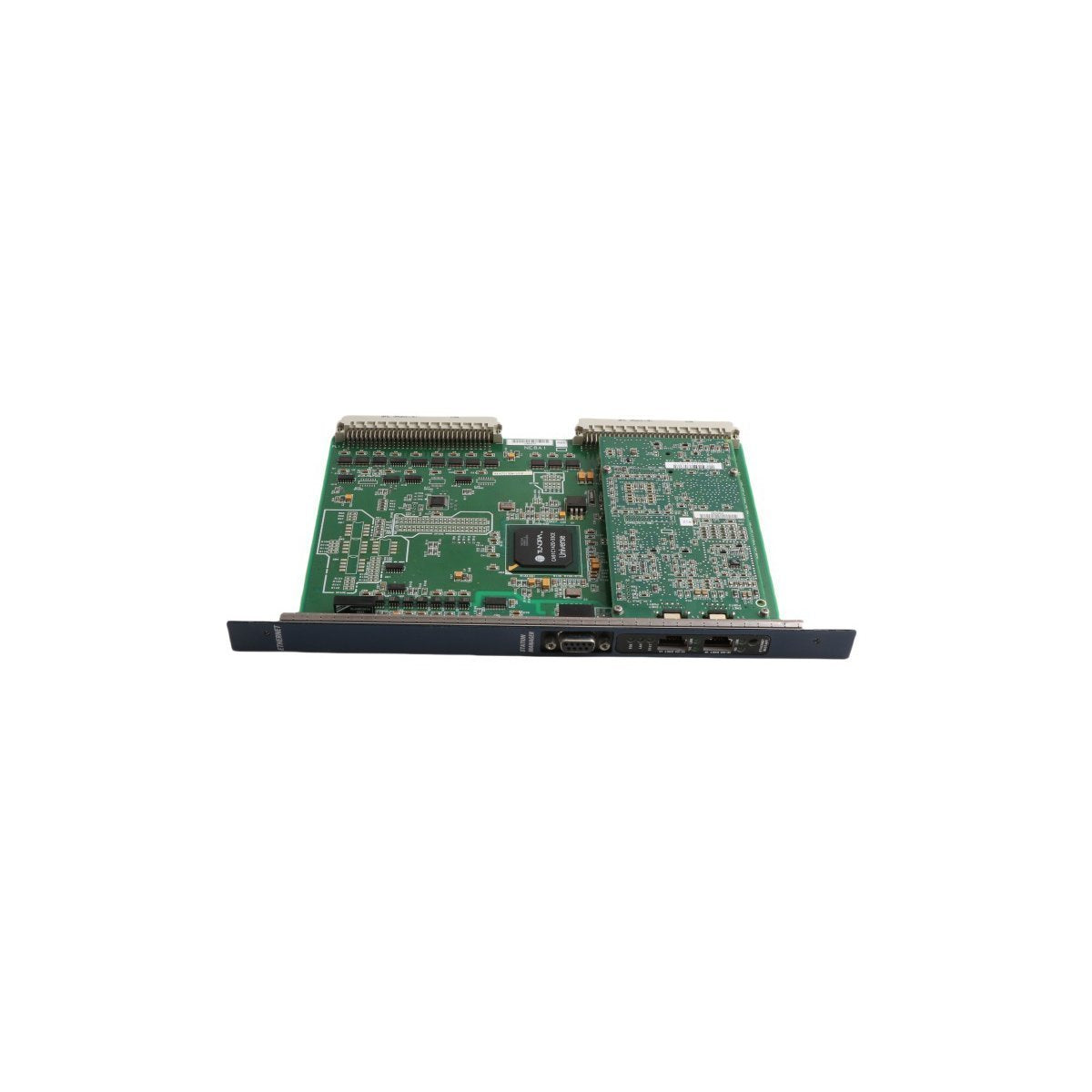

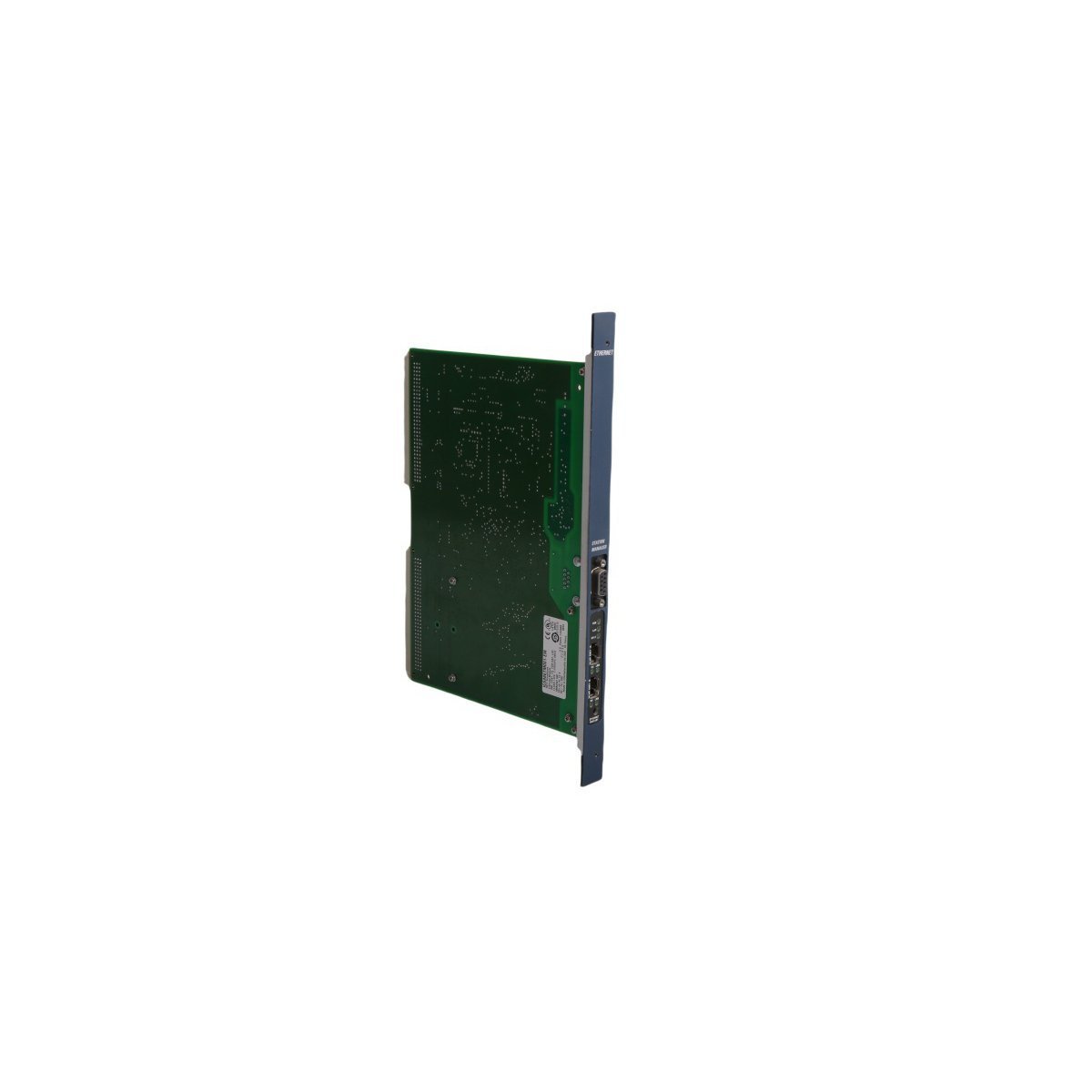

The GE Fanuc IC698ETM001 Ethernet Interface Module provides Ethernet networking for PACSystems RX7i PLC systems. It enables controller communications with HMIs, SCADA servers, historians, and Ethernet-based remote devices, supporting plant-wide data exchange and maintenance connectivity. Dual RJ45 ports allow flexible wiring layouts such as star or line topologies, reducing the need for additional network hardware in cabinet installations.

A dedicated onboard processor handles network services and diagnostics, helping maintain stable communications in industrial automation environments.

Network and Interface Specifications

• Model Number: IC698ETM001

• Product Type: Ethernet Communication Module

• Product Family: PACSystems RX7i

• Ethernet Ports: 2 × RJ45

• Link Speed: 10/100 Mbps auto-negotiation

• Cabling: CAT5 or higher

• Topology Support: Line/daisy-chain and standard switched networks

• IP Options: Standard addressing with support for redundancy features (system dependent)

• Service Port: 9-pin serial Station Manager port (1200–115200 bps)

• Supported Protocols: TCP/IP, Modbus TCP Server, Modbus TCP Client

• Time Sync: SNTP client support

• Diagnostics: Module OK, LAN Online, Status, Link P1/P2 LEDs

• Processing: Dedicated microprocessor for Ethernet management

• Condition: Brand new

• Weight: Approx. 0.36 kg

• Dimensions: Approx. 2.1 × 17.3 × 29.3 cm

• System: PLC

• Product Status: Active

• Country of Origin: USA

• HS Code: 8537101190

Typical Use Scenarios

The IC698ETM001 is used in RX7i control systems that require reliable Ethernet communications for supervisory integration and networked device coordination. Typical deployments include manufacturing lines, process skids, utilities, material handling systems, and plant data acquisition architectures where PLCs must exchange data with multiple clients simultaneously.

It is also applied in retrofit projects to add Ethernet capability to existing RX7i racks while keeping installed I/O and CPU hardware unchanged.
