Product Overview

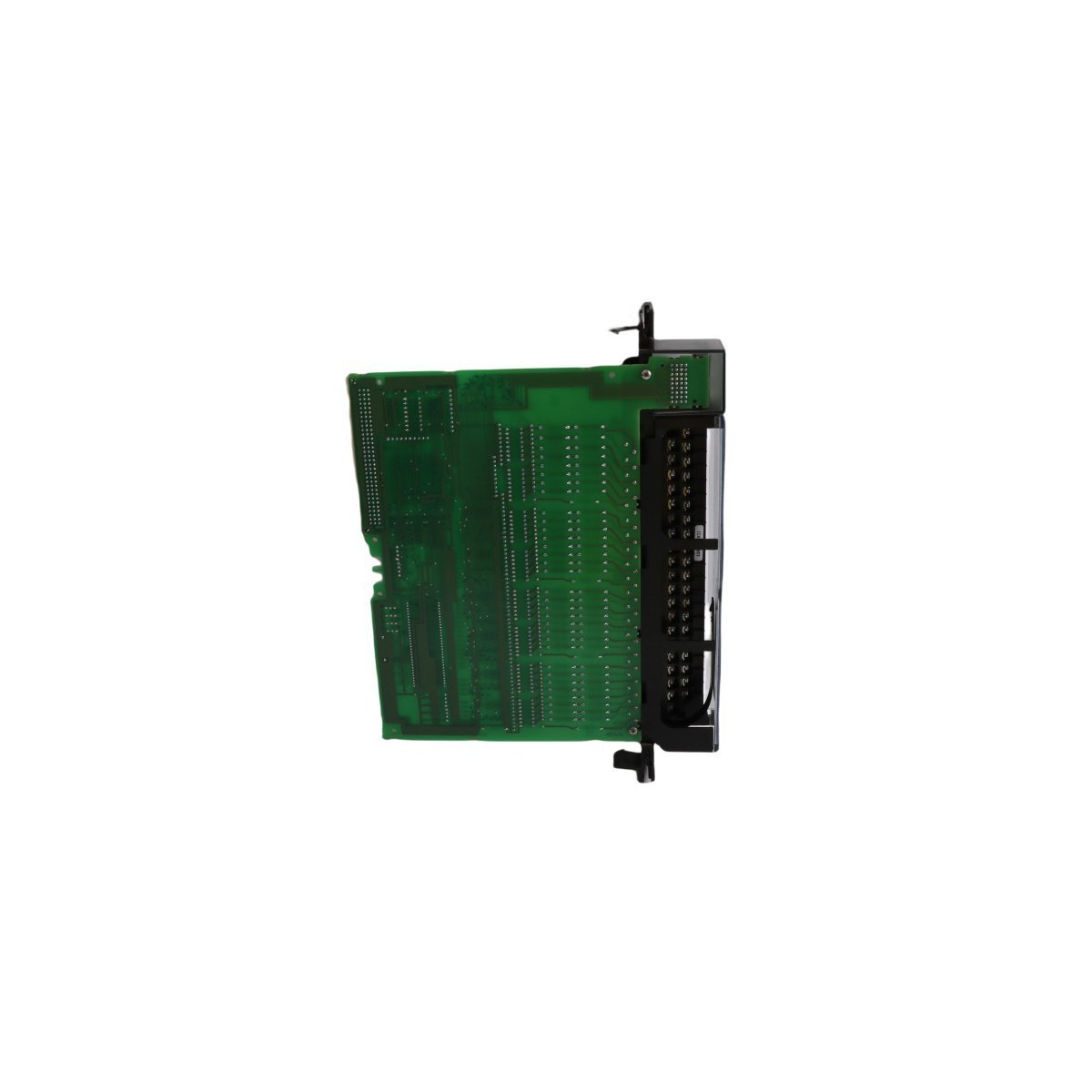

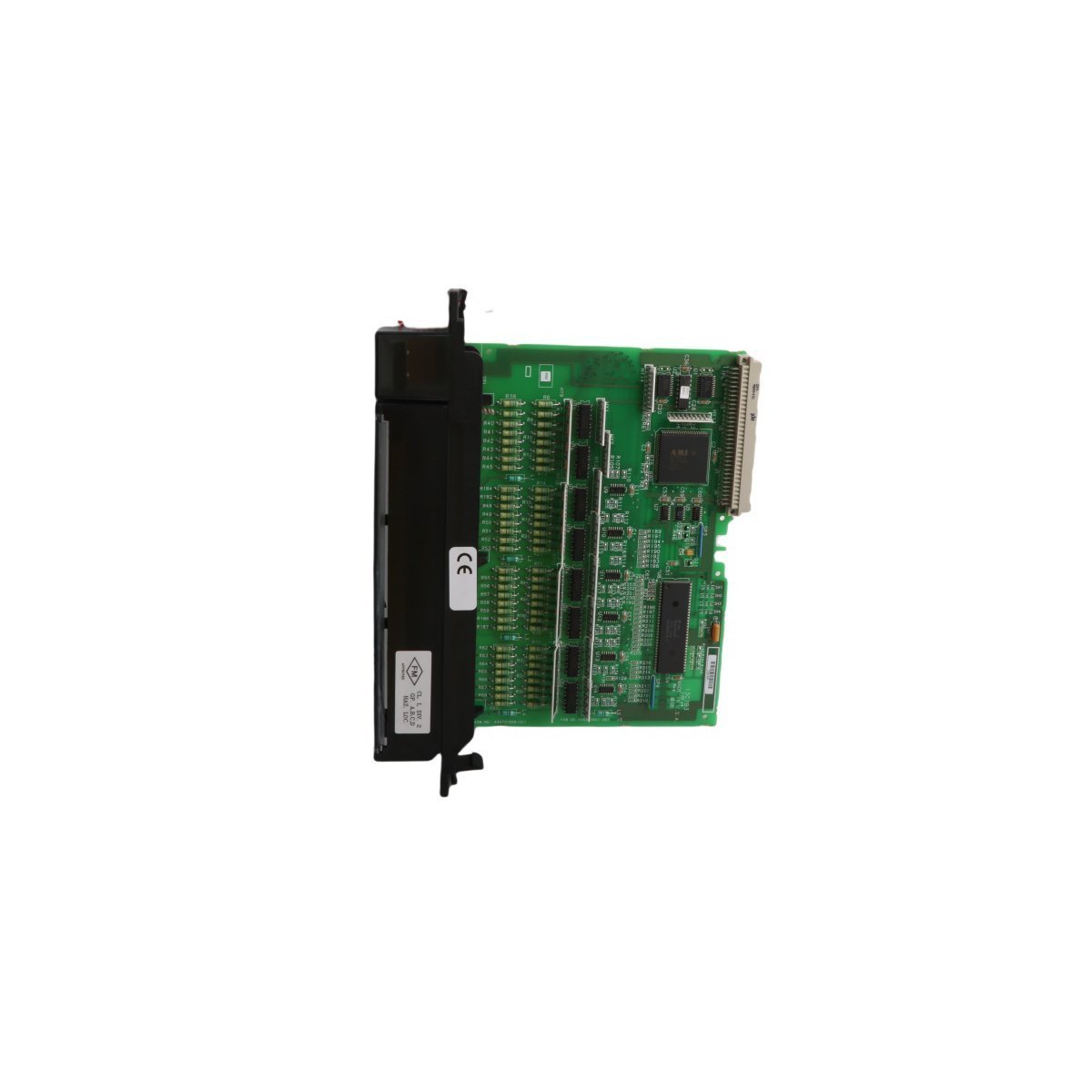

The Emerson GE Fanuc IC697MDL653 is a 32-channel DC digital input module designed for Series 90-70 PLC systems. It is engineered to reliably detect discrete on/off signals from common industrial field devices such as limit switches, pushbuttons, photoelectric sensors, and proximity switches. With a compact, single-slot form factor, this module enables high input density while maintaining strong electrical isolation and stable signal processing in demanding automation environments.

The IC697MDL653 supports both sinking and sourcing input wiring, allowing it to adapt to different control cabinet standards without hardware modifications. All configuration is handled through PLC software, simplifying system setup and reducing installation errors.

Key Technical Characteristics

The IC697MDL653 is built with a segmented input structure that enhances protection and signal reliability. Inputs are organized into four electrically isolated groups, minimizing cross-channel interference and improving system resilience.

Key hardware parameters include:

• 32 digital DC input points

• Four isolated groups with eight inputs per group

• Nominal input voltage of 24 VDC

• Input voltage operating range from -3 VDC to +30 VDC

• Logic ON threshold between 13.5 and 30 VDC

• Logic OFF threshold between 0 and 5 VDC

• Typical input impedance of 2.6 kΩ

• Selectable input filtering of 1 ms or 10 ms via software

• 1500 VDC isolation between field inputs and backplane

• 500 VDC isolation between input groups

• Backplane current consumption of approximately 300 mA at 5 VDC

Status LEDs on the front panel provide clear visual indication of each input state, assisting with commissioning, troubleshooting, and ongoing maintenance.

Industrial Applications

The IC697MDL653 is suited for a wide range of discrete monitoring tasks in industrial control systems. It is commonly deployed in manufacturing lines, material handling systems, packaging equipment, and process automation applications where dependable signal acquisition is required.

Typical operational uses include monitoring machine position switches, operator interface buttons, safety interlocks, and sensor feedback signals. Its high isolation ratings and configurable filtering make it especially suitable for electrically noisy environments where signal integrity is critical to reliable PLC operation.
