Product Overview

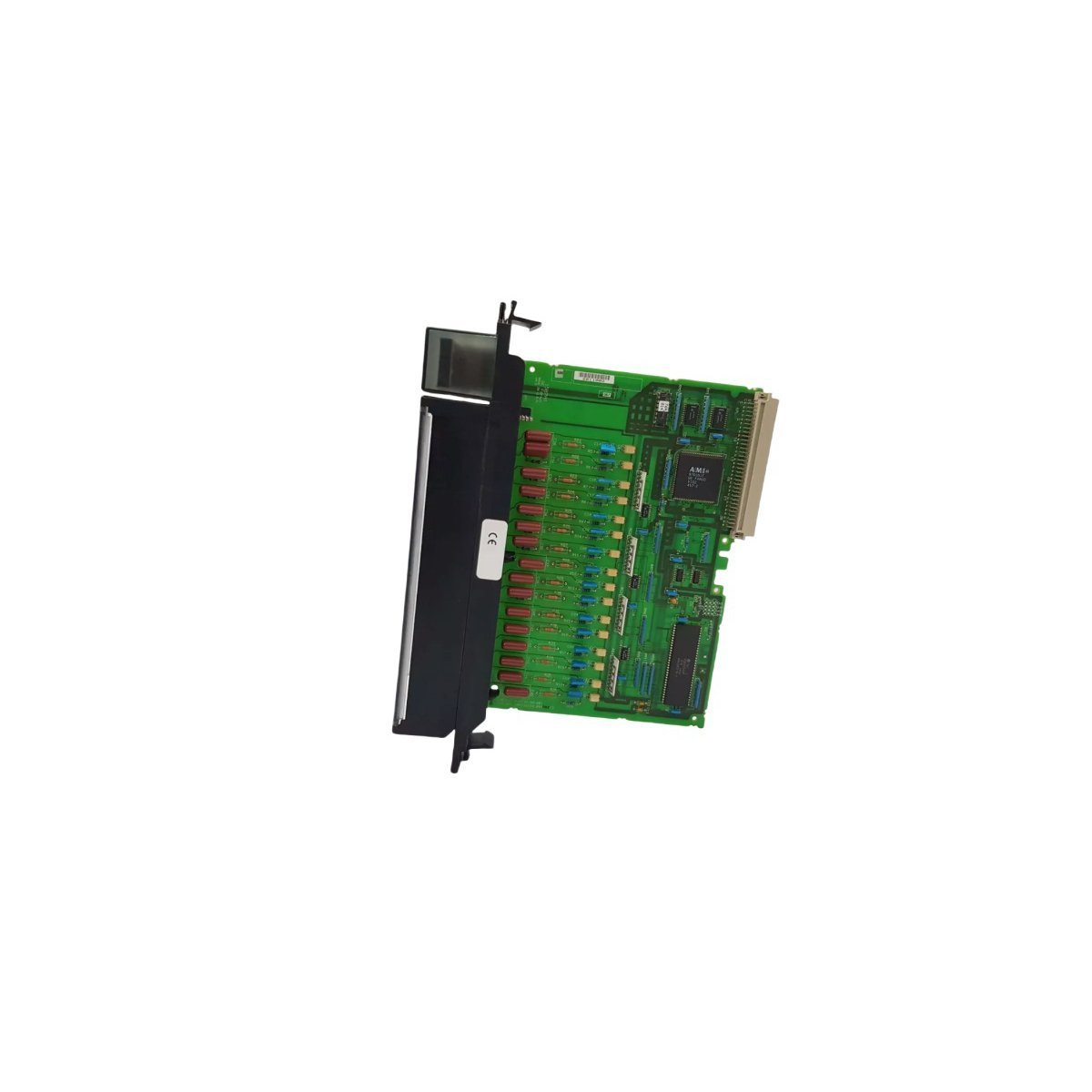

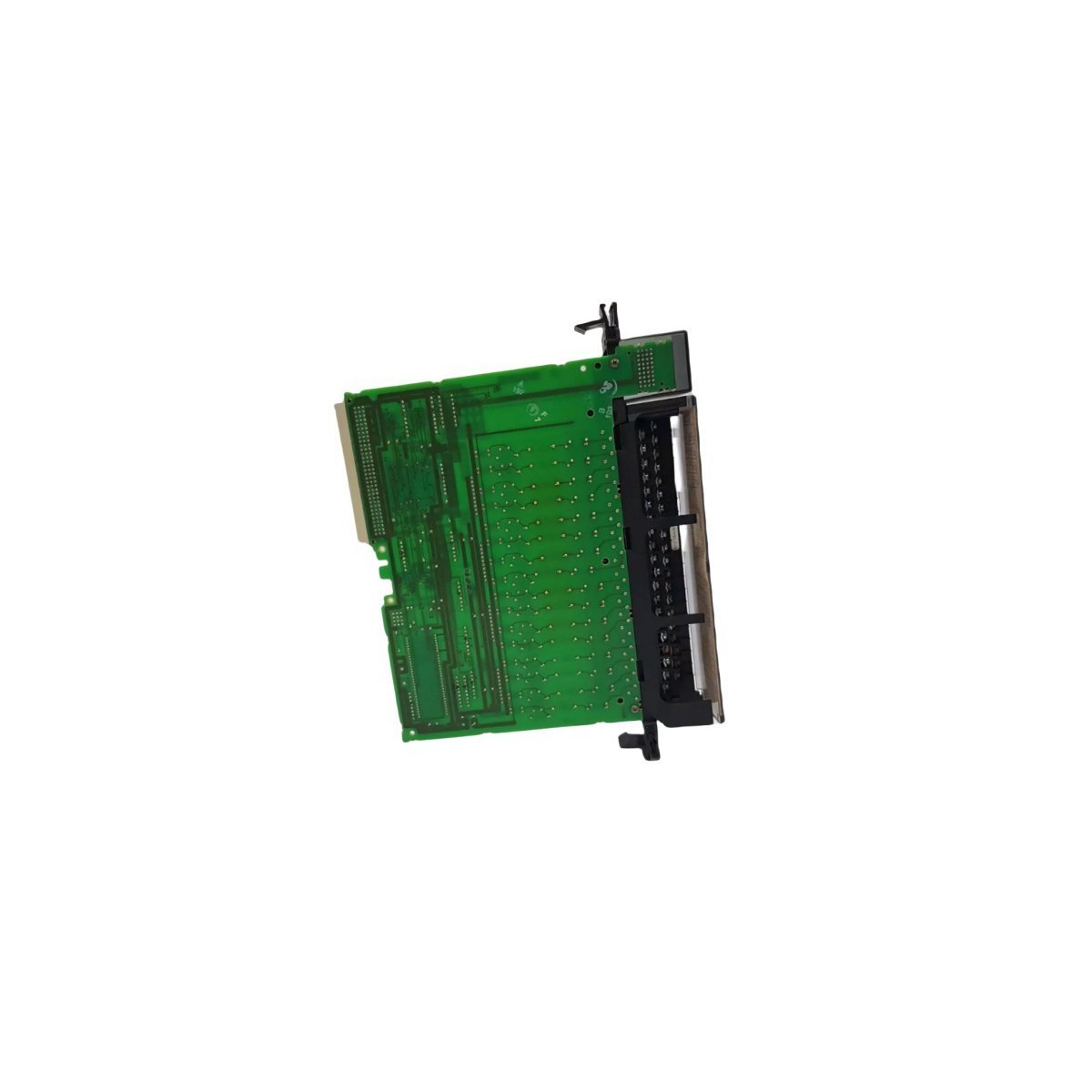

The GE Fanuc IC697MDL240 is a high-voltage AC discrete input module for Series 90-70 PLC racks. It provides 16 isolated input channels for monitoring 120 VAC field signals from switches, contact outputs, and AC-powered sensors. Channel isolation allows inputs to be referenced to different AC phases, supporting flexible wiring in industrial control cabinets. Built-in per-point indication helps verify field status during commissioning and troubleshooting.

Electrical and Hardware Characteristics

• Model / Order Number: IC697MDL240

• Product Family: Series 90-70

• Product Type: Isolated AC Discrete Input Module

• Input Points: 16 isolated inputs

• Rated Input Voltage: 120 VAC

• Input Filtering: 20 ms filter delay per channel

• Sensor Compatibility: Suitable for reactive AC inputs, including many 2-wire or 3-wire proximity switches

• Status Indication: Individual input LEDs

• Backplane Current Draw: 0.25 A from 5 V bus

• Mechanical Keying: Backplane key prevents incorrect module insertion

• Typical On-State Current: 10 mA

• Off-State Leakage Sink: Up to 4 mA

• Condition: Brand New, In Stock, Active

• Origin: USA

• Weight: 0.62 kg

• Dimensions: 4 × 21.8 × 29.3 cm

• HS Code: 8537101190

• MOQ: 1

Industrial Applications

• Monitoring 120 VAC control circuit status in machinery and process equipment

• Reading limit switches, pushbuttons, and relay/contactor auxiliary contacts

• AC sensor inputs in legacy panels where DC conversion is not preferred

• Retrofit replacement and I/O expansion for Series 90-70 PLC installations
