Product Overview

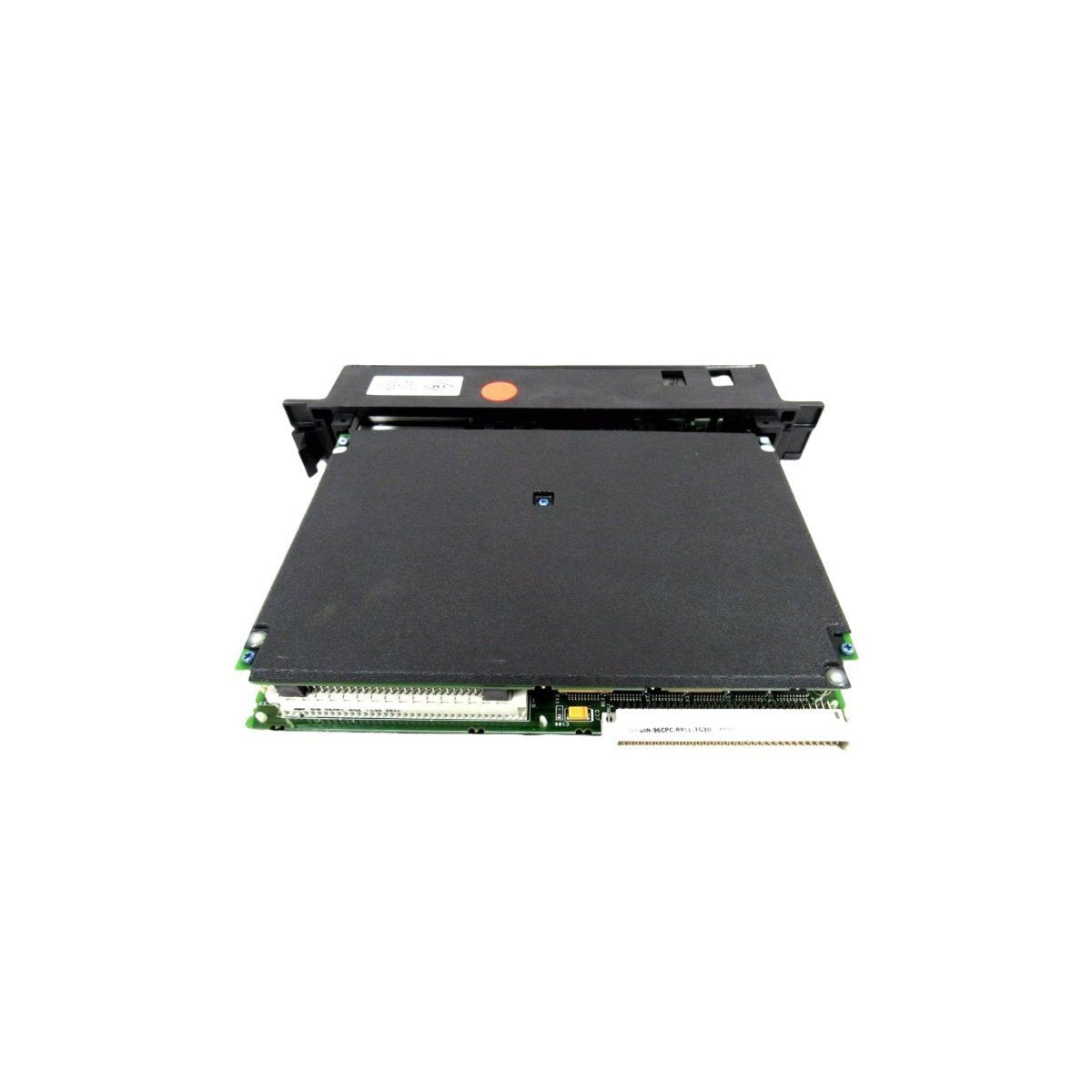

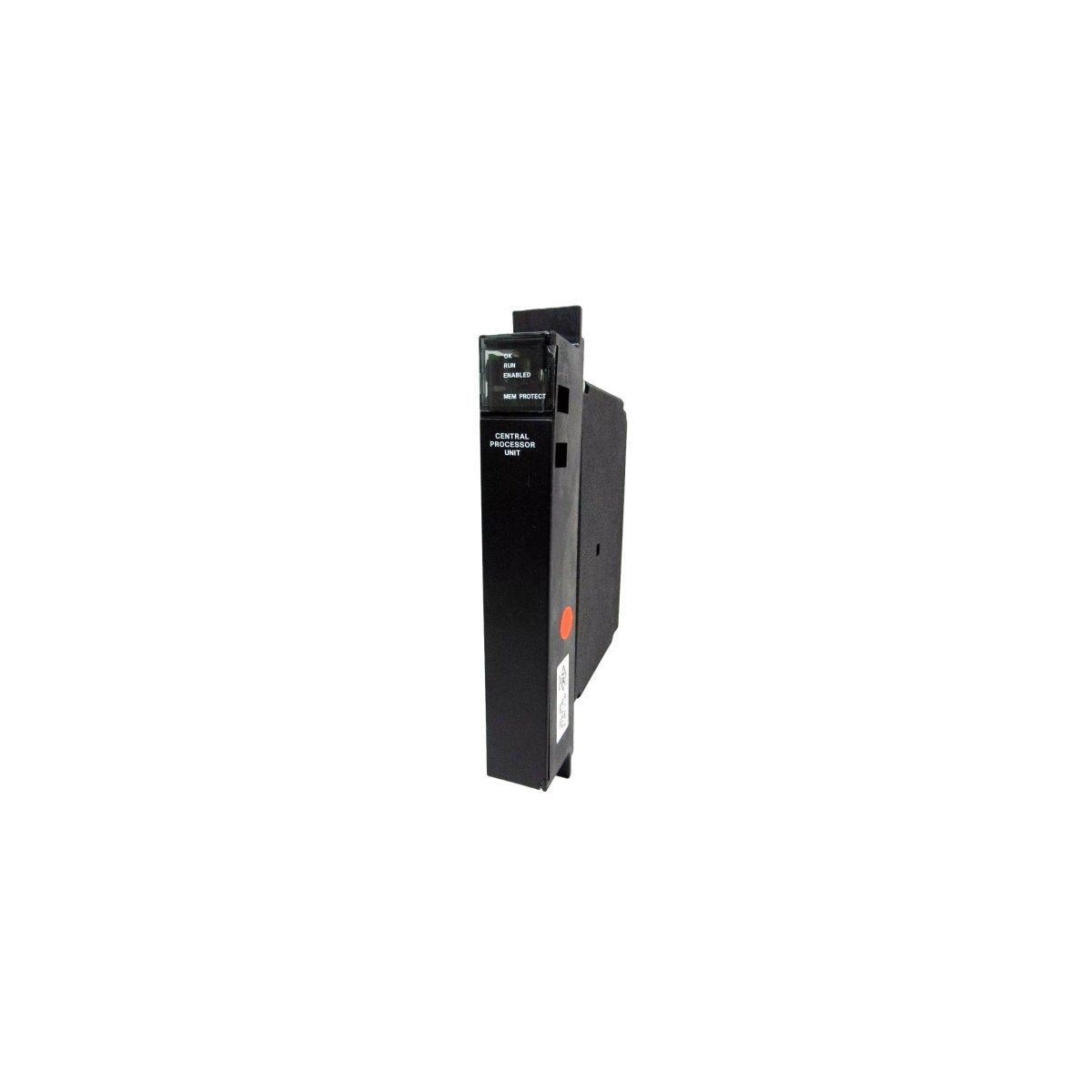

The GE Fanuc IC697CPU782 is an expandable CPU module for Series 90-70 PLC systems, intended for applications that require fast logic execution and floating-point math. Installed in a compatible IC697 VME-style baseplate, the CPU executes the user program, manages I/O scans across the backplane, and supports advanced control functions such as comparisons, scaling, and PID-style regulation when configured in the control strategy.

This processor supports discrete and analog data handling for larger control architectures. Battery-backed RAM retention helps preserve application data and configuration during power loss events, while a keyswitch-based memory protection feature supports controlled access during maintenance and commissioning.

Performance and Hardware Parameters

• Model / Order Number: IC697CPU782

• Product Family: Series 90-70

• Product Type: PLC CPU Module (Floating-Point)

• Processor: Intel 80386DX

• Clock Speed: 16 MHz

• Boolean Execution Speed: Up to 0.4 µs per Boolean instruction (typical)

• I/O Data Capacity:

• Discrete I/O: Up to 12 KB

• Analog I/O: Up to 8 KB

• Expansion Memory: Supports up to 512 KB expansion memory (module dependent)

• Backplane: VME C.1 standard style backplane interface for IC697 racks

• Control Functions: Supports floating-point operations and advanced control calculations, including PID capabilities via software features

• Security: Keyswitch memory protection to restrict write access

• Backup Battery: Uses IC697ACC701 lithium battery for RAM retention

• Data retention: Up to 6 months without power (conditions dependent)

• Shelf life: Typically up to 10 years (storage dependent)

• Environmental Ratings:

• Operating temperature: 0 to 60 °C

• Storage temperature: -40 to 85 °C

• Vibration: 1 G

• Shock: 15 G

• Rack Installation: Designed for IC697 5-slot and 9-slot racks; CPU slot assignment depends on rack configuration guidelines

• Programming Software Support: Logicmaster 90-70, VersaPro, and Proficy Machine Edition Logic Developer PLC (version compatibility dependent)

• Communications: Programming and connectivity via serial/parallel, with Ethernet support available through optional communication modules

• Condition: Brand New, In Stock, Active

• Origin: USA

• Weight: 0.62 kg

• Dimensions: 4 × 21.8 × 29.3 cm

• HS Code: 8537101190

• MOQ: 1

Industrial Applications

• Process control requiring floating-point calculations for scaling, totals, and engineering units

• High I/O-count automation systems combining discrete logic and analog loop control

• Retrofit upgrades where Series 90-70 installations require expandable memory and higher math capability

• Machine and line control using PID regulation, interlocks, and coordinated sequencing

• Utilities, metals, chemicals, and heavy manufacturing systems using IC697 rack-based PLC platforms
